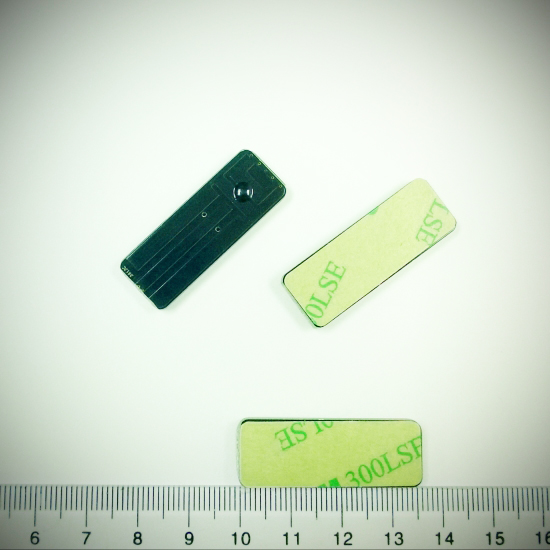

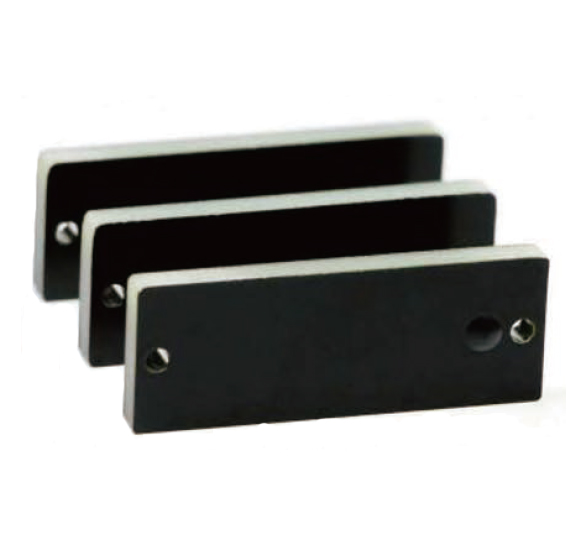

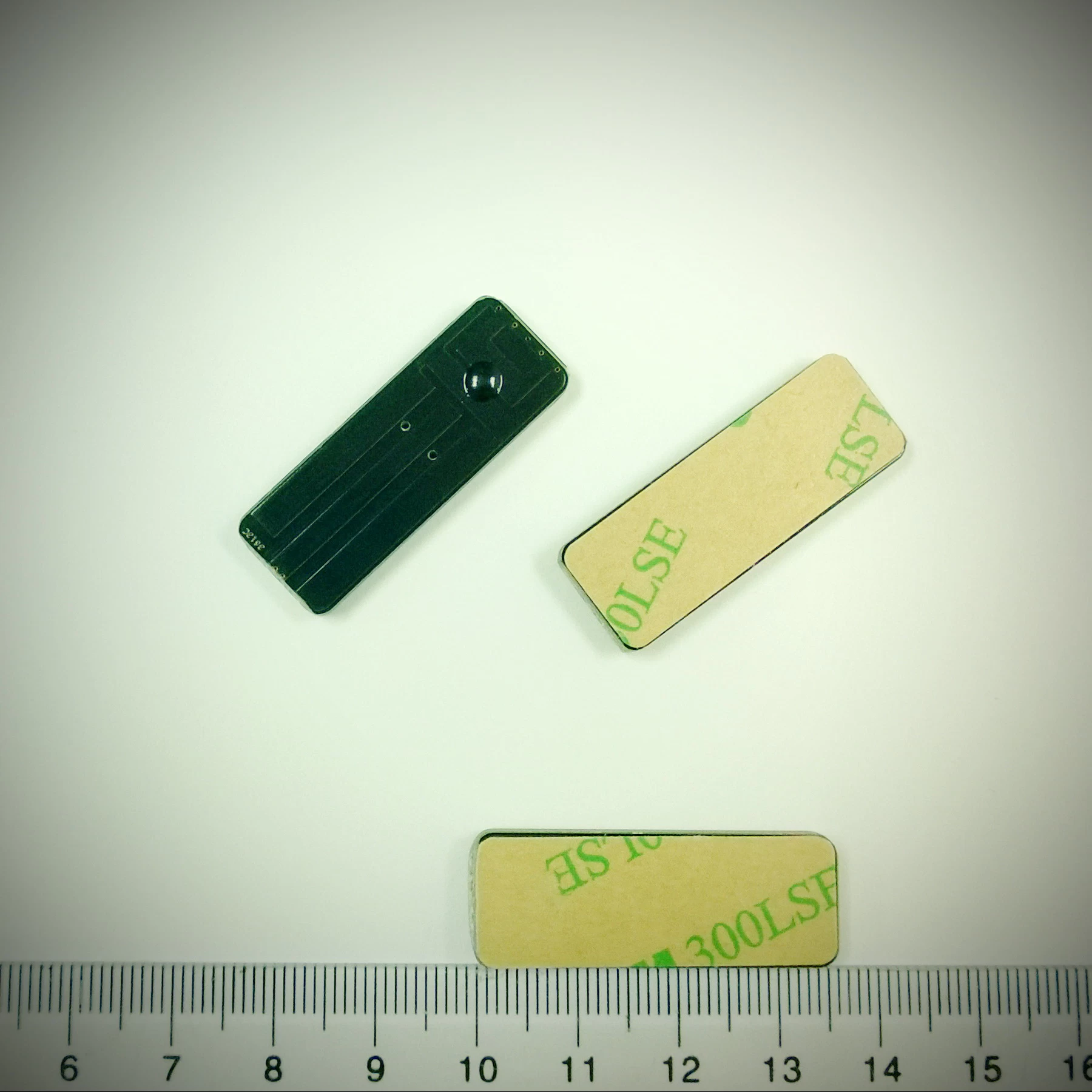

UHF RFID Ceramic Metal Tag CL7203E-95

Gen2 Anti-metal RFID sticker/label, PCB material. Wide applications: Assets management, documents management,equipment management



Features

1. Reliable: Alien A3 chip

2. Small size: 95mm×25mm×3mm

3. High performance: reading distance up to 4.5m.

4. Flexible application: asset management, tools management, equipment management.



Performance parameter

Frequency

902MHz928MHz; ETSI: 865-868MHz

Protocol

ISO/IEC 18000-6C EPC global GEN2 Class1

Chip

Alien H3 / Impinj M4

Polarization

Liner polarization

Sensitivity

-17dB -19dB

Reading range

4.5m (EIRP =30dBm)

Writing range

2m (EIRP =30dBm)

EPC area

96bits

User area

512bits

TID area

64bits

Access password

32 bits

Kill password

32 bits

Working mode

Passive

Data storge

>10years

Rewriting

>100000times

Housing Material

PCB

Weight

8.5g/pc

Package

200pcs/box
