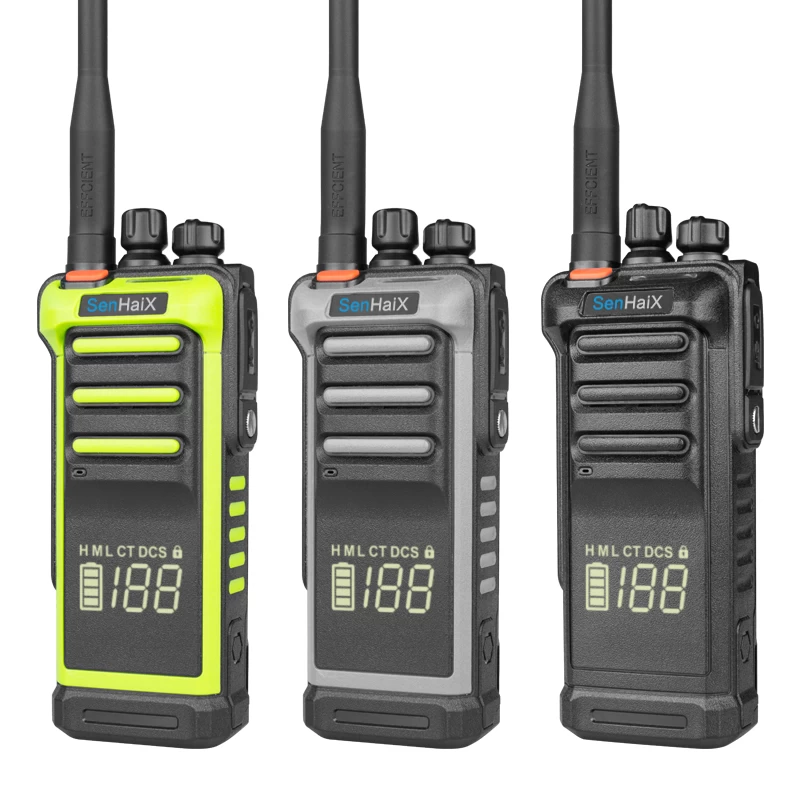

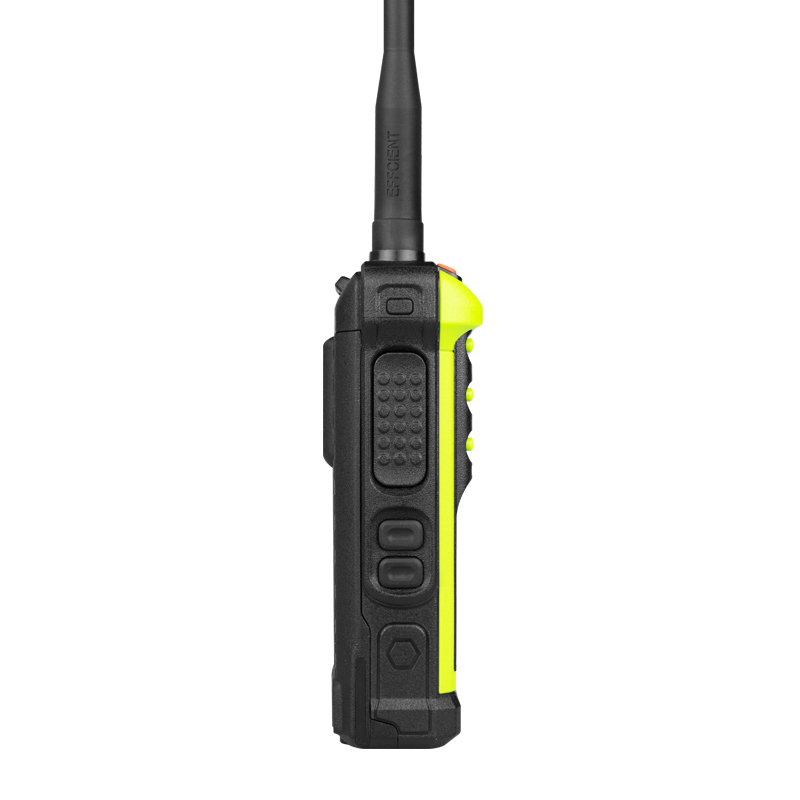

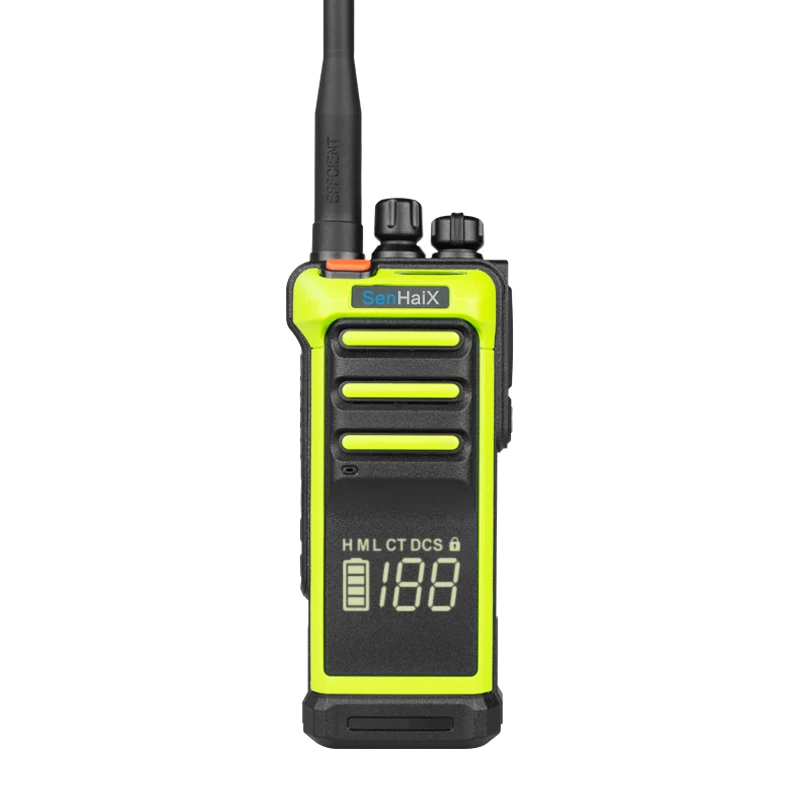

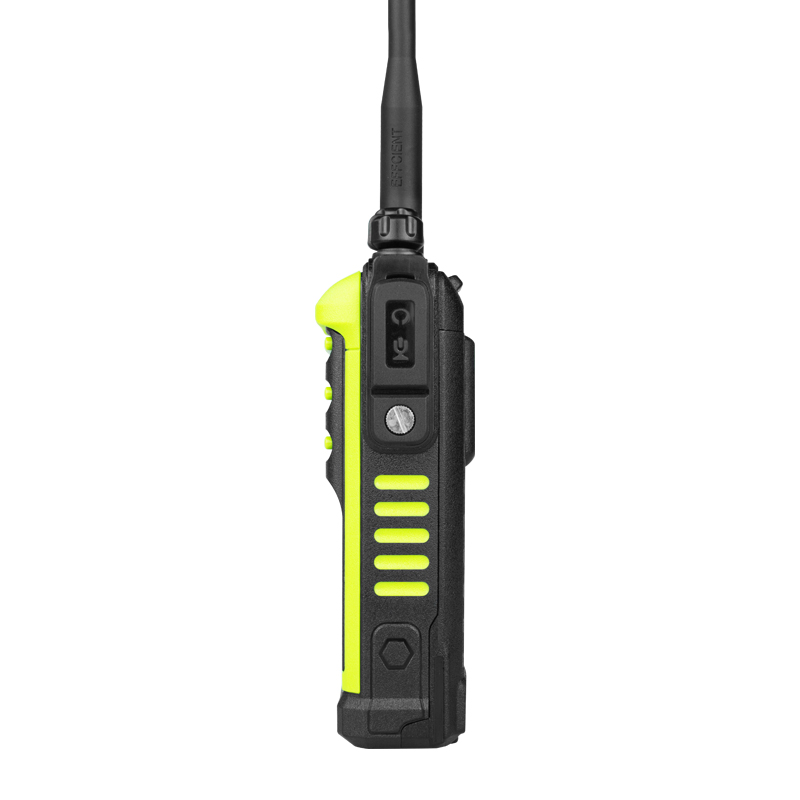

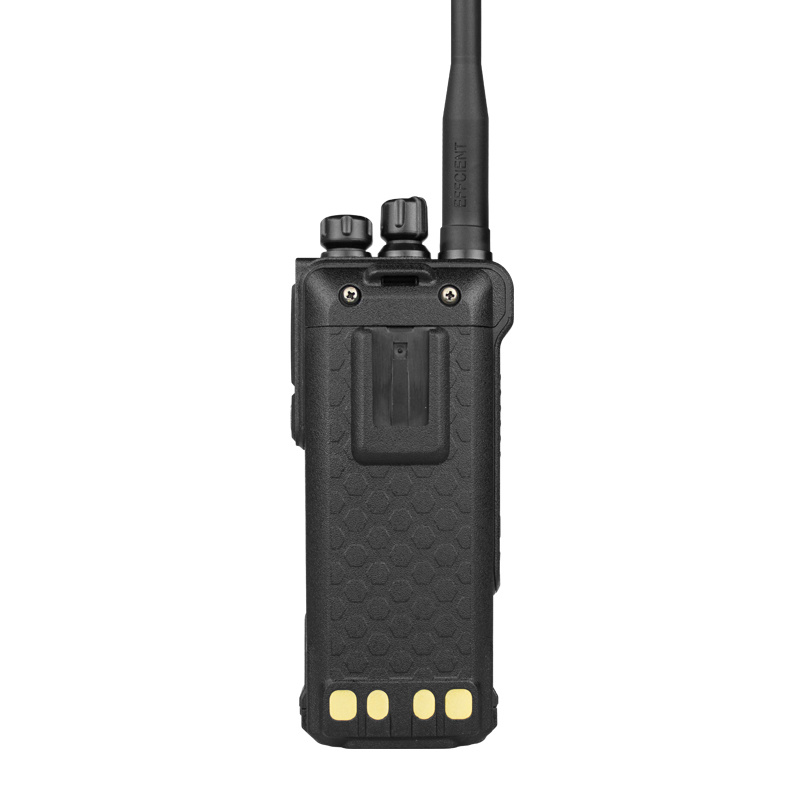

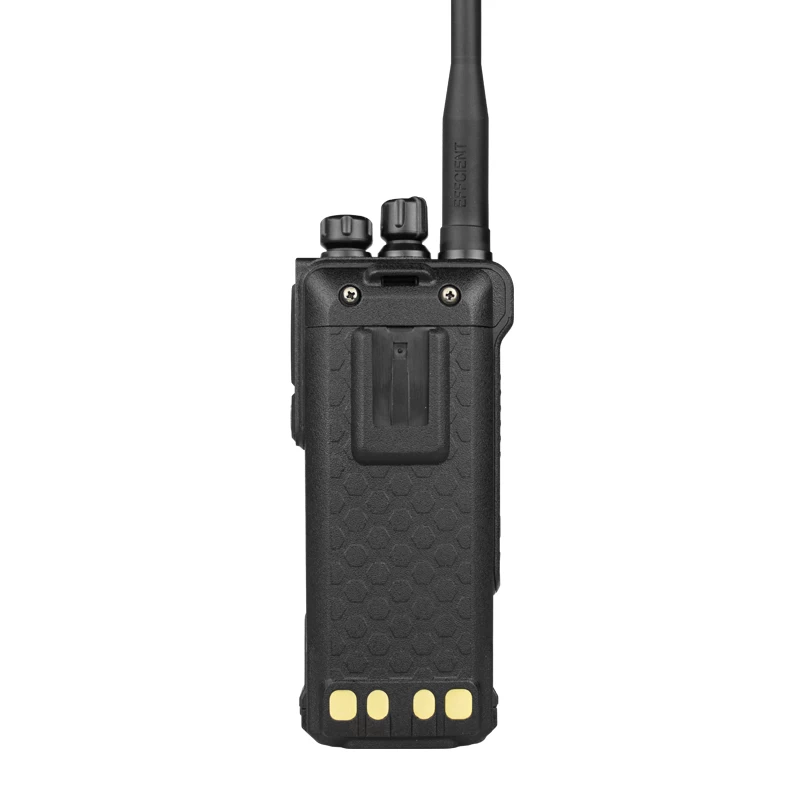

Product Name: UHF VHF 10W Handheld Two Way Radio
Product Features
1. Output Power: 10W(H) 5W(M) 2W(L)
2. Battery Capacity: 3000mAh (Li-polymer battery)
3. Hidden LCD Display
4. Scan Function
5. VOX Function
6. Wide/Narrow Band 25KHz/12.5KHz
7. Emergency Alarm
8. Battery Saver
9. Low Battery Warning
10. Scrambler Function
11. channel Lock Out
12. TOT Function
13. CTCSS/DCS
14. Squelch Level Adjust
SenHaiX is professional manufacturer engaged in the research, development, production, sale and service of professional dual band two way radio. We have developed a full range of SenHaiX BRAND series two-way radios.
Technical Specifications
|
General
|
|
Model No.
|
GT-10
|
|
Dimension
|
65x46x140mm
|
|
Weight
|
360g
|
|
Frequency Range
|
UHF 400-470MHz
|
|
VHF 136-174MHz
|
|
Channel Capacity
|
199CH
|
|
Channel Spacing
|
12.5KHz/25KHz
|
|
Operating Voltage
|
7.4V-8.4V DC
|
|
Battery Capacity
|
3000mAh (Li-polymer)
|
|
Operating Temperature
|
-20℃ to +50 ℃
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna Impedance
|
50Ω
|
|
Transmitter
|
|
Output Power
|
H:10Watts M:5Watts L:2watts
|
|
Modulation Type
|
16kφF3E(Wide Band)
|
|
11kφF3E(Narrow Band)
|
|
MAX. Frequency Deviation
|
<5KHZ(Wind Band)
|
|
<2.5KHZ(Narrow Band)
|
|
Adjacent Channel Power
|
≥60dBTransmitter
|
|
S/N
|
≥45dB
|
|
Audio Distortion
|
≤3%
|
|
Audio Response
|
6dB/Each octave
|
|
FM
|
≤-36dB
|
|
Receiver
|
|
Sensitivity
|
≤0.25V
|
|
Spurious Rejection
|
≥80dB
|
|
Audio Response
|
6dB/Each octave
|
|
S/N
|
≥50dB
|
|
Rated Output Power
|
≤2%
|
|
Audio Output Level
|
22dBMW(10%hours)
|

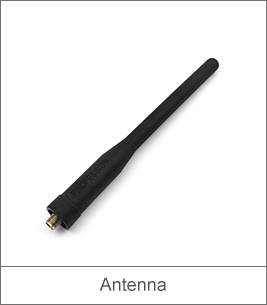

Standard Accessories
