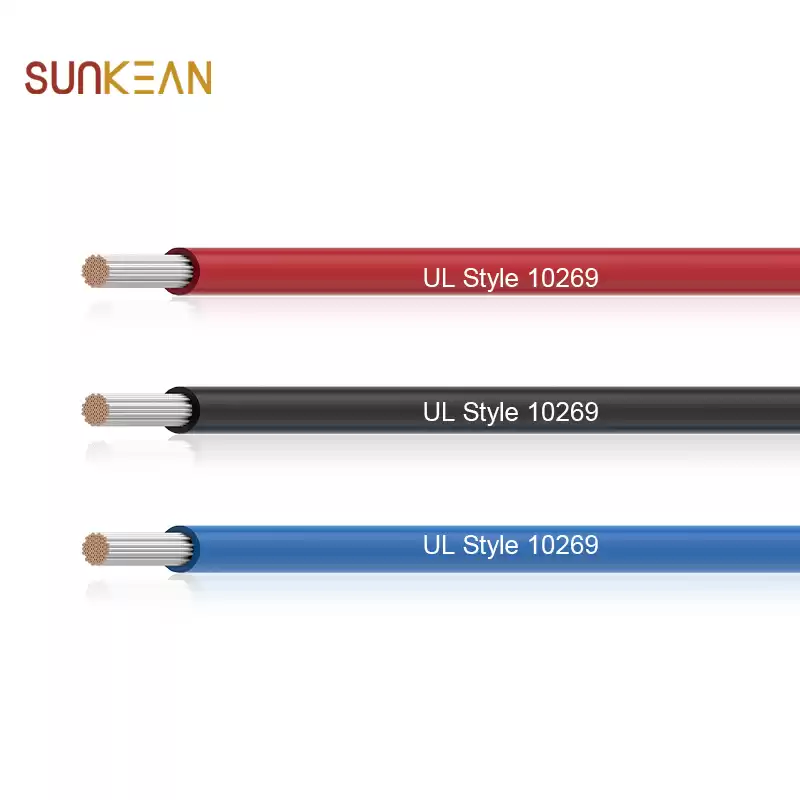

UL 10269 tinned copper stranded PVC insulated energy storage cable

The UL 10269 energy storage cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the RoHS environmental protection instruction.


  • Rated Voltage1000V or 2000V

UL 10269 tinned copper stranded PVC insulated energy storage cable

▲Easy stripping and cutting

▲Good flexibility

▲High flamen retardant


Product Information:

Conductor

Preferentially tinned copper stranded ,or bare copper stranded or solid conductor

Insulation
PVC, passed RoHS
Rated voltage 1000V or 2000V
Rated temperature 80°C,90°C,105°C
Reference Standard

UL758,UL1581

Flame Test UL VW-1 & CSA FT 1


UL 10269 Energy storage Cable


Cable Name

Cross Section

(AWG)

Construction

(No./mm)

Conductor O.D.

(mm)

Insulation O.D.

(mm)

Conductor Resistance Max

(Ώ/km)

UL style 10269

18 41/0.16 1.18 3.78 21.80
16 26/0.254 1.49 3.10 14.64
14 41/0.254 1.88 3.50 9.25
12 65/0.254 2.36 4.00 5.82
10 105/0.254 3.00 4.60 3.66
9 131/0.254 3.70 5.30 2.96
8 168/0.254 4.20 6.50 2.35
7 210/0.254 4.70 7.00 1.87
6 266/0.254 5.30 8.40 1.48
5 329/0.254 5.80 9.00 1.17
4 420/0.254 6.60 9.70 0.928
3 532/0.254 7.50 10.50 0.744
2 665/0.254 8.40 11.50 0.590
1 836/0.254 9.40 13.50 0.467
1/0
1045/0.254 10.50 14.60 0.370
2/0
1330/0.254 11.90 16.00 0.297
3/0 1672/0.254 13.00 17.50 0.236
4/0 2109/0.254 14.70 19.10 0.187
