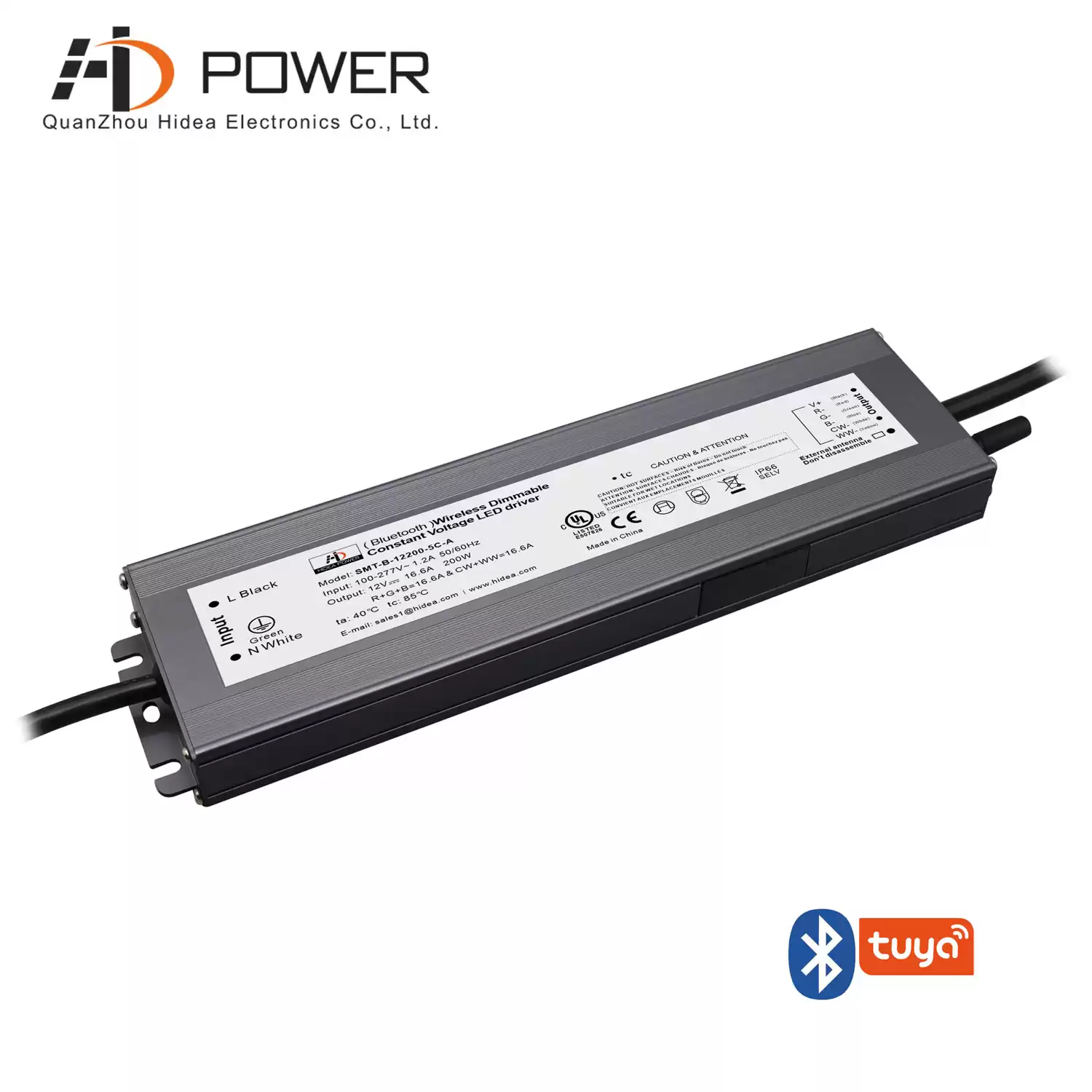

UL 5 CH 200w 24v bluetooth dimmable led driver

SMT-B-12200-5C-A is 12v 200w wireless dimmable led driver, controlled by Mobile APP, TUYA smart, work well with NEON FLEX 12V DC Single Color 5m strips.


  • Shape & SizeStandard Size
  • Output Voltage12/24/48Vdc
  • Output Power(Watt)200W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeBluetooth Dimming
  • Size256*78*47MM
  • Weight1450g
  • CertificationUL/CUL
  • Warranty7 Years

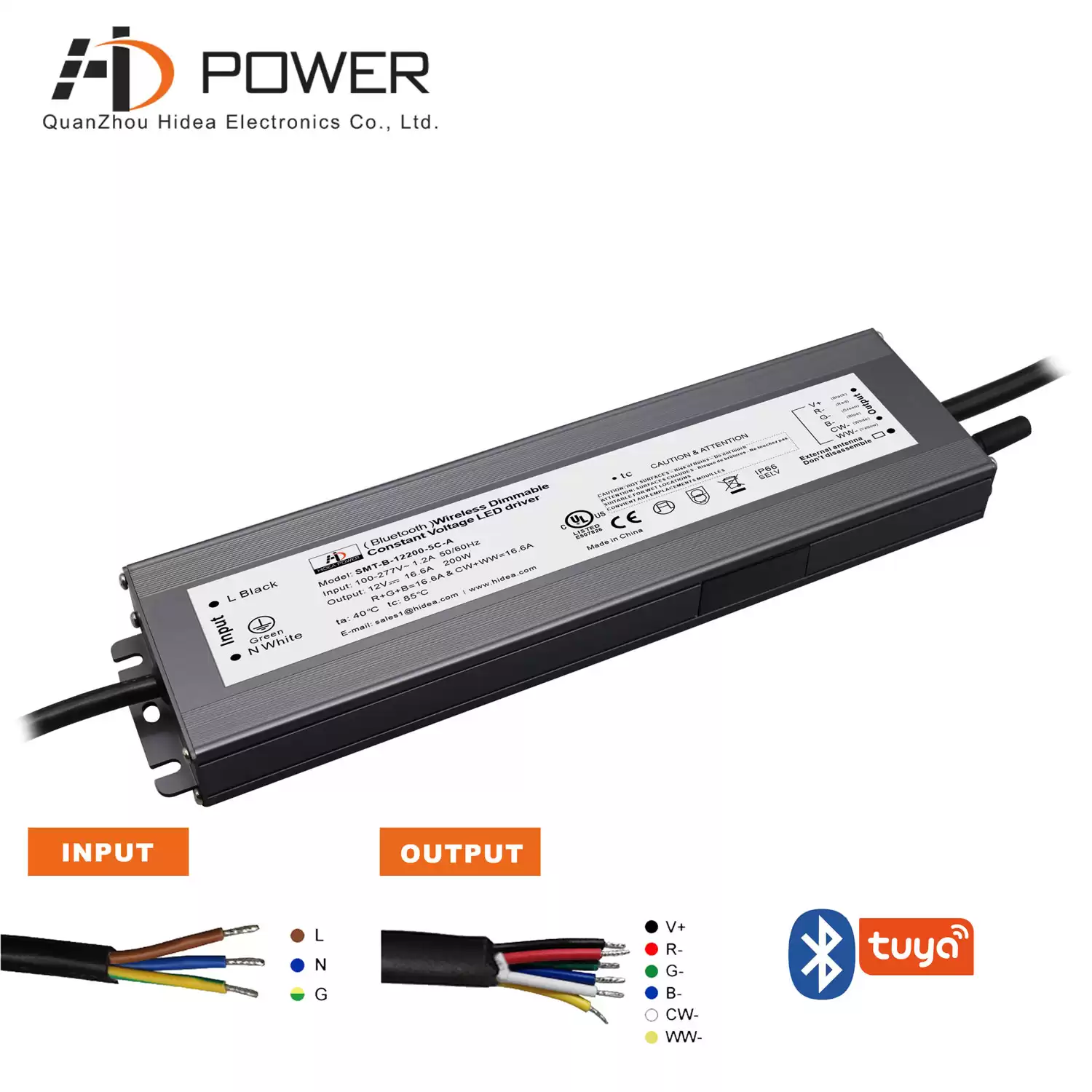

UL 5 CH 200w 24v bluetooth dimmable led driver


Bluetooth dimmable power supply 200w is adopt TUYA module, 8K Hz PWM output; Minimum dimmability is 1%, compatible with LTECH wireless dimmable driver 12v


  Specification

Model SMT-B-12200-YC-A SMT-B-24200-YC-A
Y=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation <1%
Rated current CH1+CH2+CH3+CH4+CH5=16.6A CH1+CH2+CH3+CH4+CH5=8.3A
Rated power 200W
Load Regulation <1%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
PowerFactor(Typ.)@ full load PF≥0.98/ 230VAC  (Full loading)
THD(Typ.)@ full load <15%
Efficiency(Typ.)@ full load 91% @230VAC  89% @120VAC
AC Current(Max.) 2.25A
Inrush Current (Typ.) 35.2A(Twidth 510us measured at 50% I peak,COLD START,230VAC)
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class II
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH ,non-condensing
StorageTEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6,11      EN61547
Others Net Weight 1.2KG
Dimension 279*78*25.1mm (L*W*H)
packing
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  Compatible Light Type

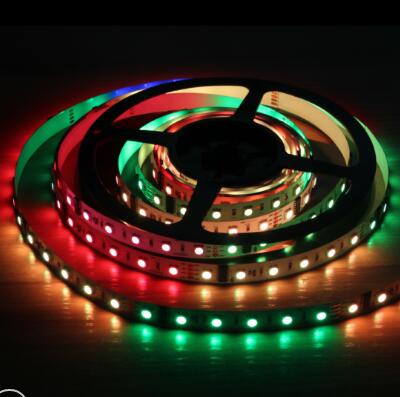

Dimming led drivers 200w bluetooth is UL Listed, suitable for intelligent LED lighting for all over the world, like ROLL LIGHTS lighting RGB Led Strip.




  Related Products

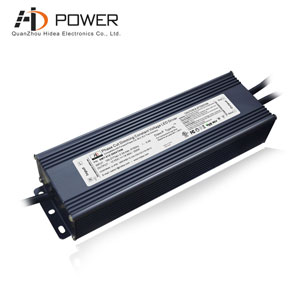

200w 24v led driver200w triac / phase cut dimming driver in 100-277vac, with PWM output, flicker free.
