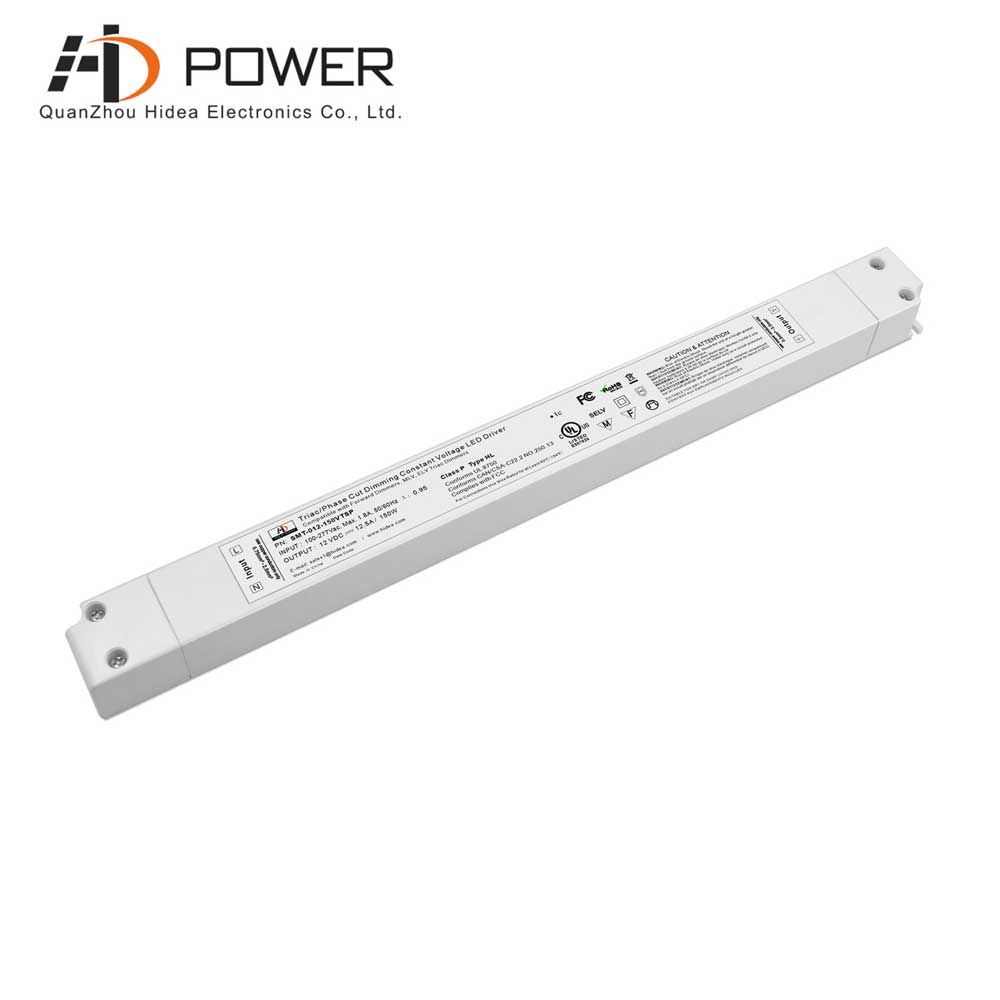

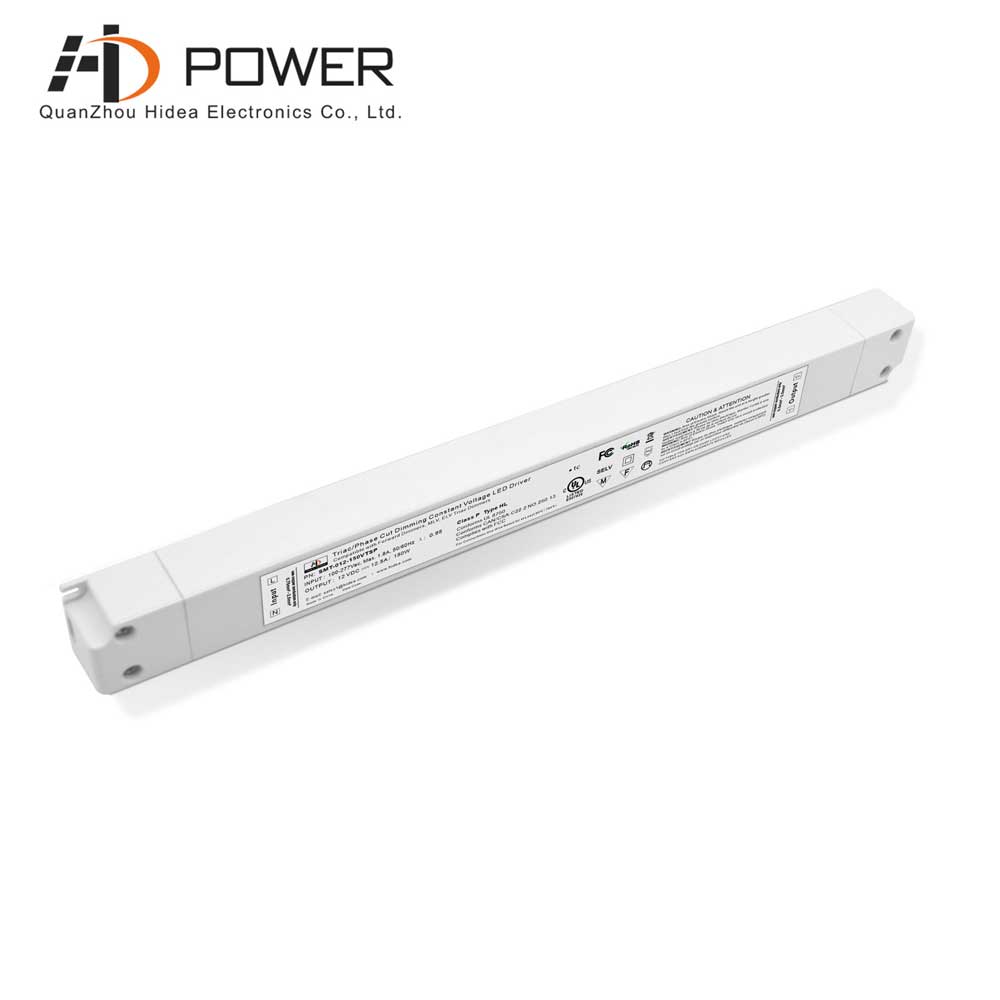

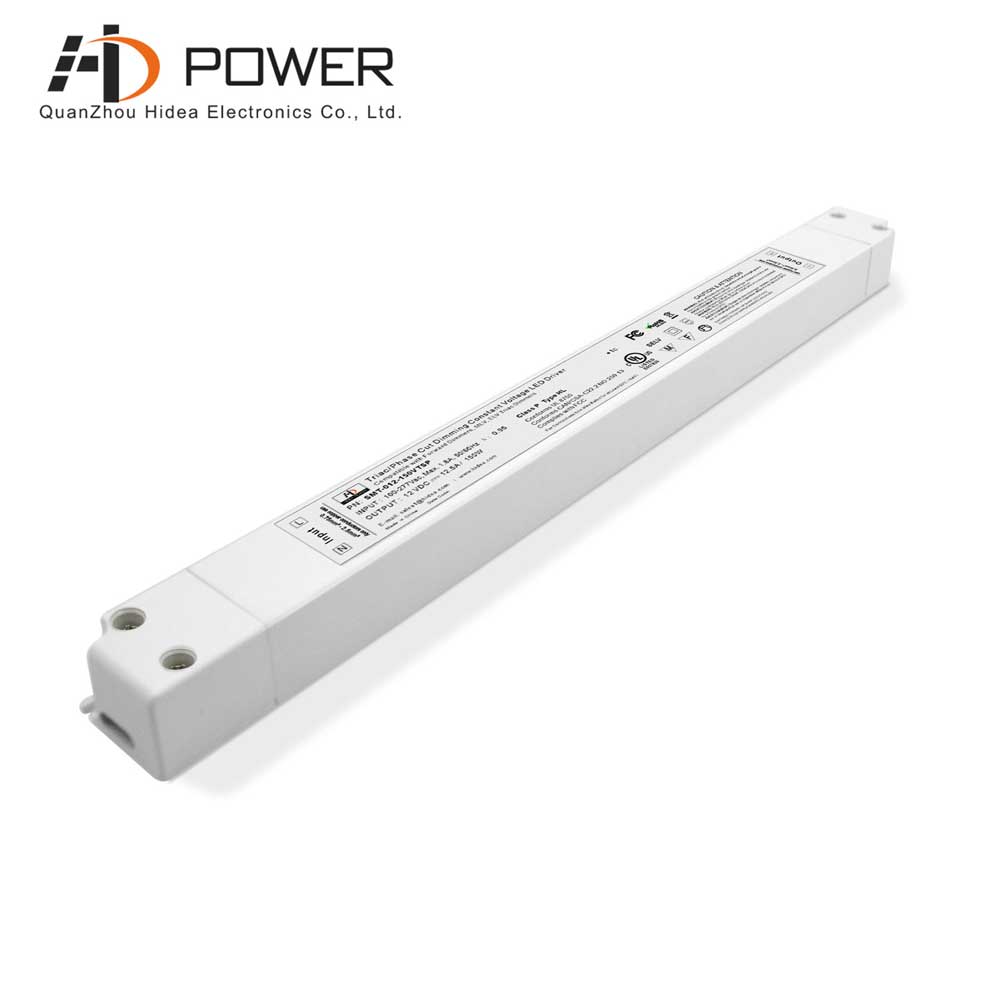

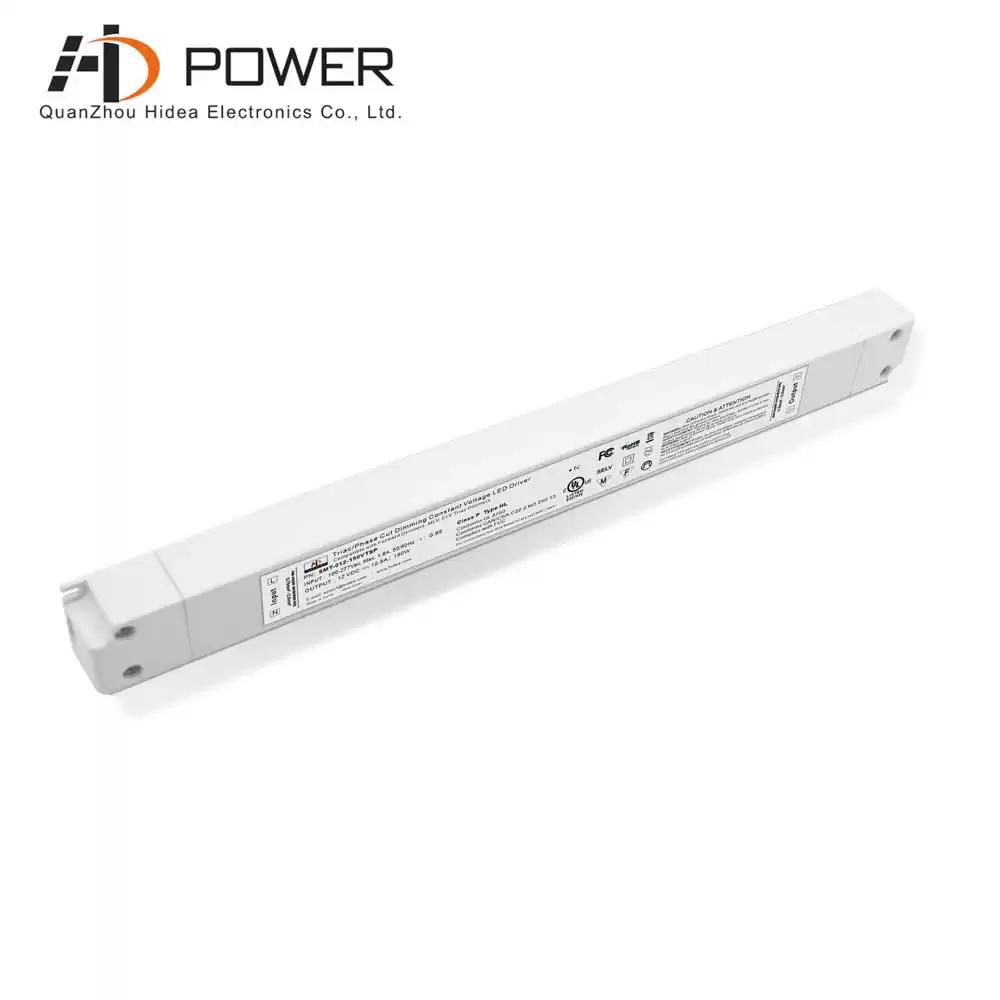

The led driver 150w is reliable for led lighting systems that reducing energy consumption and are friendly to environment. The flawless design makes it last longer and run continuously.

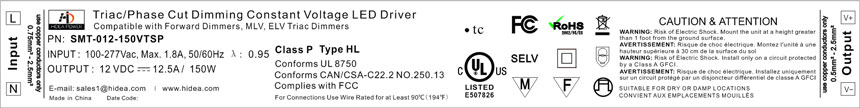

Label
Specification
|
Model
|
SMT-012-150VTSP
|
SMT-024-150VTSP
|
SMT-048-150VTSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
48VDC
|
|
Voltage Accuracy
|
±5%
|
|
Rated current
|
12.5A
|
6.25A
|
3.125A
|
|
Rated power
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency
|
>89%
|
>90%
|
>91%
|
|
AC Current(Typ.)
|
1.90A/100VAC / 0.82A/277VAC
|
|
Inrush Current(Typ.)
|
59.2A/212us@50%Ipeak
|
|
Leakage current
|
<0.50mA/110VAC; ﹤0.13mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.65Kg
|
|
Size
|
368*30*22.5mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

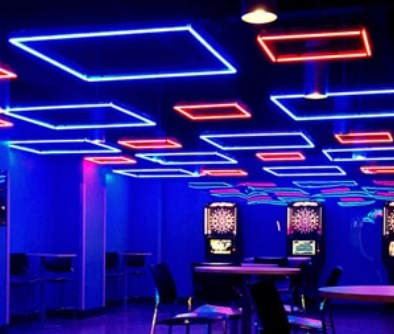

Compatible Light Type
The 12V 150Watt slim led driver has small and compact size but light weight. We are confident with the quality and promise to replace a new one if the defect come from the driver itself. The slim shape is extensively installed with led mirrors or neon light, such as GLLS.
Related Products
|

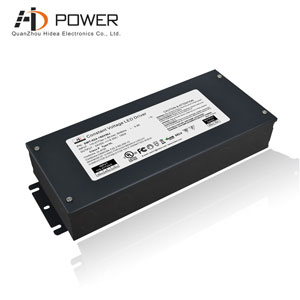

 Smarts non dimming 12V led power supply 150w is designed for dry and damp locations. Meet UL FCC approval. Options from 30W-300W.
