UL listed 120v ac dc 12 volt 300W 0-10V led power supply controller dimmable driver for led
SMT-012-300VDH is 0-10V dimmable 12 led power supply. It is UL/cUL FCC listed, 7 years warranty. Driver and junction box in one case which cable can be hiding in the black case which are looking nice when installed.
Features of led power supply：
·Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of led power supply:
|
Model
|
SMT-012-300VDH
|
SMT-024-300VDH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Load Regulation
|
±2%
±1%
|
±1%
|
|
|
Rated current
|
25.0A
|
12.5A
|
|
|
Rated power
|
300W
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor（Typ.）@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.97@277VAC
|
|
|
THD（Typ.）@ full load
|
<20%
|
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.4ms
|
|
|
Full Load
Efficiency（Typ.）
|
>88%
|
>88%
|
|
|
AC Current（Typ.）
|
3.4A@110VAC
1.76A
1.76A
.A
1.74A
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P: 3.50KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥50%load) / FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge 4KV）
|
|
Others
|
Weight
|
1.9Kg
|
|
|
Size
|
278*108*46mm (L*W*H)
|
|
|
packaging
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

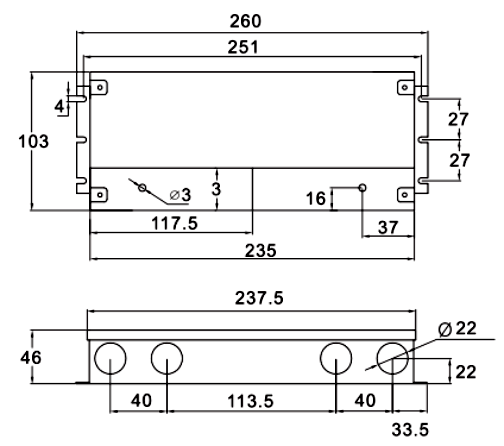

Mechanical Specification
FAQ:Can I use dimmable light bulbs without a dimmer?
Can I use dimmable LED bulbs / lamps with just an On/Off switch (without a dimmer) ? Yes - This is a good idea if you are thinking of upgrading to a dimmer in the future. Ensure you buy a LED compatible dimmer. ... Non-dimmable bulbs should NOT be used with a dimmer.
