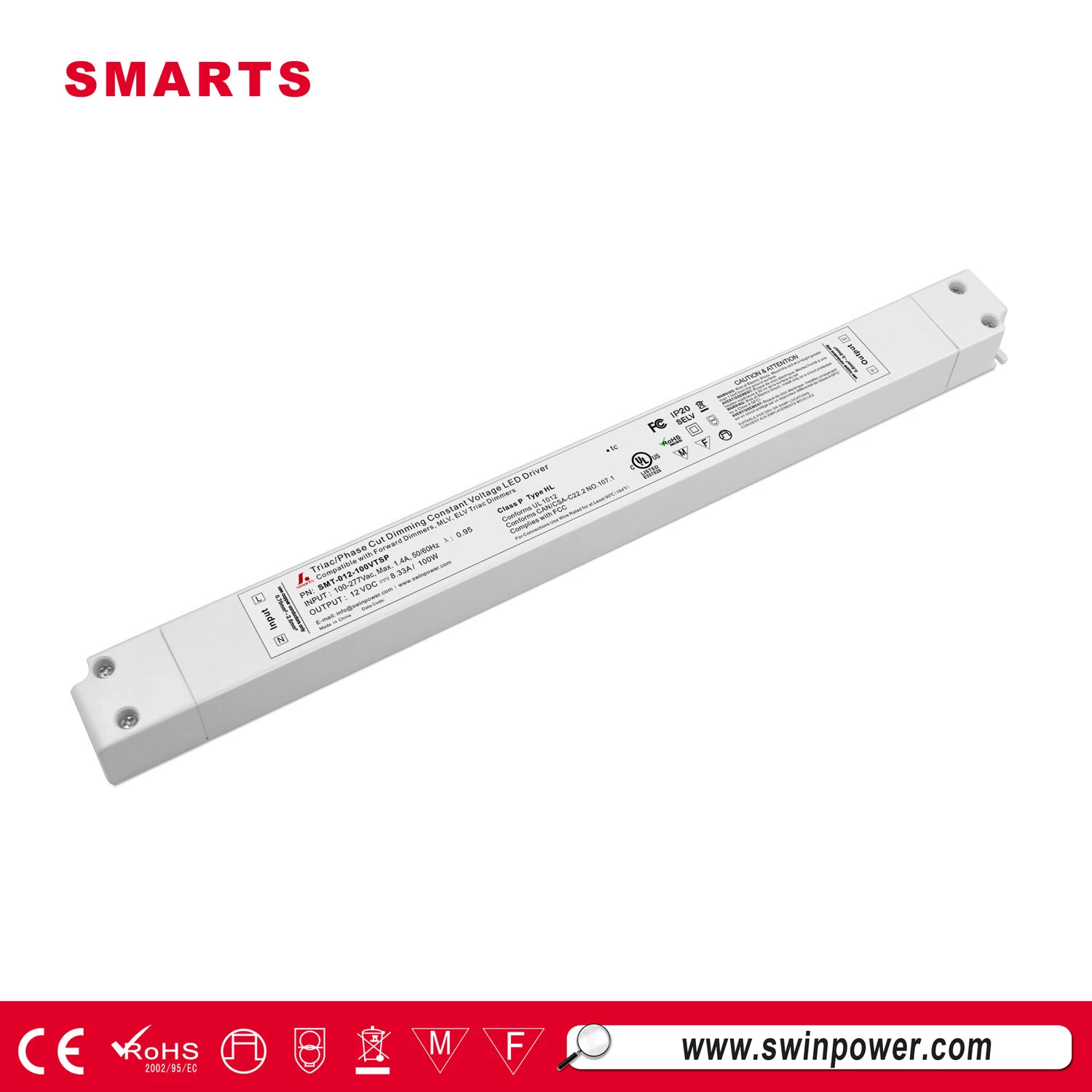

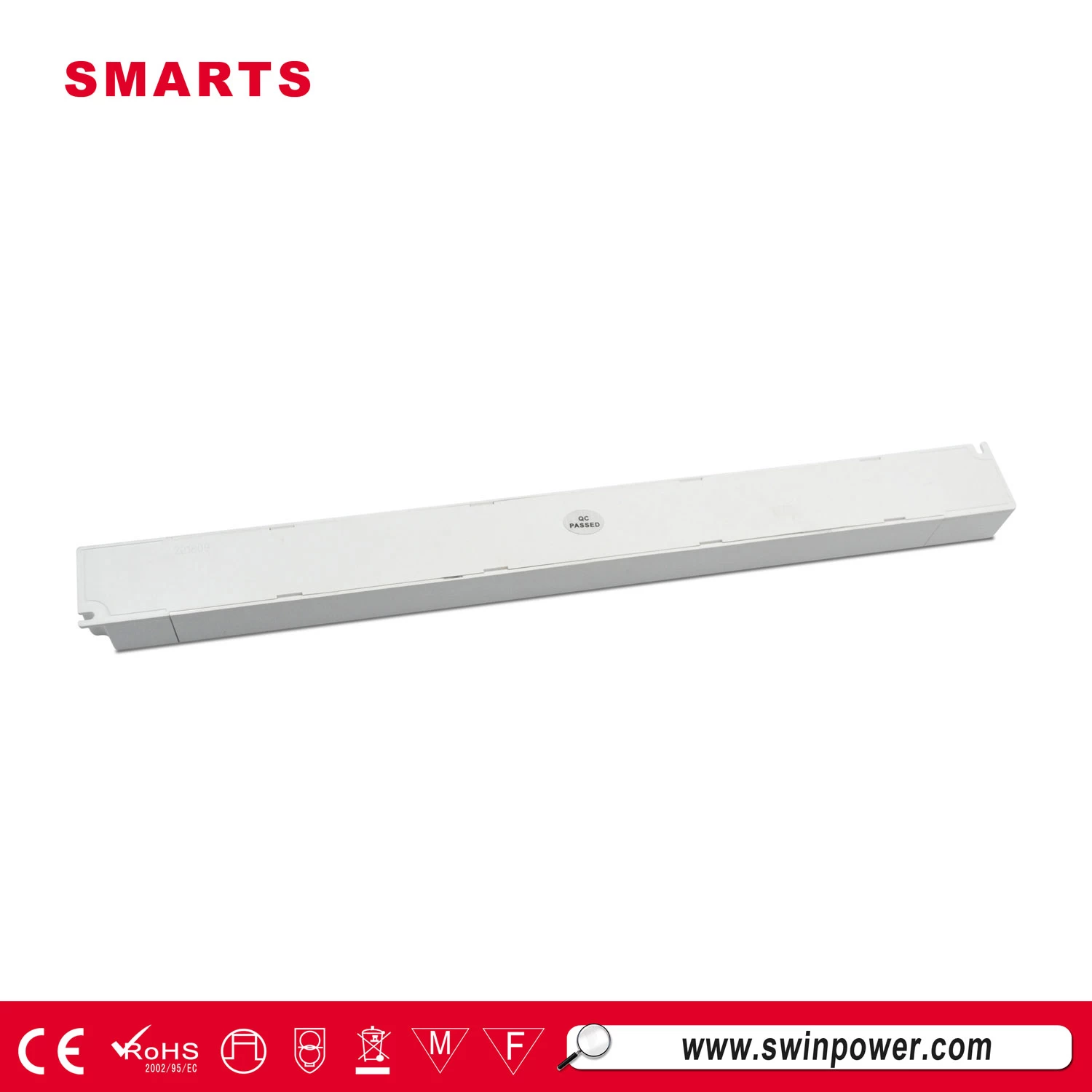

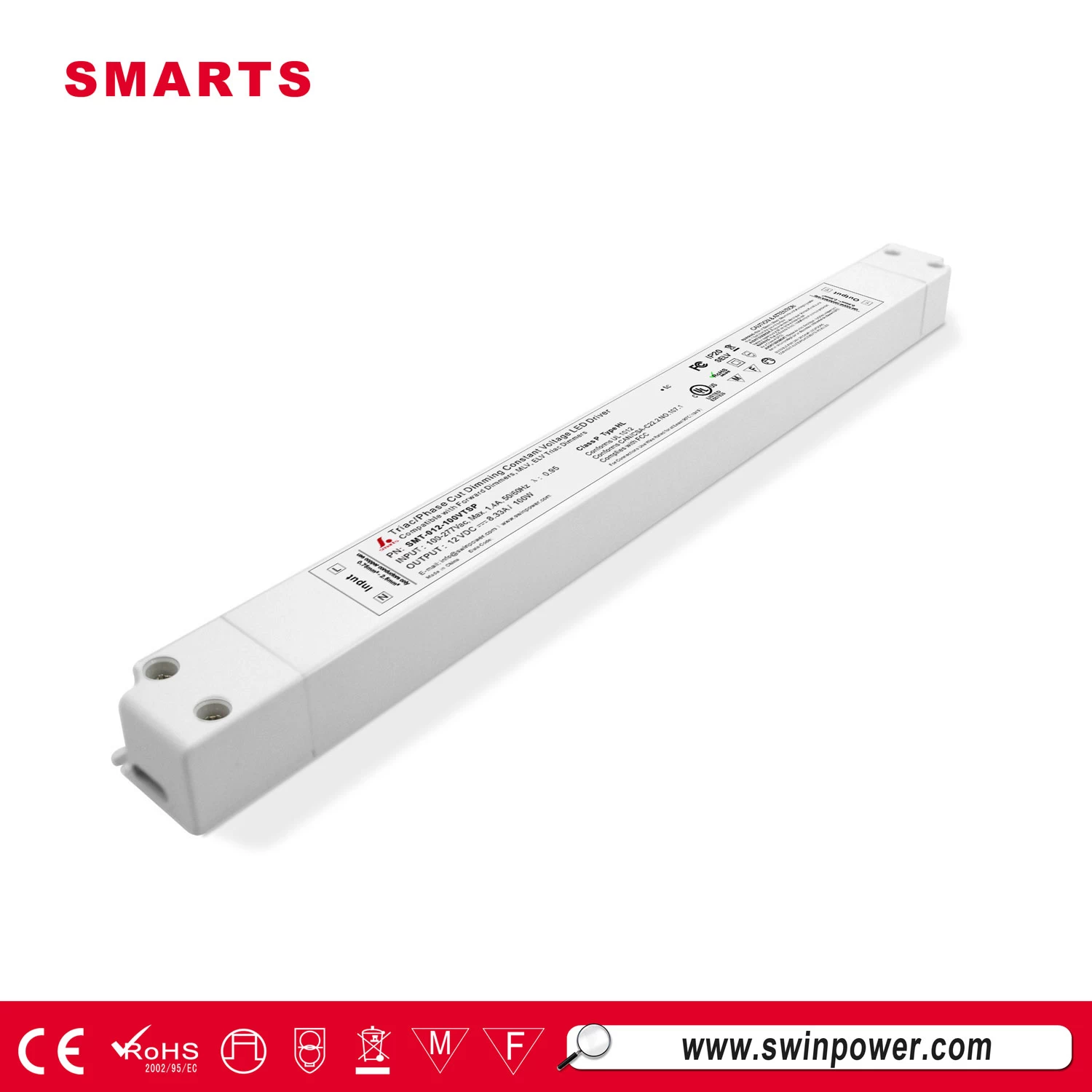

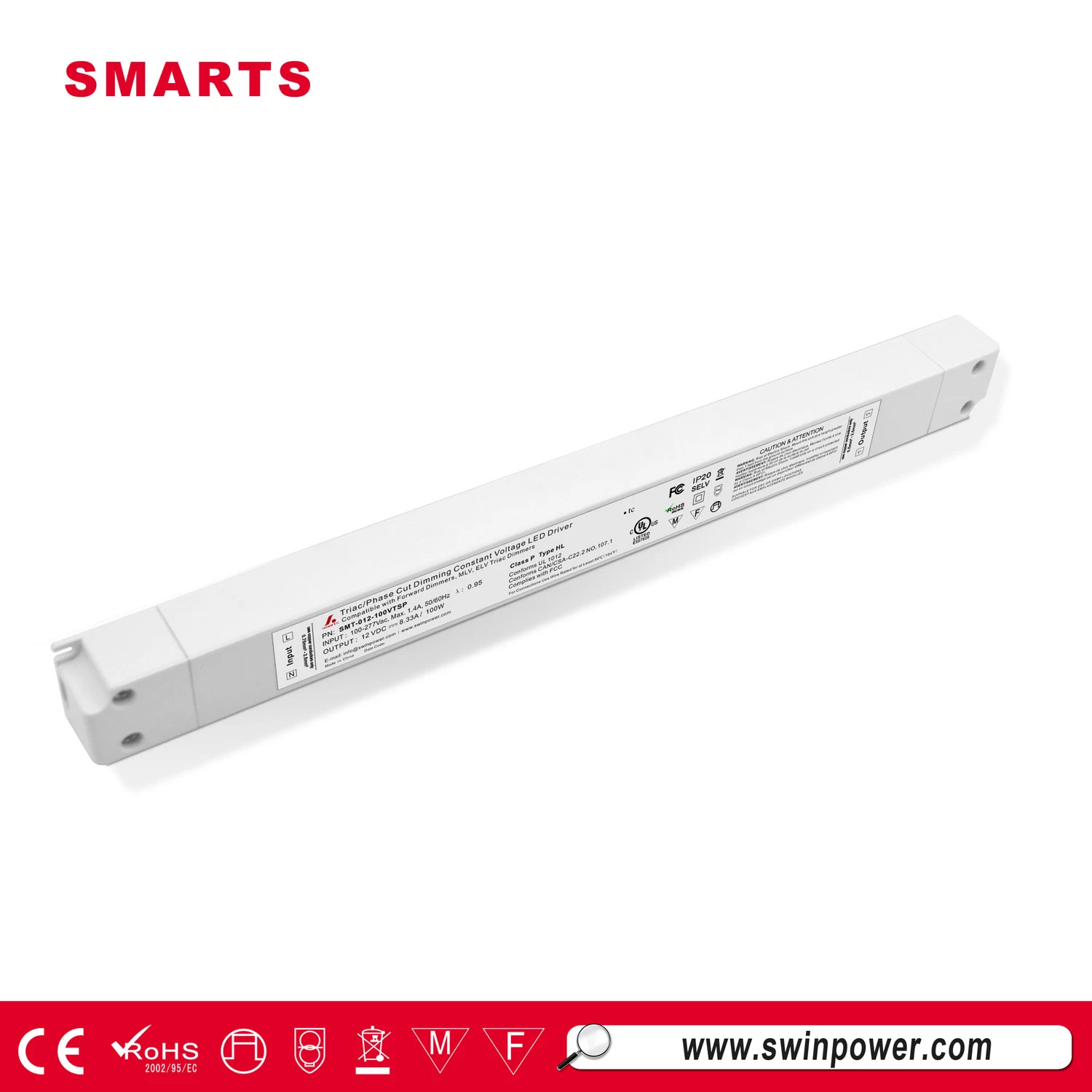

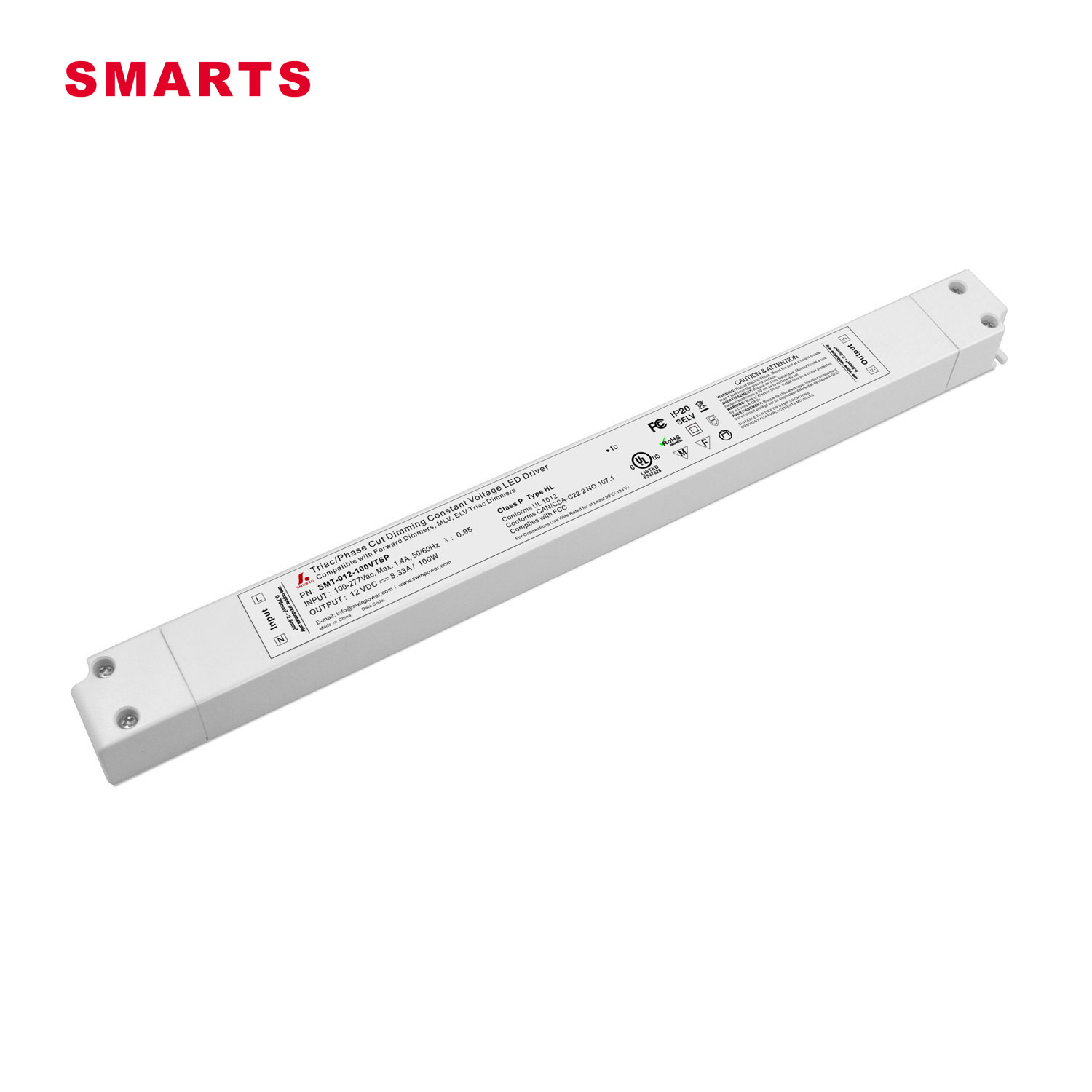

UL listed 12v 100w slim triac dimmable led driver

It's 277v input voltage to 12v 100w output slim type triac dimmable led driver. IP20 design for indoor dry or damp environment installations.


  • Size330*32*23mm (L*W*H)
  • Dimming modeTriac dimmable
  • Working ModeCV
  • Output Current8.33A
  • Output Voltage12VDC
  • Input Voltage110-277V
  • CertificationUL, CE, ROHS, FCC

UL listed 12v 100w slim triac dimmable led driver


Smarts electronic launched a new series ultra slim triac dimmable led driver. Built-in PFC function / Efficiency > 80% / PF> 0.99. Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers. The size is 330*32*23mm (L*W*H) which can be suitale for your requirement for small led driver.


 Here are more details


model

SMT-012-100VTSP

SMT-024-096VTSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC

Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC

Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN


100w triac dimmable led driver


Is there still have UL certification if change the company name of the driver's label?


In the UL rules, during the UL certification period, how to write the contents of the label requires UL confirmation, and it is not allowed to change it after confirmation. If you want to change, you need to make a UL lMultiple listing. Therefore, it is not possible to change the content at will.
