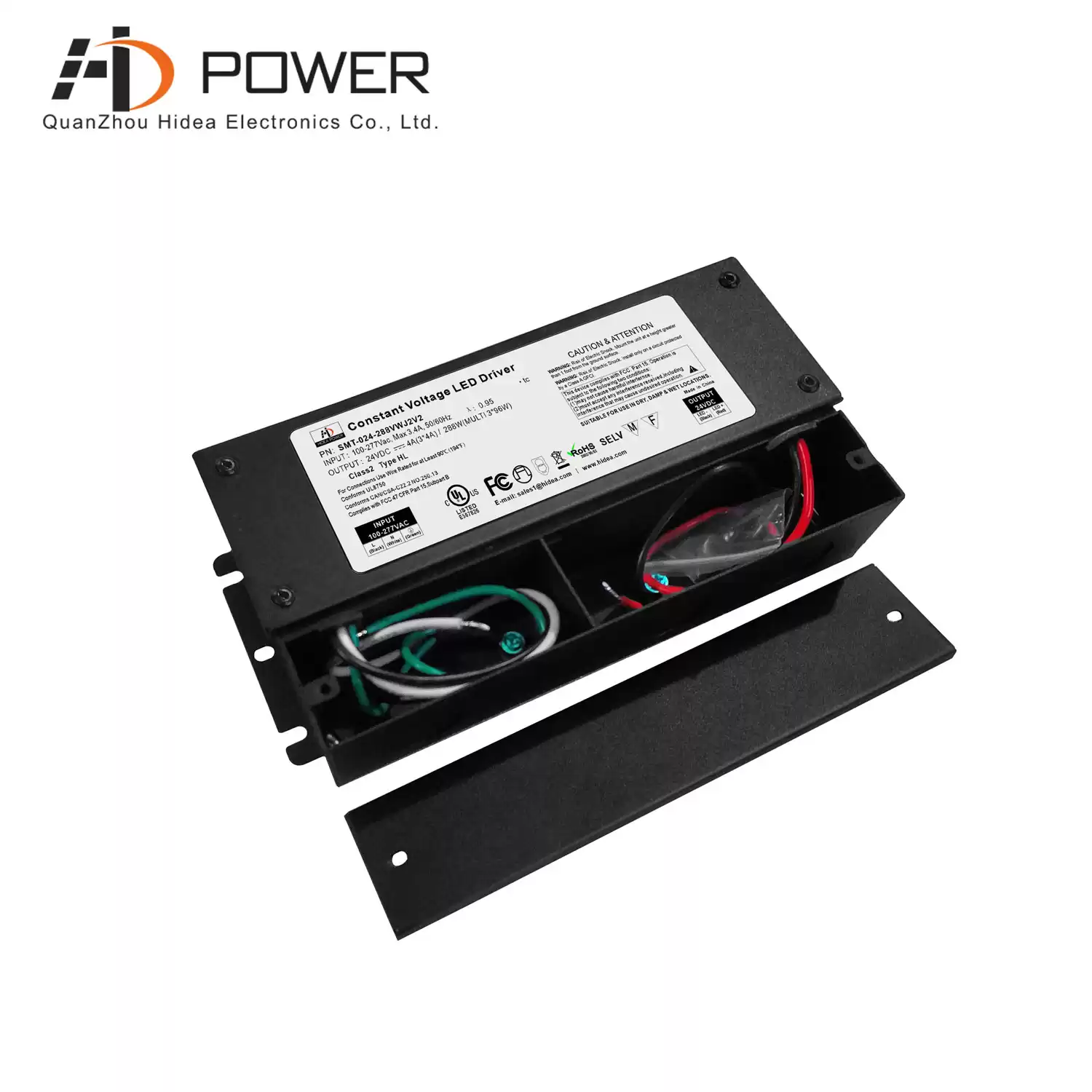

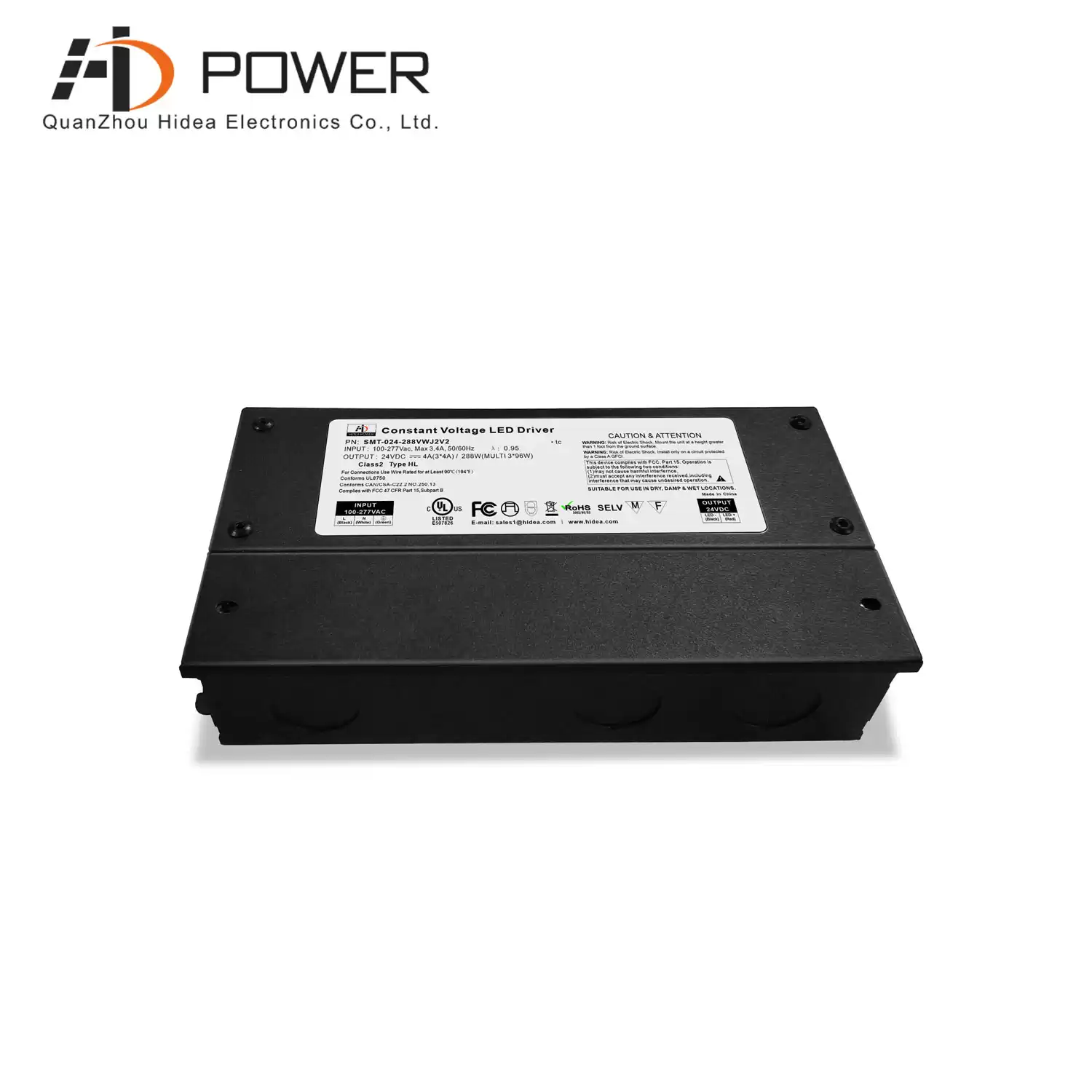

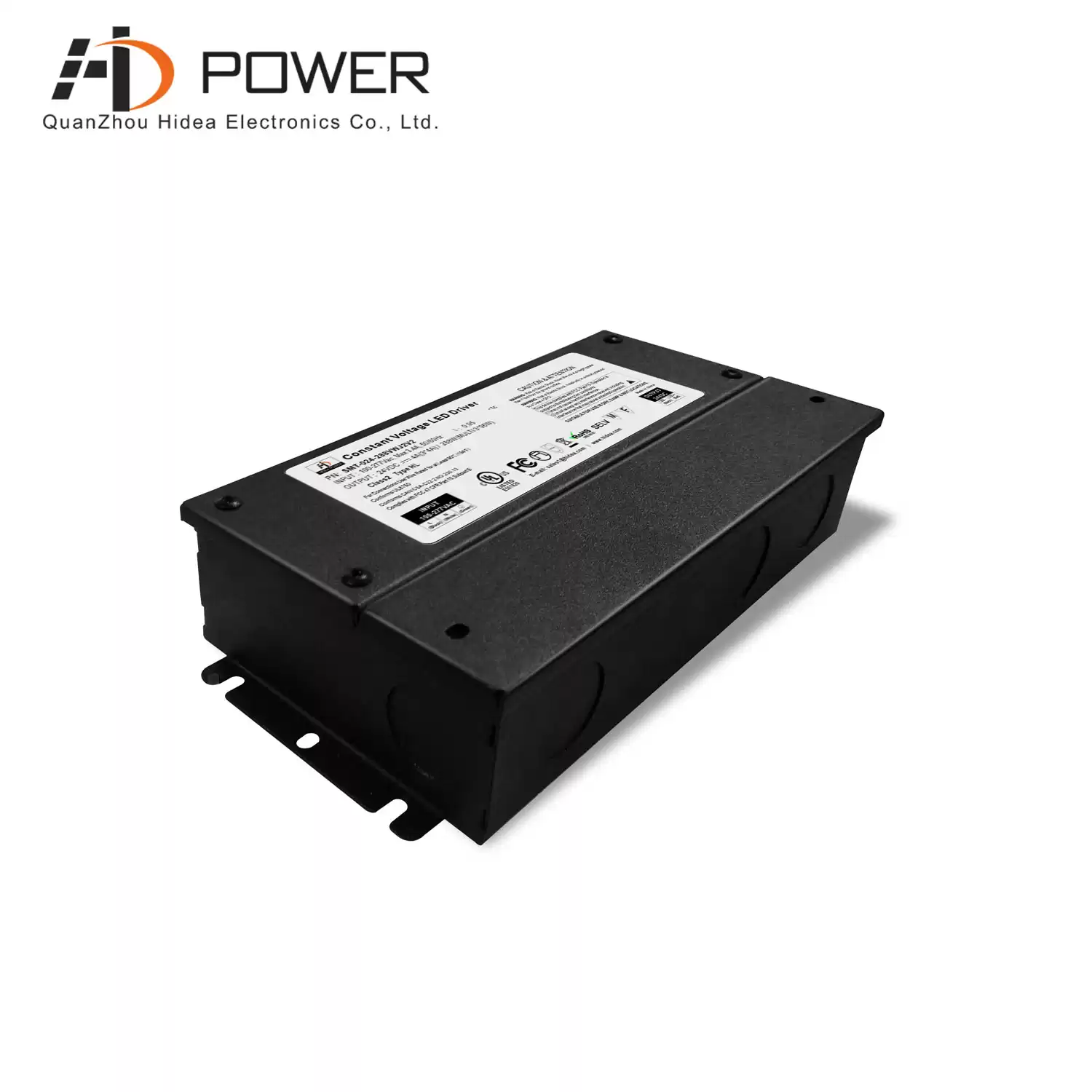

UL listed 12v high power non dimmable 384w led driver power supply manufacturers
Class 2 384W Constant voltage led driver Input voltage range between 100 to 277vac, pass UL certification, comply with the global lighting safety regulations, suitable for the North American commercial and super residential lighting installation
Specification
|
Model
|
SMT-024-384VWJ2V2
|
SMT-W048-384VWJ2V2
|
|
Output
|
DC Voltage
|
24V
|
48V
|
|
Voltage Tolerance
|
4*4A
|
4*2A
|
|
Voltage Regulation
|
384W (4*96W)
|
384W (4*96W)
|
|
Load Regulation
|
±0.5V
|
|
Rated current
|
±0.5%
|
|
Rated power
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
<20%
|
|
Efficiency(Typ.)@ full load
|
87%@120V 90%@277VAC
|
87%@120V 90%@277VAC
|
|
AC Current(Max.)
|
4A@100VAC
|
4A@100VAC
|
|
Inrush Current (Typ.)
|
35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC;12.4A (twidth=430us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Net. Weight
|
2.7Kg
|
|
Size
|
323*140*47.5mm (L*W*H)
|
|
packing
|
10pcs/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Related Products
|

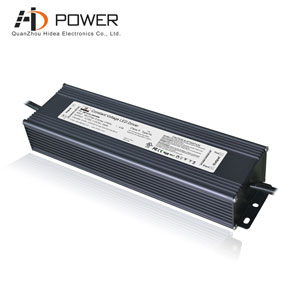

300W waterproof non dimmable led driver Waterproof performance ip67, body aluminum shell, can effectively waterproof and dustproof, not easily squeezed deformation, quality assurance
