UL Listed 12X18W 6 in 1 RGBAW UV IP65 Outdoor Rating LED PAR Lighting
IP-65 Rated PAR fixture features industry-leading color reproduction and output thanks to its 9x18-watt RGBAW UV 6 in 1 LED's. Multicolored shadowing is a thing of the past thanks to 6-in-1 LED technology, and color gamut is increased exponentially with the addition of white LEDs.
IP65 rated for outdoor use, the 6 in 1 RGBAW UV Outdoor LED Stage Lighting is built from durable cast aluminum with a tempered glass lens and watertight internal gaskets. Under the hood, 9 18-watt LED's bring beauty and light to all sorts of settings, from building exteriors to rock concerts! Plus, our industry-first 32-bit user-selectable dimming curves brings new subtlety and nuance to LED dimming, and ultra-high frequency PWM switching means the LED PAR 64 Light is video safe at any resolution and frame rate.
It's just a great, versatile fixture for outdoor use and you won't have to sell your indoor space to buy one!
|
Specifications:
|
|
Operating Voltage
|
90-240VAC, 50-60 Hertz
|
|
Light Source
|
12*18-watt RGBAW UV 6 in 1 LEDs, 100,000 hours
|
|
Power
|
220W
|
|
IP Rated
|
IP65 Waterproof
|
|
Color
|
RGBAW UV standard color system (RGBW/RGBWA are available)
|
|
Beam angle
|
15degree, 25degree (standard), 30degree, 45degree (selectable)
|
|
Luminous Intensity
|
15,000 Lux @ 1m (full white)
|
|
DMX Channels
|
6 or 10 Channels
|
|
DMX
|
3-pin XLR Male,3-pin XLR Female
|
|
Control Panel
|
LED 4-button control panel
|
|
Operating Modes
|
Standalone, Master/Slave, Sound Active, Color Preset
|
|
Strobe
|
0-30Hz/Second
|
|
Structure
|
Cast aluminum chassis,honeycomb design,high quality cooling system
|
|
Application
|
Stages, church, night clubs, entertainment halls, Disco, Hotels, shops...
|
|
Dimmer
|
0-100% linear adjustment
|
|
Warranty
|
2-year limited warranty, does not cover malfunction caused by damage to LED`s.
|
|
Weight
|
5.0KG
|
|
Size
|
(LxWxH): 260X290X200mm
|
|
Features:
|
|
1, Astounding RGBAW UV color mixing via 12 x 18W Red/Green/Blue/White/Amber/UV "6-in-1" LEDs
|
|
2, 6/10-channel RGBWA UV wash light
|
|
3, Built-in automated programs via DMX
|
|
4, Built-in color macros via DMX
|
|
5, RGBAW color mixing with or without DMX control
|
|
6, Full electronic dimming & 1-30FPS strobing
|
|
7, Advanced LED display with 4-button control panel
|
|
8, 3-pin DMX input and output connectors
|
|
9, Dual locking yokes for tons of positioning flexibility
|
|
10,Great for performance stages where traditional PAR cans emit a lot of heat onto performers
|
|
11,Tough-As-Nails IP65-rated enclosure
|
|
12,Totally silent convection cooling
|

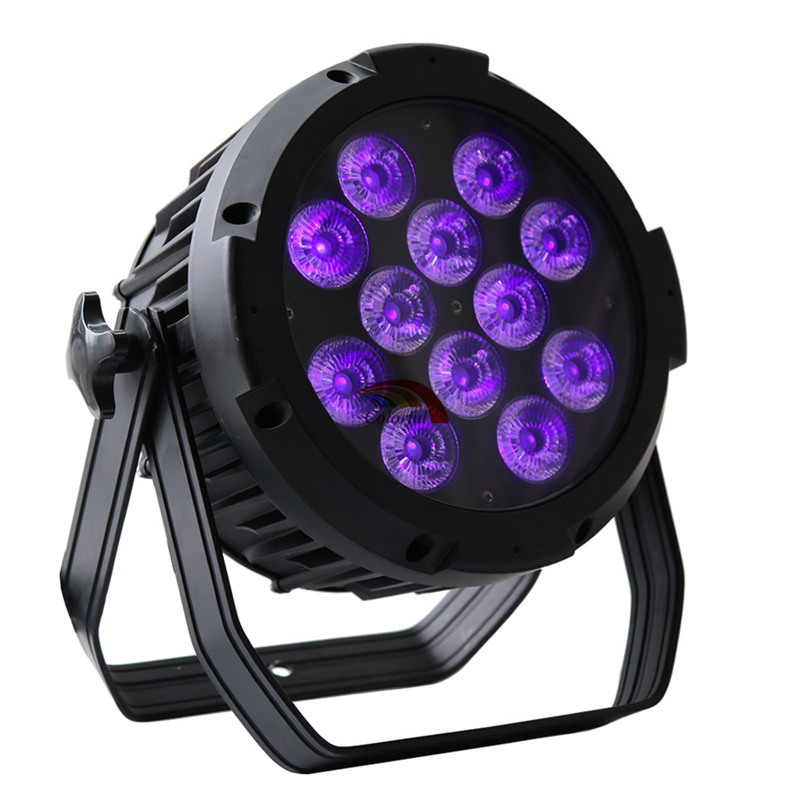

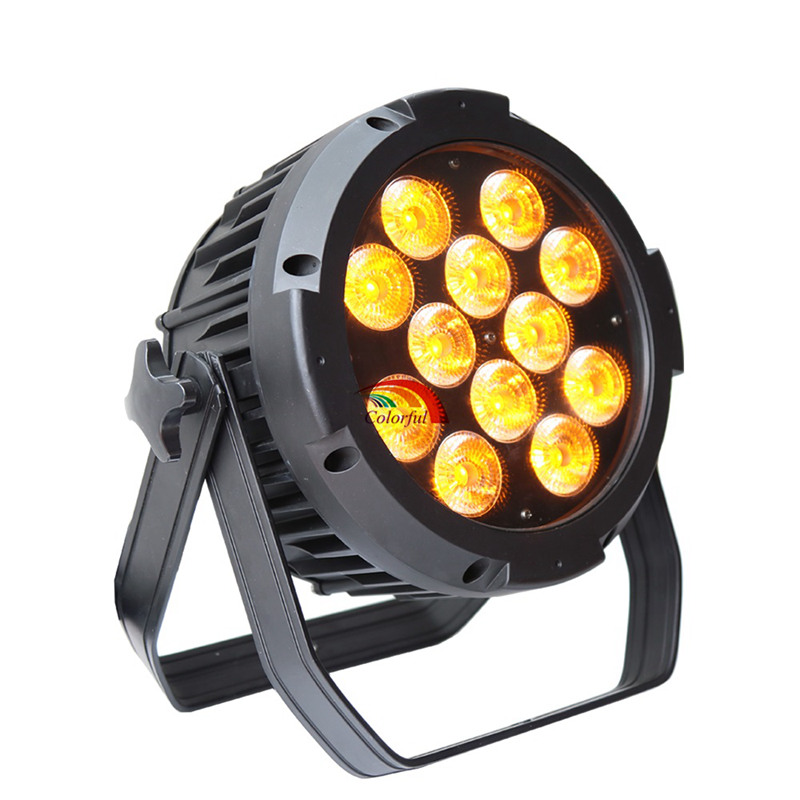

UL Listed 12X18W 6 in 1 RGBAW UV IP65 Outdoor Rating LED PAR Lighting Pictures
Trade Terms:
1. Payment: By T/T or Western Union.
100% payment if the total amount is less than USD 5,000.
30% deposit and 70% balance before shipment if the total amount is more than 5,000.
2. Lead time:5~8 working days, According to the order quantity.
3. Delivery ways: DHL, UPS, FEDEX, EMS, TNT door to door service, by sea, by air, etc.
Keeping our commitments:
-Price: we are factory and able to offer better price than trade company
-Good quality: We are a manufacturer and exporter of various Stage Lights and LED Lights, and we are experienced in quality control
-On time delivery: delivery the goods in the confirmed time
-Professional seller: good communication in patient and well know our products
-OEM: welcome.
Delivery:
-5-7 days after received your payment.
-Rush service available
Company and products information related:
Guangzhou Colorful Stage Lighting Equipment Factory is specialized in LED Lighting,Stage Lights manufacture for about 6 years.
Which have strong R&D and producing capabilities,We had been the supplier for 2010 Guangzhou Asian
Games.CCTV5,CCTV15,CCTV9 studio and other TV show.
Thank you for viewing our website and welcome to visit our factory.
