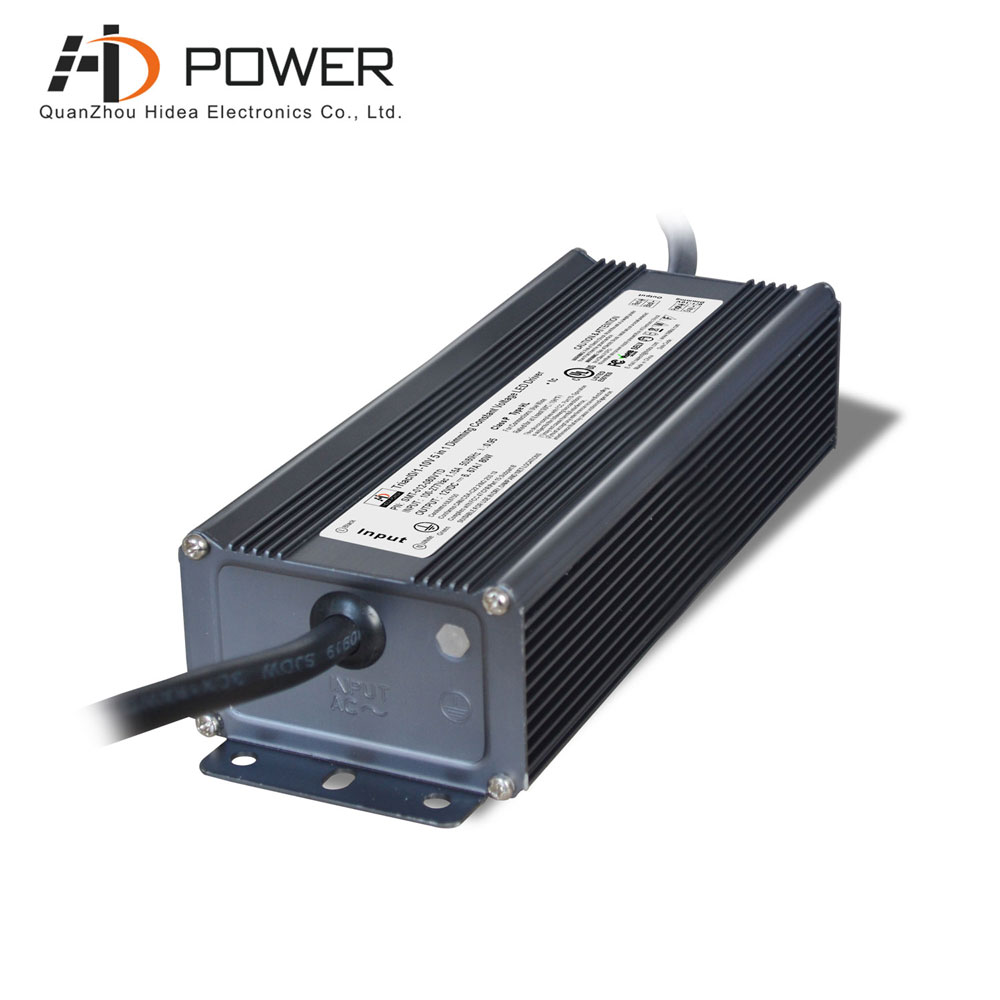

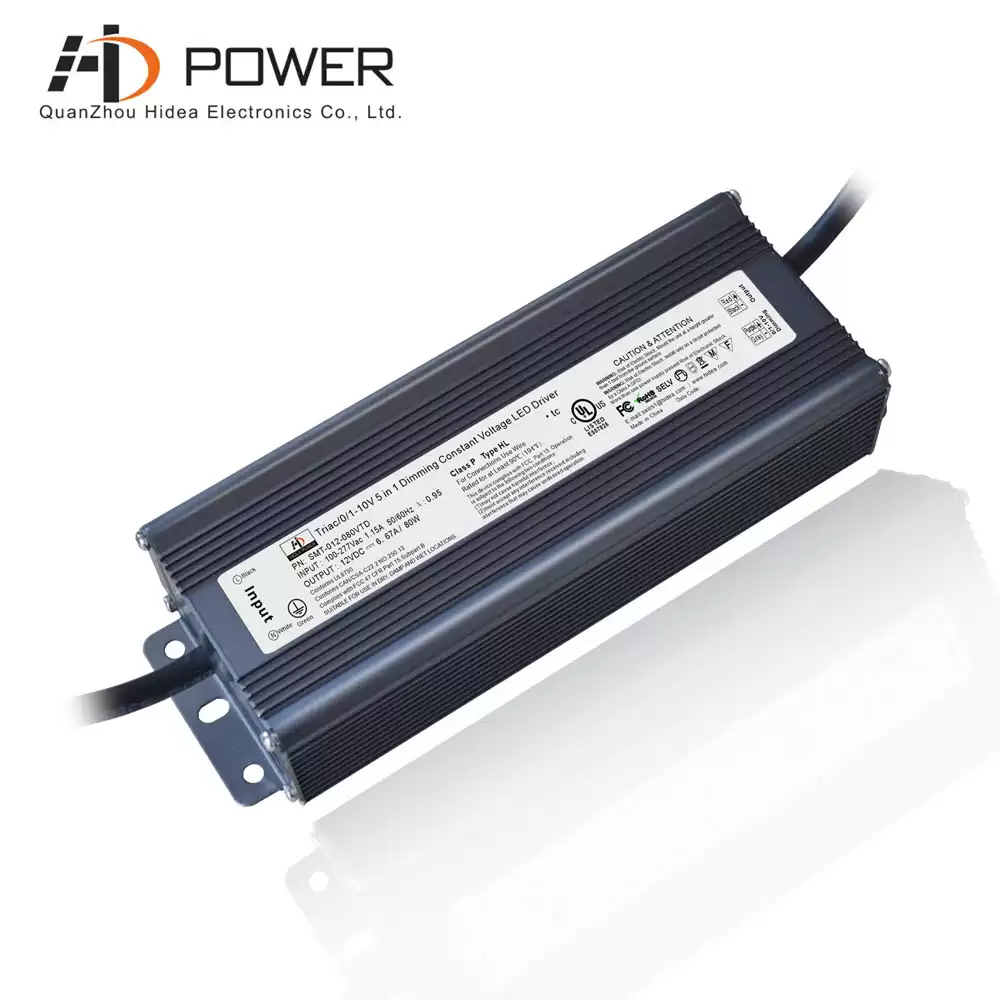

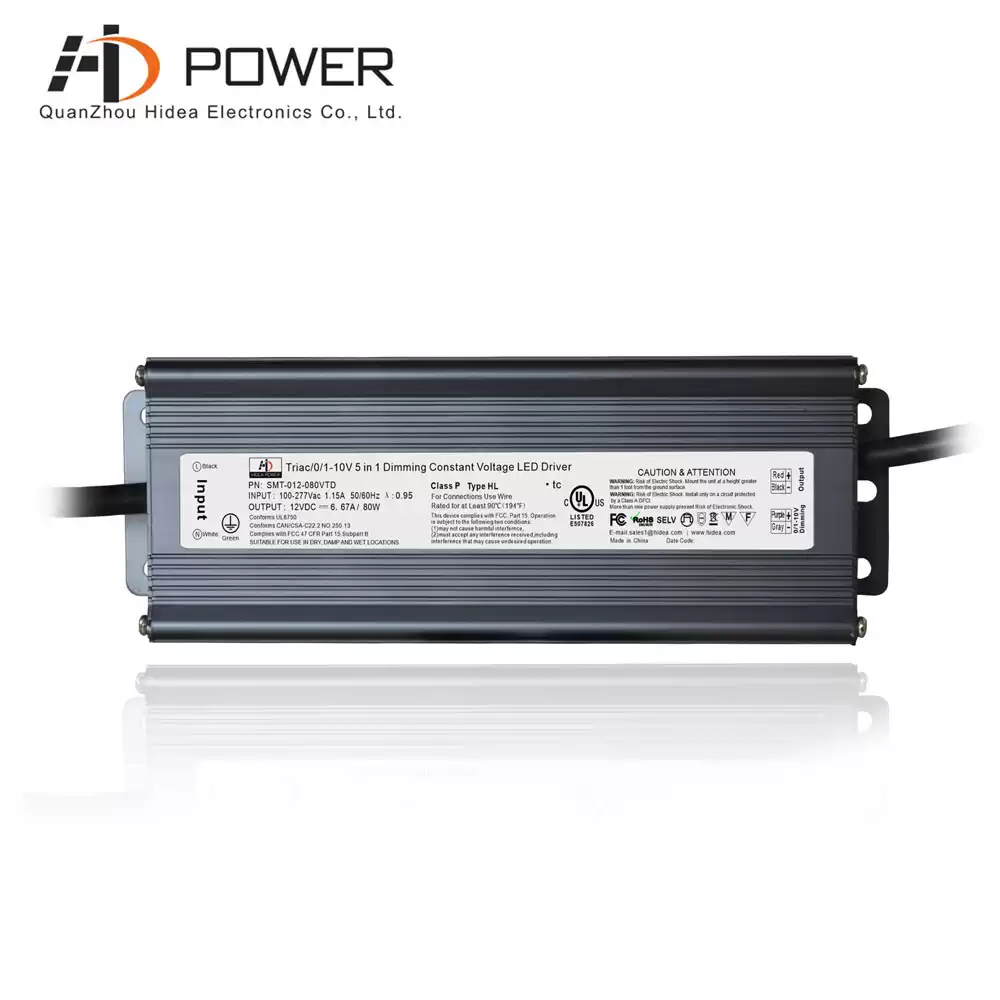

UL listed 24v triac & 0 10v 80W dimmable constant voltage led strip light driver power supply
This 80W TRIAC & 0 10V dimmable led driver has a waterproof grade of IP67 and an aluminum shell design, which can effectively prevent water and dust, and protect the stable operation of lamps and power supplies.
Specification
|
model
|
SMT-012-080VTD2JV2
|
SMT-024-080VTD2JV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
6.66A
|
3.33A (class 2)
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100~130V AC/170~265V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V,PF≧0.96/170V,PF≧0.95/220V,PF≧0.93/265V
|
|
Full Load Efficiency(Typ.)
|
80%@120VAC 82%@277VAC
|
82%@120VAC 85%@277VAC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
AC Current(Typ.)
|
1.15A
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Load
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 + UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
Carton size:340*275*170mm , 10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

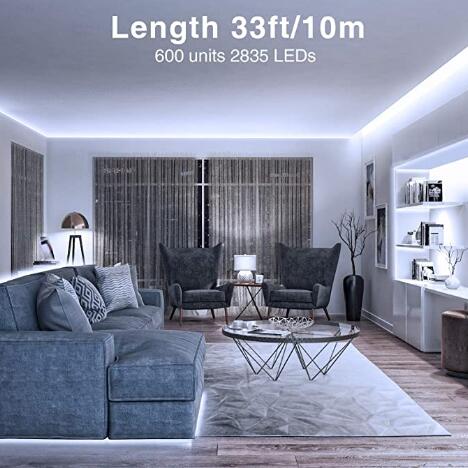

Compatible Light Type
YEEMAYLUX led ribbon lights work in 12v low voltage, coming with a led driver outdoor, with short circuit protection for plug-in safely, and with energy-saving, low heat, touchable and long lifetime features.
Related Products
|
 triac dimmable 80W 24V led driver integrated with the junction box, metal shell design, good heat dissipation, constant voltage working mode, in line with global safety lighting regulations, 7-year warranty
Mode：SMT-012-080VTH
Dimming Mode : triac Dimming
Output Power : 80W
intput voltage：100-277VAC
Size：220*93*41MM （L*W*H）
|
