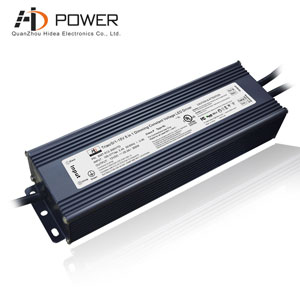

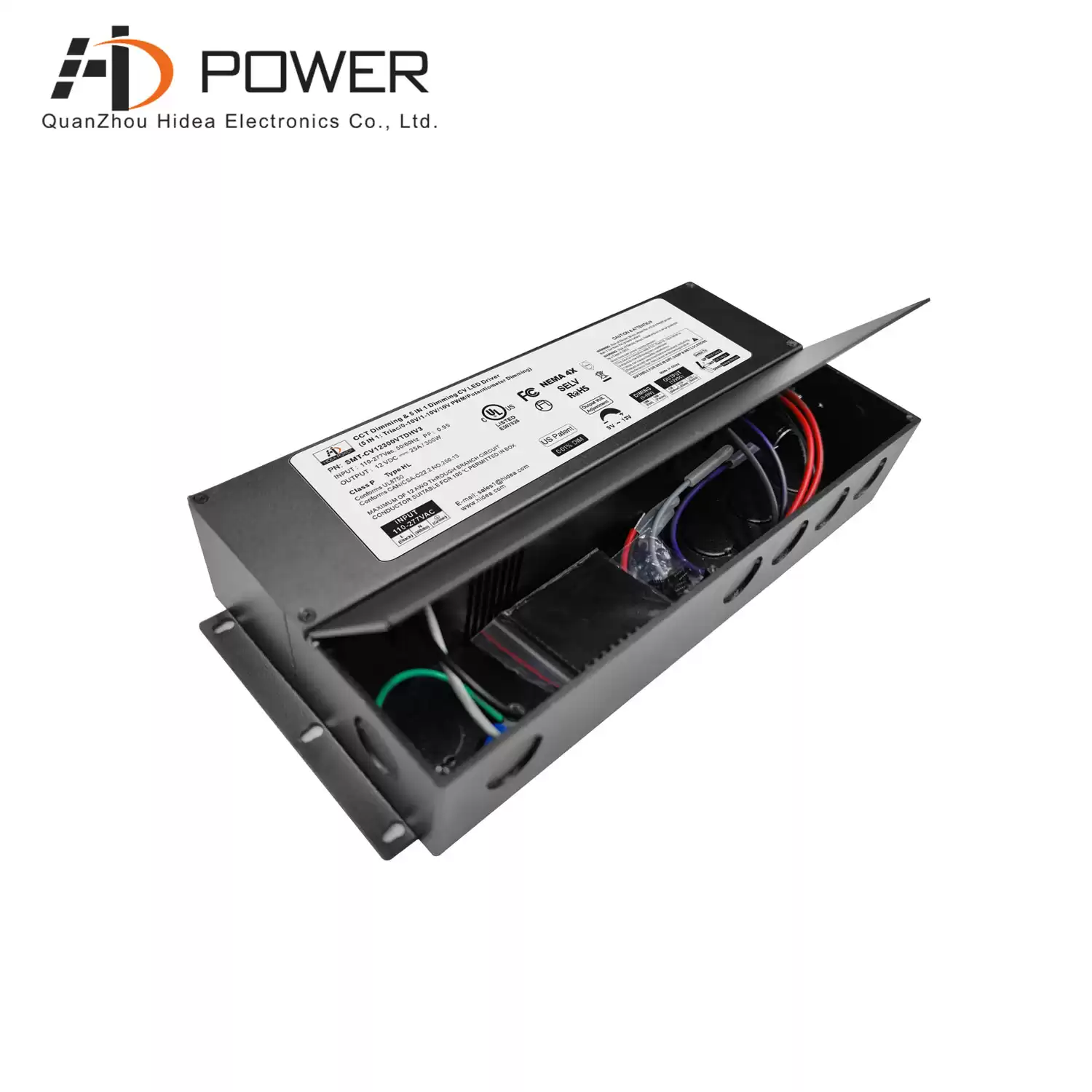

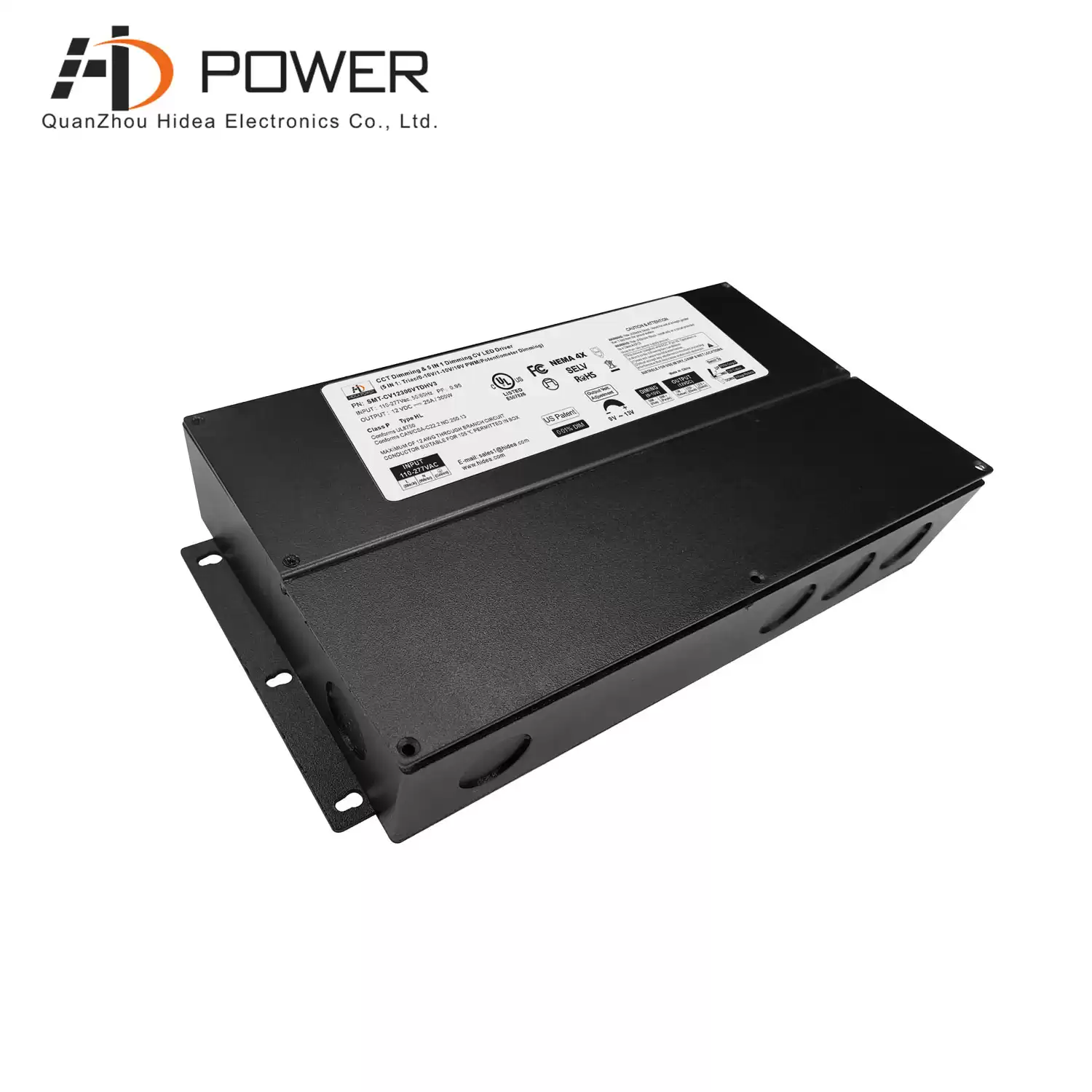

UL cUL listed Type HL, FCC, NEMA 4X, CE, RoHs, complete
certificates, this 300W 12V 5 IN 1dimmable led driver
is mainly marketed in North America and Europe, suitable
for residential lighting projects and commercial lighting
projects
|
|
Specification
|
Model Number
|
SMT-CV12300-VTDHV3
|
SMT-CV24300-VTDHV3
|
SMT-CV36300-VTDHV3
|
SMT-CV48300-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
300W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
25A
|
12.5A
|
8.33A
|
6.25A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
86%@120VAC
88%@277VAC
|
88%@120VAC
92%@277VAC
|
90%@120VAC
93%@277VAC
|
92%@120VAC
95%@277VAC
|
|
AC Current(Typ.)
|
3.4A
|
|
Inrush Current(Typ.)
|
20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
289x132x49mm (L*W*H) N.W: 2.15kg
|
|
Packing
|
10pcs/CTN G.W:23KG SIZE:340*295*295 mm
|
Compatible Light Type
SMT-12300VTDHV3 ultra low load requirement, perfect operation under 10-100% load, also able to fine tune output voltage, this 12v led power supply has short circuit, over temperature, overload protection, hidea power provides 7 years warranty for it
Related Products
|
 triac & 0-10v dimming led driver 300W 12V can be compatible with various dimmers on the market to achieve stable dimming,
Mode：SMT-012-300VTD
Dimming Mode : 5 in 1 Dimming
Output Power : 300W
intput voltage：100-277Vac
Size：276*78*47mm（L*W*H）
|
