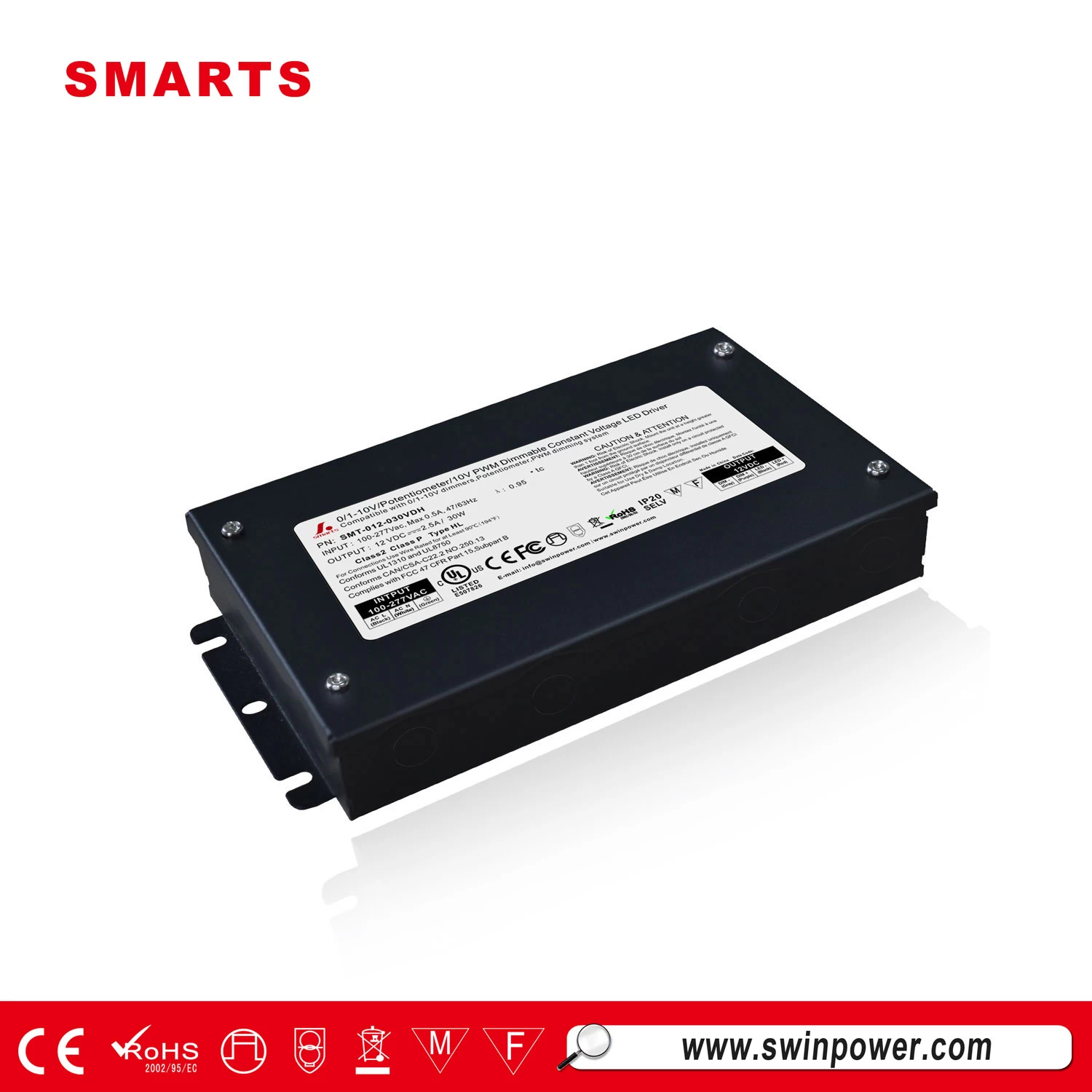

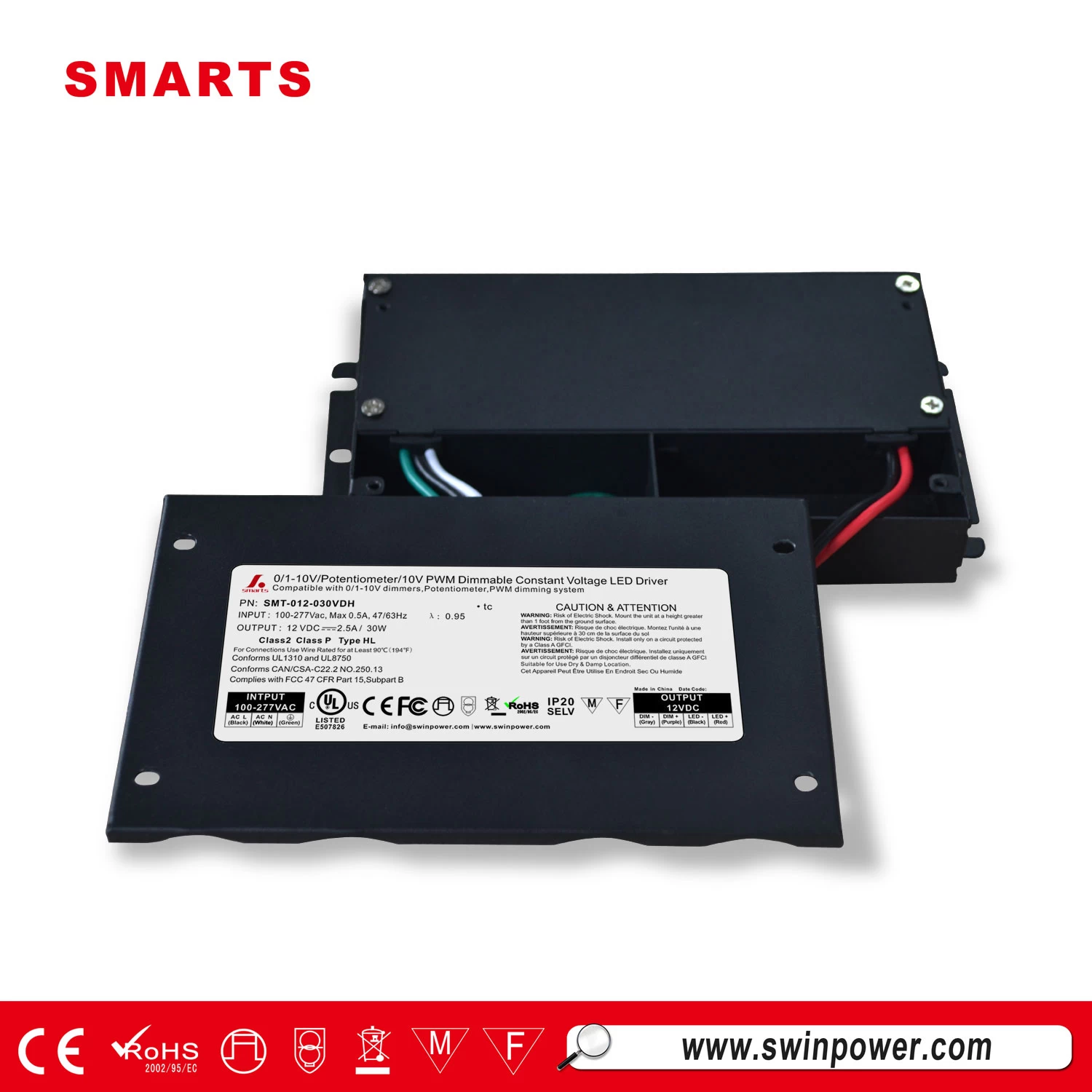

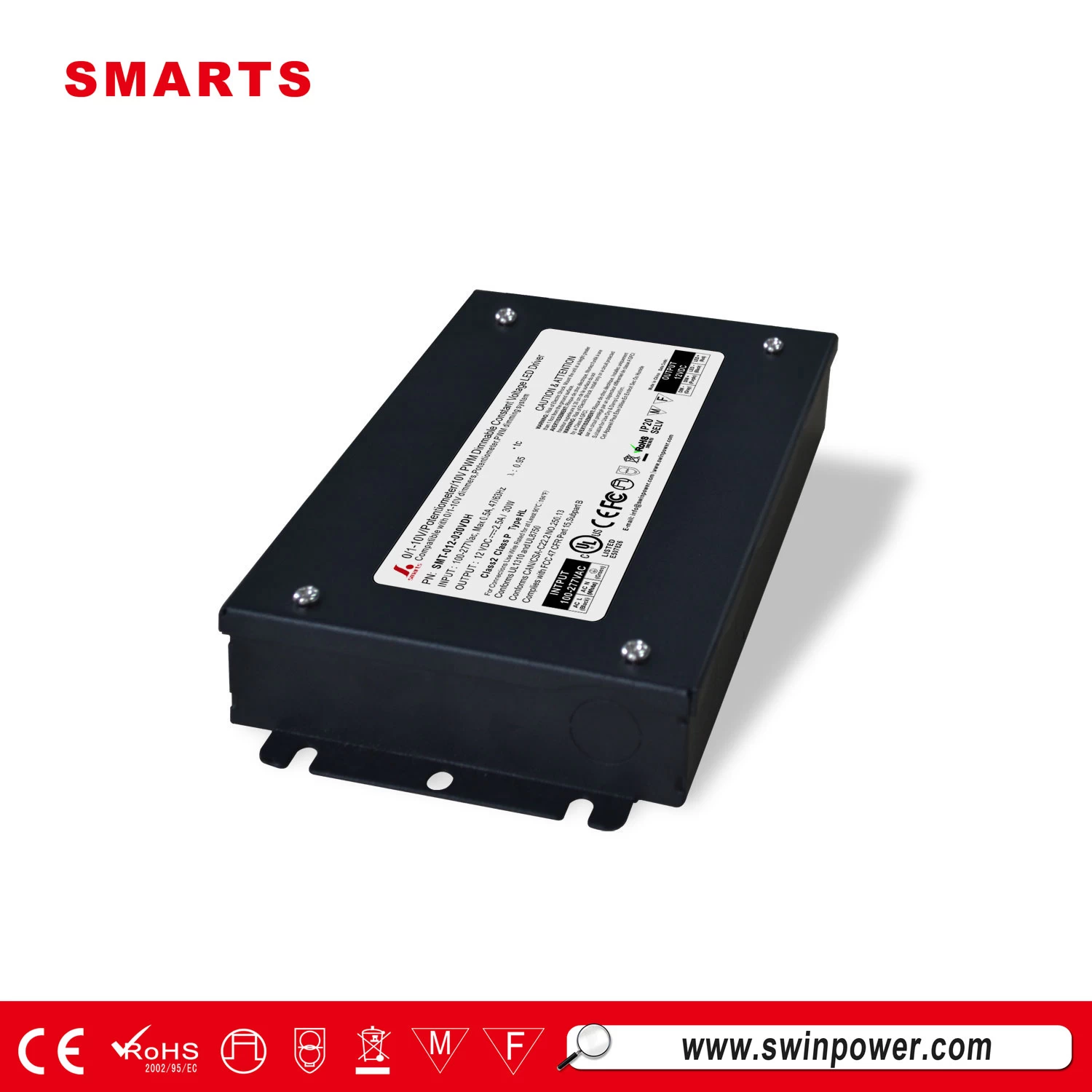

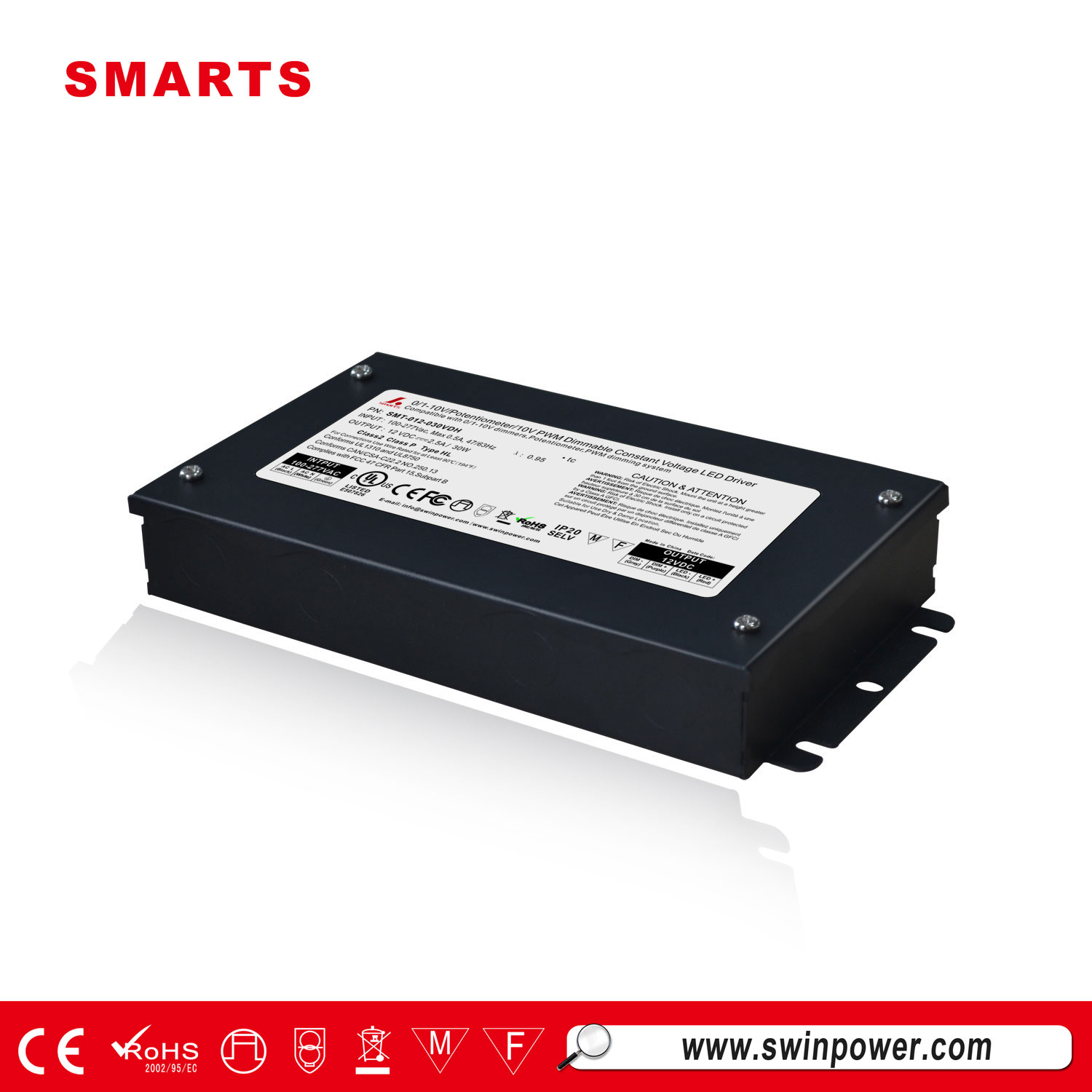

UL listed Class 2 AC 110V 277V DC 12V 0-10V dimmable led driver
Smarts Electronics' UL 0-10V led driver 12V from 30watts to 300watts available with isolated circuits and overload protection. This 277vac 0-10V Dimmable LED Driver is designed to work with any recent standard wall dimmer (0-10V or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 0% to 100% without any noise or flickering. Note that this revolutionary LED Driver does not require a minimal load in order to offer you optimal dimming performances.
Features of UL 0-10V led driver：
·Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of UL 0-10V led driver:
|
model
|
SMT-012-030VDH
|
SMT-024-030VDH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
1.66Amp
|
0.83Amp
|
|
|
Rated power
|
30W
|
30W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.97/277V
|
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>84%
|
|
|
AC Current（Typ.）
|
0.33A/110VAC / 0.13A/277VAC
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.95Kg
|
|
|
Size
|
165*92*26mm (L*W*H)
|
|
|
packing
|
355*215*215mm / 10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

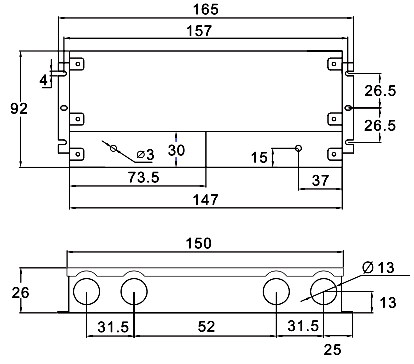

Mechanical Specification

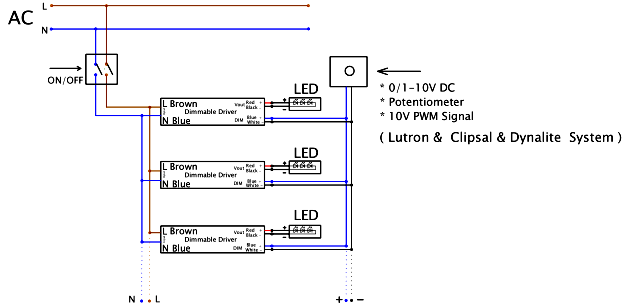

0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:
FAQ： What are the details of the 7 year warranty: Is it based on 7 years of actual use? We understand that some driver manufacturers have technology to keep track of hours of use. Or does the warranty start at point of sale and end 7 years after? Please explain details.
Answers: The 7 years warranty start at the point of LED Driver leave our factory. There have manufacture date in back of every LED driver. We use the best quality components for our 277vac dimmable series and the capacitances we used have the super life-span. We can promise 7 years warranty if loading 80% and within 12 hours working time per days.
