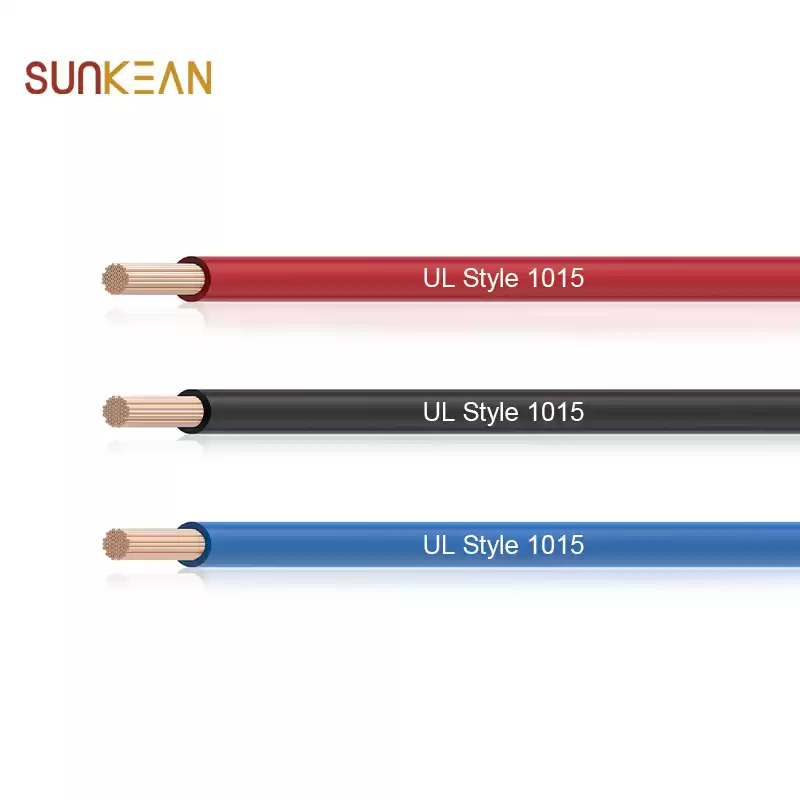

UL listed hook up wire UL1015 12awg 14awg 16awg 18awg electric wire of solid or stranded copper conductor

UL1015 hook up wire is made of tinned copper, the insulation is PVC,the conductor is usually 19 strands,  cable can produce from 22awg to 1awg to meet different application requirements.


  • Rated Voltage600Vac or 750Vdc

UL listed hook up wire UL1015 12awg 14awg 16awg 18awg electric wire of solid or stranded copper conductor

UL style 1015 lead wire is a general-purpose electronic hook up wire, used in the internal wiring of appliances and electronic equipment, it can resistant to water, oil, acid, solvent and fungus .


Product Information:

Conductor

Preferentially tinned copper stranded ,or bare copper stranded or single conductor. 28AWG~500kcmil.

Insulation
Lead free PVC, passed RoHS
Rated voltage 600Vac or 750Vdc
Rated temperature 80℃ or 90℃ or 105℃
Reference Standard

UL758,UL1581

Flame Test UL VW-1 & CSA FT 1


UL 10269 Energy storage Cable


Cable Name

Cross Section

(mm²)

Construction

(No./mm)

Conductor O.D.

(mm)

Insulation O.D.

(mm)

Conductor Resistance Max

(Ώ/km)

UL style 1015
24 11/0.16 0.61 2.20 93.25
22 17/0.16 0.76 2.35 55.00
20
26/0.16
0.94 2.55 34.60
18 41/0.16 1.18 3.78 21.80
16 26/0.254 1.49 3.10 14.64
14 41/0.254 1.88 3.50 9.25
12 65/0.254 2.36 4.00 5.82
10 105/0.254 3.00 4.60 3.66
9 131/0.254 3.70 5.30 2.96
8 168/0.254 4.20 6.50 2.35
7 210/0.254 4.70 7.00 1.87
6 266/0.254 5.30 8.40 1.48
5 329/0.254 5.80 9.00 1.17
4 420/0.254 6.60 9.70 0.928
3 532/0.254 7.50 10.50 0.744
2 665/0.254 8.40 11.50 0.590
1 836/0.254 9.40 13.50 0.467
1/0
1045/0.254 10.50 14.60 0.370
2/0
1330/0.254 11.90 16.00 0.297
3/0 1672/0.254 13.00 17.50 0.236
4/0 2109/0.254 14.70 19.10 0.187
