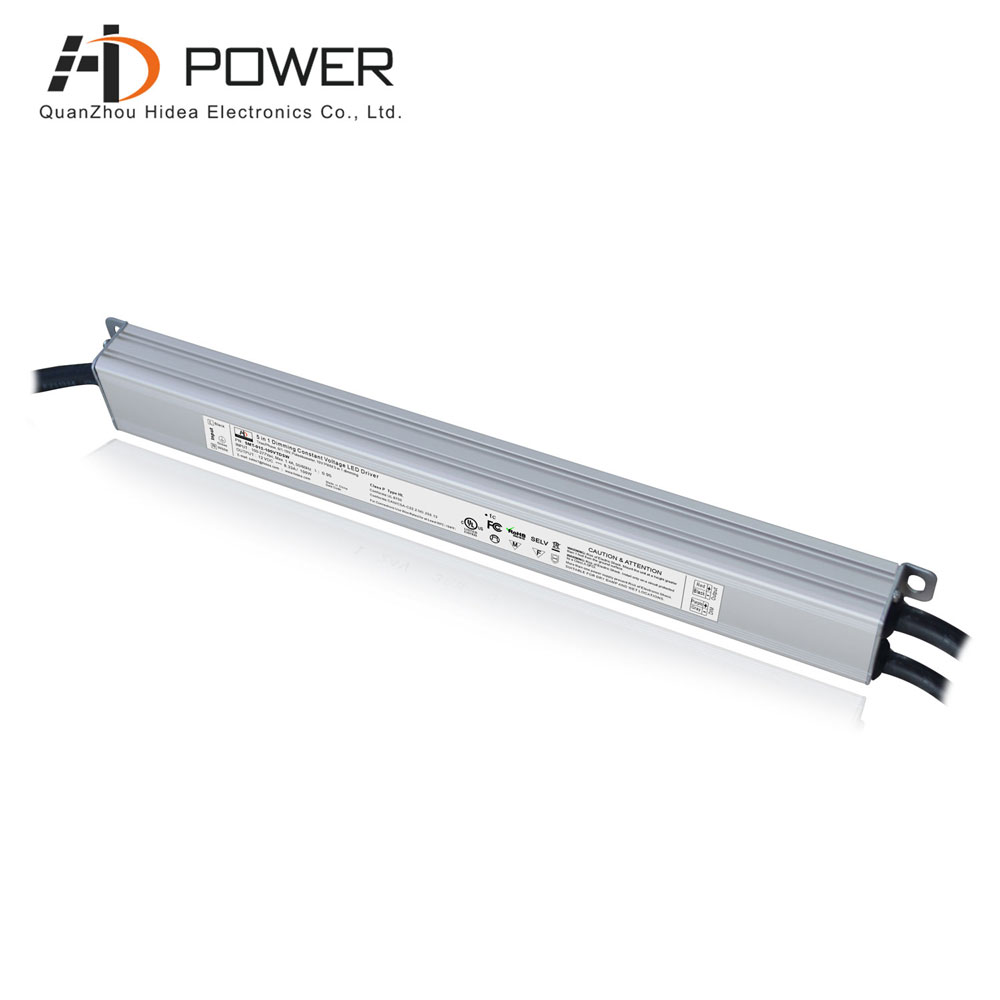

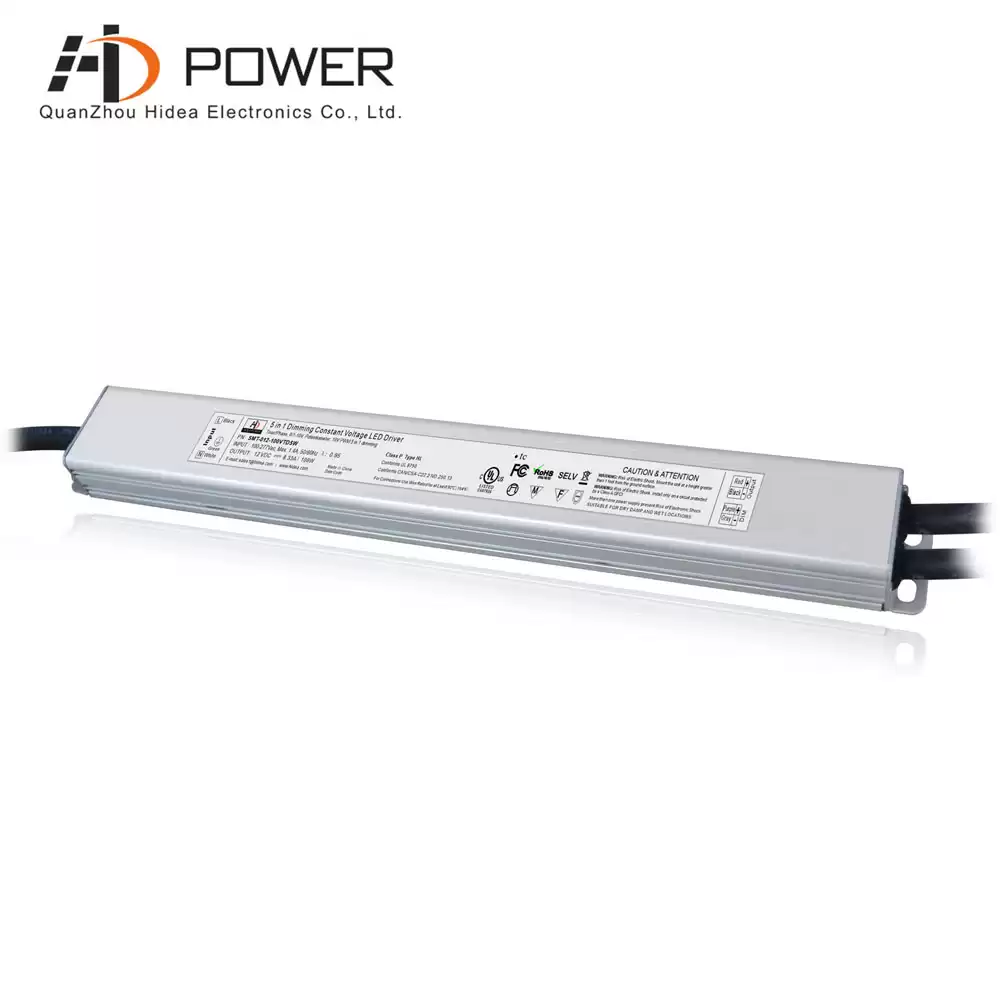

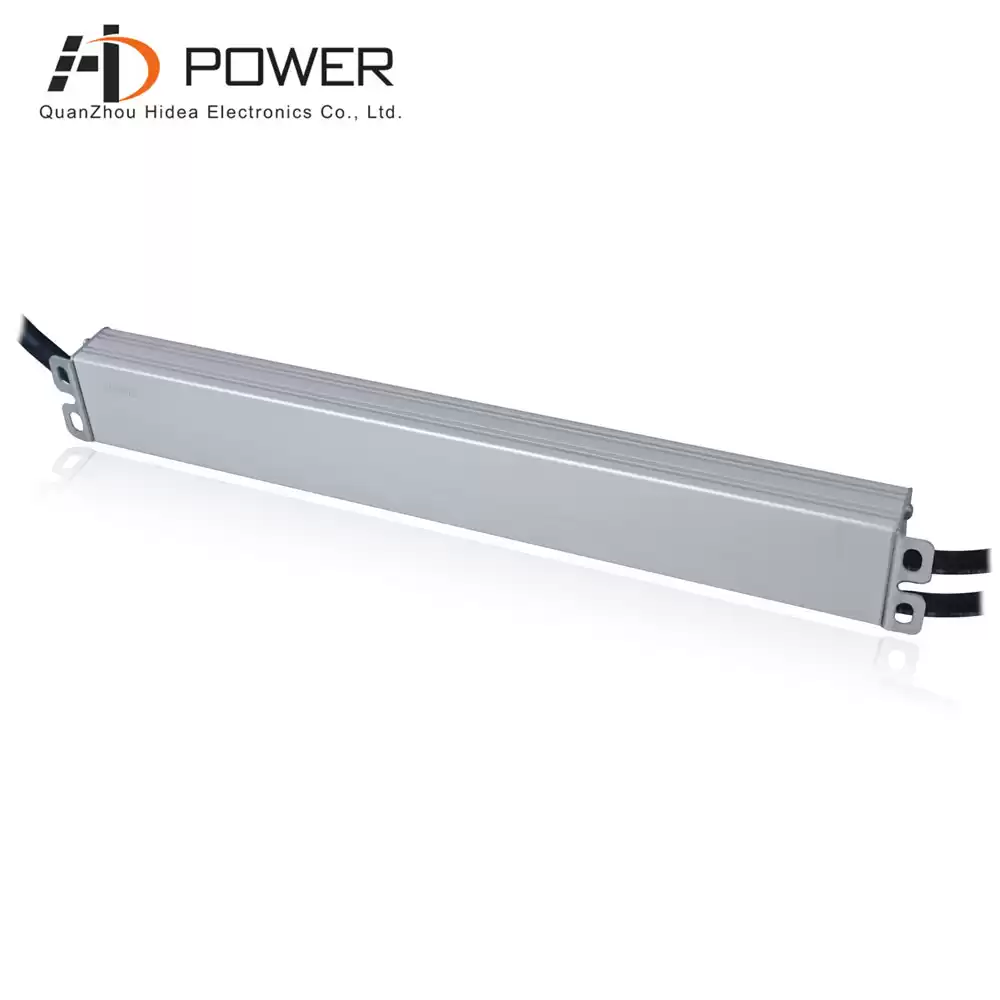

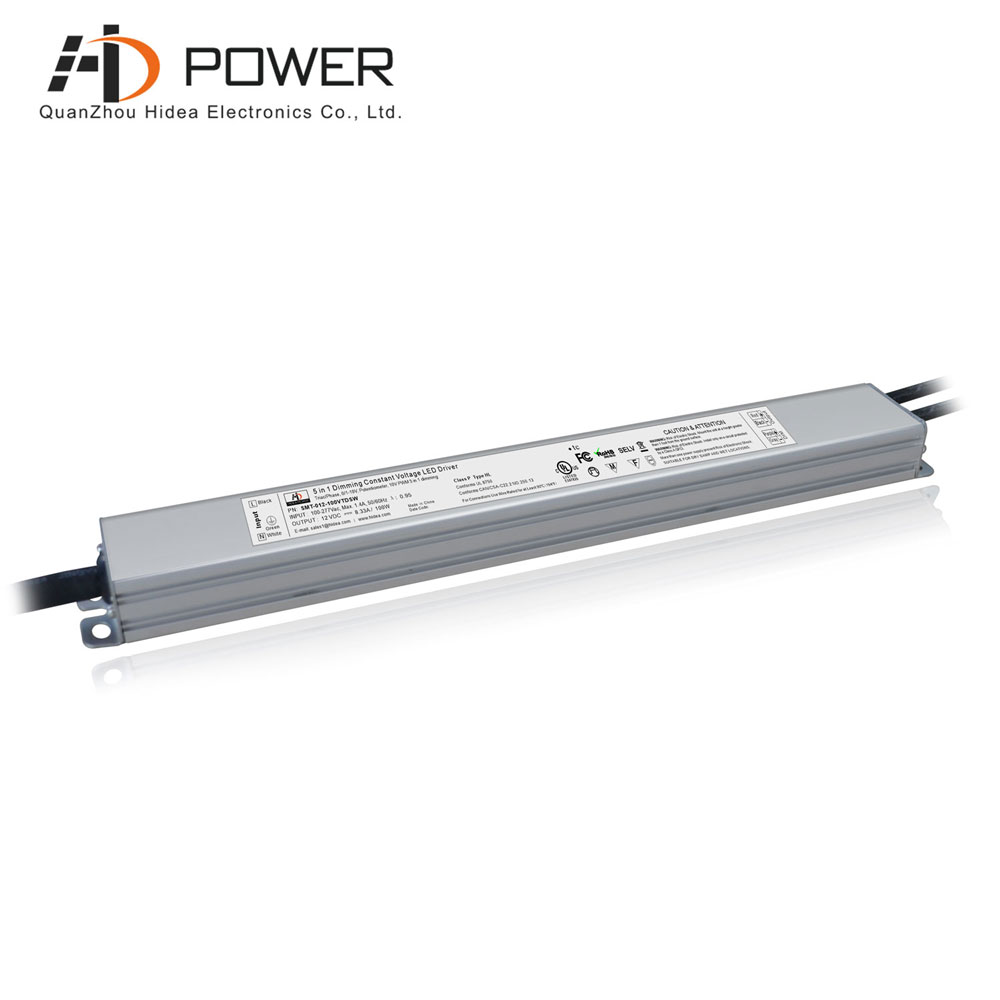

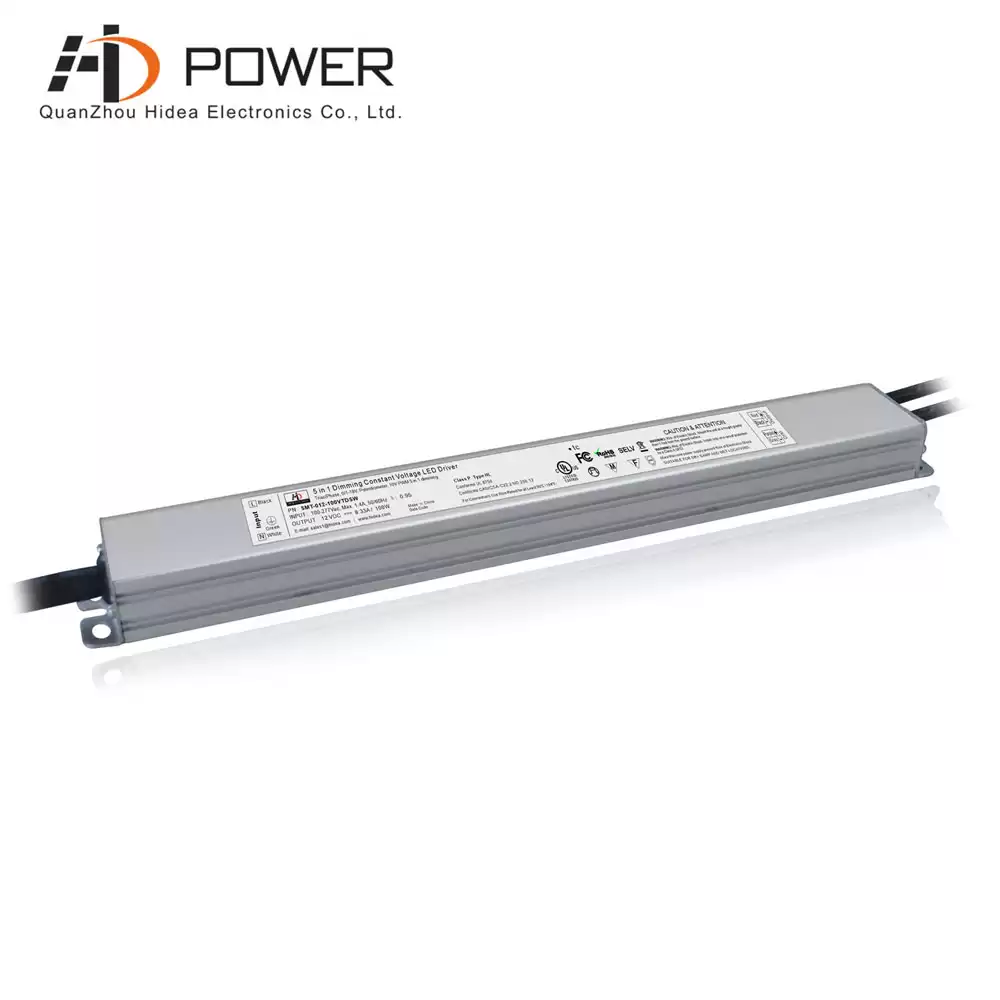

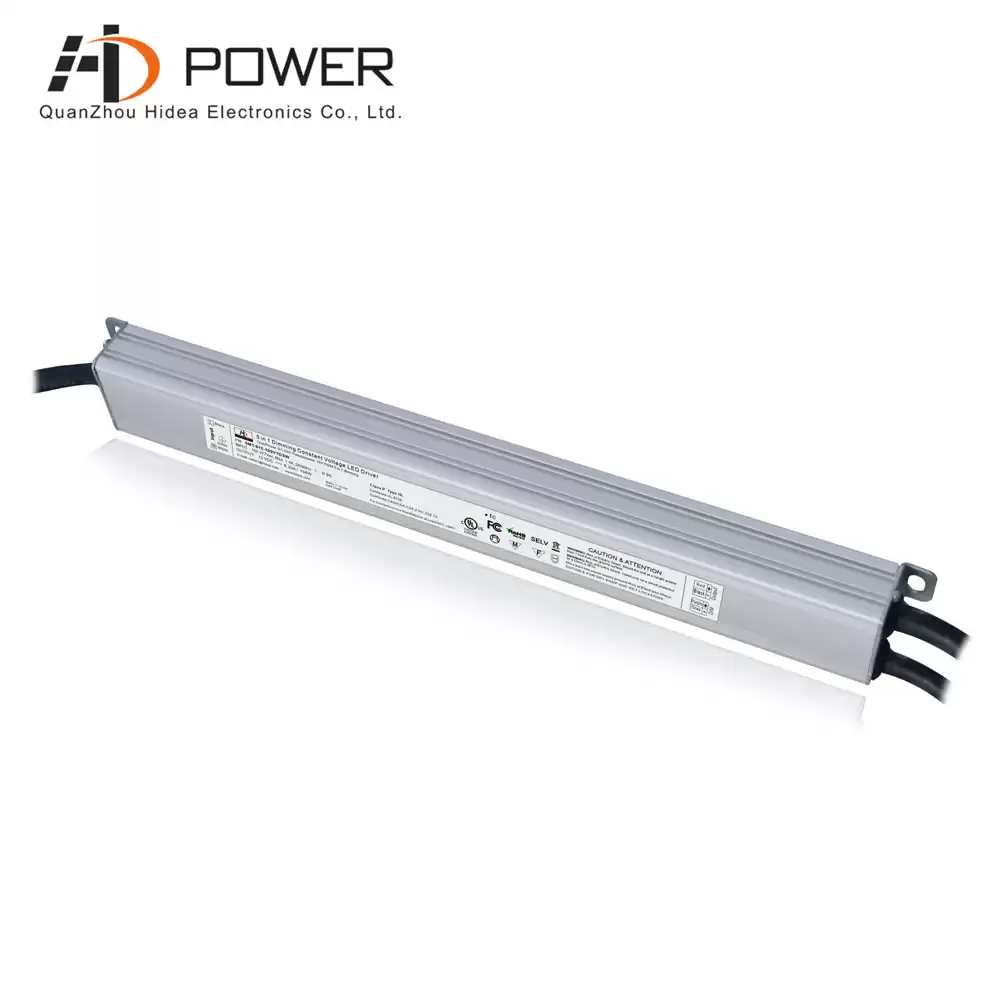

UL listed led power supply 0 10v triac dimmable
We stock 100w dimmable driver you would need to satisfy new construction projects, remodels, and retrofitting. They are for LED bulbs, flush ceiling lighting, recessed downlighting, retrofit downlighting, smart lighting, LED panels and more.
Label
Specification
|
model
|
SMT-012-100VTDSW
|
SMT-024-096VTDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.99@277VAC
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC 87%@277VAC
|
85%@120VAC 88%@277VAC
|
|
AC Current(Typ.)
|
1.30A
|
|
Inrush Current(Typ.)
|
27.0A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 ,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
300*32*23mm(L*W*H)
|
|
packing
|
Carton size: 360*27*17.5mmmm 30pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

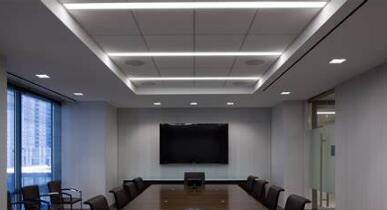

Compatible Light Type
With the expansion of LED technology, more and more 0-10v power supply have the ability to completely shut off light output without any additional switches; this provides great control over your electrical power and fixtures
Related Products
|

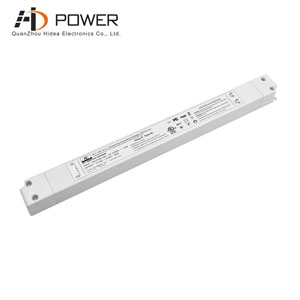

 The slim type 12v dc led driver is 12vdc power supply for LED strip, smooth dimming, 5 in 1 dimming (triac/PWM/0-10V/1-10V/resistor dimming led driver).
