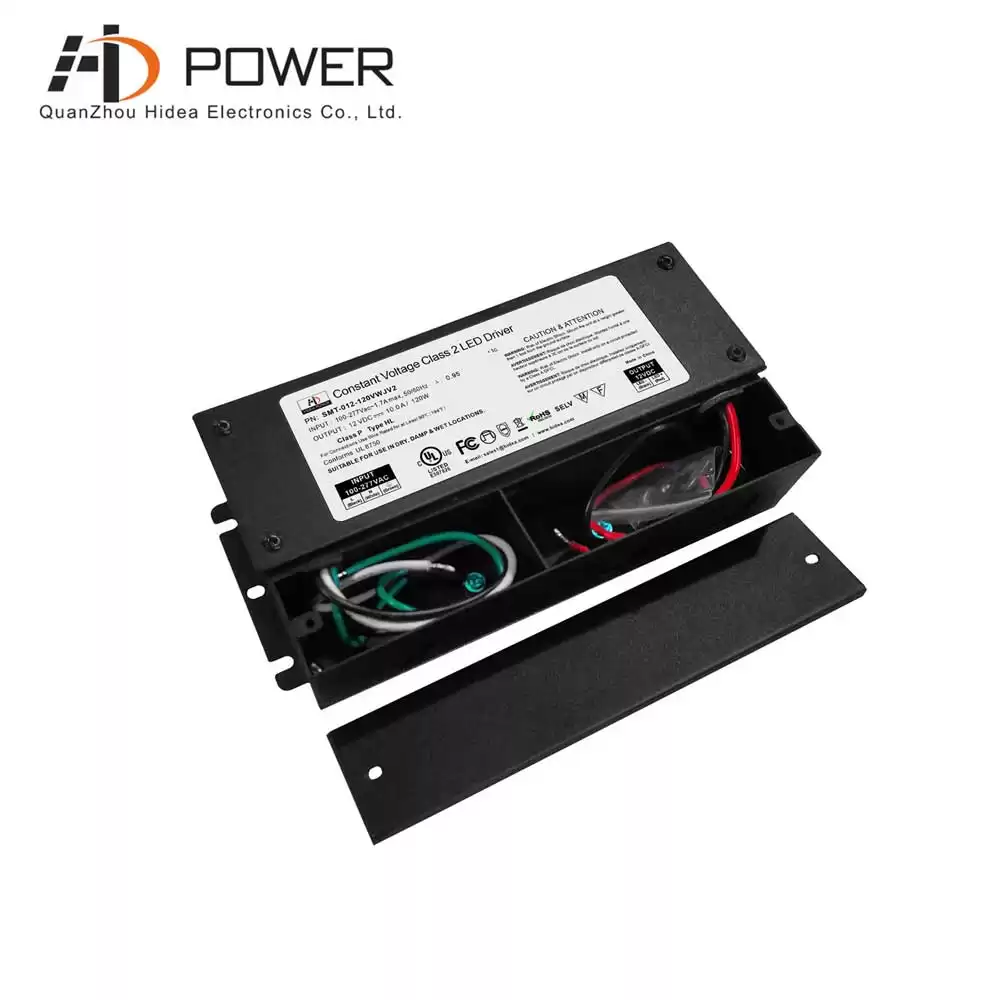

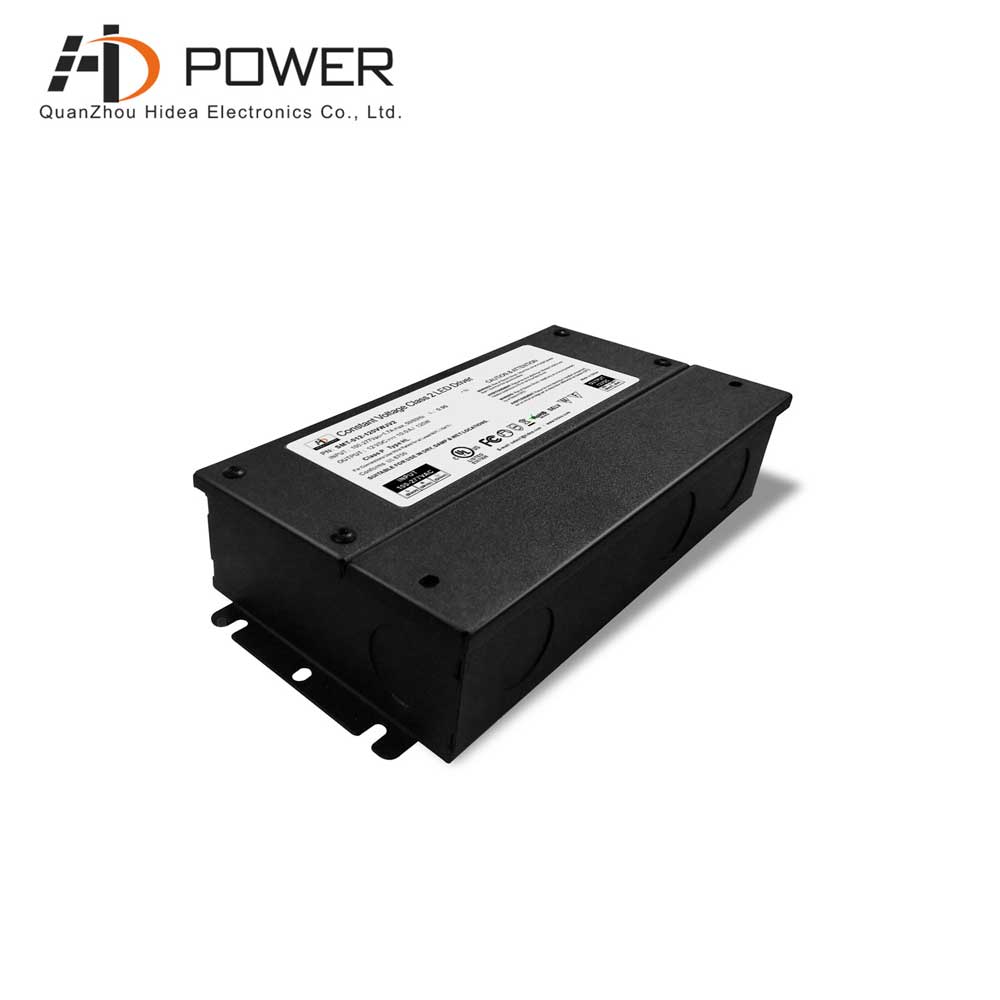

UL non dimmable 12V 120w led driver with junction box for indoors application

This 120w led driver is non dimming mode with high power factor and high effiency for commercial lighting and individual lighting. It is safe to use indoors in damp and dry locations.  We suggest GLLS neon LED for compatibility.


  • Shape & SizeJ-BOX Driver
  • Size1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm
  • Output Voltage12/24Vdc
  • Output Power(Watt)120W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeNon-dimming
  • Weight1.3Kg
  • CertificationUL/CUL
  • Warranty7 Years

Smarts 12 volt dc led driver offers a full range universal AC input 100-277VAC for worldwide using.The junction box driver has the function of /short/over-voltage/over-heat protection. Confoms to UL cUL FCC ROHS approval.


  Specification

Model SMT-012-120VWJ (1.0 version)
SMT-012-120VWJV2 (2.0 version)
SMT-024-120VWJ (1.0 version)
SMT-024-120VWJV2 (2.0version)
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±2%
Rated current 10.00A 5.00A
Rated power 120W
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor (Typ.)@ full load 0.99@120V ;0.97@230V ;0.96@277V 0.99@120V ; 0.97@230V ;0.96@277V
THD (Typ)@ full load <15% @120V    <20%@230V      <20% @277V
Efficiency (Typ.)@ full load 80%@120V  84%@230V  84%@277V 85%@120V  88%@230V  88%@277V
AC Current(Max.) 1.7A (100VAC)
Inrush Current (Typ.) 20A,50% ,1.6ms@120V ;30A,50% 200us@230V ; 25A,50% 1.2ms@277V
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight 1.3Kg
Size 1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm
packing 329*279*176mm , 10PCS/ctn
Notes 1. All parameters NOT specially mentioned are measured at 110VAC input , rated load and
25℃of ambient temperature.
2.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Light Type

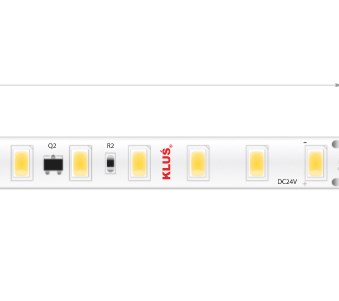

The 12 volt led power supply built with junction box provides safe and enough space for wiring, which is popular in North American. The C.V. power supply are compatible with most constant voltage light, like klus design LED tape.



  Related Products

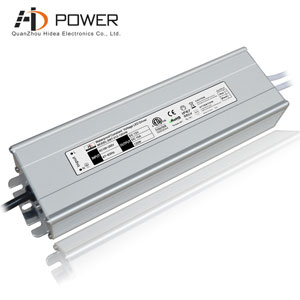

120w led driverSmarts 120w power supply driver is designed for outdoor application, rated IP67.Conforms to ETL listed, with PF>0.95 Efficiency >0.88.


Mode:SMT-012-120VW

Dimming Mode : Non-Dimming

Output Power : 120W

intput voltage:100~265V AC

Size:215*69*43MM   (L*W*H)
