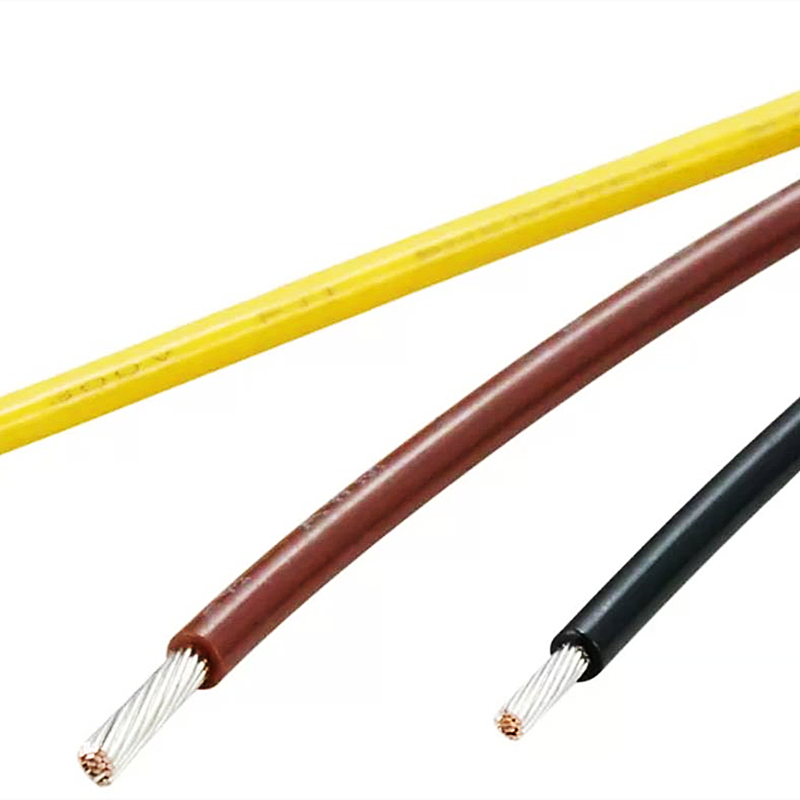

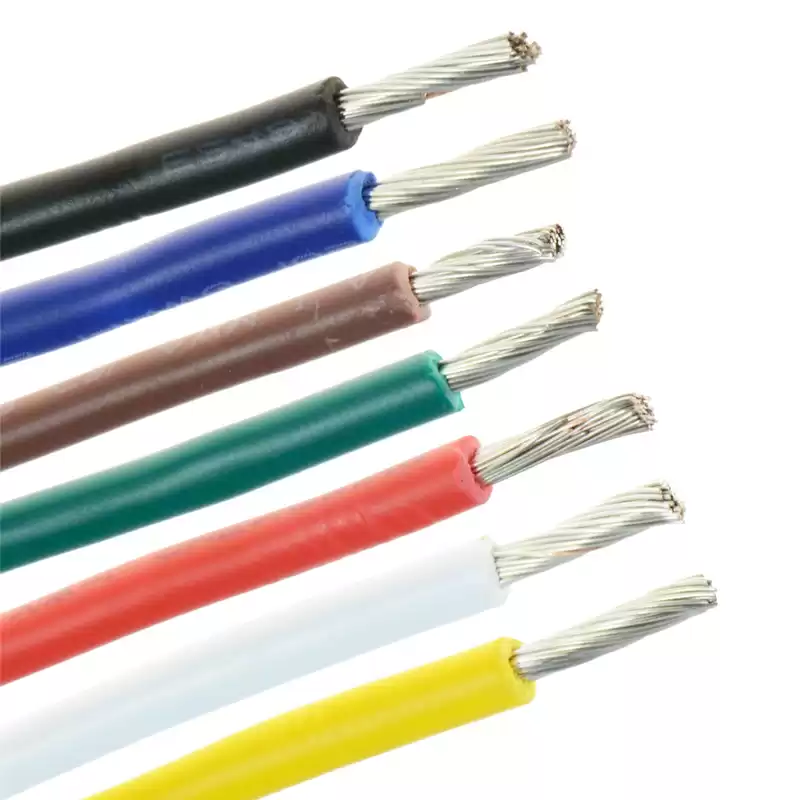

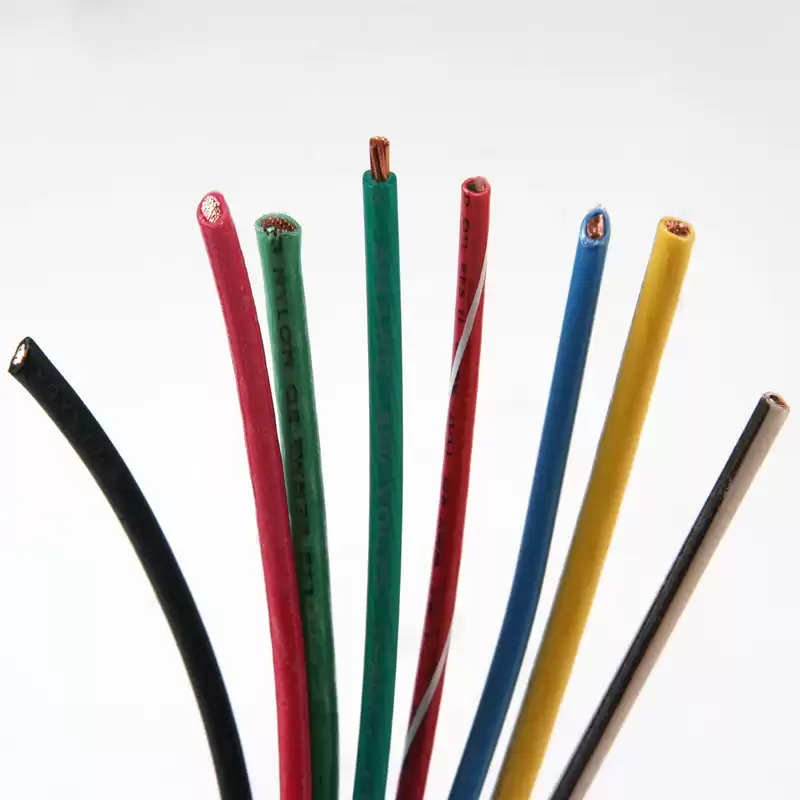

UL1007 Copper Wire PVC Insulated Hook Up Wire

UL1007 Copper Wire PVC Insulated Hook-Up Wire. The UL 1007 PVC hook-up wire is mainly used for the general purpose of the internal wiring of electronic and electrical equipment. Its characteristics include tinned copper conductors, Polyvinyl Chloride (PVC) insulation, and a 300 voltage rating. This makes the UL1007 wire suitable for applications in temperatures ranging from 80°C to 105°C.



UL1007 Copper Wire PVC Insulated Hook-Up Wire



PRODUCTS NAME

UL1007 Copper Wire PVC Insulated Hook-Up Wire.

PRODUCTS KEYWORDS

UL1007, hook up wire, copper wire, pvc insulated cable, electrical wire, electronic wire, electric cable, wire and cables.

PRODUCTS APPLICATION

UL1007 Copper Wire PVC Insulated Hook-Up Wirefor general purpose internal wiring

of electronic and electrical equipment, where exposed to oil at a temperature not exceeding

60°C or 80°C. Uniform insulation thickness of wire to ensure easy stripping and cutting.

Resistant to acids, alkalis, oils, moisture and fungi.

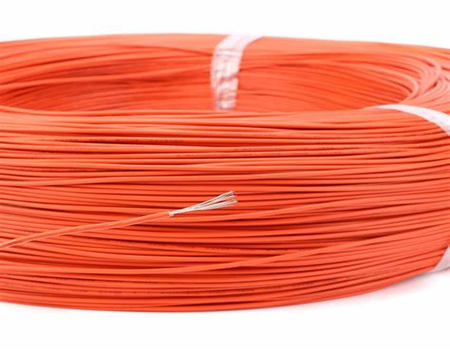

UL1007 hook up wire


PRODUCTS STRUCTURE

UL1007 Copper Wire PVC Insulated Hook Up Wire, the structure as below:

---Conductor Material

Plain annealed copper wire; bare copper or tinned copper; solid Class 1, or stranded Class 2.

---Insulation Material

PVC (polyvinyl chloride).

---Sheath Material

Non-Sheath.

UL1007 hook up wire

a

PRODUCTS DESCRIPTION

 Items No.   Description of Products
 Products Name

 UL1007 Copper Wire PVC Insulated Hook Up Wire

 Conductor Material

 Plain annealed copper wires; bare copper, or tinned copper;

 solid Class 1, or stranded Class 2.

 Conductor Structure  7/0.20 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.4 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  24 AWG.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  1.4 mm.
 Voltage Rate  300V.

 Max. Conductor DC

 Resistance at 20

  in Air

 94.2 Ω/km.

 Min. Insulated

 Resistance at 20

 15 MΩ.km.

 Dielectric Strength

 VAC 1 Minuter

 2,000.
 Production Standard  UL1007, UL758, UL1581, CSA C22.2 No. 210.2.

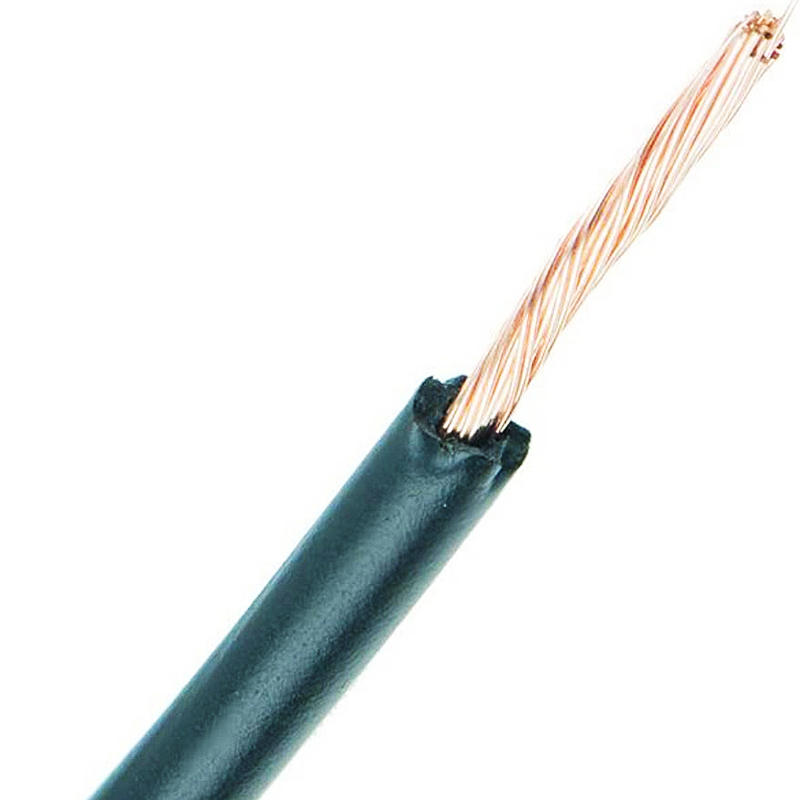

UL1007 electronic wire
