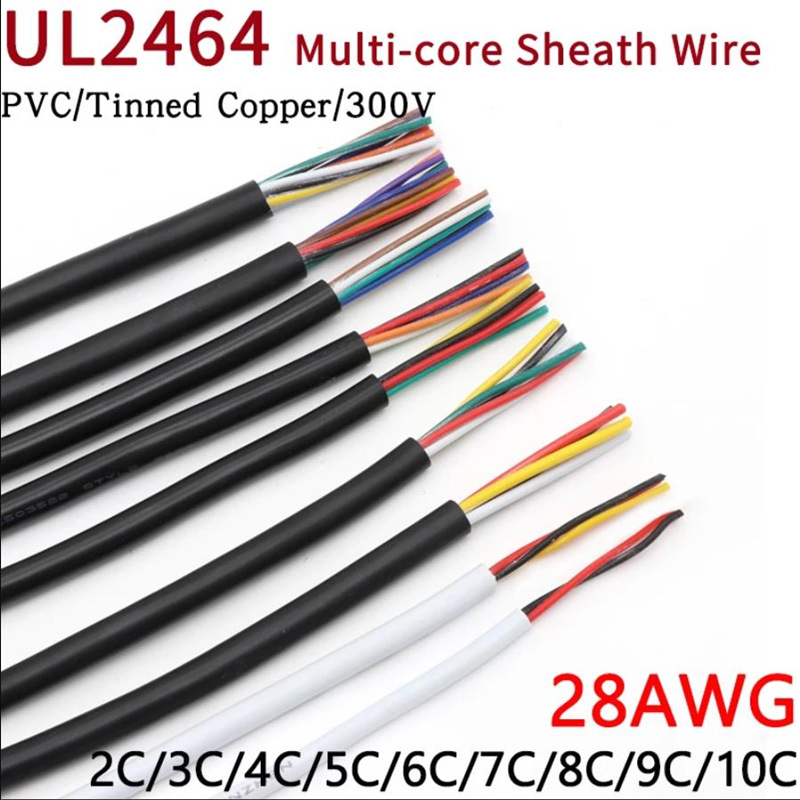

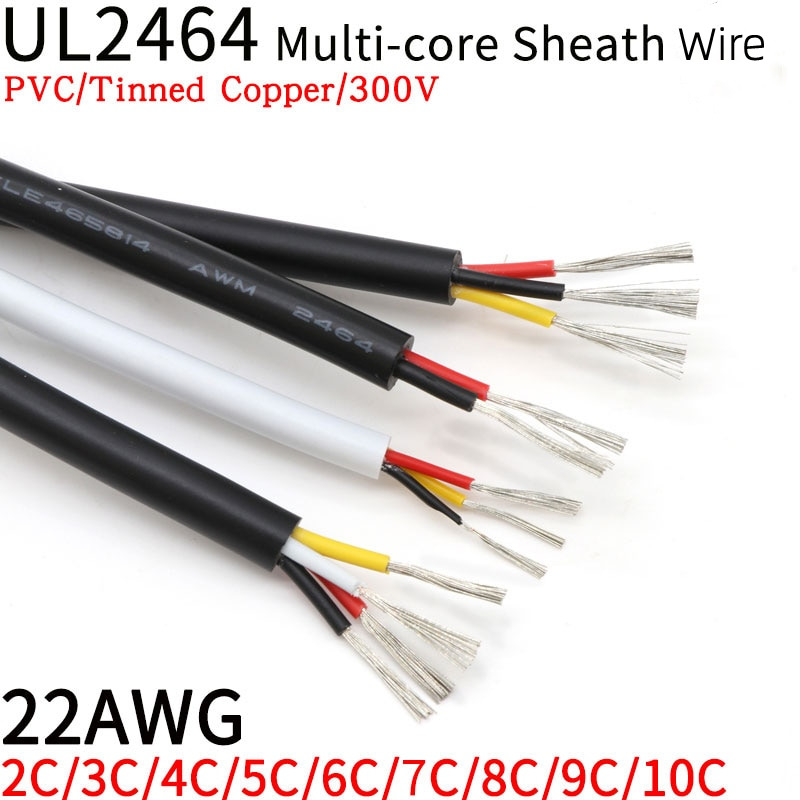

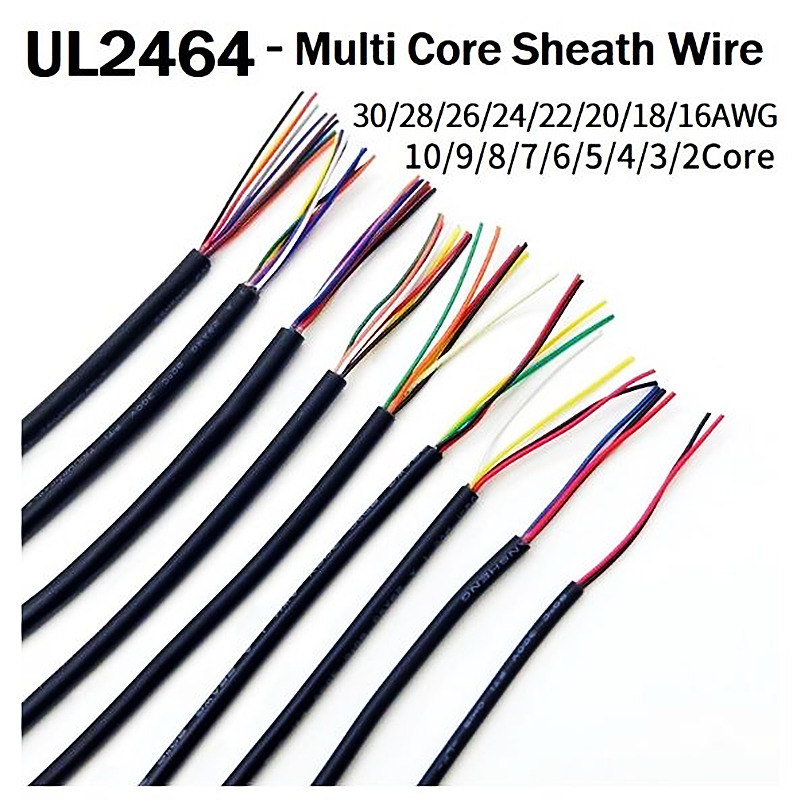

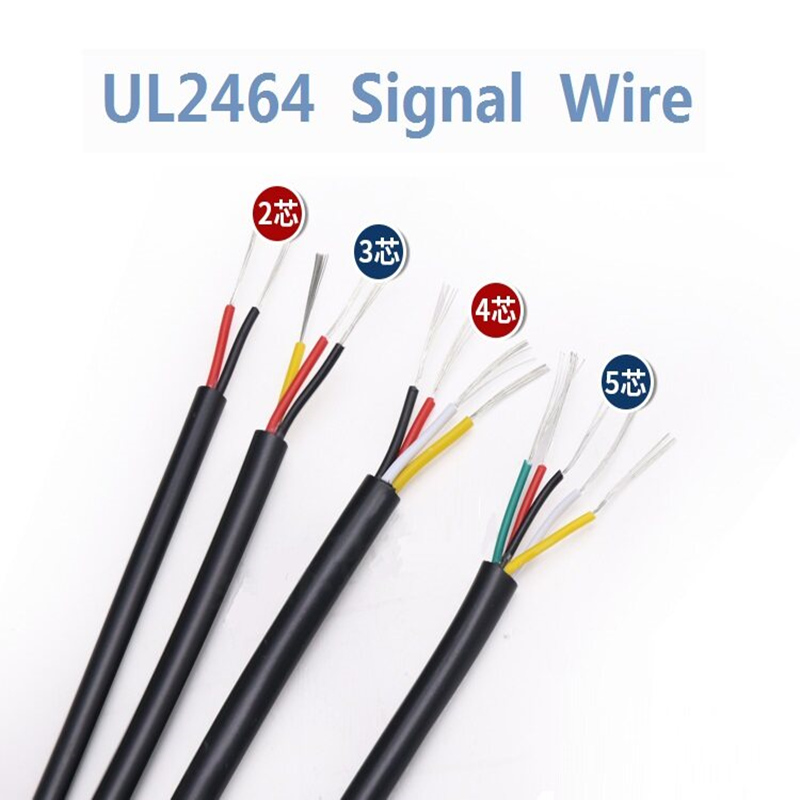

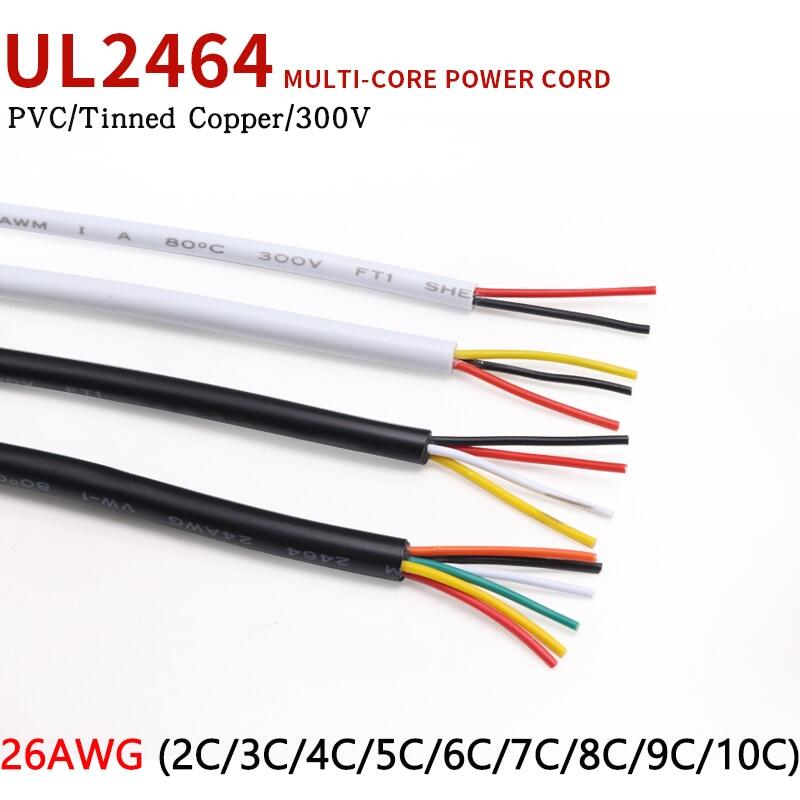

UL2464 Multi-cores Copper Wire PVC Insulated AWM Electronic Wire
PRODUCTS NAME
UL2464 Multi-cores Copper Wire PVC Insulated AWM Electronic Wire.
PRODUCTS KEYWORDS
UL2464, AWM, AWG, Appliance Wiring Material, American wire gauge, copper wire, pvc insulated cable, electrical wire, electronic wire, electric cable, wire and cables.
PRODUCTS APPLICATION
UL2464 Multi-cores Copper Wire PVC Insulated AWM Electronic Wire, widely used in batteries, batteries, household appliances, conservatory appliances, catering equipment, air-conditioning machinery, lighting fixtures, electronic equipment, electric heating products and automobile industry.
PRODUCTS STRUCTURE
UL2464 Multi-cores Copper Wire PVC Insulated AWM Electronic Wire, the structure as below:
---Conductor Material
Plain annealed copper wire; bare copper or tinned copper; stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
a
PRODUCTS DESCRIPTION
|
Description
of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
UL2464 Multi-cores Copper Wire PVC Insulated
AWM Electronic Wire
|
|
Conductor Material
|
Plain annealed copper wires; bare copper, or tinned copper;
stranded Class 2.
|
|
Conductor Structure
|
7/0.20 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.25 mm.
|
|
Insulation Colour
|
Brown, blue, black, grey, white, yellow/green, or others.
|
|
Shielded Material
|
Aluminum Mylar.
|
|
Drain Wire Material
|
Tinned Copper Wire, 11/0.16mm.
|
|
Screened Material
|
Bare Copper Wire, or Tinned Copper Wire.
|
|
Screened
Construction
|
16 x 5/0.10 mm.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.8 mm
|
|
Sheath Colour
|
White, black, grey, or others.
|
|
Conductor
Cross-section
|
24 AWG.
|
|
Core Number
|
2 cores.
|
|
Rer. Out Diameter
|
4.5 mm.
|
|
Voltage Rate
|
300V.
|
|
Max. Working
Temperature
|
80℃.
|
|
Max. Conductor DC
Resistance at 20℃
|
94.2 Ω/km.
|
|
Min. Insulated
Resistance at 20℃
|
15 MΩ.km.
|
|
Dielectric Strength
VAC 1 Minuter
|
2,000.
|
|
Production Standard
|
UL2464, UL758, UL1581, CSA C22.2 No. 210.2.
|
