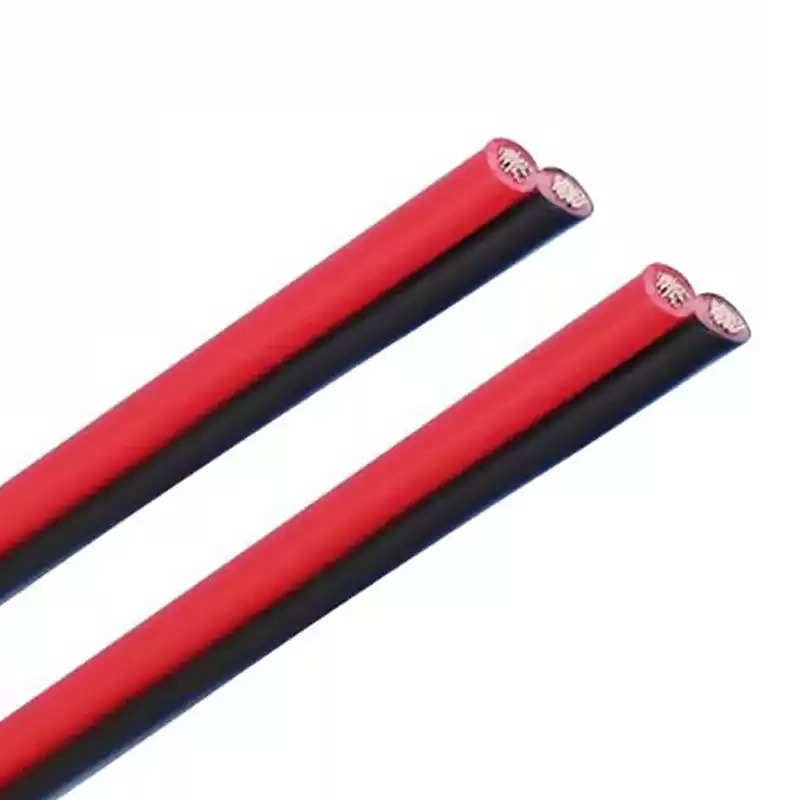

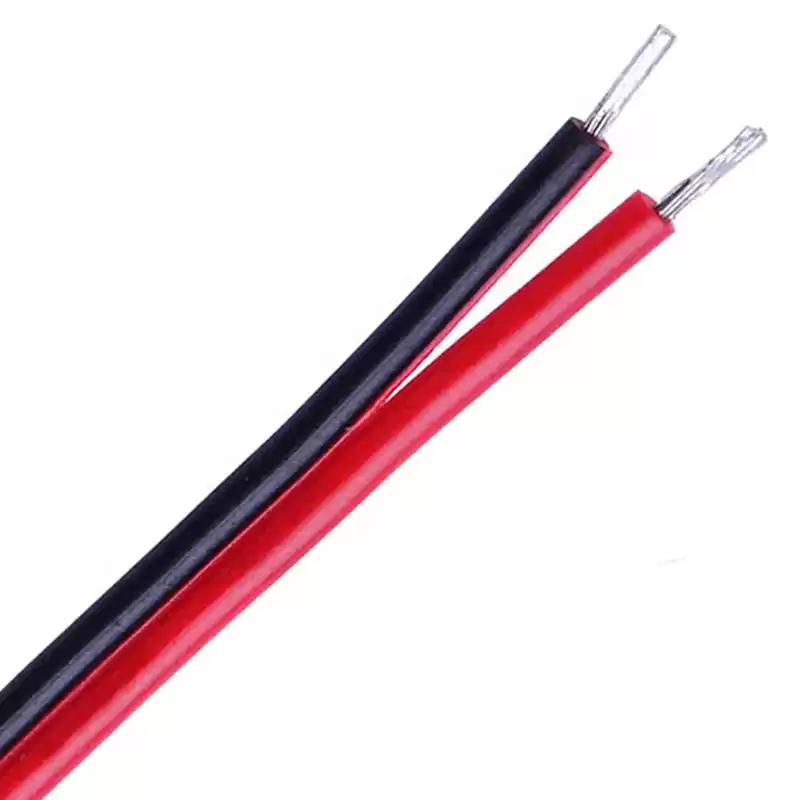

UL2468 Copper Conductor Flat Ribbon Wire And Cable
PRODUCTS FEATURES
-
Rating temperature: 80℃
-
Rating voltage: 300V
-
Conformity standard: UL758, UL1581
-

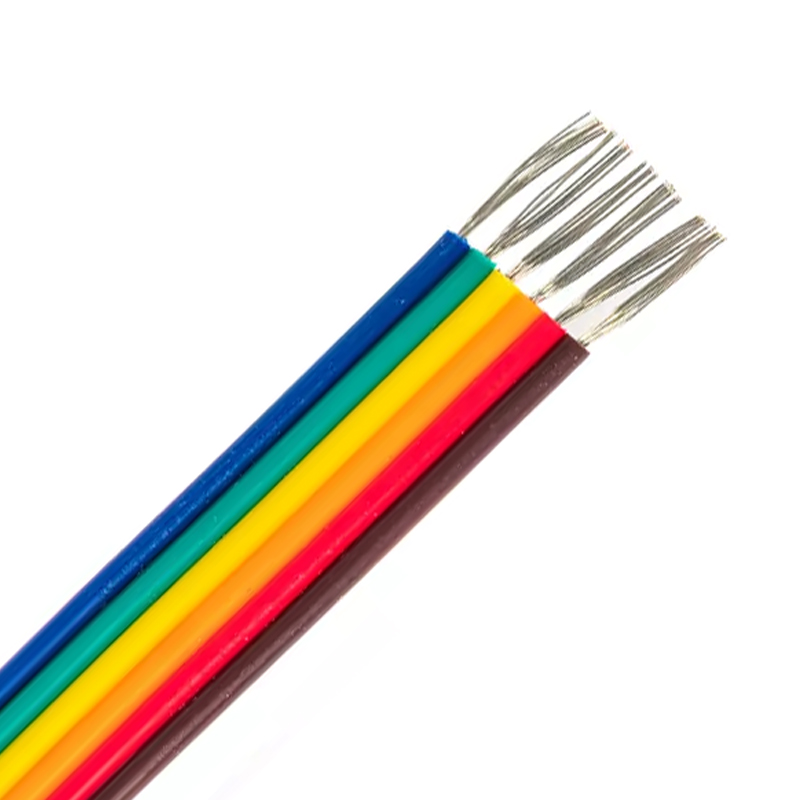

Solid or stranded, tinned or bare copper
conductor, 32-16AWG
-
PVC insulation, comply with ROHS
environmental standard
-
Passes UL VW-1, CSA FT1 flame test
-
Uniform insulation thickness to ensure easy
stripping and cutting
-

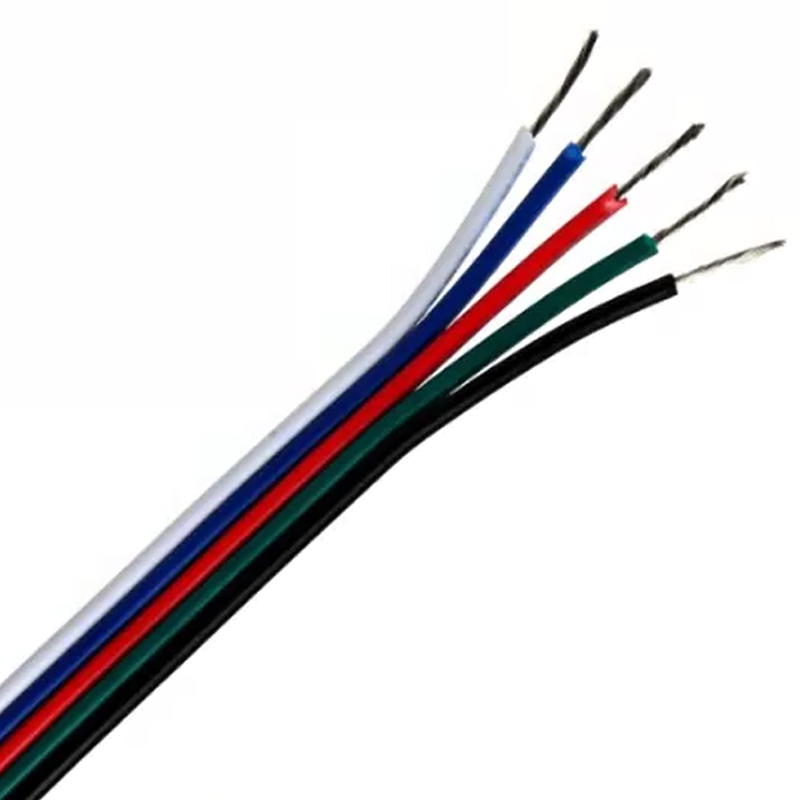

For general purpose internal wiring of
appliance
PRODUCTS APPLICATION

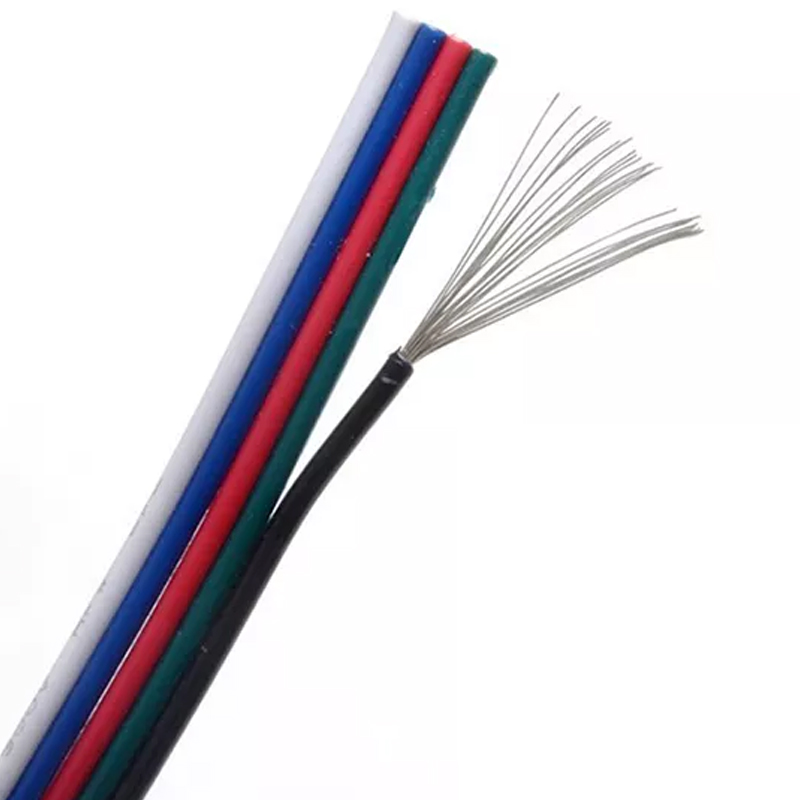

UL2468 cable, its common nominal is AWG
(American Wire Gauge) as the unit, the internal conductor should be divided
into two kinds of bare copper and tinned copper according to the normal
standard. It is widely used in digital cameras, instruments, chargers, audio,
medical equipment, toys, household appliances and circuit boards and other
fields.
PRODUCTS STRUCTURE

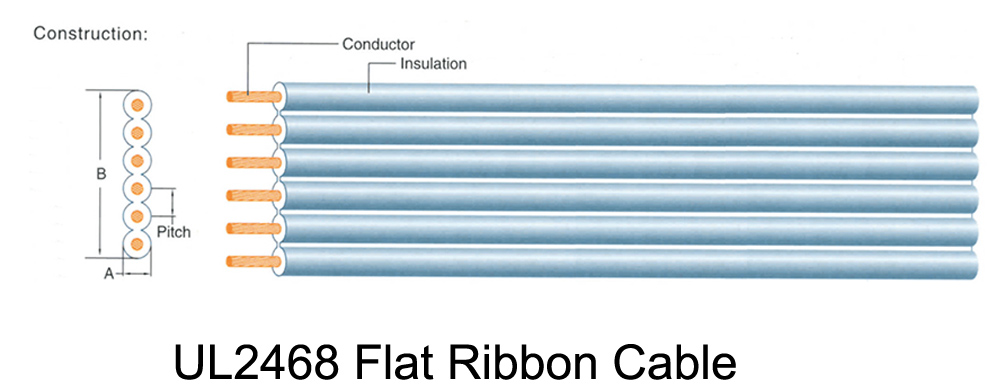

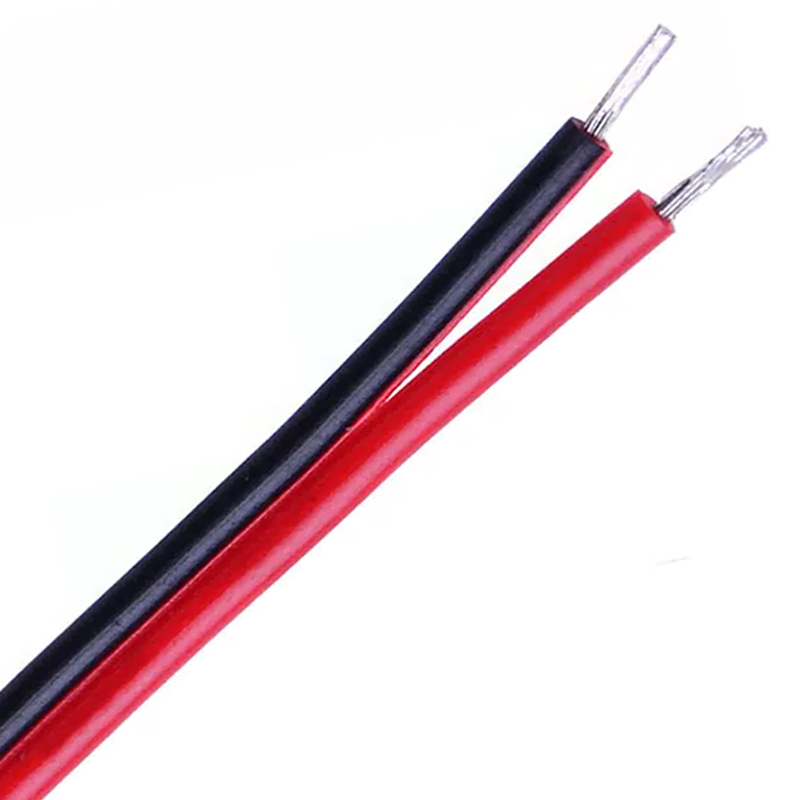

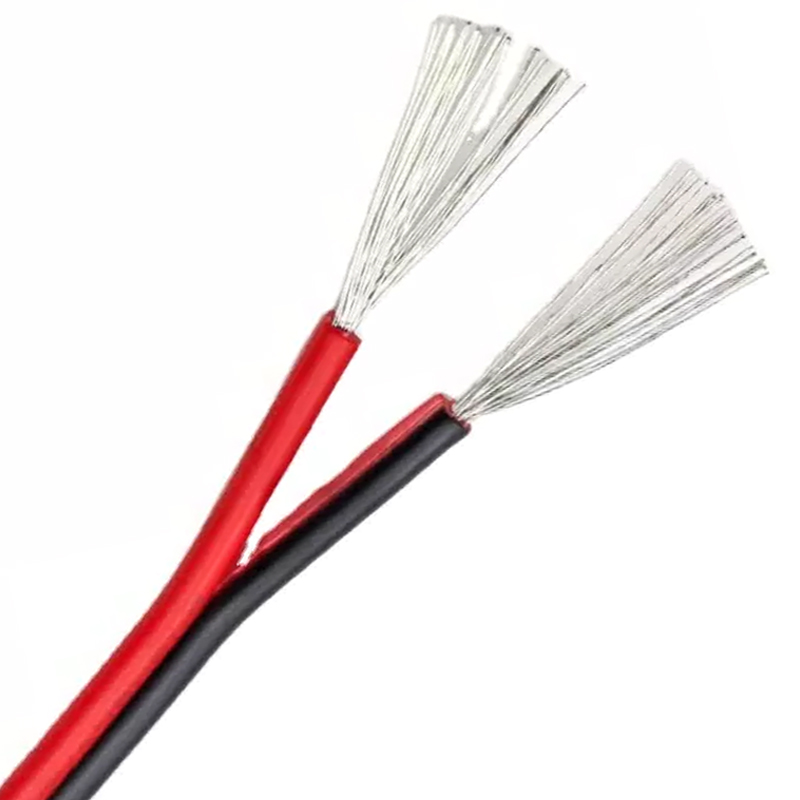

UL2468 Flat Ribbon Cable structure as below:

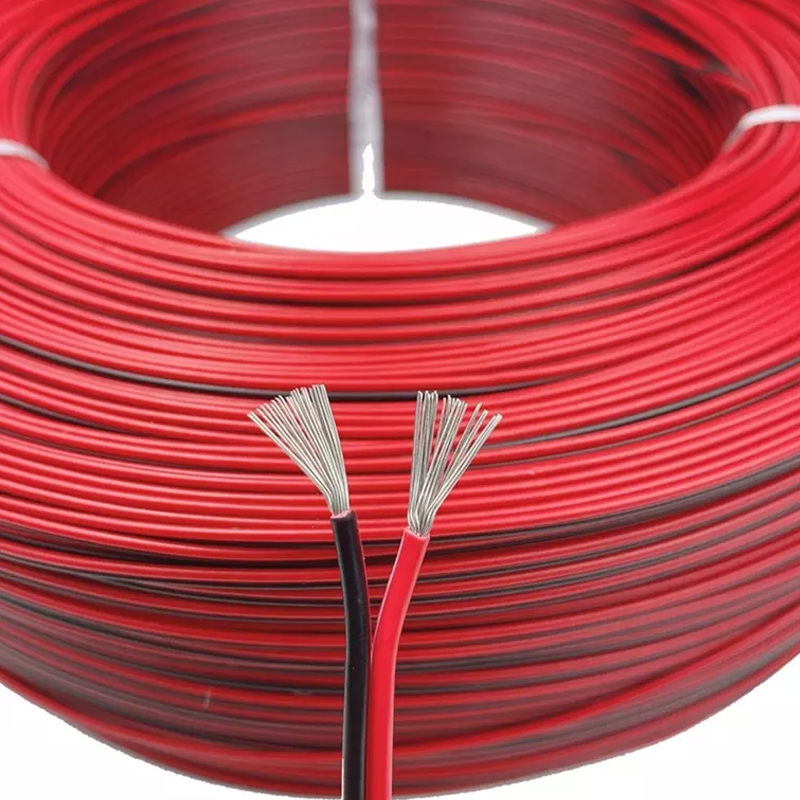

---Conductor Material

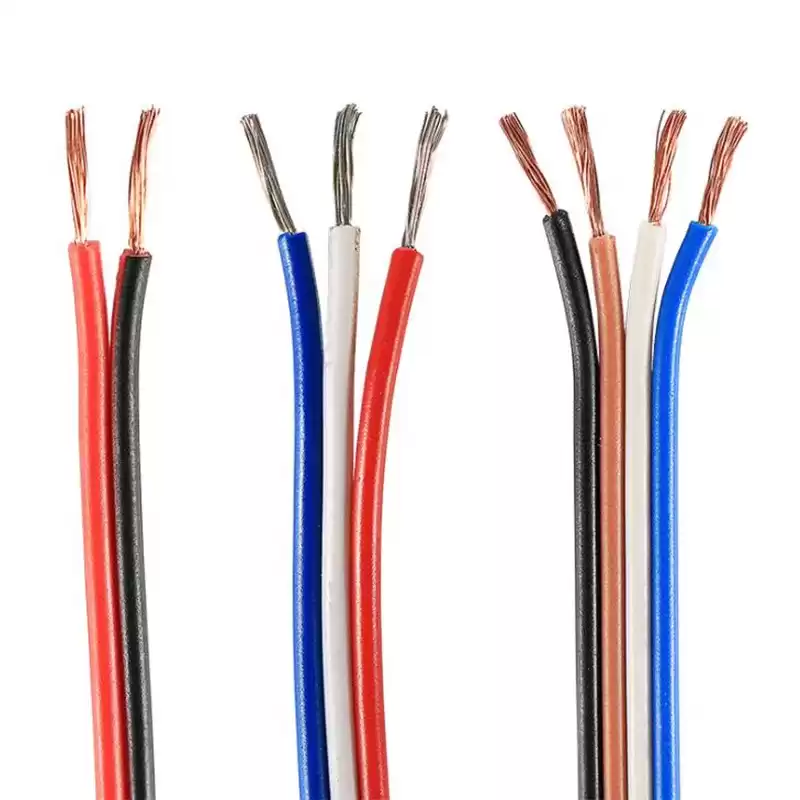

Plain annealed copper wire; bare copper or tinned copper.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS SPECIFICATION
|
Type
|
Conductor
|
Insulation
|
Max. Cond. Resistance at 20°C
(Ω/km)
|
|
No. of Cores
|
AWG
|
Pitch
(mm)
|
Construction
(pcs/mm)
|
Diameter
(mm)
|
Thickness
(mm)
|
Overall Diameter
(mm)
|
|
UL2468
|
2
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x2.50
|
239
|
|
2
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x2.85
|
150
|
|
2
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45x3.45
|
94.2
|
|
2
|
22
|
1.80
|
17/0.16
|
0.76
|
0.47
|
1.70x3.50
|
59.4
|
|
2
|
20
|
1.90
|
26/0.16
|
0.94
|
0.43
|
1.80X3.70
|
36.7
|
|
2
|
18
|
2.10
|
41/0.16
|
1.18
|
0.46
|
2.10x4.30
|
23.2
|
|
3
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x3.75
|
239
|
|
3
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x4.35
|
150
|
|
3
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45X5.45
|
94.2
|
|
3
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x5.00
|
59.4
|
|
4
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x5.00
|
239
|
|
4
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x5.85
|
150
|
|
4
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45X7.45
|
94.2
|
|
4
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x6.70
|
59.4
|
|
5
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x6.25
|
239
|
|
5
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x7.35
|
150
|
|
5
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45x9.45
|
94.2
|
|
5
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x8.40
|
59.4
|
|
6
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x7.50
|
239
|
|
6
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x8.85
|
150
|
|
6
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45X11.45
|
94.2
|
|
6
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x10.10
|
59.4
|
|
7
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x8.75
|
239
|
|
7
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x10.35
|
150
|
|
7
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45x13.45
|
94.2
|
|
7
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x11.80
|
59.4
|
|
8
|
28
|
1.25
|
7/0.127
|
0.38
|
0.44
|
1.25x10.00
|
239
|
|
8
|
26
|
1.50
|
7/0.16
|
0.48
|
0.44
|
1.35x11.85
|
150
|
|
8
|
24
|
2.00
|
7/0.20
|
0.60
|
0.43
|
1.45x15.45
|
94.2
|
|
8
|
22
|
1.70
|
17/0.16
|
0.76
|
0.42
|
1.60x15.20
|
59.4
|
