UL94-V0 Frame-retardant Brush Beside Escalator
AOQUN EN115 Complies Brush Beside Escalator 's friction≥1 Million Times without any deformation.
The durable Brush Beside Escalator provide a tactile reminder to passengers to keep their feet and clothing away from the hazard zones, between the moving step and the stationery sidewall, reducing the risk of an entrapment incident.
AOQUN is already installed on thousands of escalators worldwide including: metro systems, airports, department stores and shopping malls. AOQUN Brush Beside Escalator can be factory fitted to new escalators or retro-fitted as part of a general installation or modernisation programme.
Simple to install and easy to maintain, our products are designed to comply with current European EN115 and American A17 codes.
01 Product

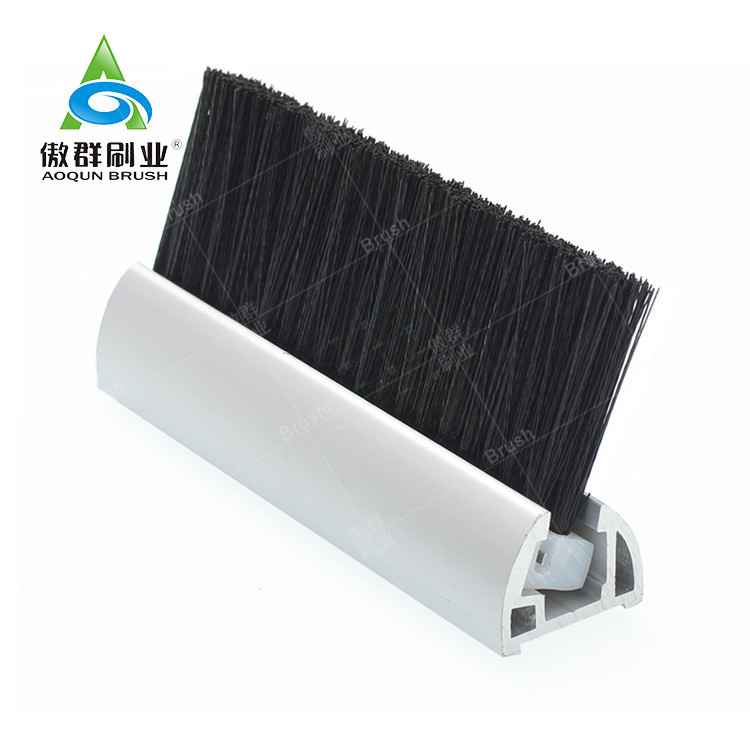

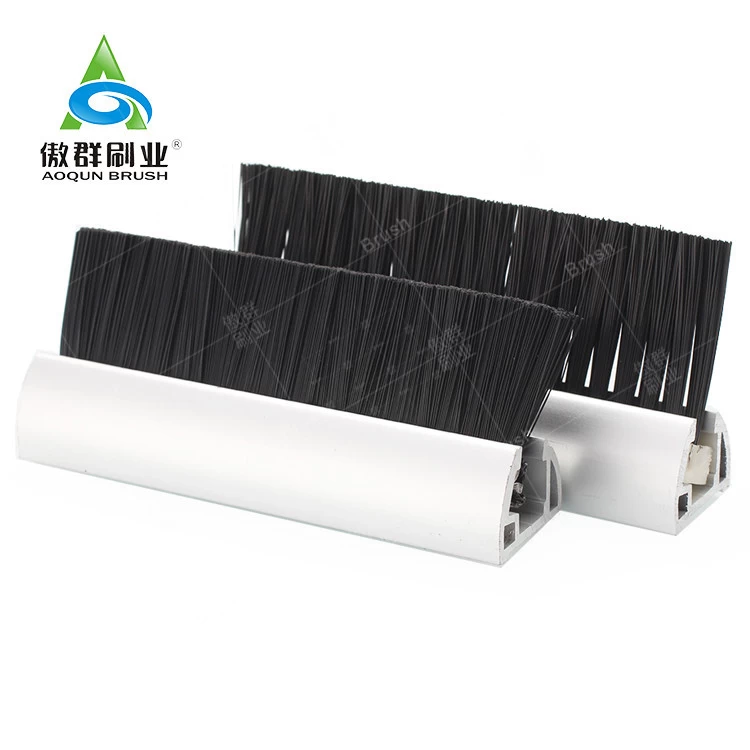

Description -AOQUN Brush Beside Escalator is a combination of strip brush and aluminum profile.
The pure and newly nylon filament does not contain heavy metals, compliies with RoHS, SVHC, etc.
Comply with the UL94-V0 flame retardant standards. Extinguish immediately when remove from the fire.
V-2: After twice 10 second flammability tests , the flame was extinguished within 60 seconds. Some burning substances dropped.
V-1: After twice 10 second flammability tests , the flame was extinguished within 60 seconds. No burning substances dropped.
V-0: After twice 10 second flammability tests , the flame was extinguished within 30 seconds. No burning substances dropped.

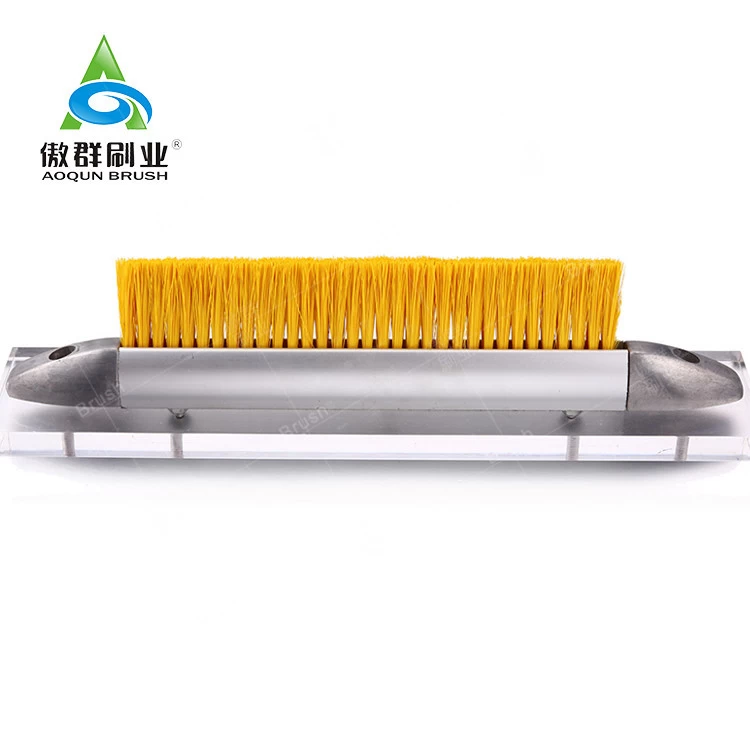

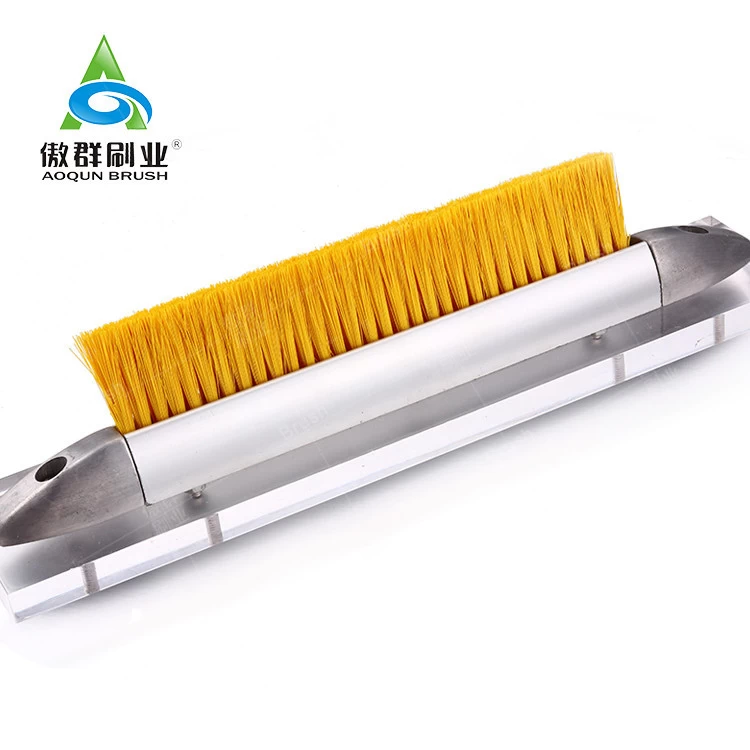

Bright yellow nylon flame retardant Brush Beside Escalator with LED lighting gives the passengers a strong warning feeling and upgrades the escalator safety and aesthetic effects. You can also choose the black bristle with/without the LED.

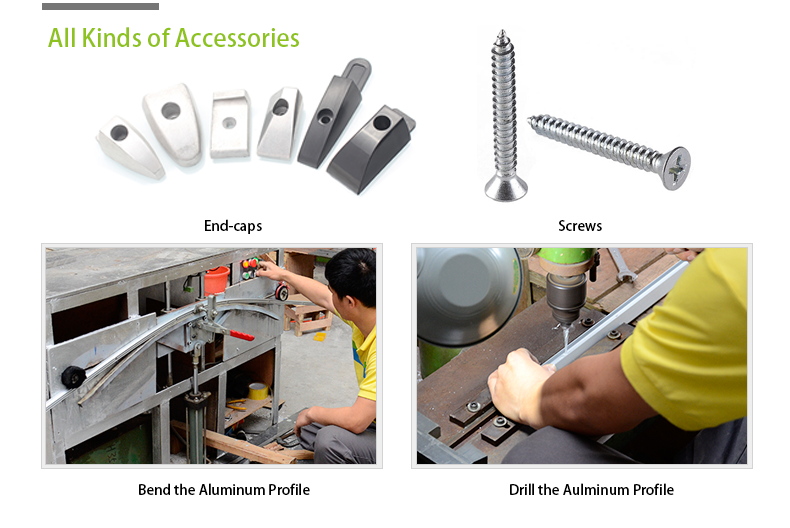

Provide a variety of national standard oxidation aluminum alloy brush bases and end-caps.
02 Products
Specifications and Size
More Than 40 model of aluminum profile for your choice,Can be customized by your drawings.
|
Customization
|
|
Aluminium Profile
|
Single Row, Double Rows
|
Base Width
|
19.5mm, 20mm, 22mm, 23mm, 28mm, 30mm, etc.
|
|
End-cap Material
|
Aluminium, Plastic
|
Brush Color
|
Black, White, Yellow, transparent, Red, etc.
|
|
Escalator Angle
|
6°, 12°, 30°, 35°
|
Brush Shape
|
Straight, Curved
|
|
Brush Material
|
PA, PP, PE, PET
|
Brush functions
|
Flame Retardant, Static-free, Wear-resistant
|
|
Honor Customers
|
Schindler, Toshiba, KONE, ThyssenKrupp, Otis, Hitachi, Mitsubishi, Fangda, etc.
|
Focus on Quality
For the products of each batch production,the size,tension,hand feeling and appearance must be strictly tested and controlled.
Honor Customers
AOQUN has established a long-term cooperative relationship with Schindler, Toshiba, KONE, ThyssenKrupp, Otis, Hitachi, Mitsubishi, Fangda and other internationally famous escalator enterprises. AOQUN’s Brush Beside Escalator for Escalator are sold to more than 50 countries and regions, provide a safer elevator and escalator riding experience and environment worldwide.
