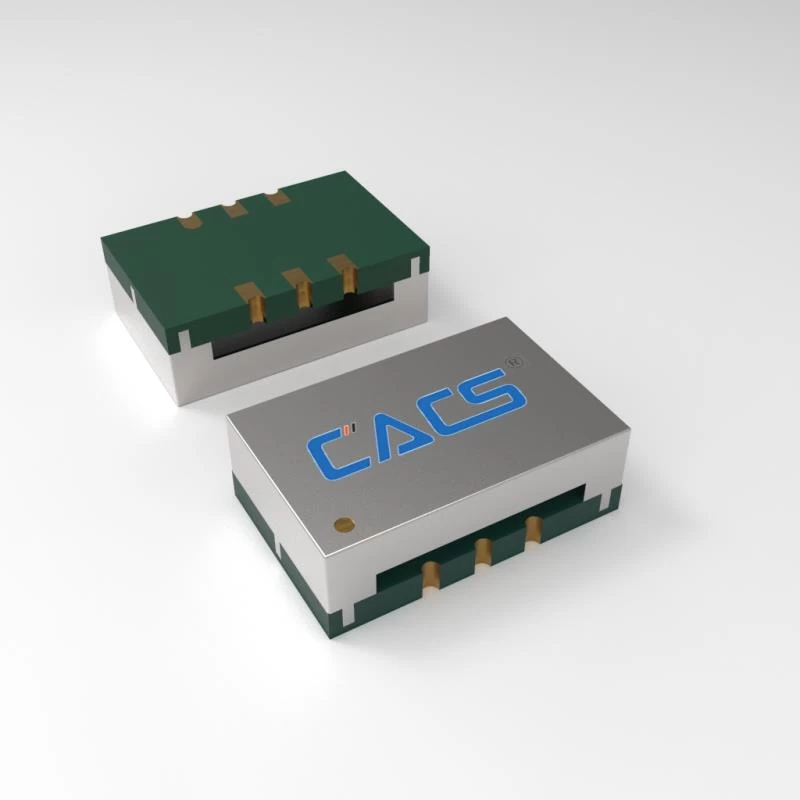

LVPECL Voltagecontrolled crystal oscillator PV8F
1. Supply voltage: 3.3V ±5%
2. Frequency range 50 to 800MHz
3. Frequency pulling up to ±150 ppm
4. Fundamental mode oscillation (50MHz to 250MHz)
5. Analog frequency multiplication (100MHz to 800MHz)
Electrical Parameters
|
PARAMETER
|
CONDITION
|
VALUE
|
UNIT
|
|
Min.
|
Typ.
|
Max.
|
|
Frequency
Range
|
3.3 volts ±5%
|
100
|
|
800
|
MHz
|
|
Supply Voltage
|
±5%, 25℃
|
|
3.3
|
|
V
|
|
Sub-Harmonics
|
Delta Ref. to carrier
|
-70
|
-60
|
-40
|
dBm
|
|
Spurs
|
Delta Ref. to carrier
|
-75
|
|
-65
|
dBm
|
|
Duty Cycle
|
Output termination
50Ω / Vcc -2.0V
|
40
|
|
60
|
%
|
|
RMS Phase
Jitter
|
12KHz -20MHz
Bandwidth
|
|
0.6
|
1
|
ps
|
|
Frequency
Stability
|
-40 to +85℃, ref. to
25℃
|
-30
|
|
30
|
ppm
|
|
Voltage
Control Input Range
|
|
0
|
|
3.3
|
V
|
|
Modulation
Bandwidth
|
-3db
|
|
20
|
|
KHz
|
|
VC Input
Impedance, min.
|
Vcc=3.3, 0≤ Vc≤ Vcc
|
|
100
|
|
KΩ
|
|
Pull Range
|
0≤ Vc≤ Vcc
|
40
|
|
150
|
ppm
|
|
VC Tansfer
Function
|
|
12.1
|
|
45.5
|
ppm/V
|
|
VC Linearity
|
Positive slope
|
|
10
|
|
%
|
|
Voltage
Control Center
|
Freq. tolerance
±10ppm max.
|
|
1.65
|
|
V
|
|
Start-Up Time
|
Ta=25℃
|
|
10
|
|
ms
|
|
Aging
|
Over 20 years life
time
|
|
15
|
|
ppm
|
|
Operating
Termperature
|
|
-40
|
|
85
|
℃
|
|
Storage
Termperature
|
Absolute max
|
-65
|
|
150
|
℃
|
|
Maximum
Voltage
|
|
|
4.6
|
|
V
|
|
Moisture
Sensitivity Level
|
JEDEC J-STD-020
|
1
|
|
Termination
Finish
|
|
Au
|
|
ESD Sensitivity
|
Human body model
JESD22-A114
|
|
3
|
|
kV
|
Dimension
