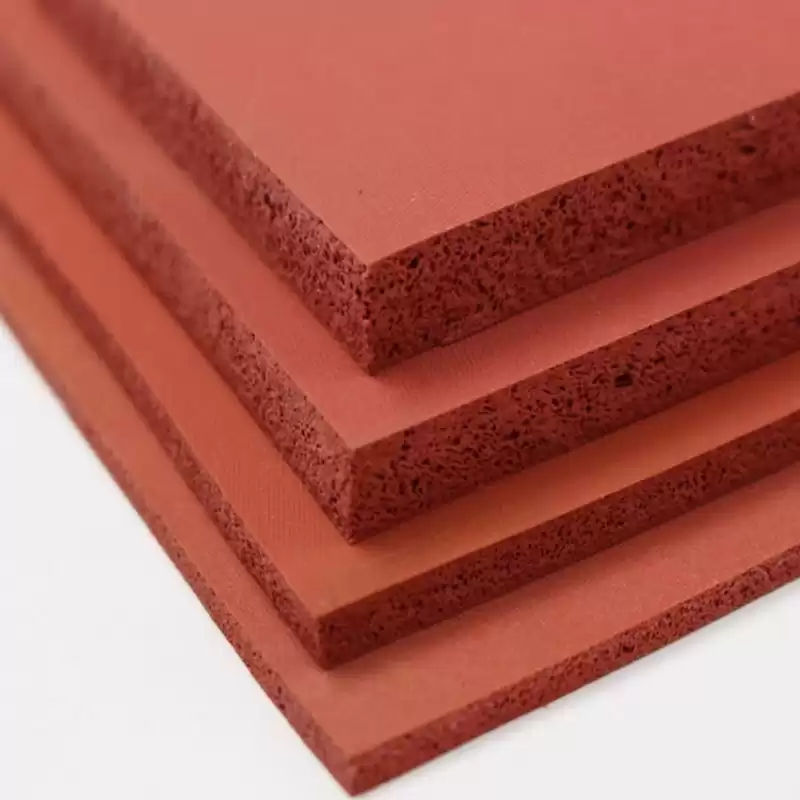

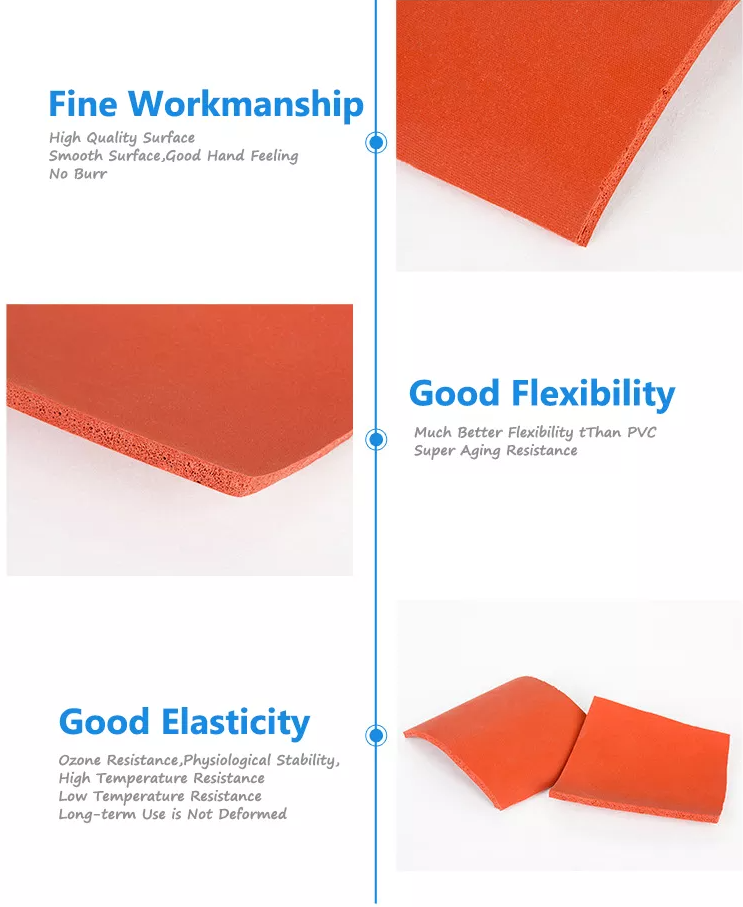

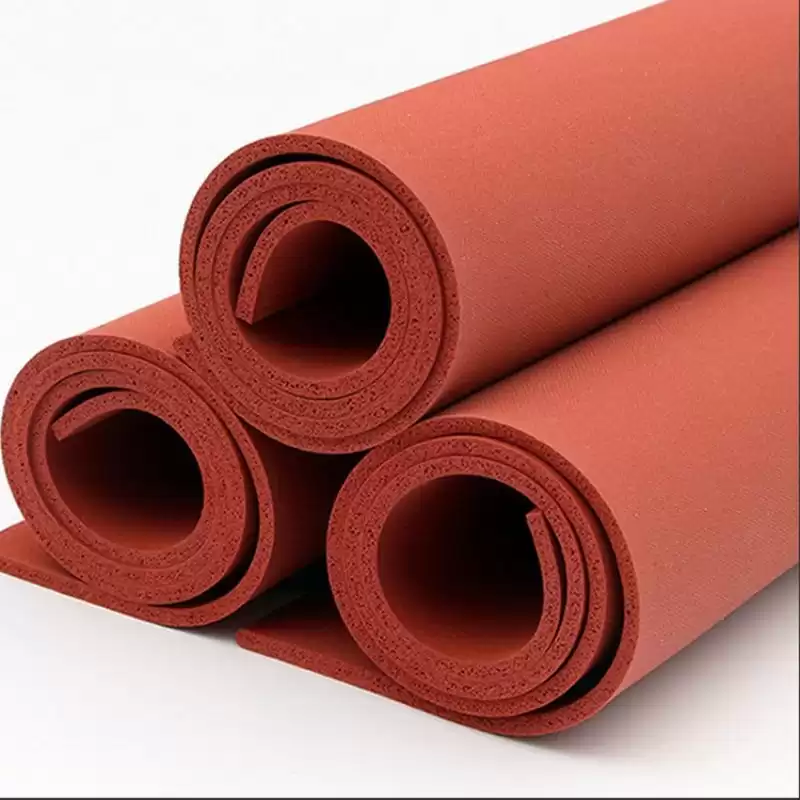

Ultra-Thin Red Silicone Rubber Foam Sheet

The thickness is 1mm-15mm, the foaming density is uniform, and the density can be between 0.5~1.0g/cm


  • ThicknessCustomer
  • WidthCustomer
  • LengthCustomer

Ultra-Thin Red Silicone Rubber Foam Sheet

 Product Description



  • UV resistance, ozone resistance, temperature resistance and flame retardancy make the material stable in a variety of environments.Tight cell structure and formula provide stronger sealing ability, which can effectively block tiny particles and rain.



 Product Use



  • 1. Pressure resistance, high temperature resistance, wear resistance, fall resistance
  • 2. Used for the isolation of electronic equipment and vehicles

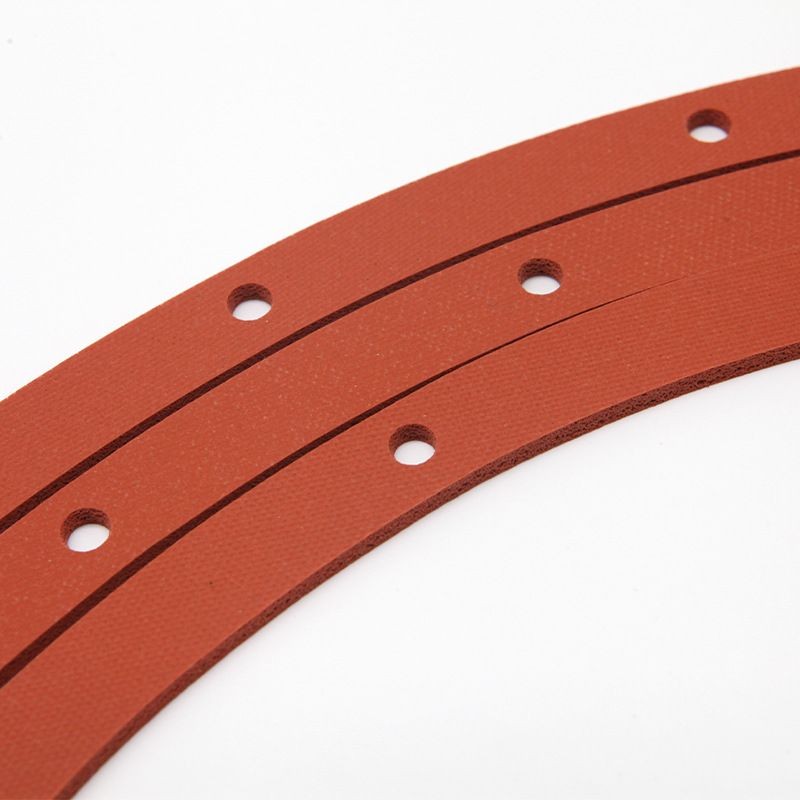

  • 3. Can Be used to produce a variety of sealing gasket and gasket with strict requirements
  • 4. the silicon dioxide produced by short circuit combustion is still an insulator that keeps the electrical equipment working, so it is suitable for making wires, cables, and leads.



Physical Properties



NO.  Test Item  Test Method  Result  Conclusion
1 Compression Deflection  ASTM D1056-14Section 17~23  12.7psi  /
2  Compression Set With reference to ASTMD1056-14 Section50~56 and client's requirement 4%  /
3 Density With reference to ASTM D792-13 Method Band client's requirement  0.385g/cm3  /
4  Dielectric Strength GB/T 1695-2005 5.51kV/mm  /
5 Low TemperatureResistance Test Provided by client No damage  /
6  Tensile Test With reference to ASTM D412-16 Method A and client's requirement
 Tensile Test   0.651MPa
Elongation at Break  230%
/
7 Volume Resistivity  GB/T1692-2008  4.23x1016Ω·cm  /
8 Water Absorption ASTMD570-98(2018) 0.68% /
