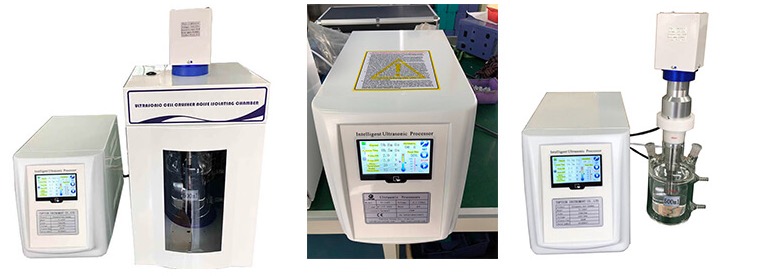

Ultrasonic Processors Cell Disruptors For Liquid Processing Dispersion


  • Model NumberOLT-UI-50
  • Model Number1
  • ComplianceCE Certified
  • ScreenTouch control
  • VoltageTwo Years Limited Warranty With Lifetime Support
  • WarrantyWestern Union, T/T, L/C
  • Packaging Details Export wooden package
  • Delivery Time10day

Ultrasonic Homogenizer through its “cavitation effect” achieve oil blended with water emulsification, water blended with oil emulsification, dispersion phase and continuous phase mixing homogenization, it’s an advanced phonochemistry method to replace the traditional emulsify process such as propeller and colloid mill,etc. An important feature of ultrasonic emulsify is that you don’t need use or use little emulgator to get most stable emulsion.

OLLITAL brand ultrasonic series products all use ultrasonic “cavitation effect” to disperse the glomerate particles. Add particle suspension liquid (liquid phase) in super strong sound field, use suitable ultrasonic amplitude to process.


Food industry, paper making, oil paint, chemical industry,pharmaceutical, spinning, fuel oil thermoelectricity, fuel oil central air-conditioning, oil, metallurgy, etc. Fuel oil blended with water combustion is an important arisen program now.

Model

OLT-UI-50

OLT-UI-51

OLT-UI-52

Frequency (KHz)

20-30KHz

 Automatic   tracking

20-25KHz

Automatic

tracking

19.5-20.5KHz

 Automatic

tracking

Power

(W)

5-500W

adjustable

10-1000W

 adjustable

20-1500W

 adjustable

Horn

(mm)

Φ6

Φ10

Φ20 or 22

Optional

 Horn

(mm)

Φ2Φ3Φ8Φ10

Φ6Φ8Φ10Φ12Φ15

Φ10Φ15

Φ25

Crush   capacity

(ml)

0.2-400

10-600

50-1500

Instrument   protection function

Over-

temperature   protection

Over-

temperature

protection

Over-

temperature

protection

Display

               4.3 inch TFT


Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
