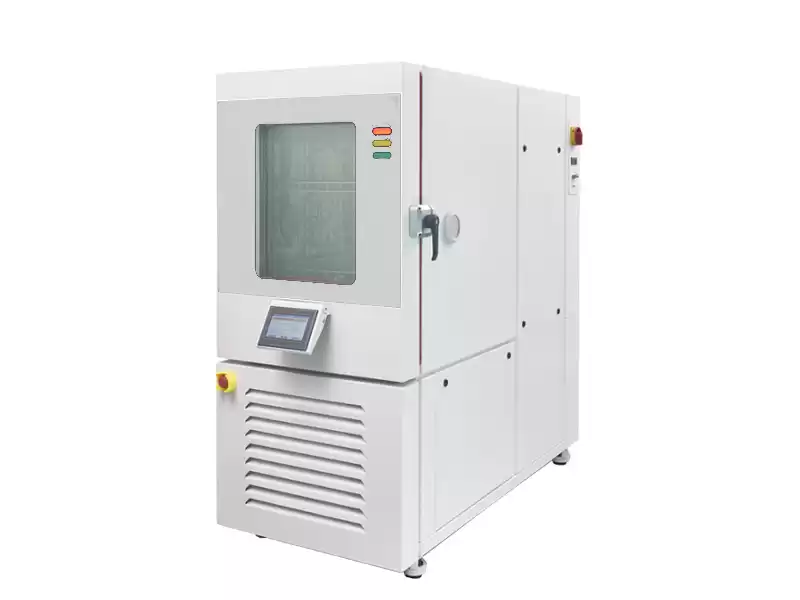

UN38.3 Battery Thermal Cycle Test Chamber

It is intended to carry out the temperature cycle test on various batteries.



UN38.3 Battery Thermal Cycle Testing Equipment China Supplier

Amadetech Battery thermal cycle test chamber is intended to carry out the temperature cycle test on various batteries.

This battery tester is used to conduct the temperature cycle test on batteries. Test chamber is capable of simulating the rapid and extreme temperature changes. It also can be combined with the charge-discharge tester for high and low temperature and constant temperature charge-discharge tests.

Standards

UN38.3, IEC62133, UL1642, UL2054

Main Parameters

Model

AT-L5011

Temperature range

-70°C ~ +150°C

Temperature control accuracy

±0.01 °C

Temperature fluctuation

≤±0.5°C

Temperature uniformity

±2 °C

Heating/cooling rate

-40°C to +75 °C within 30m

Thermal insulation material

PU foam

Power supply

3 Phase 4 wires+reliable grounding wire AC 380V+/-10%, 50Hz,12KW 32A or specified

If you are sourcing Battery Projectile Machine, click here.

If you are sourcing External Short Circuit Testing Machine, click here.

If you are sourcing other Lithium Battery Testing Chambers, feel free to click me.

If you are looking for knowledge about UN38.3 test, please click here.
