Underground Water Collection Tanks

Underground Water Collection Tank plays an integral part of life throughout many drouthy regions communities. You will never have to worry about water regulations or drought when you have your own source of Drainage Cell Tank Module.


  • Press Strength25tons/sqm
  • Total Volume0.125CBM/module
  • SizeL680*W450*H410mm
  • ColorBlack
  • MaterialPP

Let Every Drop of Rainwater Full Play Its Value

Underground Water Collection Tanks Specification:

 Product Name Underground Water Tank
 Material PP
 Place of Origin Fujian, China
 Color Black
 Dimension     L680*W450*H410mm
 Total Volume     0.125 CBM/module
 Weight         8kg/module
 Working Temperature From -30℃ to +120℃
 Pressure Strength     25tons/sqm
 HS Code  3925900
 Feature

Interconnecting Units

Light weight and high strength

Cost effective and eco-friendly

Resistant to acid and alkali

High capacity and high stability

95% void ratio

Space saving

Strong structural design

Straightforward installation

High working efficiency

25 tons/sqm of pressure capability

More than 50 years working life

 Application

Roof Garden

Road Drainage

Water Filtration System

Car Parking Lot

Residential Area

Parkland

Sports Field System

Golf Course

 Certificate     ISO9001:2008

Greengrassgrid

Plastic Water Tank Benefits:

1. Harvest rainwater

2. Reduce polluted storm water runoff

3. Protect natural bush lands and creeks

4. Provide and ecologically sustainable storm water system

5. Quick Installation – Reduce site access delays

6. Lightweight – No cranes or lifting equipment required

7. Strong structural design – Designed for car loading

8. Modular – Easily create any shape and size to suite site requirements

9. Maintenance Free Tank – All debris and sediment is removed by pr-filtration

10. Determinate Volume- 95% internal void area

11. Cost Effective – Reduces excavation and disposal by two thirds compared with conventional soak wells.

12. High Infiltration – 90% void surface area

13. Easily Transportable

Greengrassgrid

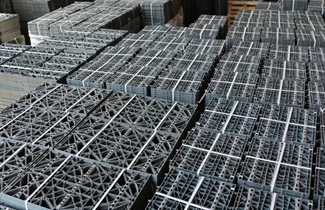

Water Collection Tanks Detail Pictures:



Greengrassgrid

Packing Details:

680*410mm --8pcs/bundle; 450*410mm --10pcs/bundle

90CBM/20'GP; 189CBM/40'GP; 216CBM/40'HQ



Greengrassgrid

Brief Introduction about Water Tanks:

Water Collection Tanks means the entire process of rainwater collecting. It is becoming increasingly obvious to most governments around the world that the cost of providing a usable water supply is increasing rapidly. Decaying infrastructure and storm water system pollution is not only contaminating ecosystems but this valuable source of water is literally going down the drain. A solution for this problem is Rainwater harvesting, it is the process of collecting, storing, and distributing rainwater from the roof for use in and around the home or office.

Leiyuan Underground Water Tank designed with scientific structure and manufactured using recycled material. It is a lightweight structural component developed through years of research & development. Pressure strength per square meter is 25tons. Plastic modular is ideal for the construction infiltration tanks, re-use tanks, sub surface channels and lightweight void spaces for rooftop gardens, parkland, parking lot, road etc. We are able to produce higher pressure strength products according to customers’ specification.

Greengrassgrid

Project Picture:
