UNISTRUT Roll Forming Machine

One machine, four profiles




               Solar Panel Frame Roll Forming Machine

               One machine ,Four profiles

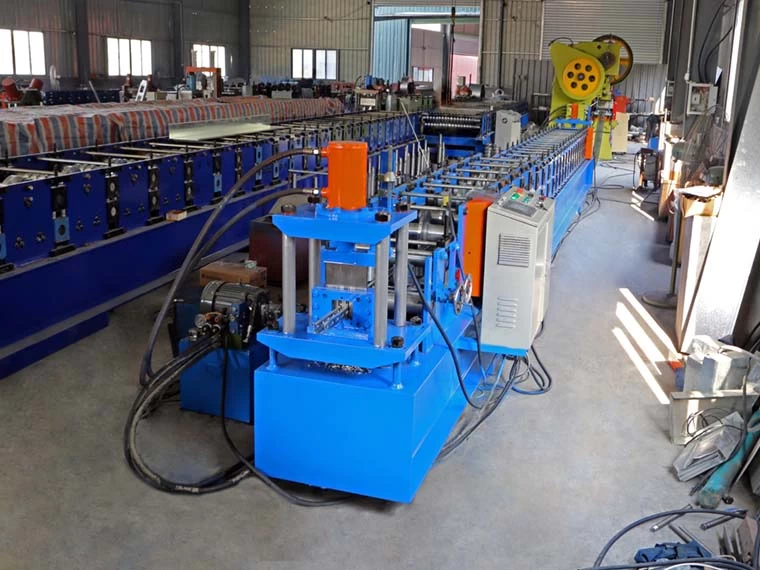

solar panel frame roll forming machine


Click here to check the video: Unistrut Roll Forming Machine





Solar Panel Frame Roll Forming Machine


1.Main features of solar panel frame roll forming machine



    The advantages of solar panel frame roll forming machine are as follows:

    1.Accuracy Profile

    2.Four profiles in one machine, economic solution and space saving.

    3.Easy operation, low maintenance cost

    4.Beautiful appearance.

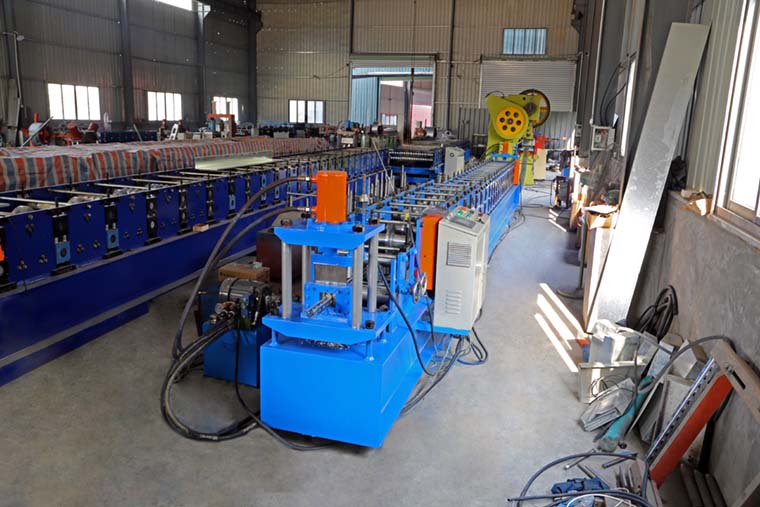

2.Detailed Images of solar panel frame roll forming machine


    Machine Parts

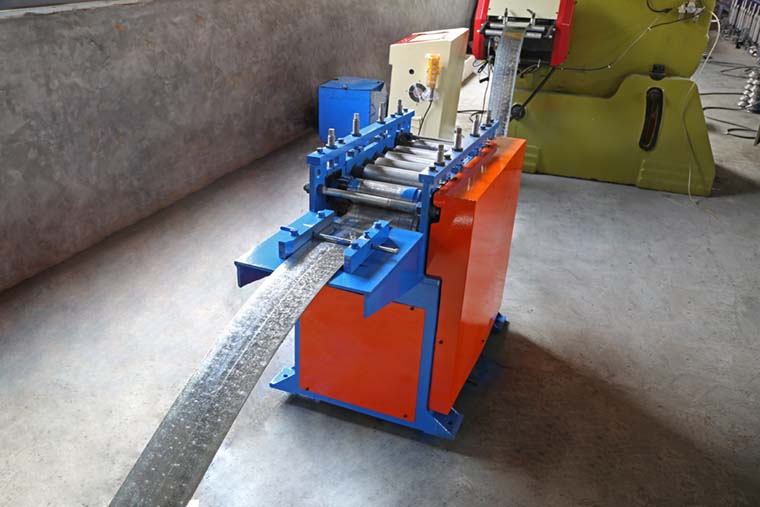

        1) Solar panel frame roll forming machine straightened device

        Brand: BMS    Original: China

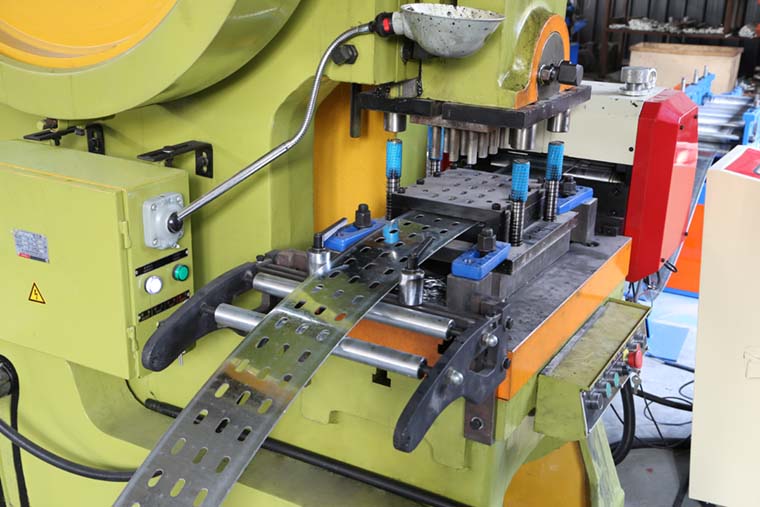

        2) Solar panel frame roll forming machine puncher and the step into device

        63 Tons pre-punching device, Four punching molds

        Puncher: China YANGLI

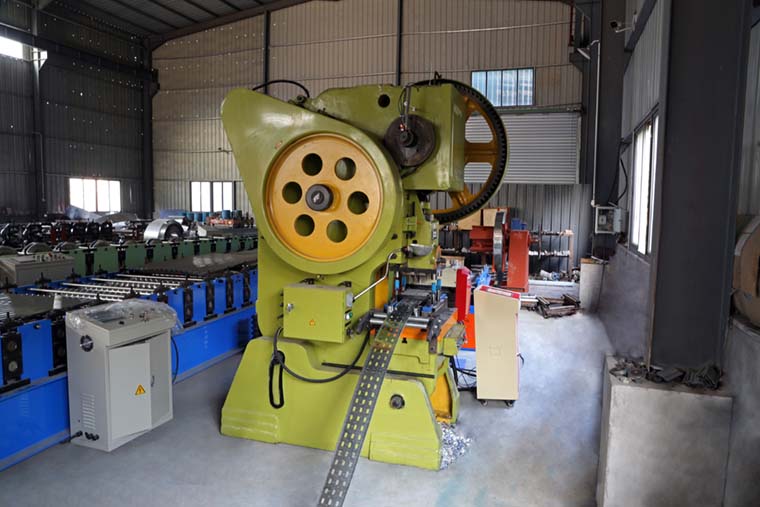

                                                         63 Tons Puncher

Solar Panel Frame Roll Forming Machine


                                                          Step into device

Solar Panel Frame Roll Forming Machine

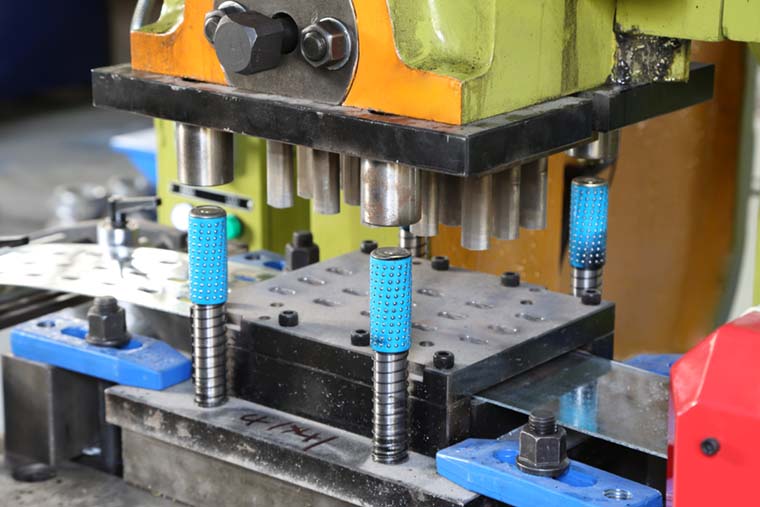

                                                          Four punching molds

Solar Panel Frame Roll Forming Machine


Solar Panel Frame Roll Forming Machine

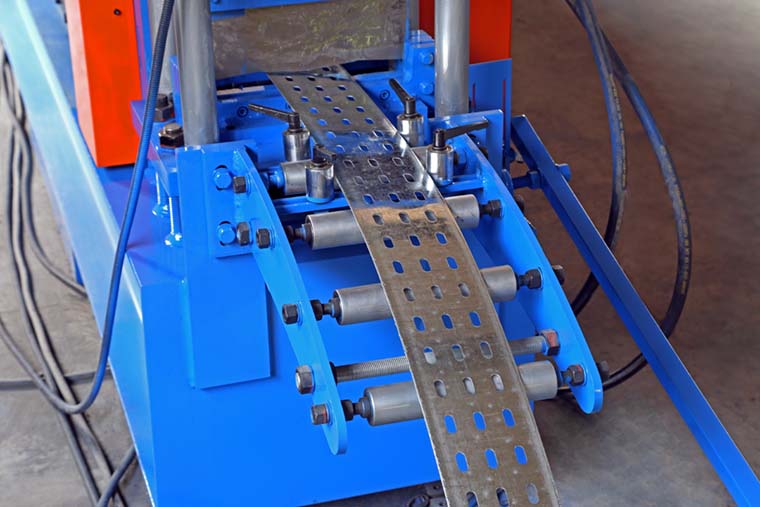

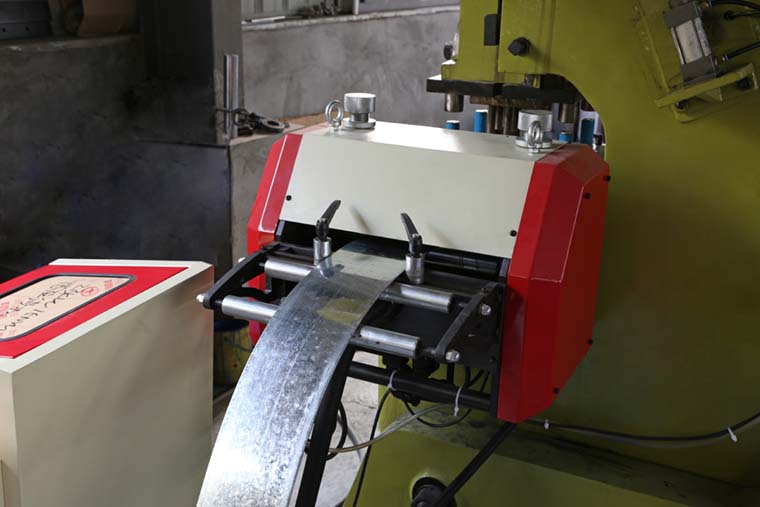

        3) Solar panel frame roll forming machine arc feeding device


Solar Panel Frame Roll Forming Machine

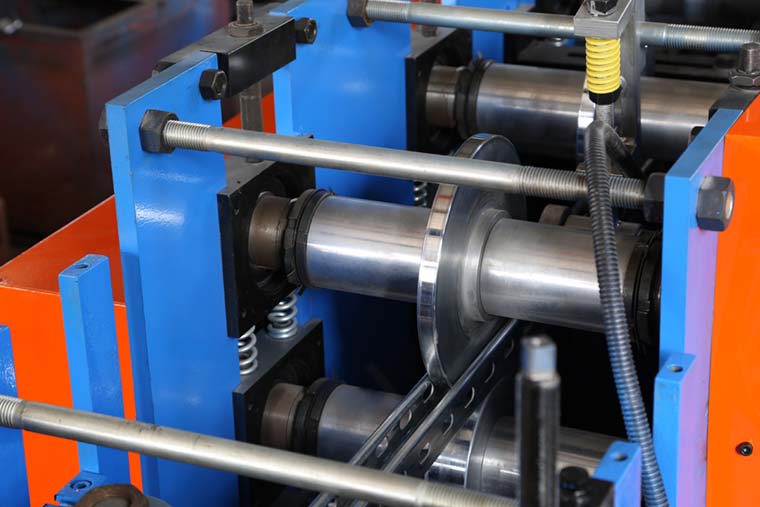

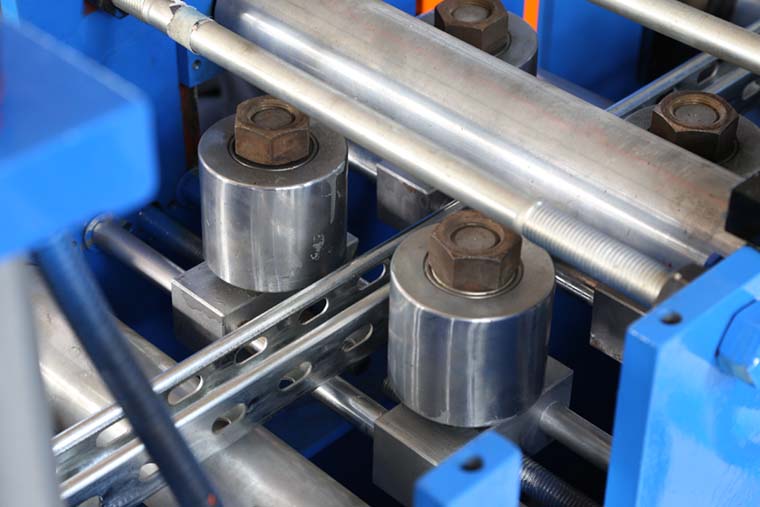

        4) Solar panel frame roll forming machine rollers




Solar Panel Frame Roll Forming Machine

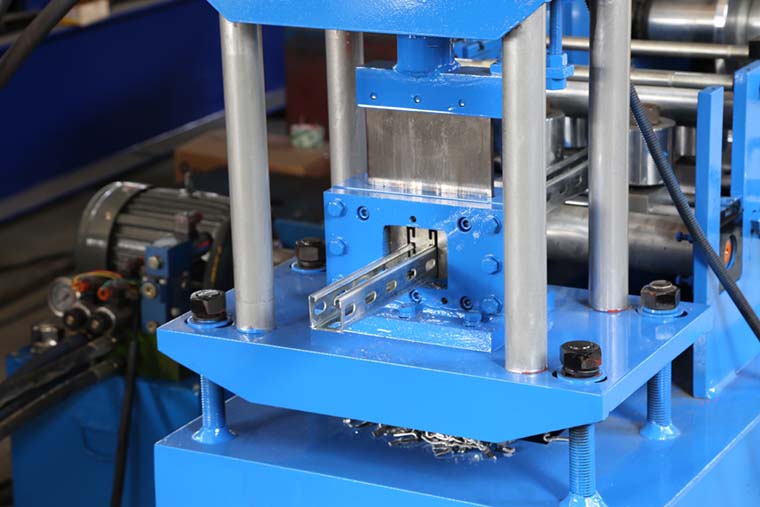

        5) Solar panel frame roll forming machine hydraulic post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding


Solar Frame Roll Forming Machine


        4) Solar panel frame roll forming machine product show

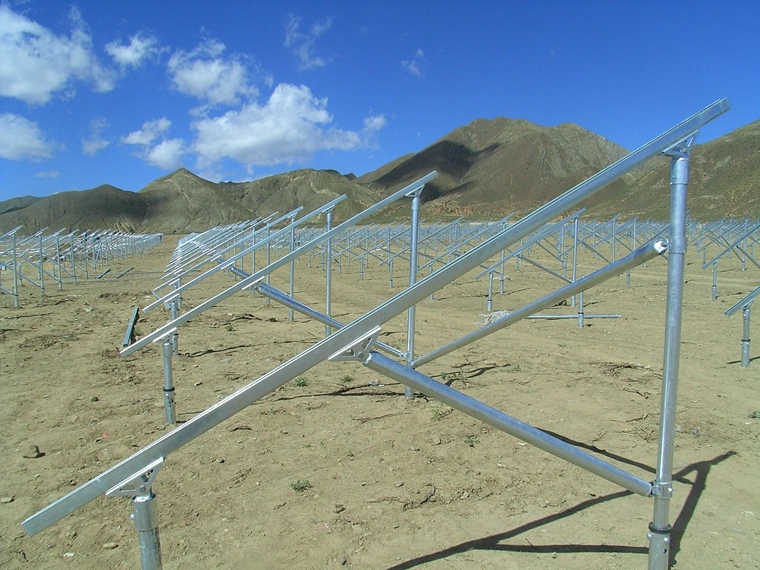

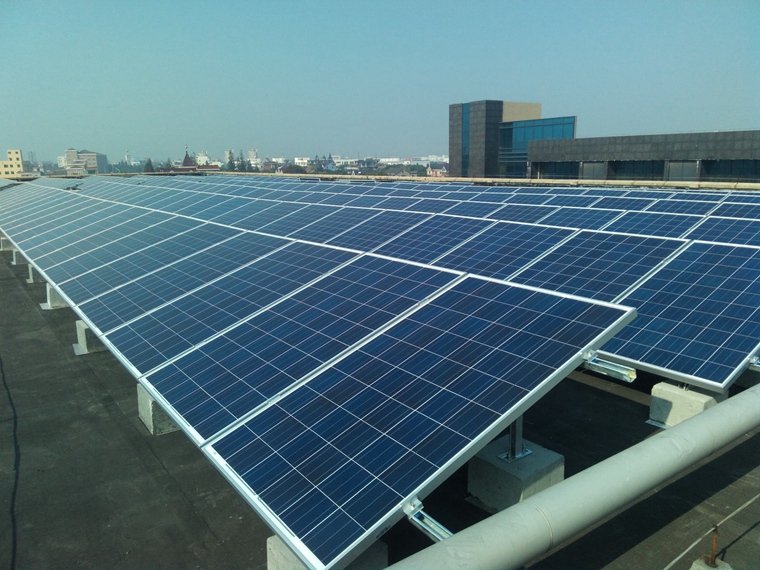

        5) Solar panel frame roll forming machine product application


Solar Panel Frame Roll Forming Machine

Solar Panel Frame Roll Forming Machine

        6) Solar panel frame roll forming machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton




        With 3 tons hydraulic decoiler for option




        7) Solar panel frame roll forming machine exit rack

        Un-powered,3 meters long ,two units




Other details of solar panel frame roll forming machine

Suitable for material with thickness 2.0-2.5 mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 22 rollers to form.

Main motor=18.5KW , Frequency speed control. Forming speed approx.8-12m/min


PLC Control System (Touch screen brand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English


After-sale service of solar panel frame roll forming machine



1. The warranty of solar panel frame roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
