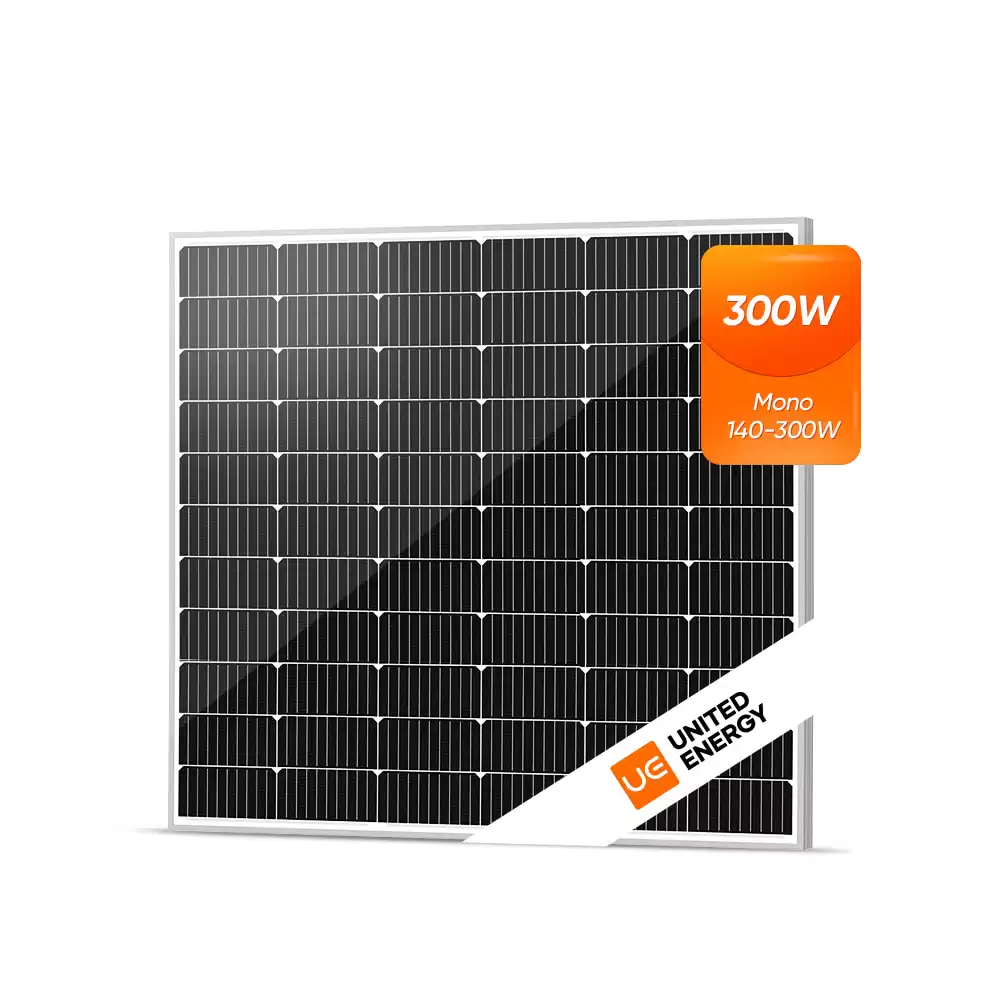

United Energy PV Panel 150W 200Watt Solar Panel Mono

Features of mini solar panels

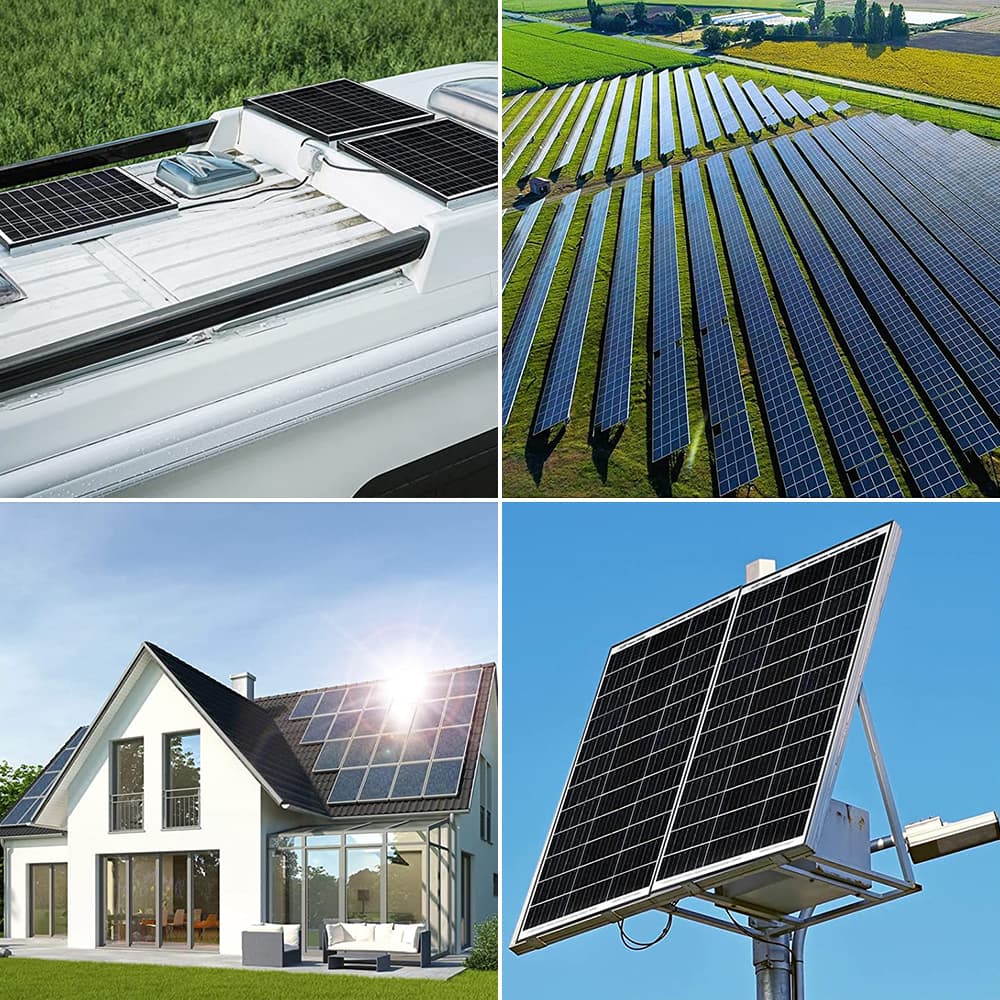

Mini solar panels are very small panels as compared with standard PV Panels, therefore it can be used for small applications like solar street lighting projects..

Facebook Twitter Pinterest LinkedIn 分享

United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

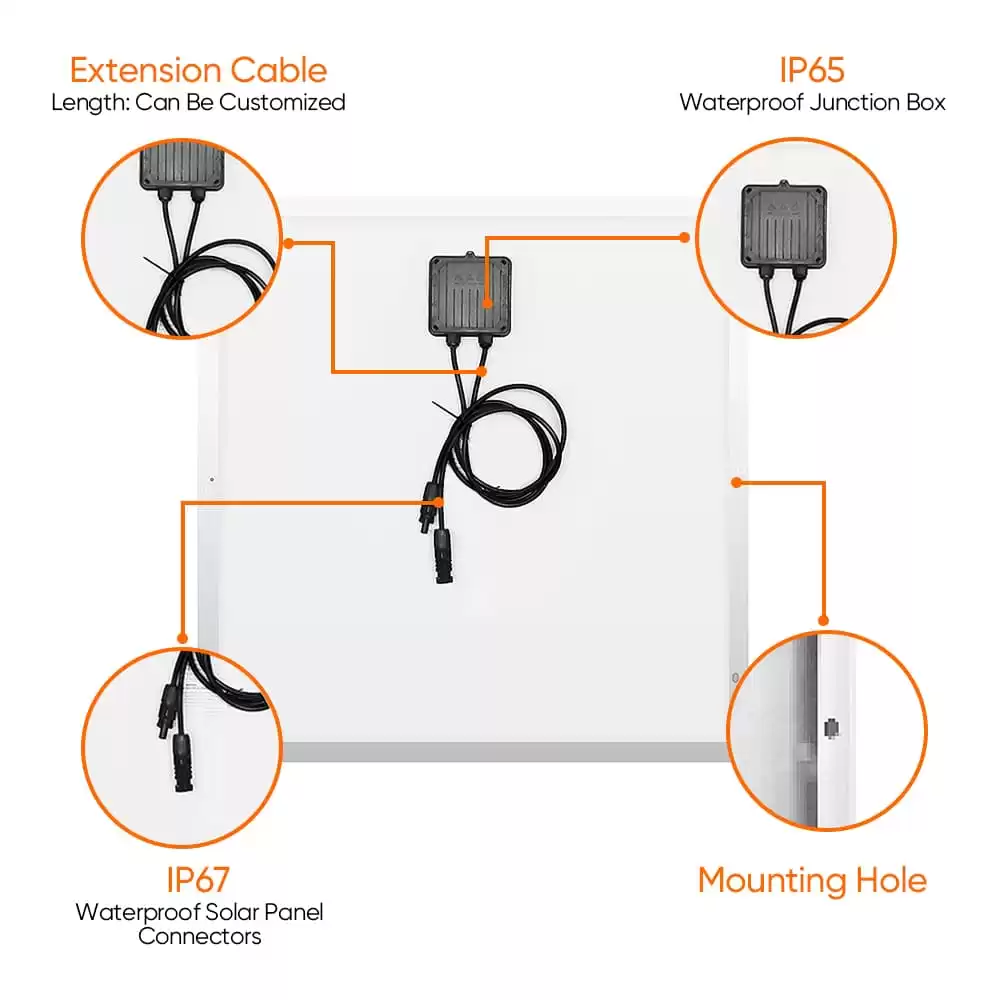

1. Extension Cable enables different installation Scenarios

2. Positive power tolerance (0 +5W) guaranteed

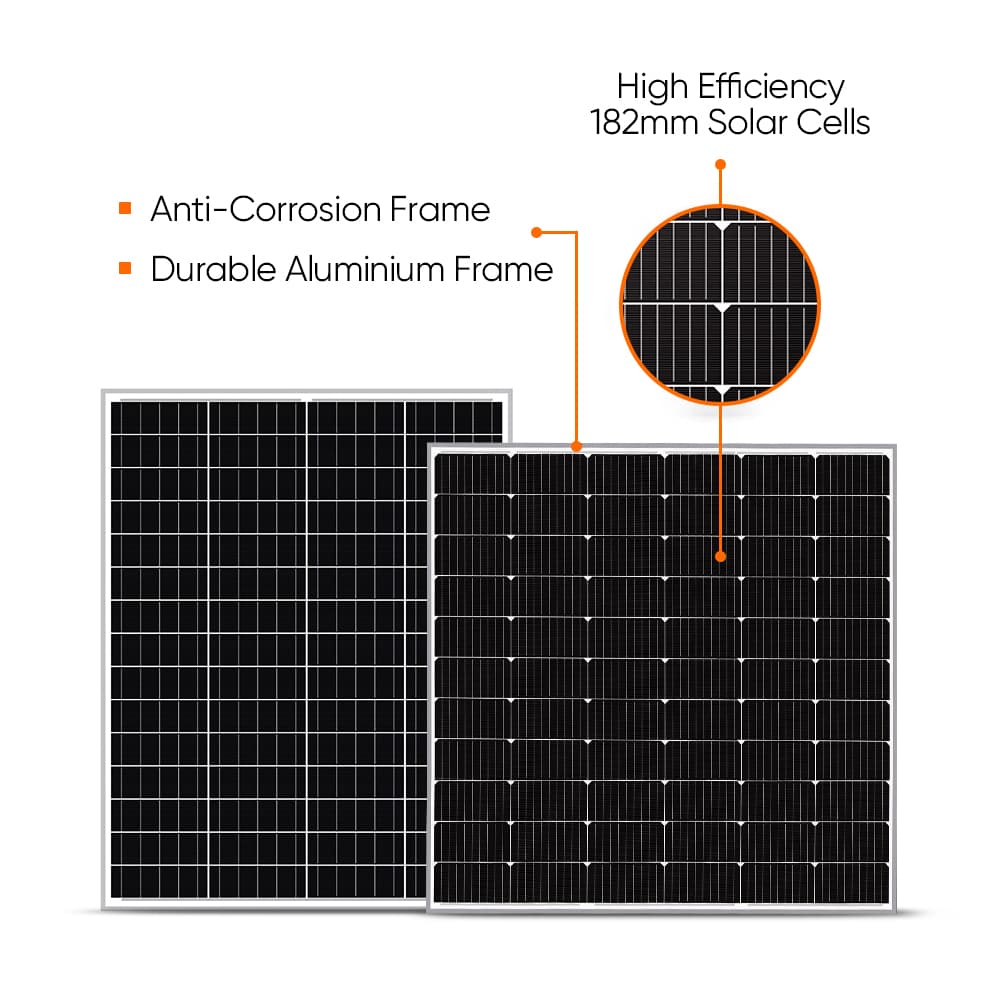

3. High module conversion efficiency (up to 21.8%)

4. Slower power degradation enabled by Low LID Mono PERC technology: first year <2%,0.55% year 2-25

5. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

6. Higher energy yield with lower operating temperature

7. Reduced hot spot risk with optimized electrical design and lower operating current



Electrical Specification



Model Number UE140M-32 UE150M-32 UE160M-32 UE170M-32 UE180M-32 UE190M-32 UE200M-32 UE210M-32
Testing Condition STC STC STC STC STC STC STC STC
Maximum Power (Pmax/W) 140 150 160 170 180 190 200 210
Open Circuit Voltage (Voc/V) 22 21.8 22.06 21.85 22.08 22.06 22.08 21.57
Short Circuit Current (Isc/A) 7.68 8.42 8.66 9.47 9.72 10.29 10.8 12.02
Voltage at Max Power (Vmp/V) 19.16 18.79 19.37 18.89 19.41 19.37 19.41 18.52
Current at Max Power (Imp/A) 7.31 7.98 8.26 9 9.27 9.81 10.3 11.34
Module Weight(Kg) 7.77 8.56 8.56 9.55 9.55 10.18 10.18 12.6
Module Dimension(mm) 935*765*30 1030*765*30 1030*765*30 1150*765*30 1150*765*30 1225*765*30 1225*765*30 1515*765*30
Model Number UE240M-32 UE245M-66 UE250M-66 UE260M-66 UE270M-66 UE280M-66 UE290M-66 UE300M-66
Testing Condition STC STC STC STC STC STC STC STC
Maximum Power (Pmax/W) 240 245 250 260 270 280 290 300
Open Circuit Voltage (Voc/V) 22.08 45.47 44.52 44.67 44.87 45.14 45.44 45.54
Short Circuit Current (Isc/A) 12.96 6.45 6.97 7.19 7.39 7.54 7.66 7.85
Voltage at Max Power (Vmp/V) 19.41 39.85 38.11 38.26 38.56 39.09 39.77 40.04
Current at Max Power (Imp/A) 12.36 6.15 6.56 6.8 7 7.16 7.29 7.49
Module Weight(Kg) 12.6 13.5 16 16 16 16 16 16
Module Dimension(mm) 1515*765*30 1070*1135*35 1270*1135*35 1270*1135*35 1270*1135*35 1270*1135*35 1270*1135*35 1270*1135*35

Key Features of United Energy Solar Panel：

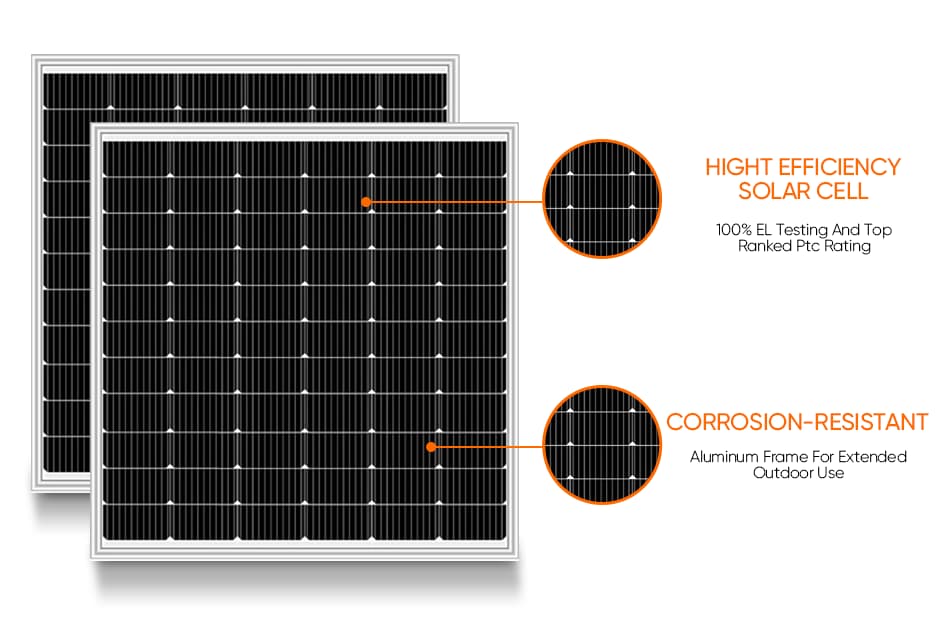

1.Three times EL test to ensure best quality

2.Superior Warranty-12 years products warranty  25 years linear power output warranty

3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI

4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



FAQ：

What watts of this panel?

Small size solar panel power from 140W - 300W.



How much is the loading quantity and shipping method?

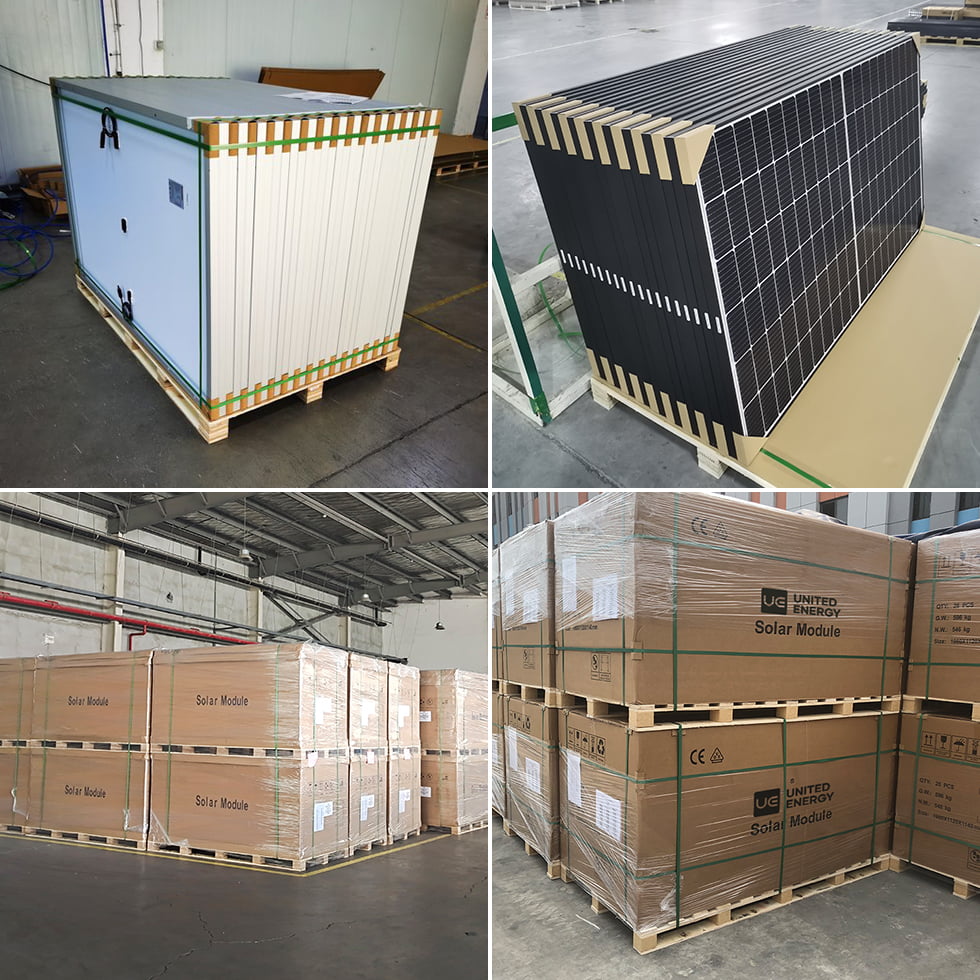

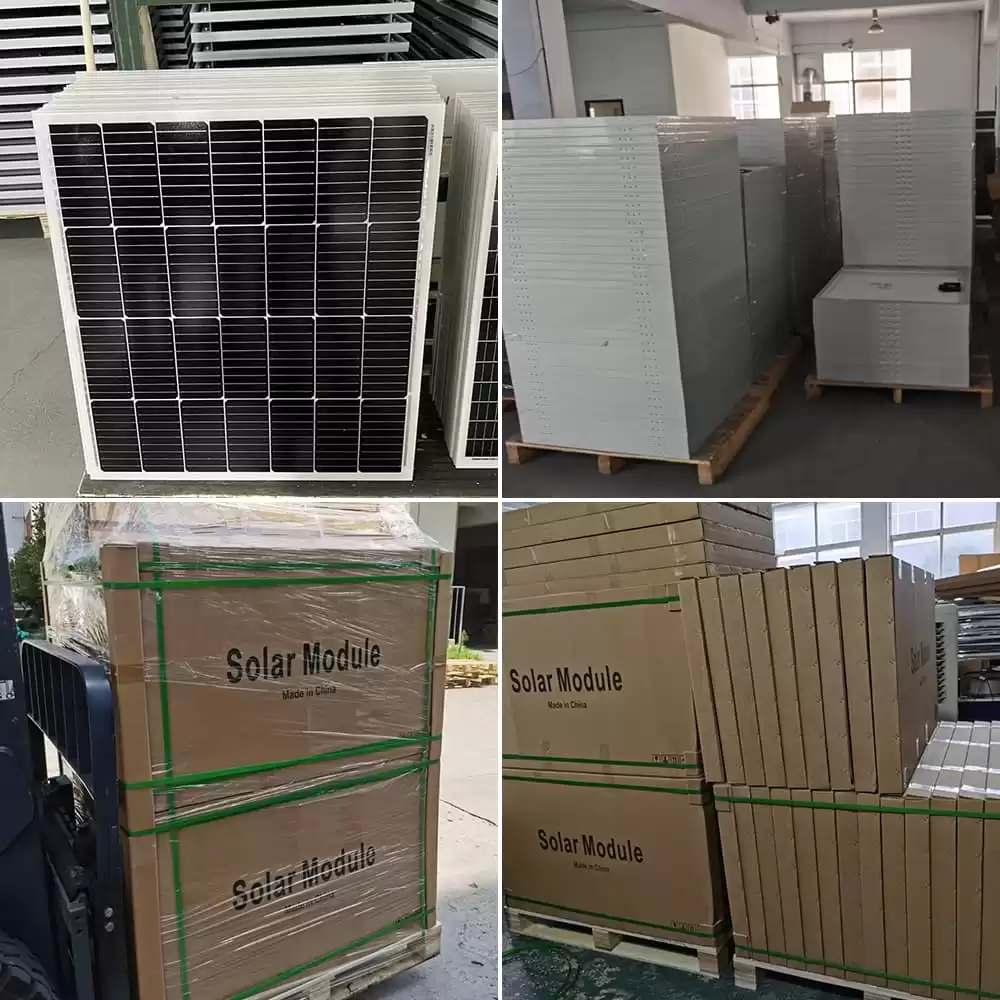

Based on different power has different size  ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.



Our Sales Engineer is 7/24 Online, welcome your Inquiry to offer you more details:

Phil Kang

Mobile/Wechat/Whatsapp:  +86 130 2868 0710

Email: phil@ue-pv.com
