up structure of Garbage Compactor Truck Body Kit

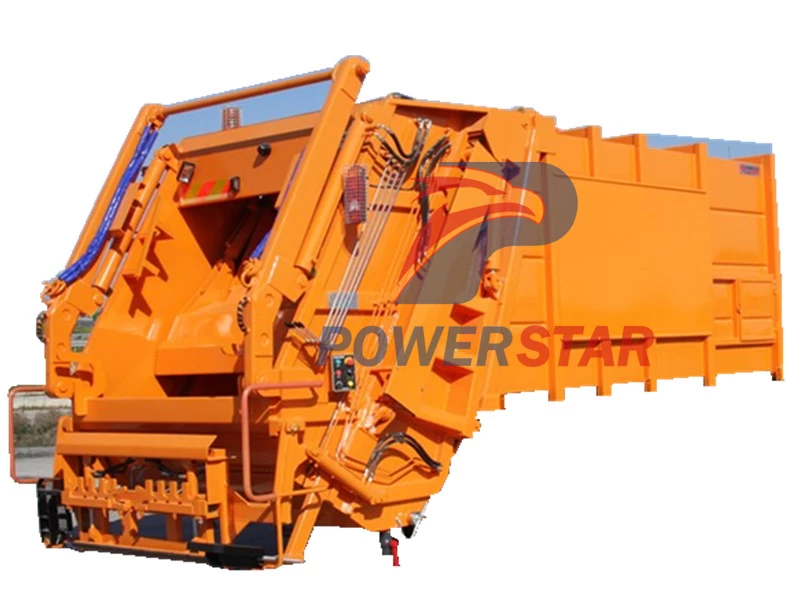

Garbage compactor kit, refuse compactor up structure, waste compression garbage truck body kit



 Garbage Compactor Truck Body kit


 Garbage Compactor Truck Body kit   Garbage Compactor Truck Body kit specification details picture

 Garbage Compactor Truck Body kit specification details picture    Garbage Compactor Truck Body kit specification details picture


Function:

Compression garbage kit (also called as refuse compactor garbage truck up structure, rear loader garbage truck body kit, garbage compacting truck hydraulic system, compactor garbage truck body set, waste collector kit)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrial and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:


NO.

Item

Name

Coad

Quantity

Comments

1

Compactor tank

Tank Assembly

YS12-0100000

1



2

Tail Gate Assembly

YS12-0200000

1 set



3

Scraper Assembly

YS12-0300000

1 set



4

Slide Plate Assembly

YS12-0400000

1 set



5

Tilt Device Assembly

YS12-0500001

1 set



6

Spare Parts

Oil Pump



1 unit



7

PTO



1 unit



8

Five Function Multi-way Valve



1 set

Installed

9

Hydraulic Oil Tank

80L

1 unit

Installed

10

PLC Control Box



1 set

Installed

11

Electric System



1 set

Installed

12

Balance Valve

5060BF2

2 units

Installed

13

Hosepipe, oil pipe & Joint



1 set

Installed

14

Slide Plate Oil Cylinder

50/90-1300x830

2 units

Installed

15

Scraper Oil Cylinder

50/80-860x570

2 units

Installed

16

Lifting Oil Cylinder

50/80-840x560

2 units

Installed

17

Tilt Device Oil Cylinder

45/80-410x170

2 units

Installed

18

Push Pate Oil Cylinder

55/125-1220x2600

1 unit

Installed

19

Sliding Block

Nylon

1 set

Installed

20

Hose Protector



1 set

Installed

21

Ball Valve

1’ 1/4

1 unit

Installed

22

Stainless Steel Cover

DN50

1 unit

Installed

23

Side lamps



1 set

Installed

24

Others

Cushion



2 units



25

U-style Bolt



8 units



26

Plastic Fender (semicircle)



2 units



27

Side Fence Assembly



2 sets



28

Waste Water Tank Assembly (With Support)



1 unit



29

Standard Part



1 set

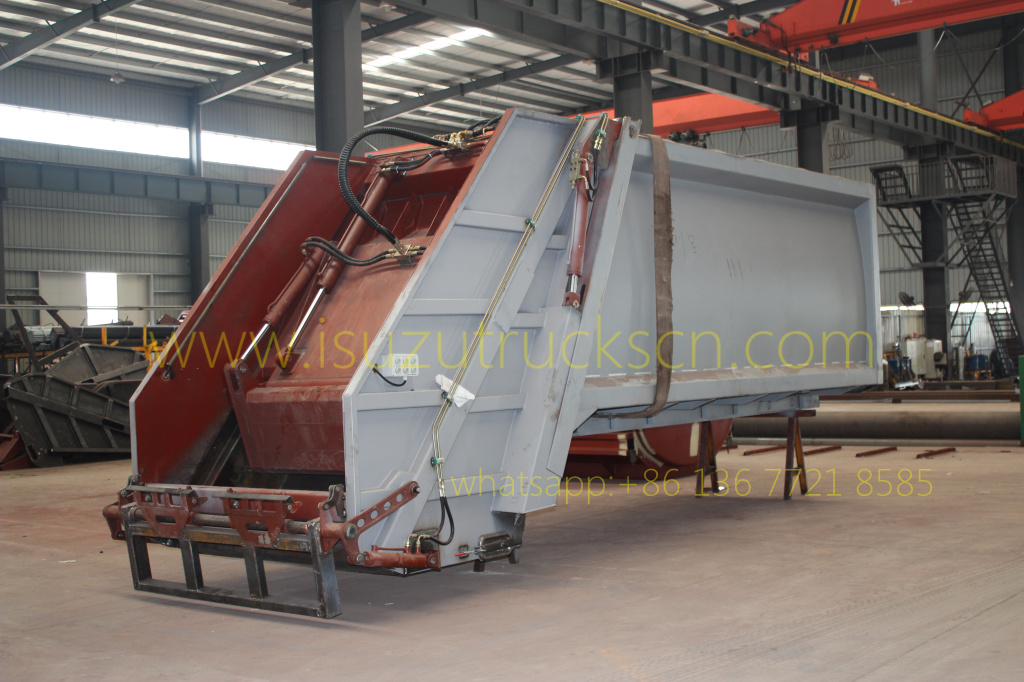

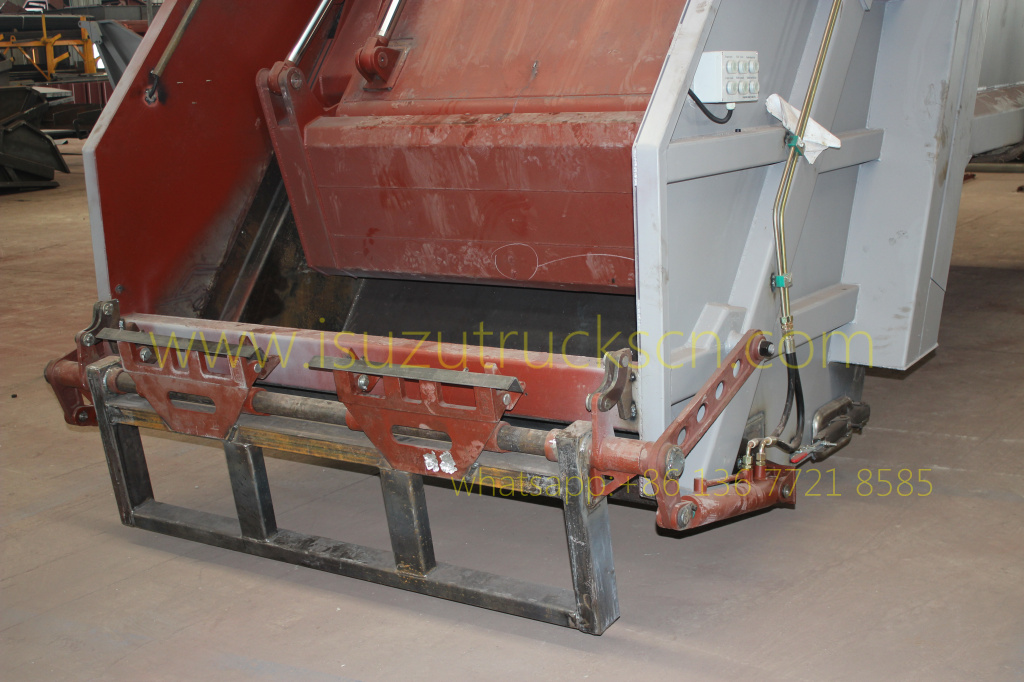

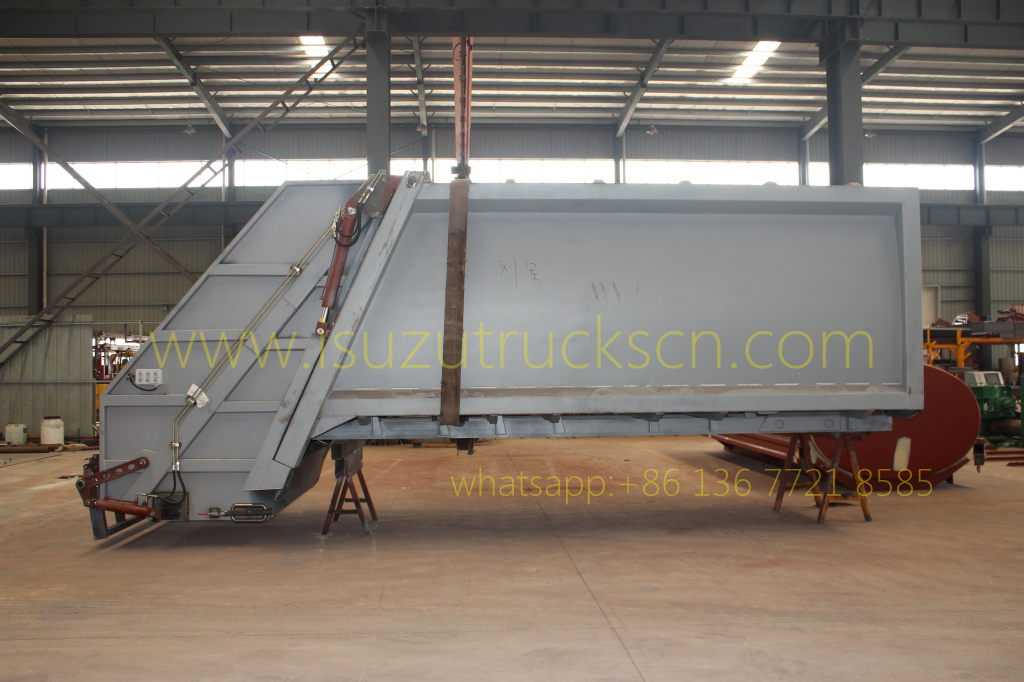

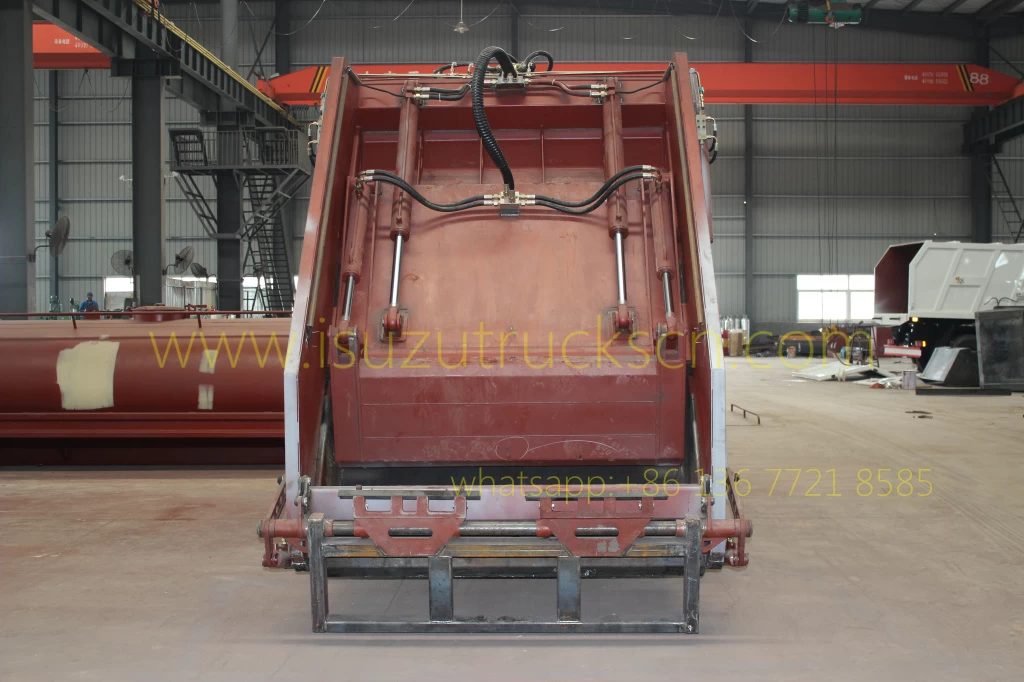

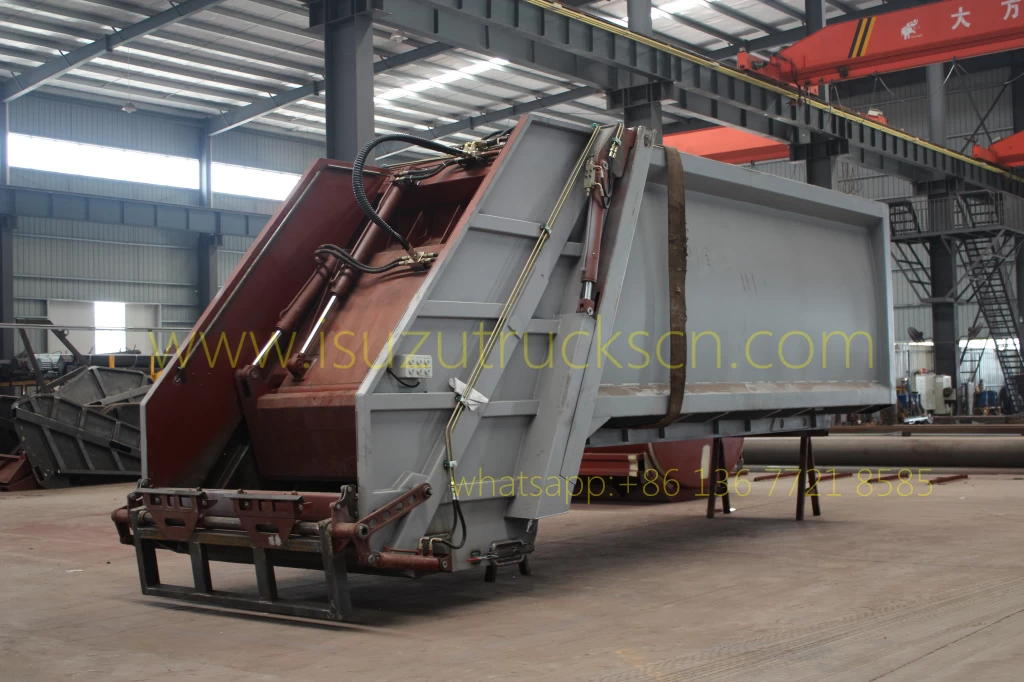

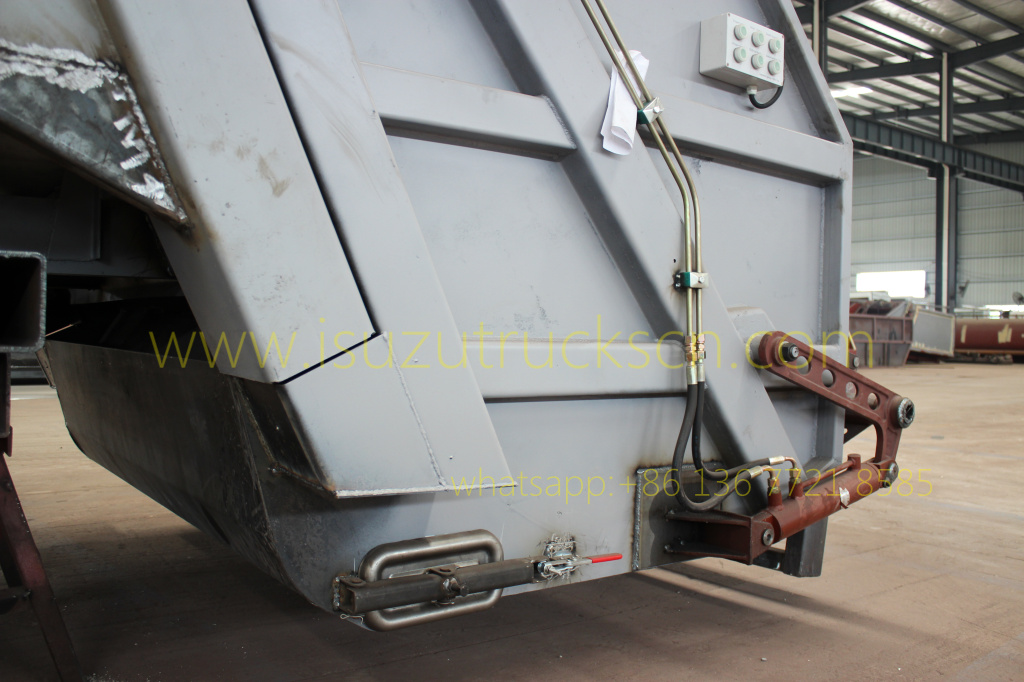

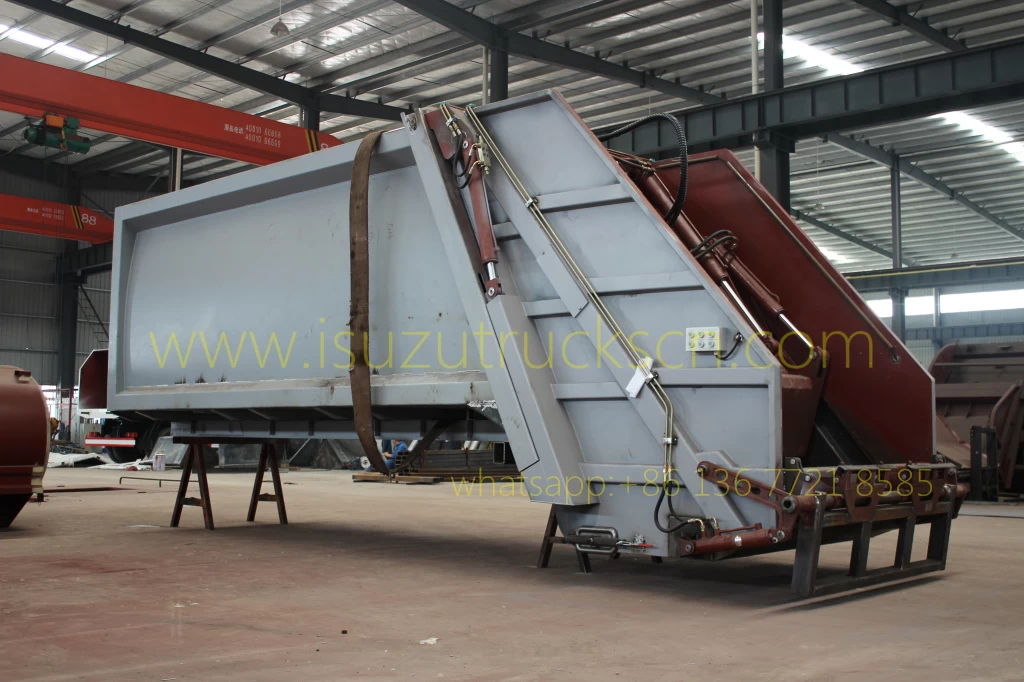

5 CBM Garbage compactor body kit drawing

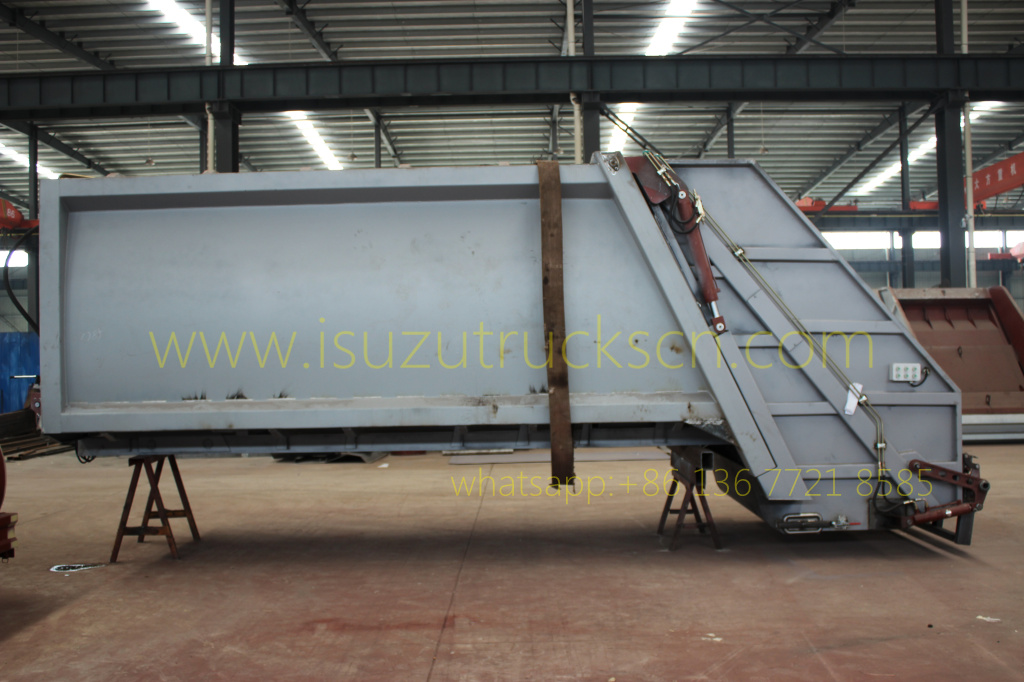

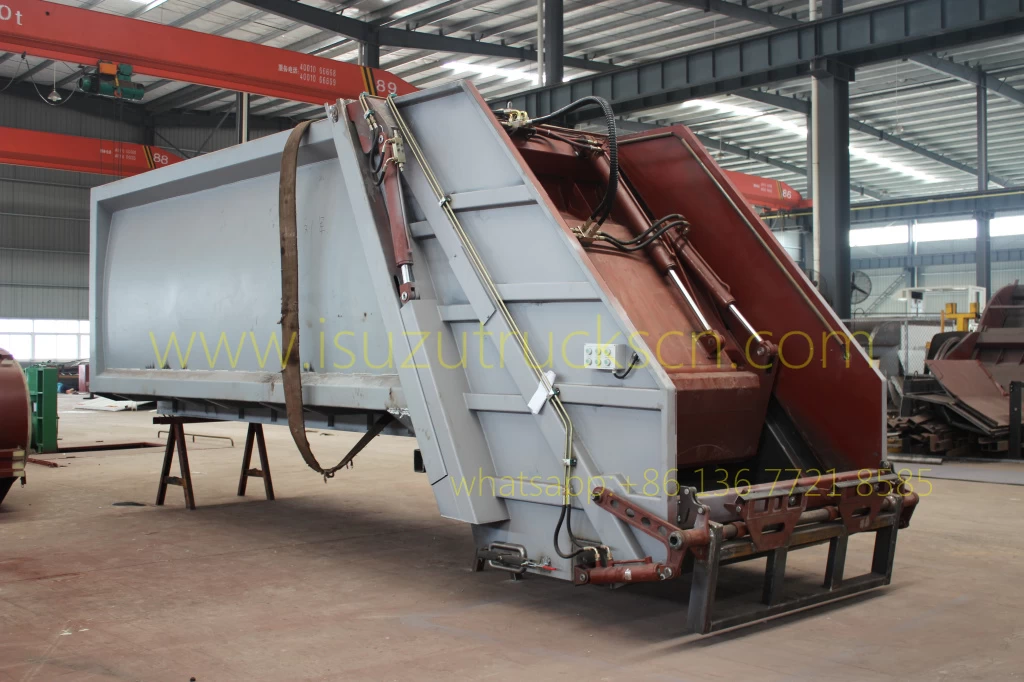

5cbm garbage compactor truck body kit up structure

10 CBM,12 CBM Waste compactor body kit drawing

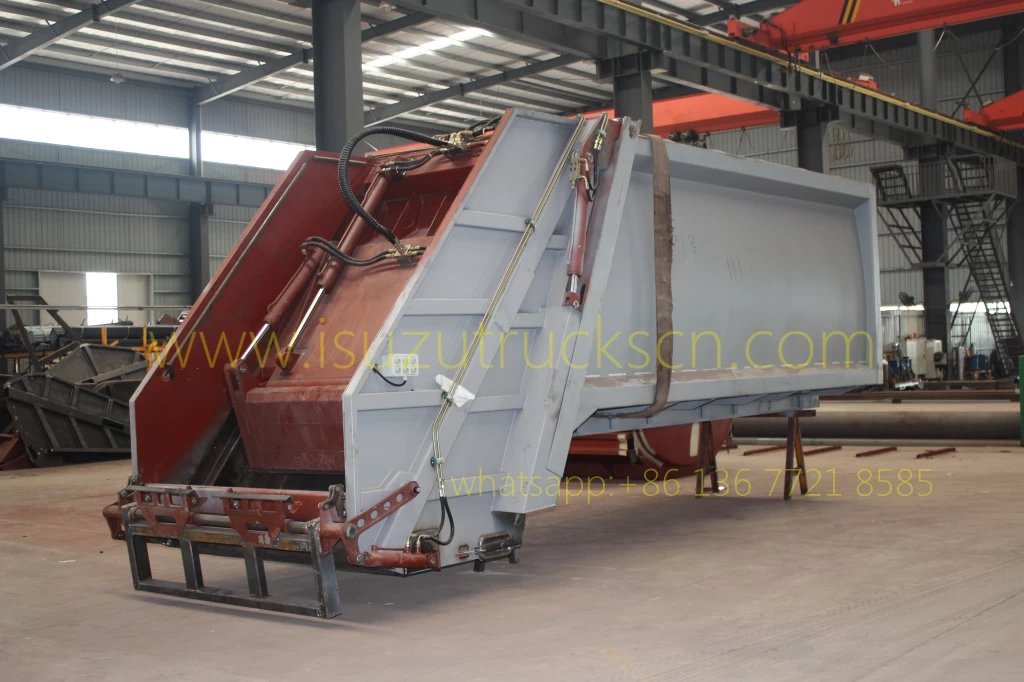

10m3 12m3 refuse compactor vehicle body kit up structure

15 CBM Refuse compactor body kit drawing

15cbm 10tons waste compactor truck kit for Isuzu heavy duty trucks




Working Principles of Garbage Compactor

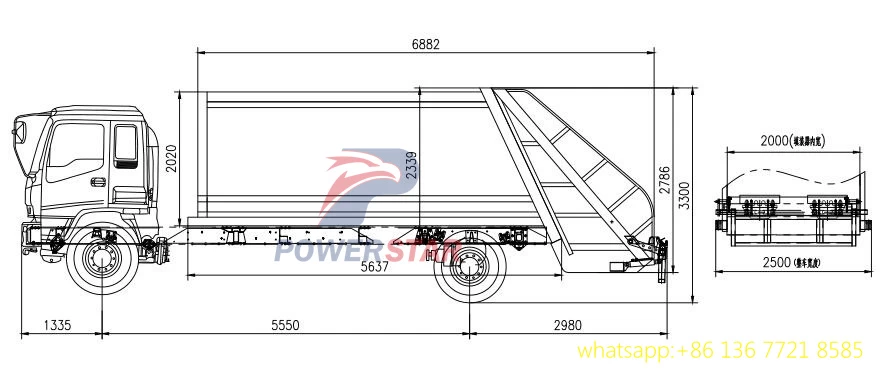

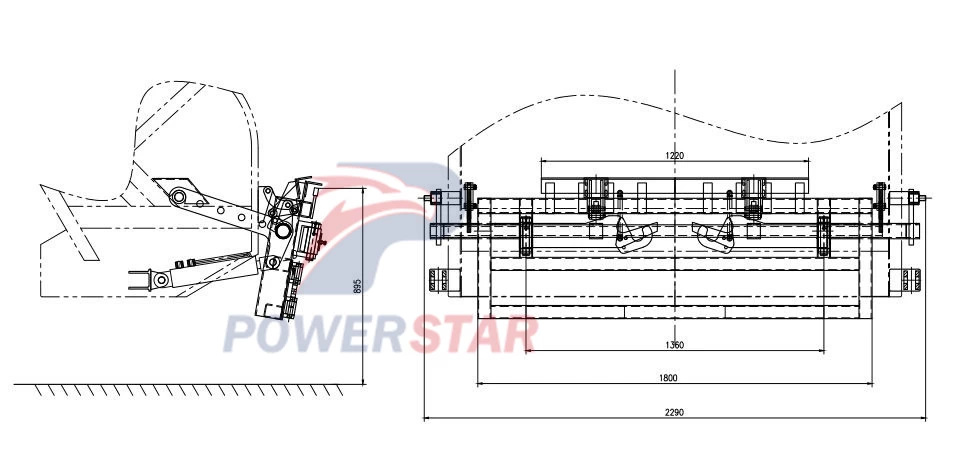

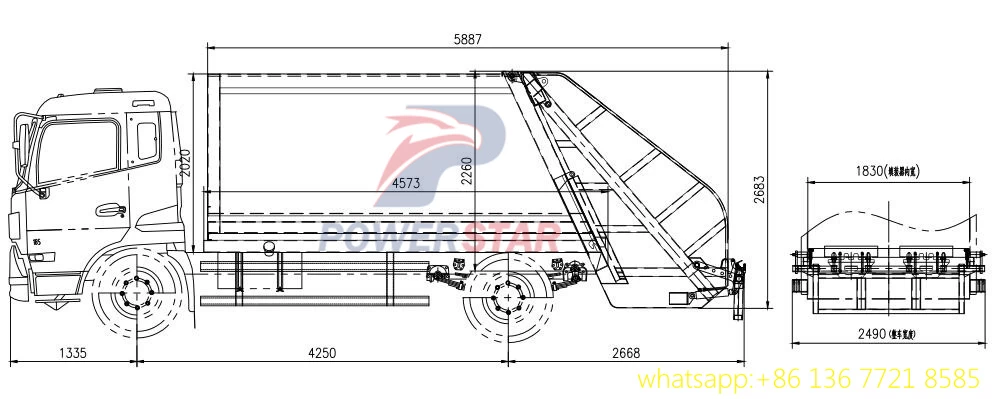

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


Different Mechanism type for customer choose

Garbage compactor truck mechanism type for customer optional

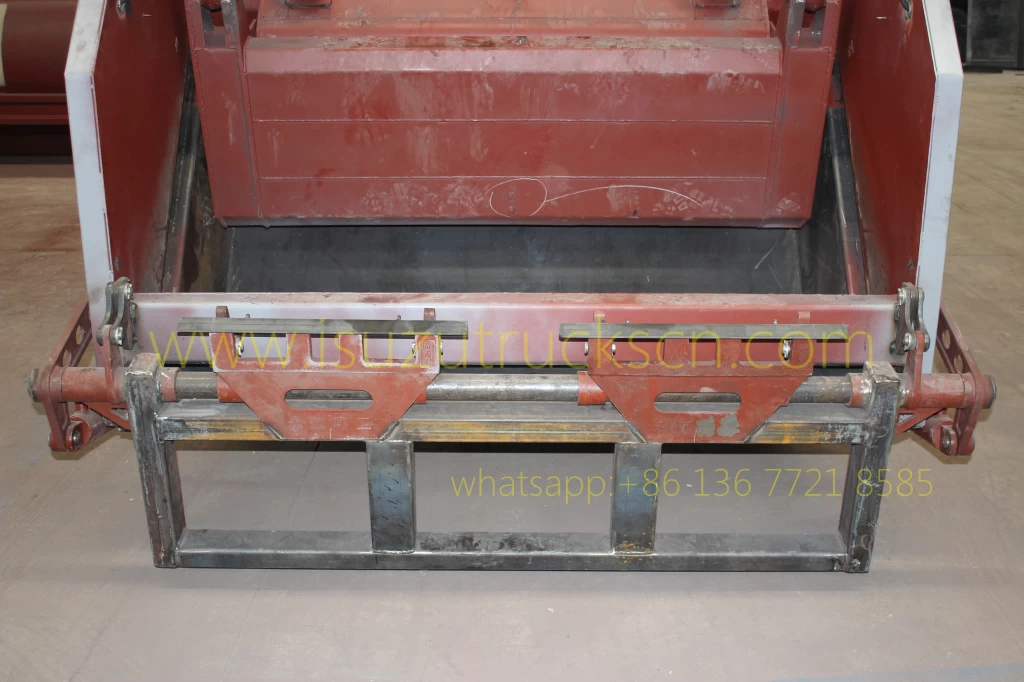

 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck

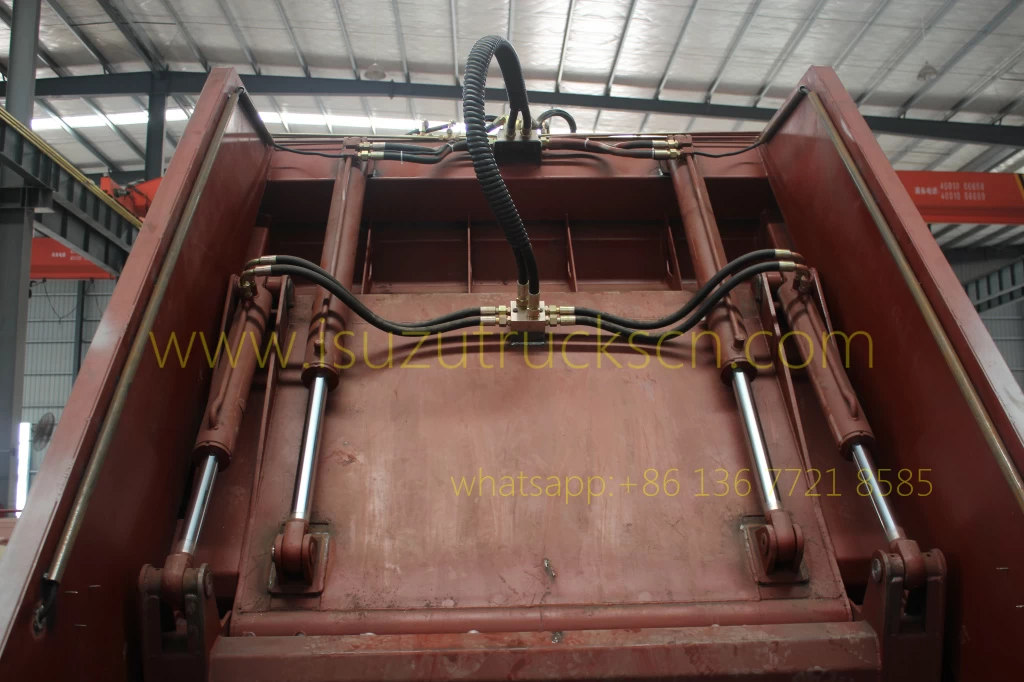

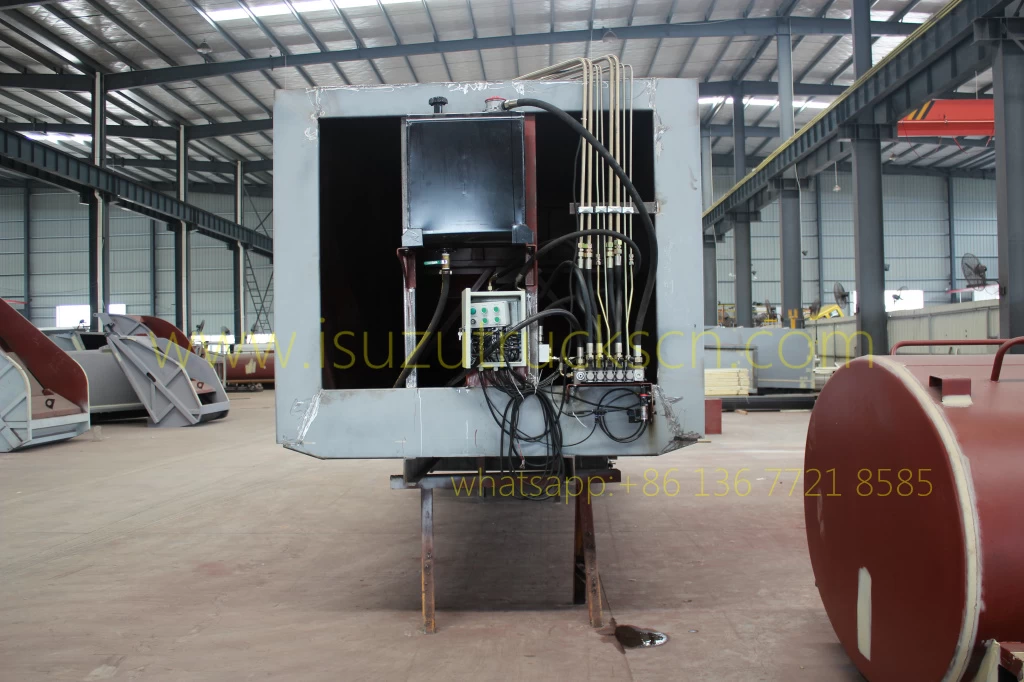

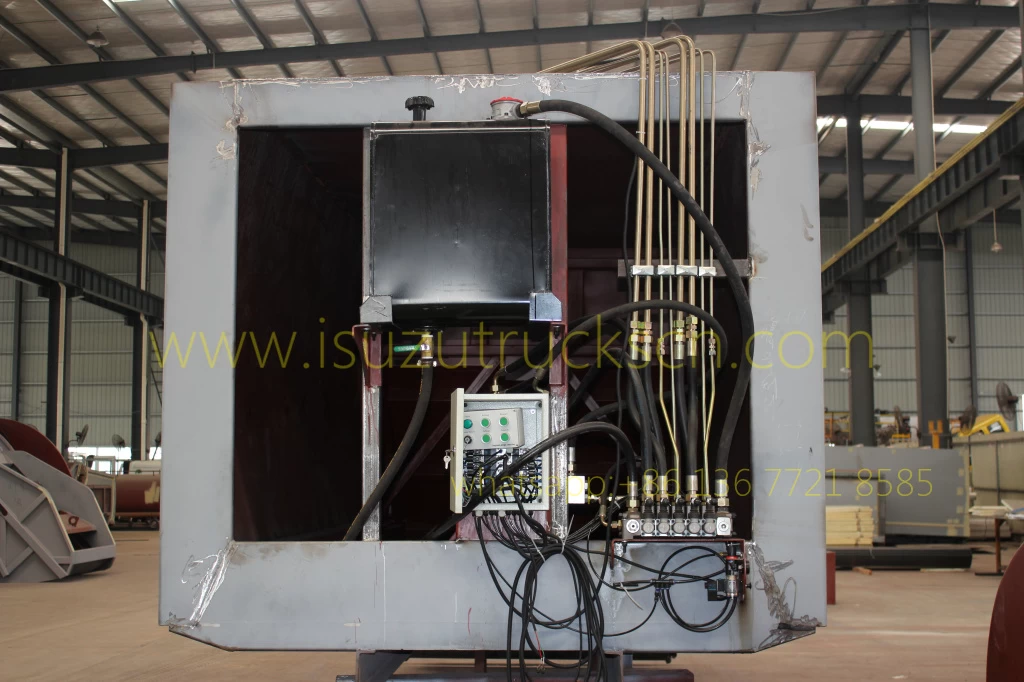

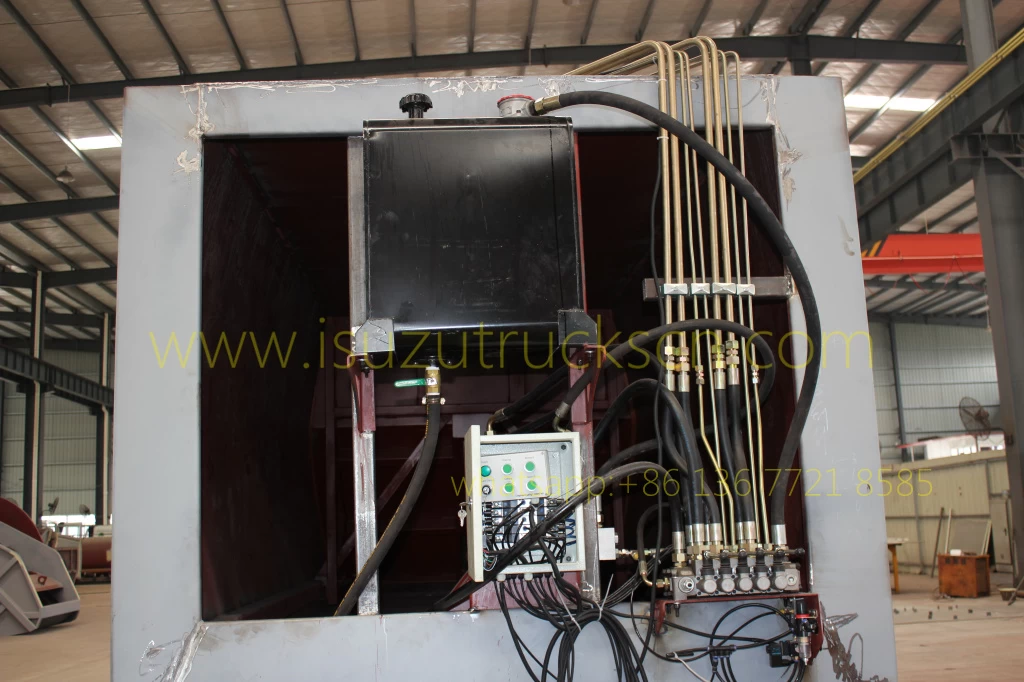

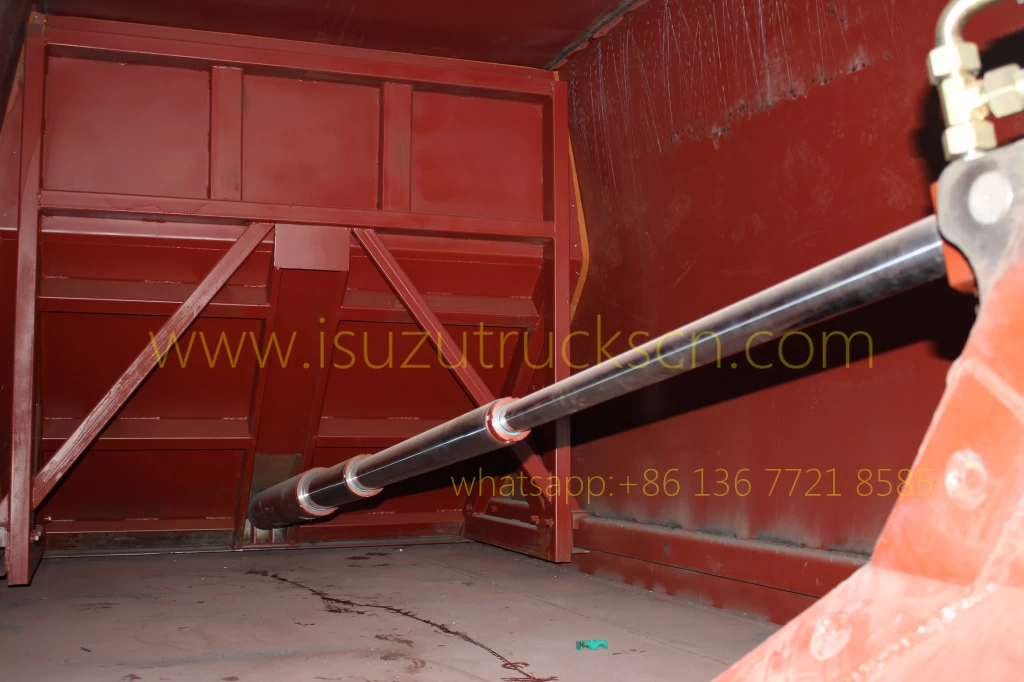

Detail pictures:

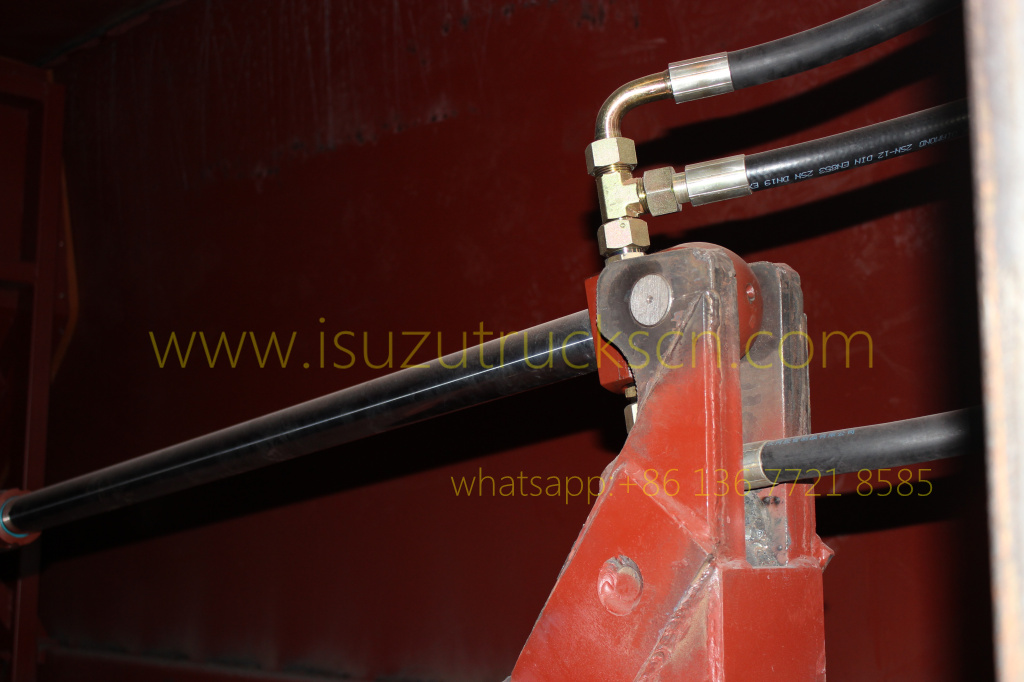

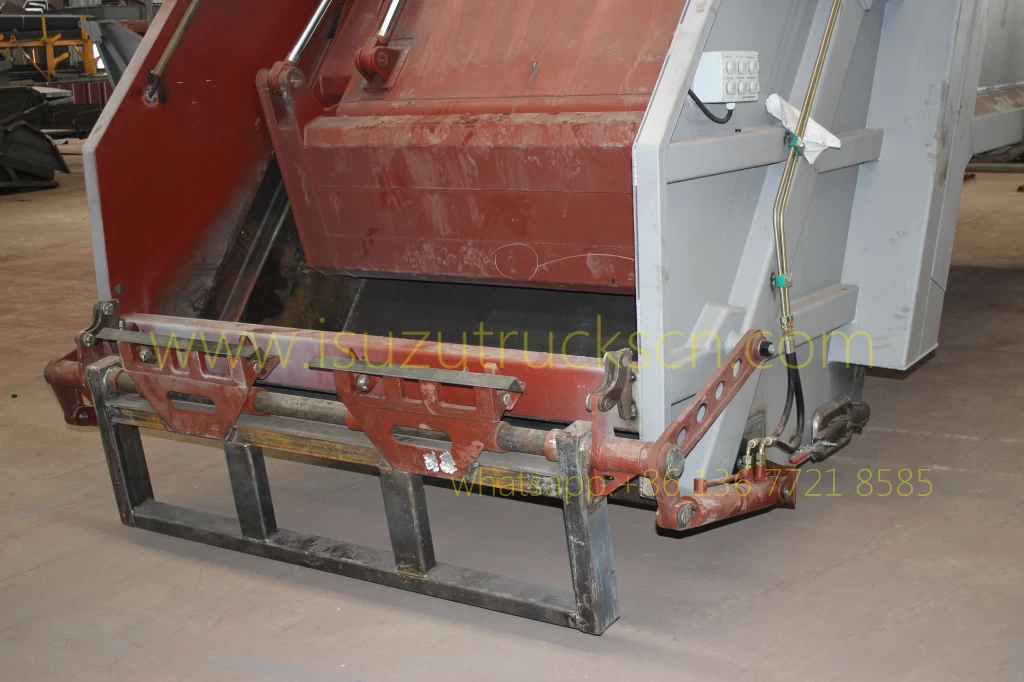

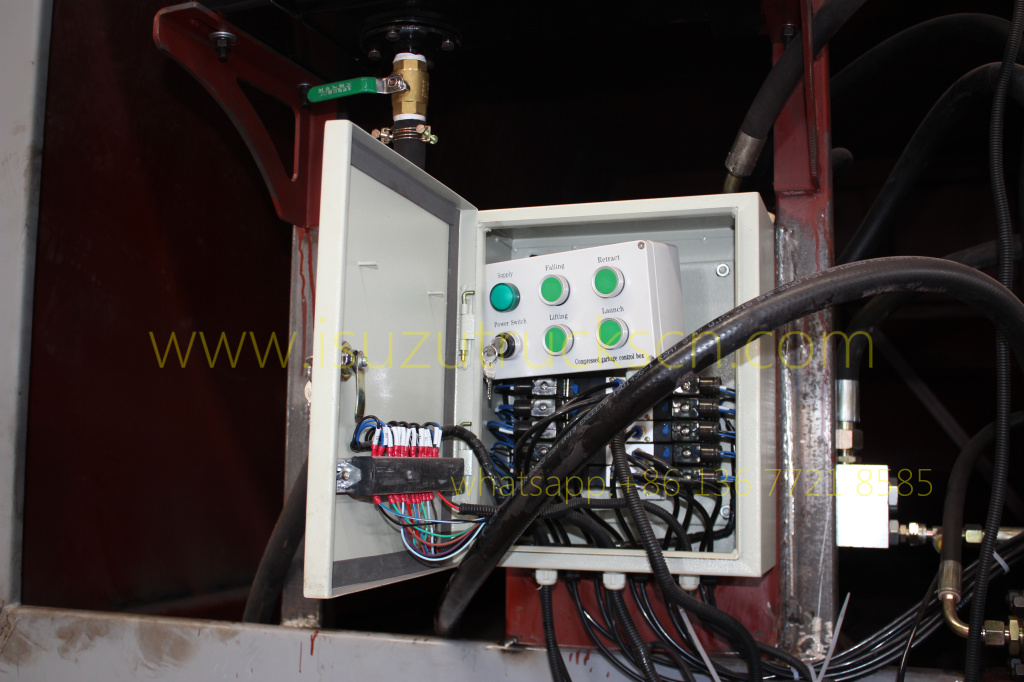

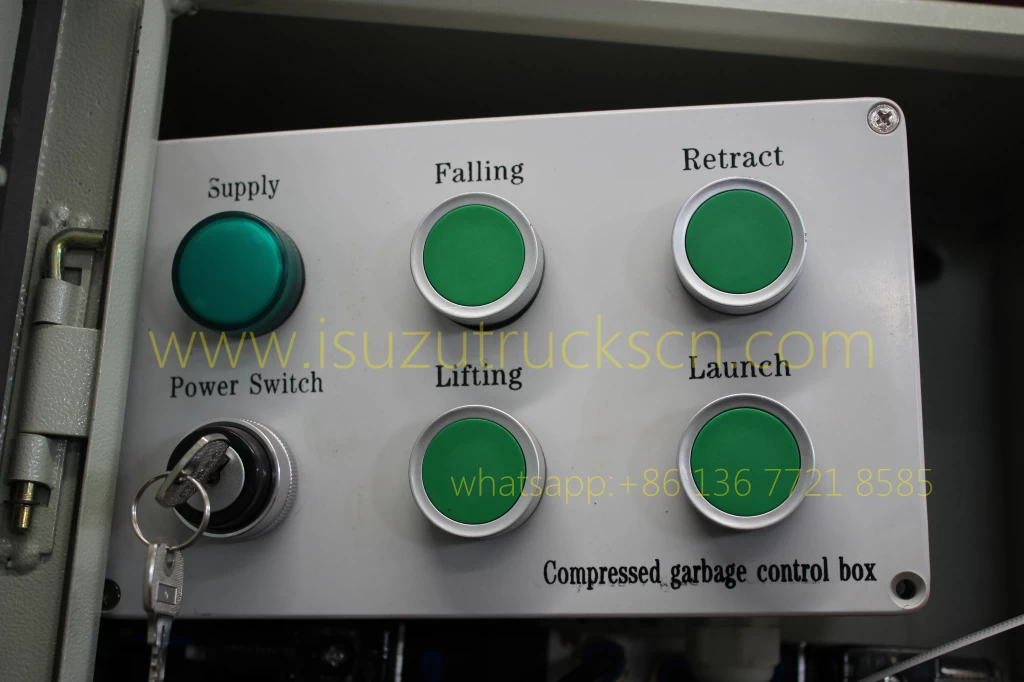

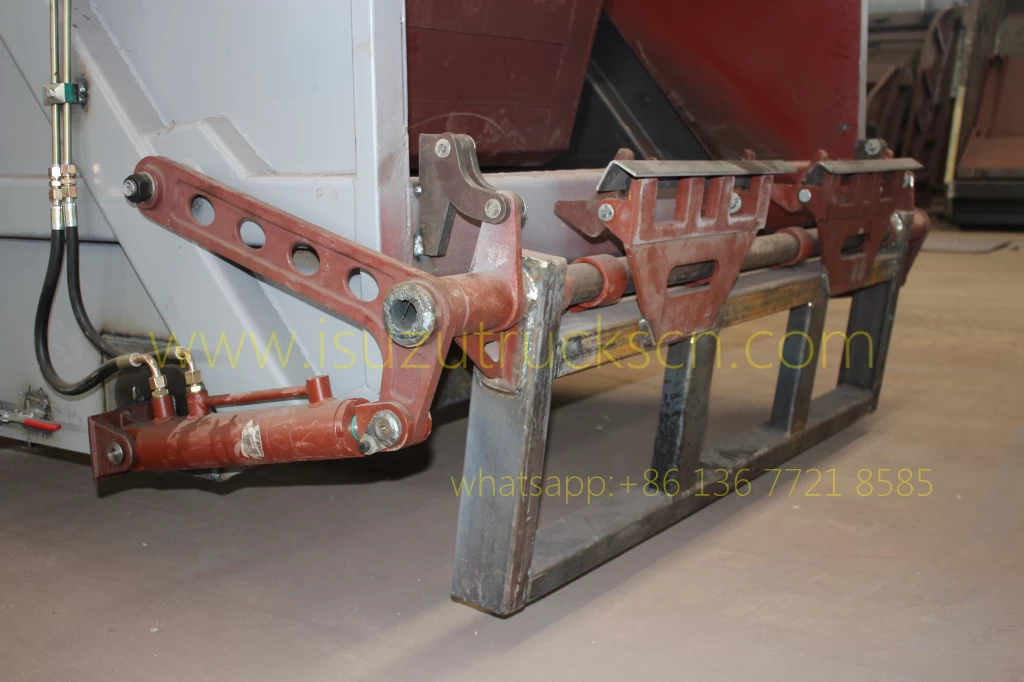

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo

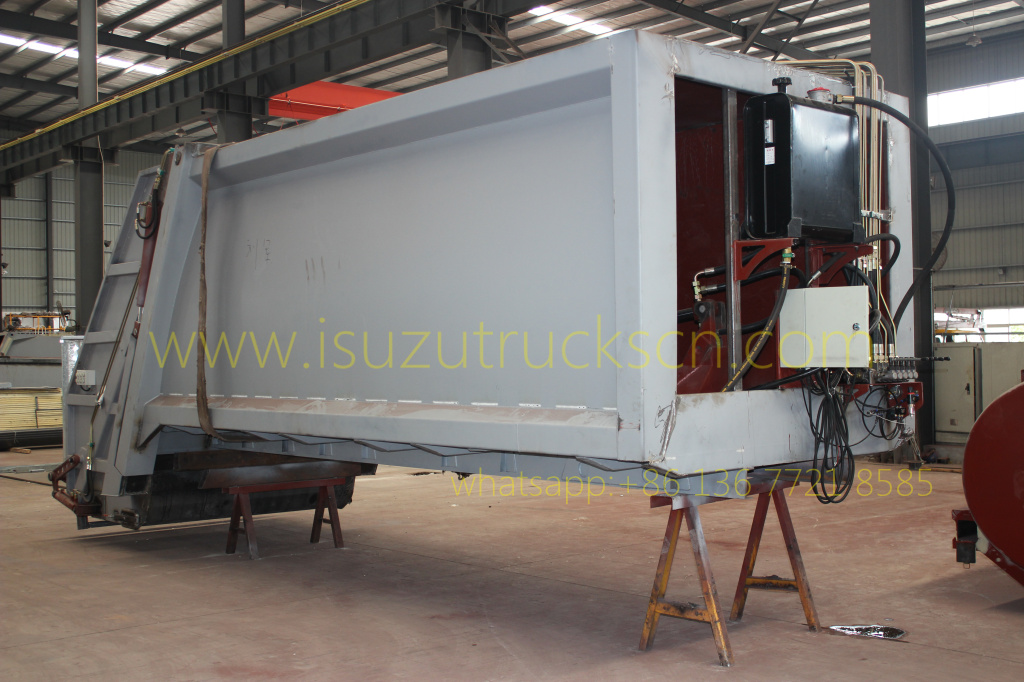

 Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo

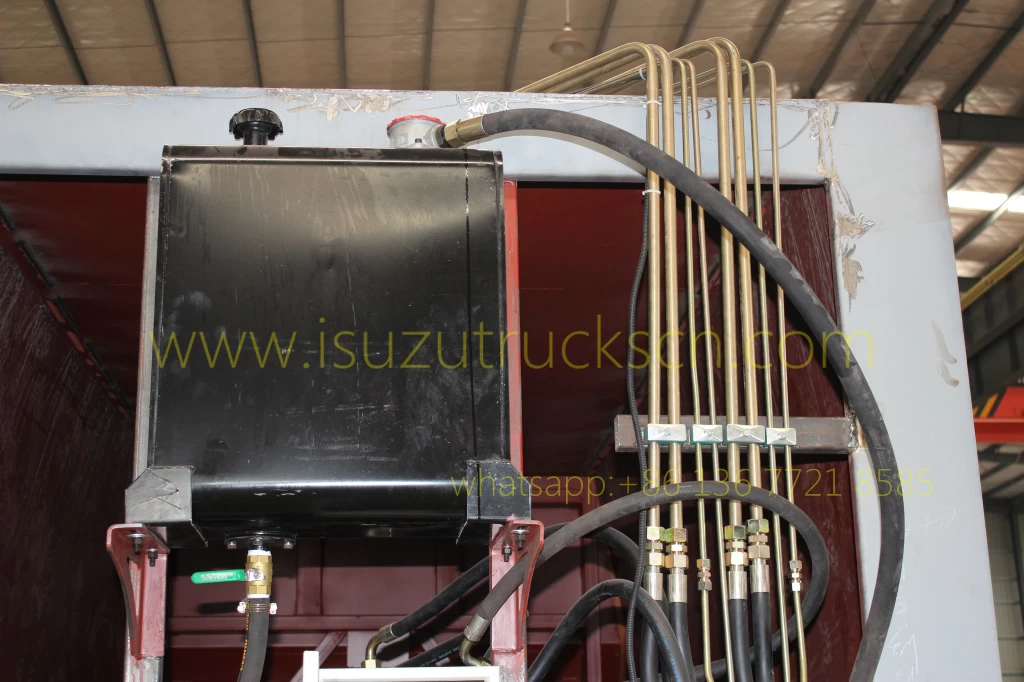

Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo

Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo

Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo

Customer made Garbage Compactor Truck Body kit detail pictures

Customer made up structure of Garbage Compactor Truck Body Kit specification and photo


Customer made up structure of Garbage Compactor Truck Body Kit specification and photo


Customer made up structure of Garbage Compactor Truck Body Kit specification and photo


 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

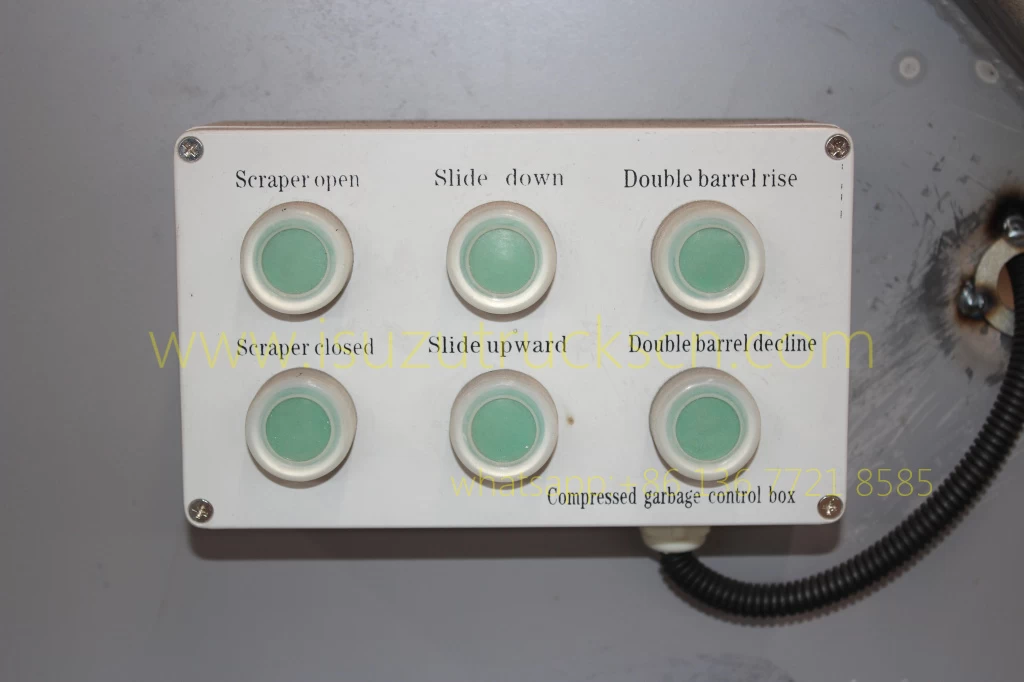

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

Details pictures of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Operation manual of 4cbm Compression Garbage Truck Isuzu

Operation manual for Isuzu refuse compactor garbage trucks

 kshop of build 4CBbuild 4CBM Garbage Compactor Truck
