Upper Rotary Packing/Strapping Machine

Upper Rotary Packing Machine (Model: DBJ1200U)

The PLC provides core control, and in conjunction with sensors such as photoelectric switches, it can automatically detect the position of packages and optimize strapping parameters to achieve high-precision strapping. It offers fast strapping speed and can provide a clamping force of up to 300KN, ensuring the stability of brick stacks during transportation. Its modular metal arch frame design is also robust and durable. This strapping machine is ideal for modern block brick production lines, efficiently handling the end-of-line strapping of aerated concrete blocks and other building blocks. Through automated strapping, the equipment can operate continuously for extended periods, significantly saving labor, improving production line efficiency, and reducing brick breakage rates during the strapping process. It is an ideal choice for building materials companies to achieve intelligent upgrades.

Working Principle:

Rotating Mechanism

With the brick/block stack stationary, the packing head and sling slot on the frame slide back and forth to horizontally bundle the items with PET strapping. Then, the packing head and sling slot rotate 90° to vertically bundle the items with PET strapping.

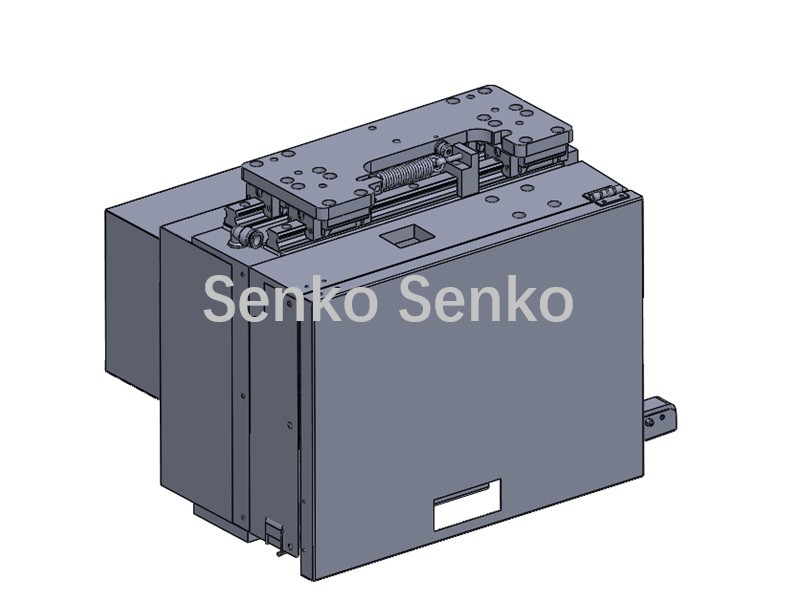

Friction Heat Melting Head

This unit integrates servo-driven strap feeding, tightening, strap cutting, and high-speed rotating friction bonding. It can achieve a strapping force of up to 300KN and can move up and down to adapt to different stacking heights.

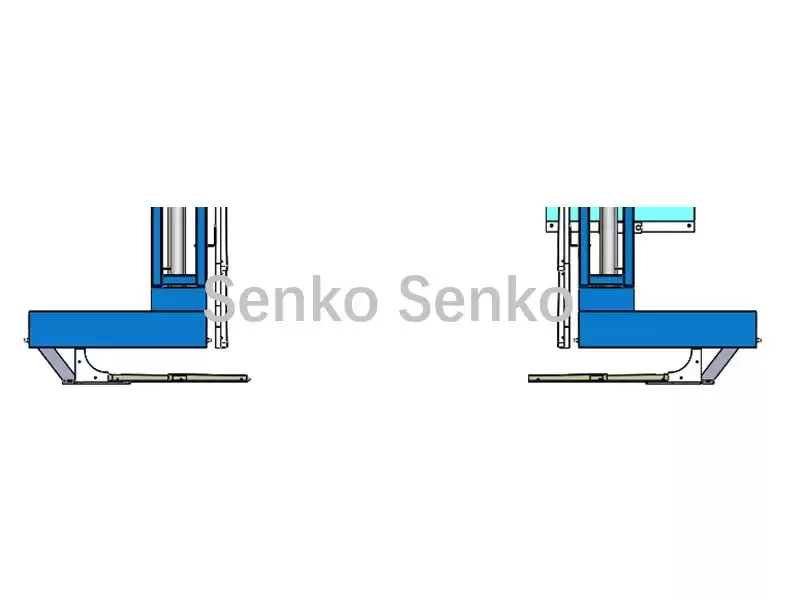

Sling Mechanism

A retractable sling passes through the bottom of the pallet, working in conjunction with the head to form a closed-loop bundling path.

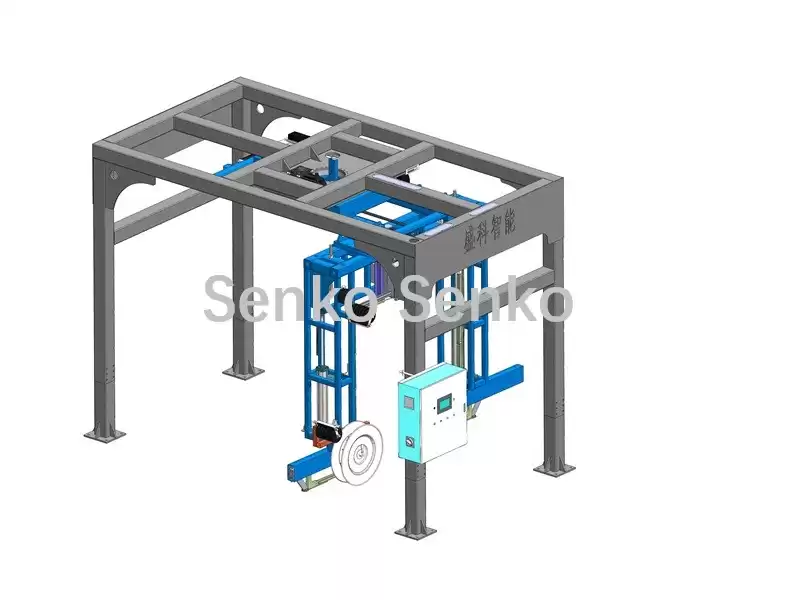

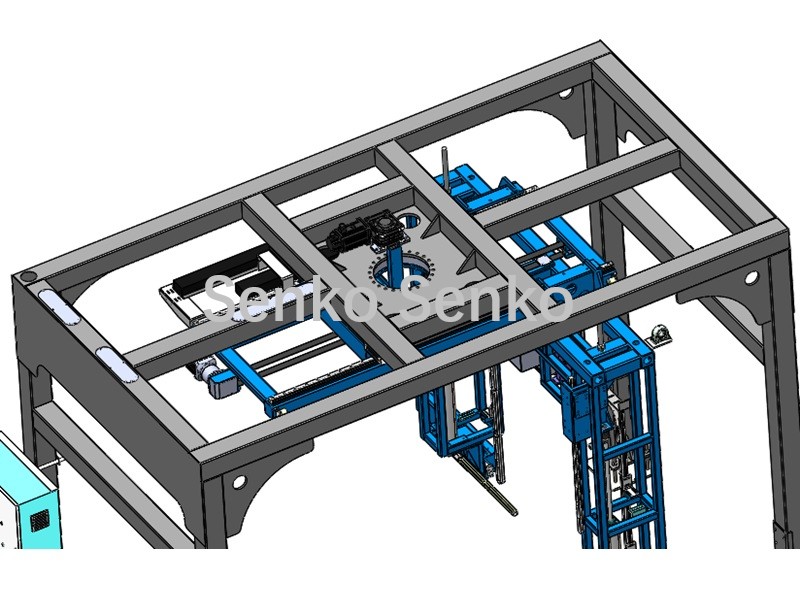

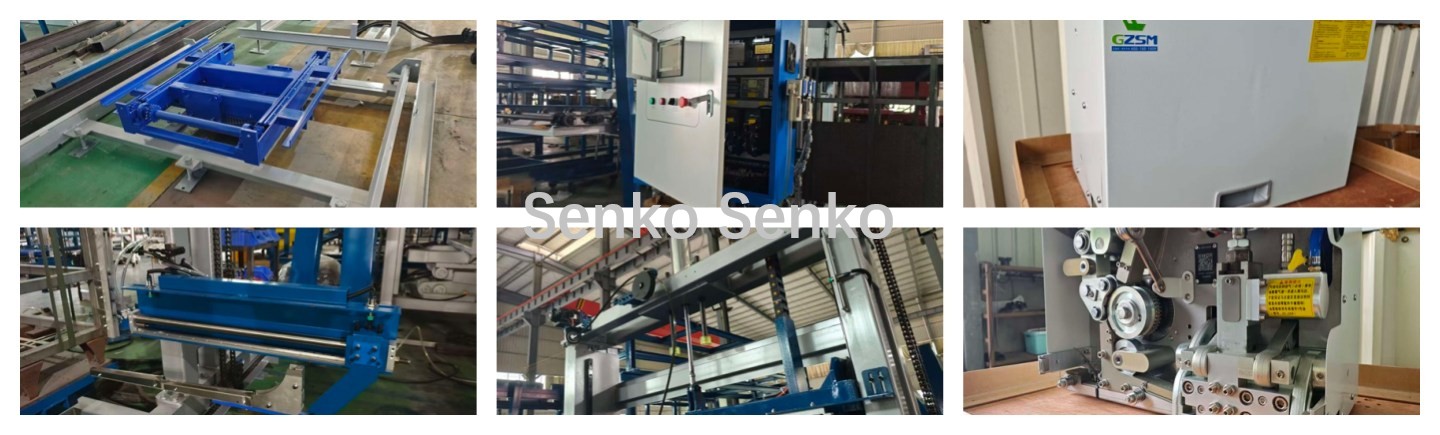

Structure Display:




Parameter Information:

Item	DBJ1200U
Equipment Size	2600×4200×3250mm
Power Supply	Three-phase 380V/50-60HZ
Power	6KW
Total Weight	2T
Maximum Tightening Force	3500N (Adjustable)
Strapping Speed	2-4.2m/s (Adjustable)
Binding Cycle	180 seconds/stack
Binding Size	1200×1200mm (Customizable)
Binding Height	900-1400mm (Customizable)
Strapping Strap Material	Machine-grade PET strapping
Strapping Strap Specifications	Width (15mm) × Thickness (0.8mm)
Top Rotary Disc Motor Power	2.0KW
Walking Planetary Gear Reducer	1.0KW
Payment	T/T or L/C at sight
Product Origin	Quanzhou, Fujian, China
Shipping Port	Xiamen
Lead Time	15 days

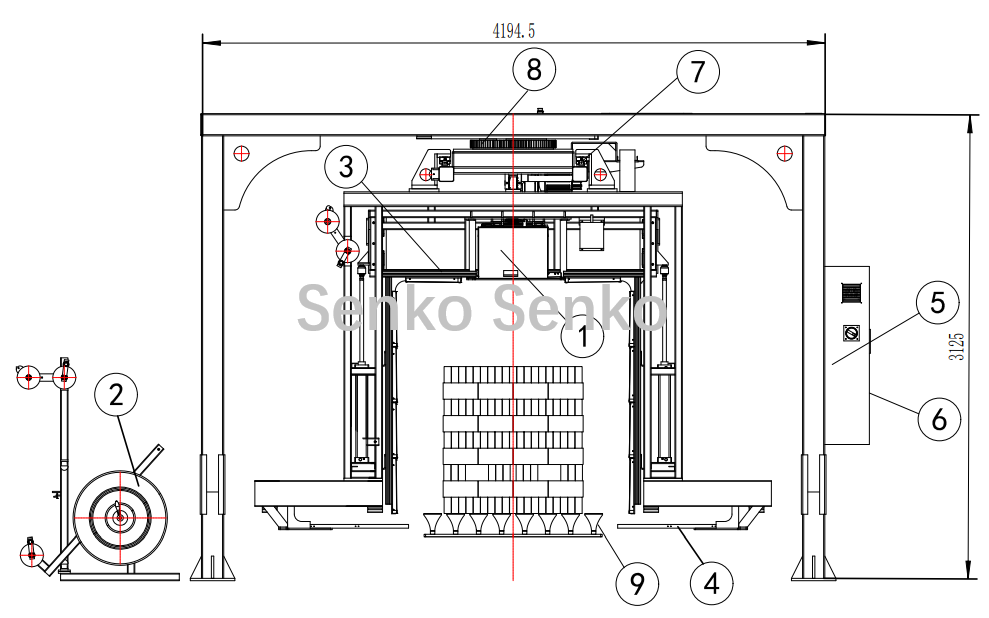

Layout of Project

1,Friction Heat Melting Head	2,Strips Releaser	3, Sling groove
4,Sling Machanism	5, E-control cabinet	6,Operation button
7,Translation guide rail	8,Rotating turntable support	9, Sling tray

Product Advantages:

1. Digital intelligent strapping head, no strapping selection or breakage, tension force can be adjusted arbitrarily by CNC;

2. Servo control, touch screen, simple and quick operation;

3. Replaces two people for manual strapping and packaging, mechanized operation;

4. Pneumatic friction bonding, stable and easy to maintain.

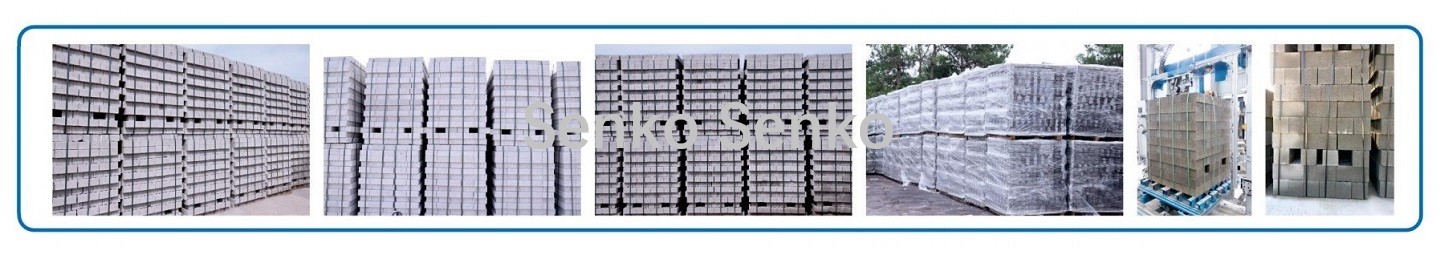

Stacked Cured Products:
