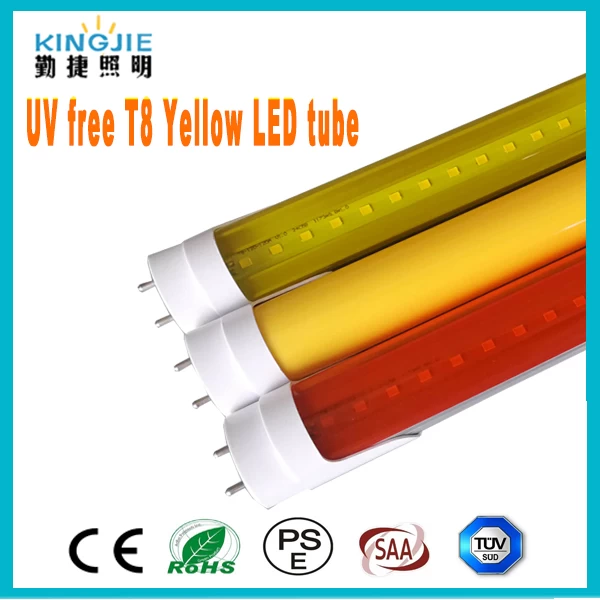

1、UV free LED tube is desigend for those areas where UV and blue components have to be reduced to the absolute minimum. The emitted radiation power in the wavelength range < 500 nm
2、G13,G5,R17D,FA8 cap,rotatable cap and non-rotatable cap are available
3、Constant current internal driver, safety guaranteed
4、High PF value over 0.9 for decrease of electricity loss
5、High quality PCB for good heat dissipation
6、No flicker,no delay, Instant on/off
Model
|
Size (mm)
|
Watt
|
Input Voltage
|
SMD LED
|
Material
|
PF
|
CRI
|
Cap
|
Beam Angle
|
Light efficiency
|
T8-60CM-10W
|
Φ26*L600
|
10w
|
AC85-265V
|
SMD2835
|

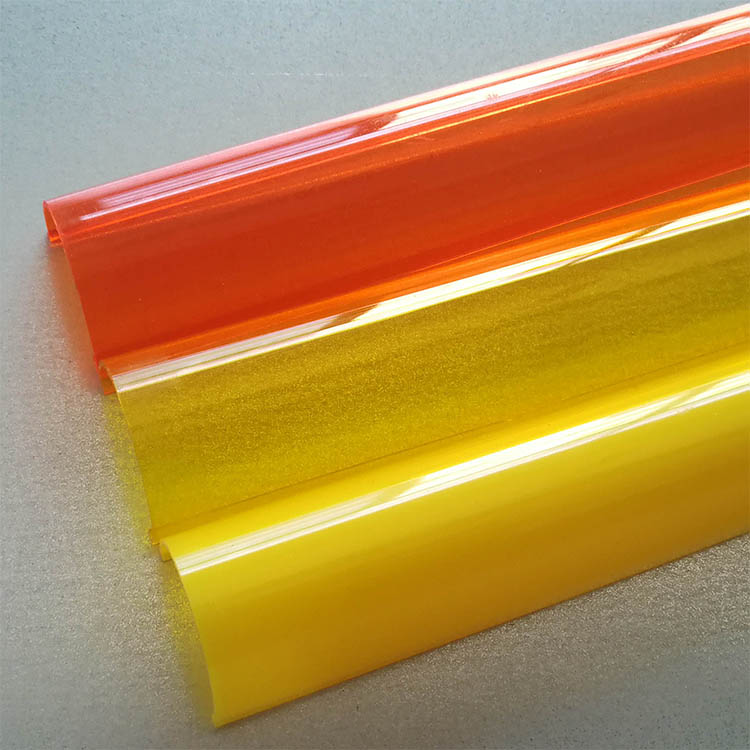

aviation Aluminum+ yellow PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
90LM/W or more higher
|
T8-120CM-18W
|
Φ26*L1200
|
18w
|
AC85-265V
|
SMD2835
|
aviation Aluminum+ yellow PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
90LM/W or more higher
|
|
T8-150CM-25W
|
Φ26*L1500
|
23w
|
AC85-265V
|
SMD2835
|
aviation Aluminum+ yellow PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
90LM/W or more higher
|
***Remark: other wattages,sizes,lumen are available
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.
Step2. Cut off all wires which connected to inductive ballast or electrical ballast.
Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.

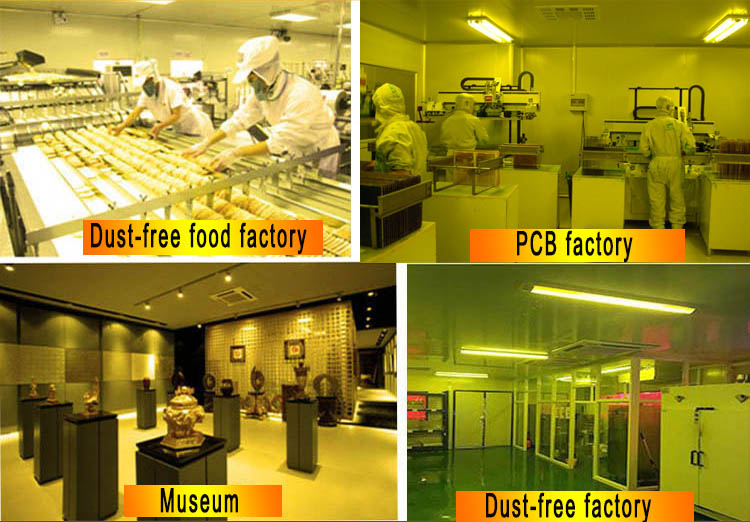

PCB workshop,Dust-free precision electronics factory,Museum,Gallery,Microchip factory etc
