1、What is fused silica glass?
Fused quartz or fused silica is glass consisting of silica in amorphous (non-crystalline) form. It differs from traditional glasses in containing no other ingredients, which are typically added to glass to lower the melt temperature. Fused silica, therefore, has high working and melting temperatures.
2、What Kinds of Fused Silica material can available from UNI OPTICS?
There are many company offer Fused Silica material like Corning, Heraeus, Schott, Nikon NIFS and Ohara. UNI OTPICS could make fused silica products according the the design by Coring 7980, 7979, 7978, Heraeus Spectrosil 200, HOQ310, Suprasil 300 and JGS2, JGS2, JGS3 etc.
3、What is fused silica glass used for?
Fused Silica, SiO2 Glass Properties. Fused silica is a noncrystalline (glass) form of silicon dioxide (quartz, sand). Typical of glasses, it lacks long range order in its atomic structure. It's highly cross linked three dimensional structure gives rise to it's high use temperature and low thermal expansion coefficient.
4、Can you make glass from quartz?
First, a little background: Lab glass can withstand insane temperatures and chemical reactions because it's made of fused quartz. ... Instead, this stuff is virtually pure silica, aka quartz crystals—which means that to mold it into test tubes,you need incredibly high temperatures.
5、How is fused silica made?
Fused Silica (also known as Synthetic Fused Silica) is made from a silicon-rich chemical precursor, usually using a continuous flame hydrolysis process, which involves chemical gasification of silicon, oxidation of this gas to silicon dioxide, and thermal fusion of the resulting dust (although there are alternative .
Specifications
|
|
Standard
|
High Precision
|
|
Dimension Tolerance
|
+0.0/-0.2
|
+0.0/-0.02
|
|
Thickness Tolerance
|
±0.2
|
±0.005
|
|
Surface quality:
|
60-40
|
10-5
|
|
Clear Aperture
|
>85%
|
>95%
|
|
Flatness (per 25mm@633nm)
|
λ /2
|
λ/10
|
|
Parallelism
|
3 min
|
3 sec
|

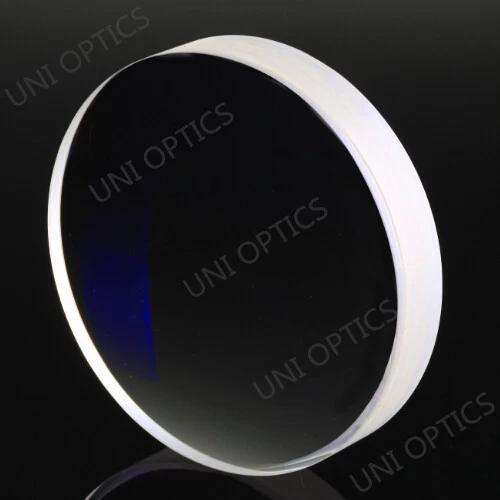

Note for Fused Silica Window:
(1). Custom-made Fused Silica windows at any size from Φ2.0mm to Φ350mm clear aperture are available. Besides round, Fused Silica windows at shape of quadrate, triangular, or other polygonal are available
(2). Thickness from 1.0mm to 50.0 mm is available upon request.
(3). 100% clear aperture is available upon request.
(4). Better bevel is available upon request.
(5). Windows with Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating are available.
