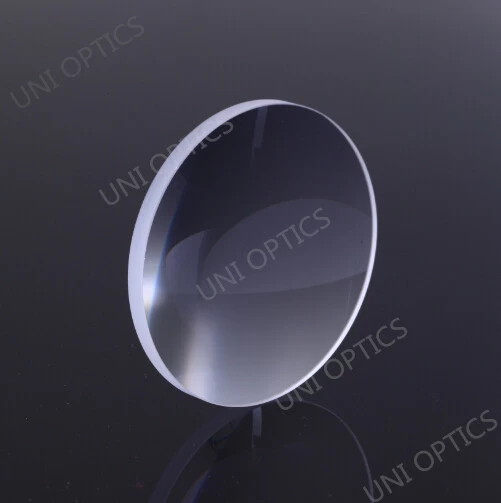

UV Fused Silica Plano-Convex (PCX) Lenses

A Plano-Convex (PCX) lens causes light to focus to a point,it has a positive focal length,which is ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries. Uni-Optics offers PCX lenses with a variety of coating options.



1. What is Plano-Convex Lenses?


Plano-convex lenses are positive focal length Optical lenses that have one spherical surface and one flat surface, which is ideal element for light collimation or for focusing applications utilizing monochromatic illumination.



2. What fields are Plano-Convex Lenses widely used?


Uni-Optics Plano-Convex lenses are widely used in a wide range of applications including: industries, microscopy, laser processing, projection system, line detector array illumination, robotics, defense and other market spaces because of the benefit of focusing light.



3. What coatings can Uni-Optics offer?


Uni-Optics offers Plano-convex lenses with a variety of Anti-Reflection coating options, including Single layer MgF2 AR Coating, Multiple layers BBAR coating, Dual Wavelength Band AR Coating, and other coating according to customers’ requirement.


Specification
plano convex lenses


Material:
 Optical glass, BK7, Fused Silica, Schott, OHARA, CaF2,Germanium etc.
Dimension Tolerance:
 ±0.1mm(Standard), ±0.01mm(High Precision)
Center Thickness Tolerance:
 ±0.1mm(Standard), ±0.02mm(High Precision)
Paraxial Focal Length:
 ±2%
Surface quality:
 60/40(Standard), 20/10(High Precision)
Clear Aperture:
 >85%
Surface Figure:
 λ/2(Standard), λ/8(High Precision) @633nm
Centration:
 3 arc minutes
Bevel:
 <0.25mm×45°
Coating:
 Upon requirement


Part No. Material F(mm) Φ(mm) R(mm) Tc(mm) Te(mm) Fb(mm)
ULPX008006 BK7 8 6 4.15 3.3 2 5.8
ULPX015010 BK7 15 10 7.78 3.8 2 12.5
ULPX022010 BK7 22 10 11.4 3.1 1.9 20
ULPX015127 BK7 15 12.7 7.78 5.3 2 11.5
ULPX020127 BK7 20 12.7 10.37 3.97 1.8 17.39
ULPX030127 BK7 30 12.7 15.56 3.16 1.8 27.92
ULPX040127 BK7 40 12.7 20.75 2.8 1.8 38.16
ULPX050127 BK7 50 12.7 25.94 2.59 1.8 48.3
ULPX075127 BK7 75 12.7 38.87 2.5 2 73.4
ULPX025018 BK7 25 18 12.97 5.44 1.8 21.43
ULPX030018 BK7 30 18 15.56 4.67 1.8 26.92
ULPX050018 BK7 50 18 25.94 3.41 1.8 47.76
ULPX040020 BK7 40 20 20.73 4.5 1.9 37
ULPX040224 BK7 40 22.4 20.73 5.3 2 36.5
ULPX050254 BK7 50 25.4 25.94 5.32 2 46.51
ULPX100254 BK7 100 25.4 51.88 3.58 2 97.66
ULPX125254 BK7 125 25.4 64.79 3.3 2 122.8
ULPX150254 BK7 150 25.4 77.8 3.04 2 147.98
ULPX200254 BK7 200 25.4 103.75 2.78 2 198.18
ULPX250254 BK7 250 25.4 129.72 2.62 2 248.35
ULPX050030 BK7 50 30 25.94 7.28 2.5 45.21
ULPX075030 BK7 75 30 38.9 5.51 2.5 71.36
ULPX100030 BK7 100 30 51.88 4.72 2.5 96.91
ULPX200030 BK7 200 30 103.75 3.6 2.5 197.75
ULPX100038 BK7 100 38 51.83 6.6 3 95.7
ULPX200038 BK7 200 38 103.66 4.8 3 196.5
ULPX500038 BK7 500 38 259.4 3.7 3 497.16
ULPX100508 BK7 100 50.8 51.88 9.65 3 93.67
ULPX200508 BK7 200 50.8 103.75 6.16 3 195.96
ULPX300508 BK7 300 50.8 155.6 5.09 3 296.62
ULPX500508 BK7 500 50.8 259.4 4.25 3 497.28
JLPX015127 JGS1 15 12.7 6.9 6.2 2 10.8
JLPX030127 JGS1 30 12.7 13.8 3.6 2 27.5
JLPX035254 JGS1 35 25.4 16.1 8.2 2 29.4
JLPX050254 JGS1 50 25.4 23 5.8 2 46
JLPX100254 JGS1 100 25.4 46.01 3.8 2 97.4
JLPX200254 JGS1 200 25.4 92.02 2.9 2 198
JLPX050038 JGS1 50 38 23 13 3 41.1
JLPX100038 JGS1 100 38 46.01 7.1 3 95.1
CLPX050254 CaF2 50 25.4 21.25 6.2 2 45.6
CLPX100254 CaF2 100 25.4 42.5 3.9 2 97.3
CLPX150254 CaF2 150 25.4 63.75 3.3 2 147.7
CLPX200254 CaF2 200 25.4 85 3 2 197.9
