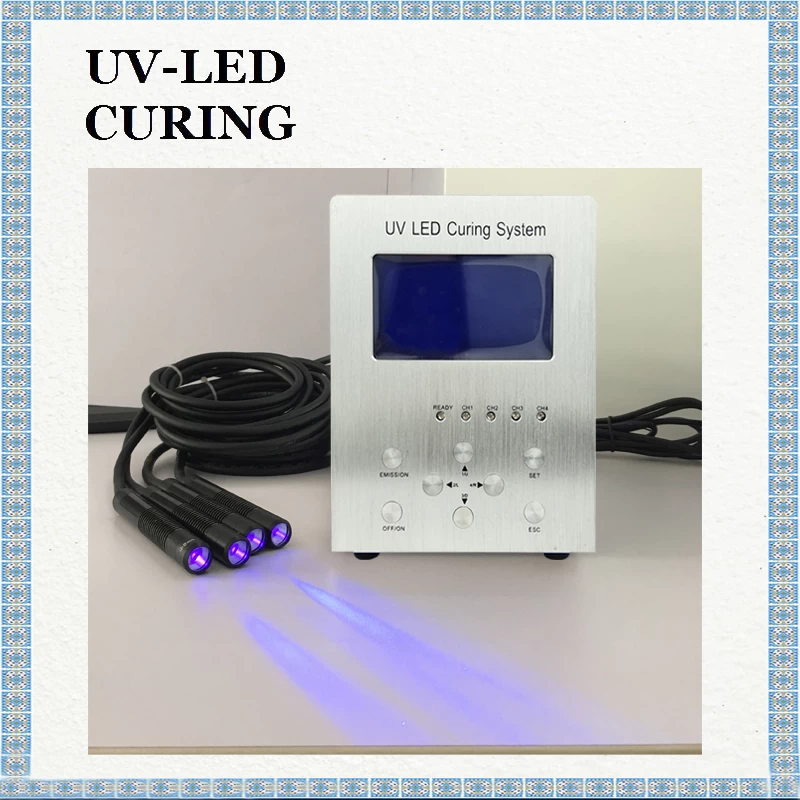

UV LED Spot Curing System for Mobile Phone Camera

High power uv led curing adhesive UV LED spot curing system for mobile phone camera.



UV LED spot curing DESCRIPTION

Because of it looks like a very small circle based on the spot area it sents out,we call these machines are UV LED spot curing equipments.According to the different cooling methods of the irradiation heads, we designed the irradiation heads into two ways:nature-cooling and air-cooling.The nature cooling irradiation head is easy to assemble fixed rod,it looks like a pen.And the air cooling irradiation head we use a small radiator fan in it. Threre is a cube in the head part. Two kinds of irradiation heads have become the industry standard at present.

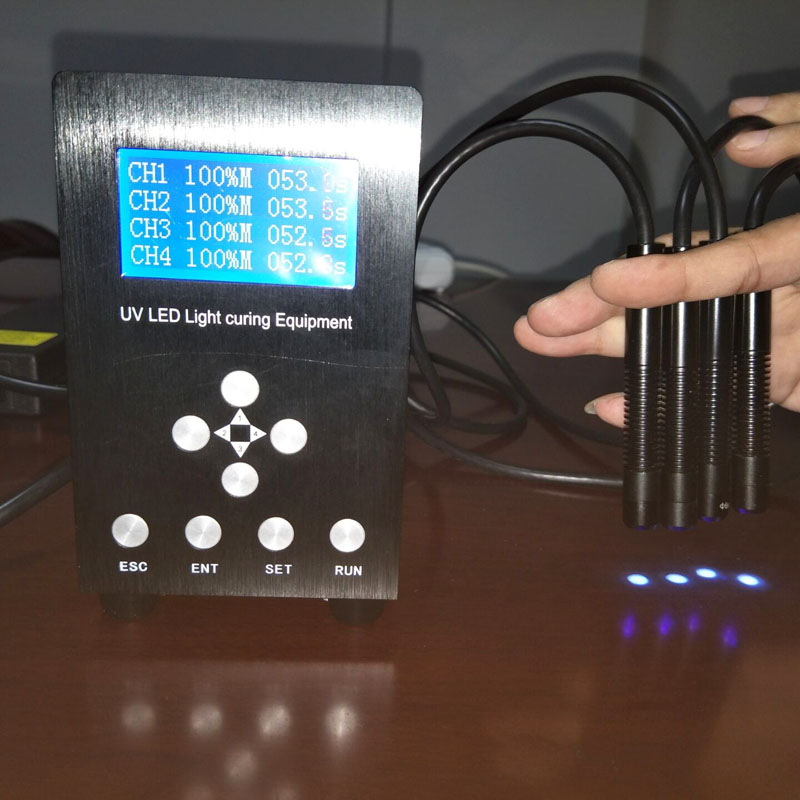

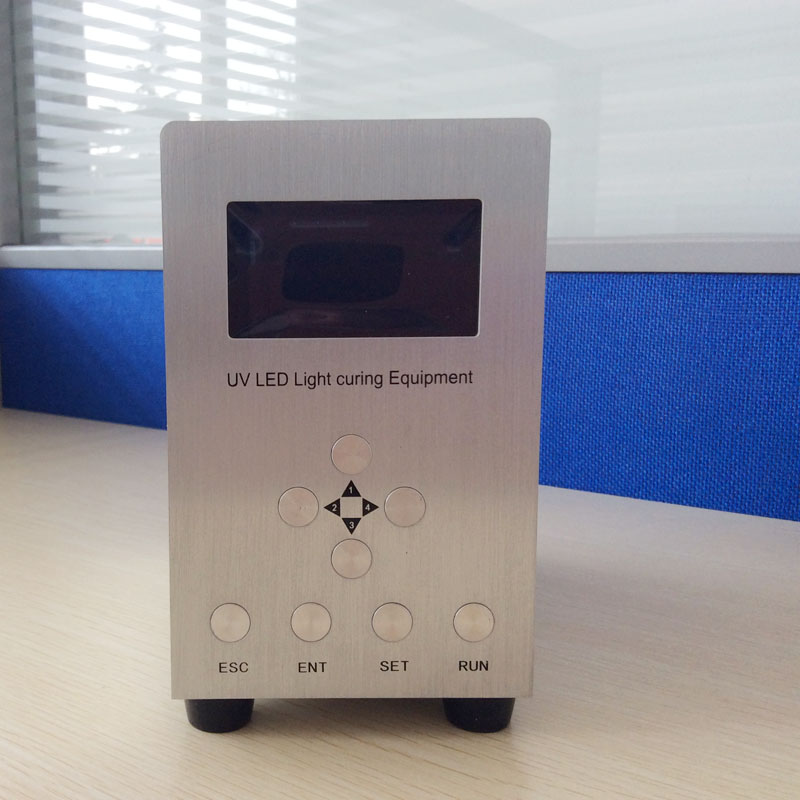

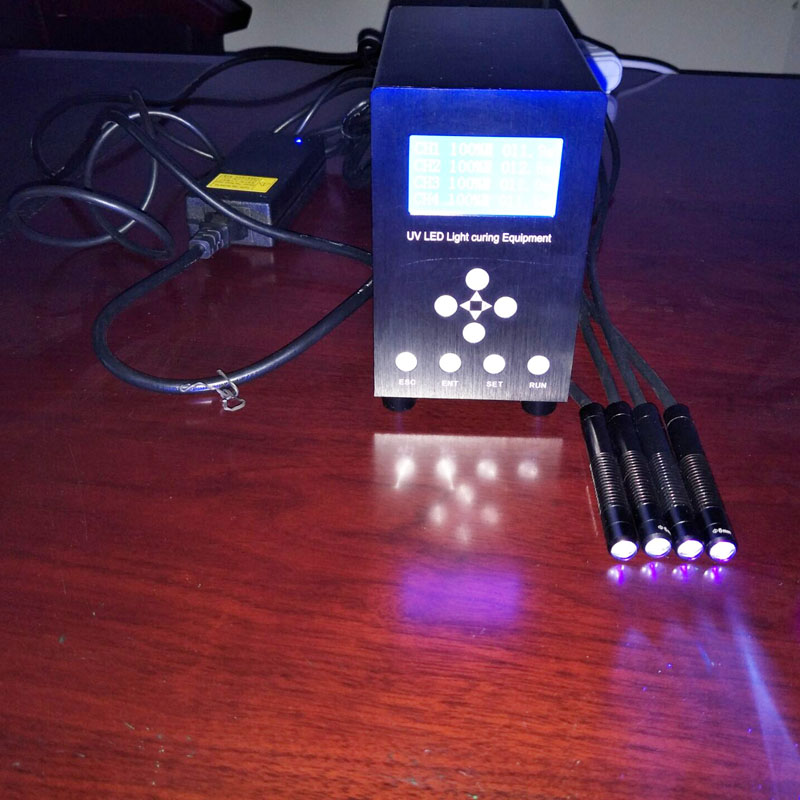

UV LED spot curing equipments'Controller

Model

DSX-UVP60

Size (mm)

120*190*220mm

Color

silver or black

Channel (Heads)

8

Consumption

<60W

Net Weight

3.050 kg

Step irradiation

Max 16 steps, eg: light on 5s, light off 2s, light on 3s…

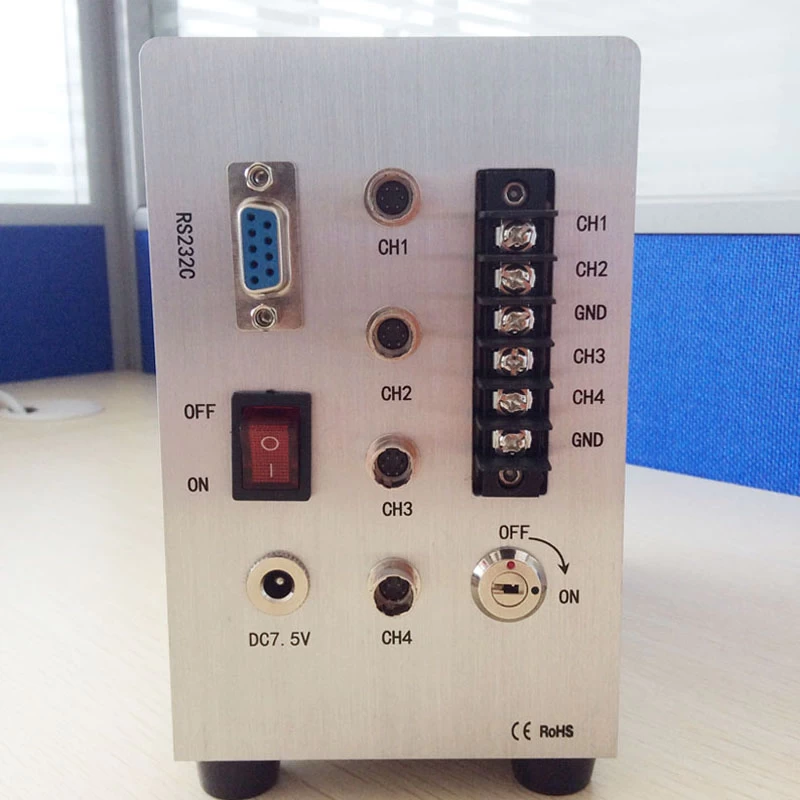

RS232 Interface

Available

Cooling type

Fan cooling

Power supply

100-240V AC 50 Hz, Input Power DC 12 V 5A

Tolerance

10-150Hz acceleration 50m/s2, half amplitude 0.35mm, X/Y/Z 8 mins. 10 times

Resistance

150m/s*s 6 directions (up/down, right/left, front/back), each 3 times

Operation

interface button, foot pedal, RS232 port

Accessory

user manual, key, power supply cable

Material

Aluminum

Power setting

0-100%

Time recording

max. 999.9s

UV LED Spot Curing SystemUV LED Spot Curing LightsUV LED Spot Curing Machine for Electromic Equioment


Irradiation heads

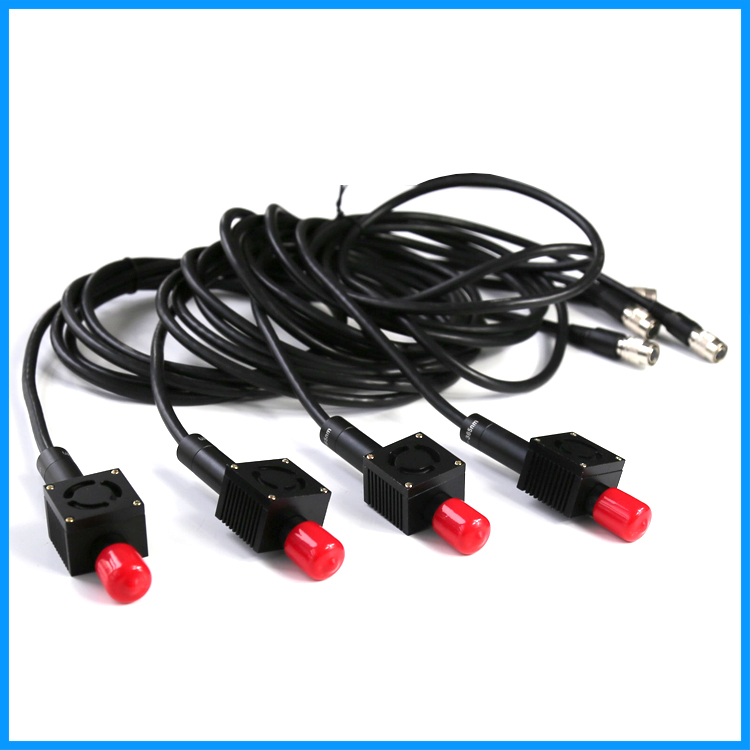

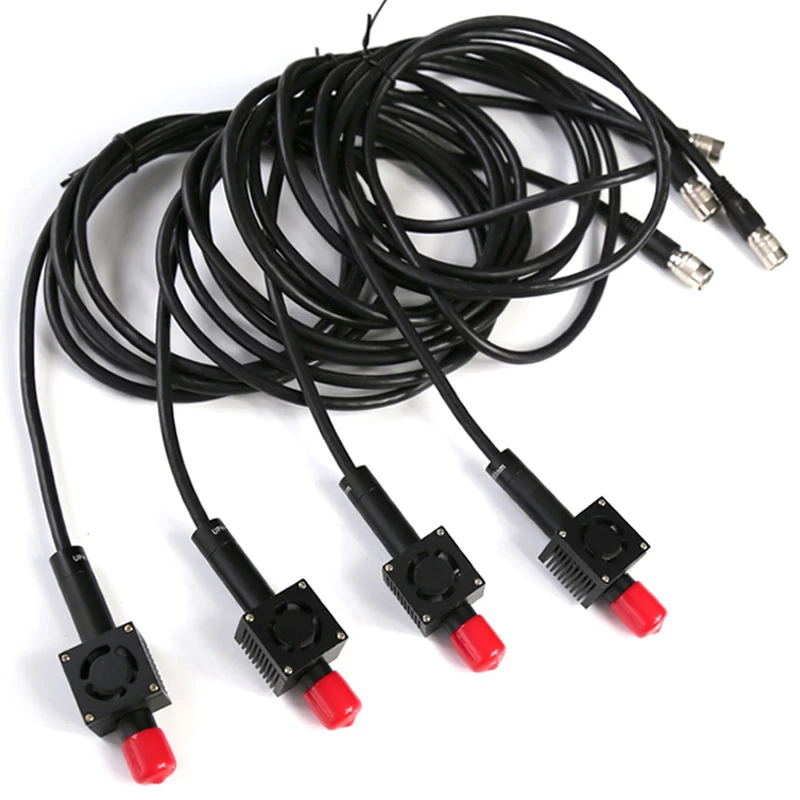

AIR COOLING

UV Glue Curing of Spot Area

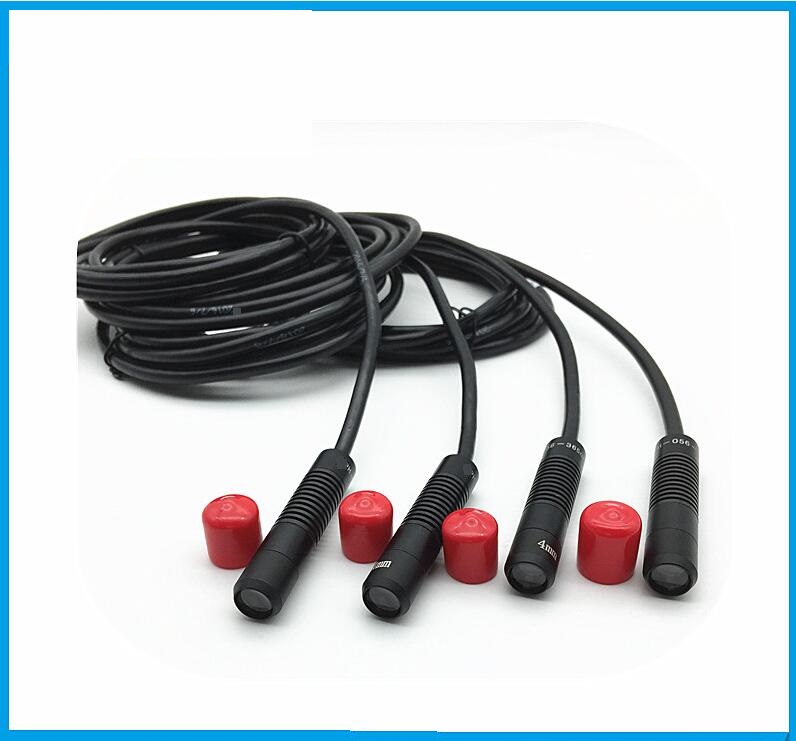

NATRUE COOLING

UV Glue Curing


Feathure & Advantage

*High irradiation intensity up to 8800mw/c

*365nm,385nm,395nm,405nm availabe

*multiple control modes: button, foot pedal, auto

*Environmental friendly, No mercury, No Ozone

*Long working lifespan and low attenuation

*No warm-up time

*Low temperature

*UV output range: 0-100%


Applications

*UV glue, UV adhensive, UV gel curing

*Electronice components fixation curing

*Hard disc, micro-generator, earphone curing

*Watch precision components manufacturing

*DVD/CD light head curing

*Optical lends curing

*LCD sealing curing

*Medical equipment curing

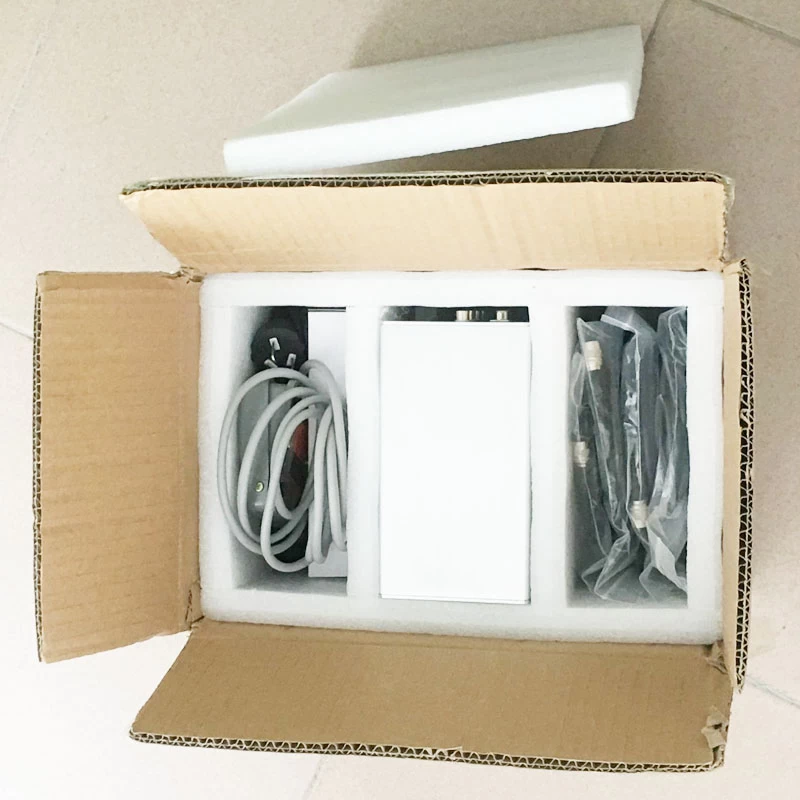

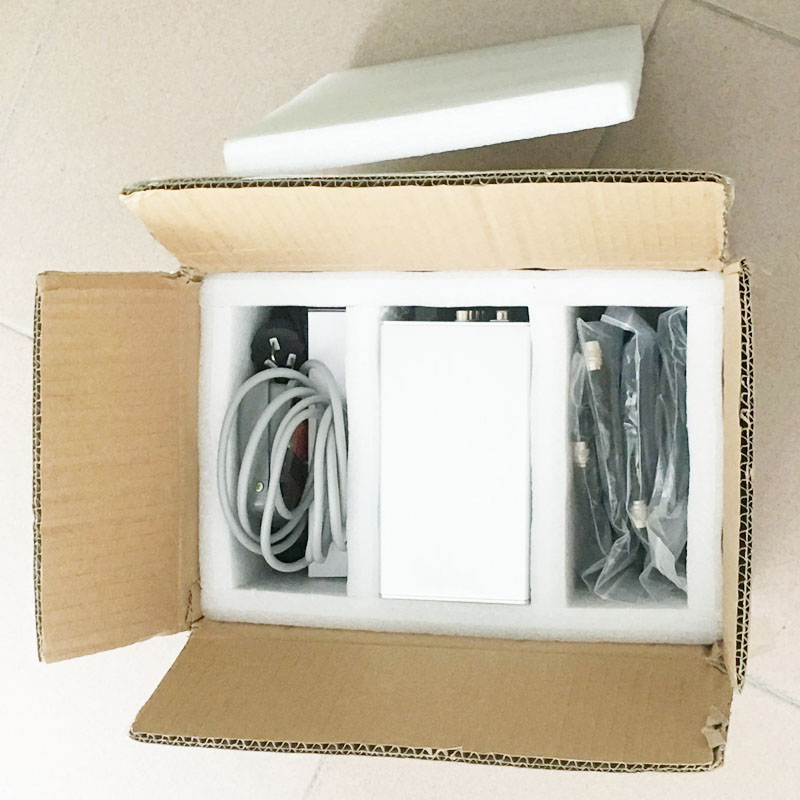

Standard Package

*controller: 1

*led lamps: 1-4

*lens: 1-4

*power adaptor: 1



Caution

1. Package and Transport

When transporting equipment, use random packing materials. Any damage caused by improper packing equipment is not not under warranty.

2. Daily Use and Maintain

LED irradiation head is needed be cleaned regularly. Please use soft buckskin, lens paper and alcohol to clean, ensuring the irradiation intensity and good heat dissipation.

Cleaning the controller regularly. Please wipe with a little alcohol with a cleaning tool. In order to protect the surface of facility, don’t use the volatile liquid or having ammonium hydroxide ingredient to clean (diluent or benzene, etc.).


Attention:

Please do no unauthorized remove the controller and UV LED irradiation head, leading the product to work abnormally.
