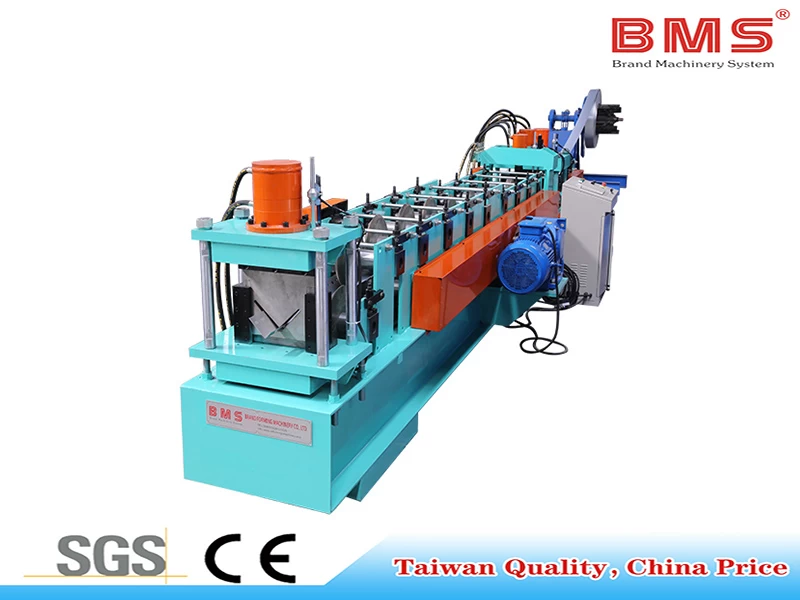

V Angle Bar Roll Forming Machine


Easy operation.High quality.





V Shape Angle Steel Bar Roll Forming Machine


Click Here To View The Video


Profile



V angle bar roll forming machine


Material

Material Thickness:0.8-2.0mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC
)with yield strength 345-550Mpa


Work Follow

Decoiler→Feeding and Leveling Device→Hydrualic Pre-Cutting&Punching Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack


Work Follow


Machine Components


1) Manual Decoiler: one set

Manual control steel coil inner bore shrinkage and stop
Max. feeding width:300mm
Coil ID Range:508±30mm
Max capacity:3 ton

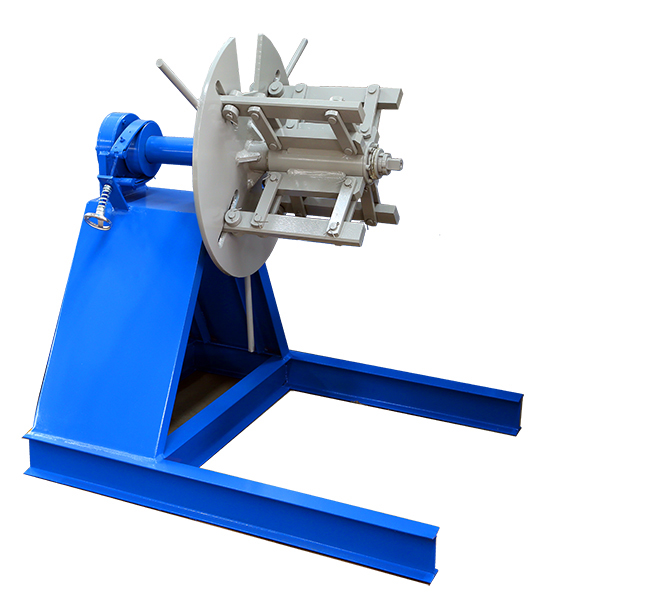

Manual Decoiler

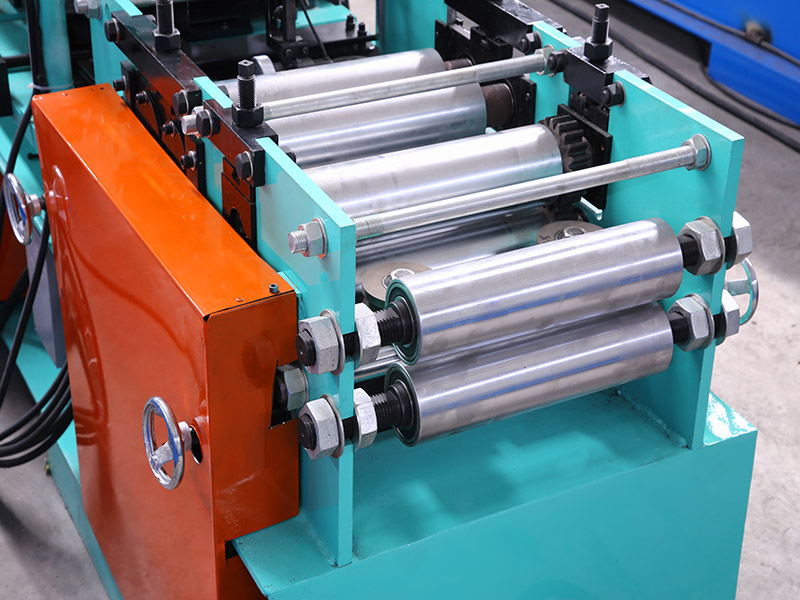

2) Feeding And Leveling Device


Up Two down three totally five shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Shafts manufactured from 45# steel,Diameter=φ90mm,Tone plated with hard chrome Coated,precision machined


V angle bar roll forming machine

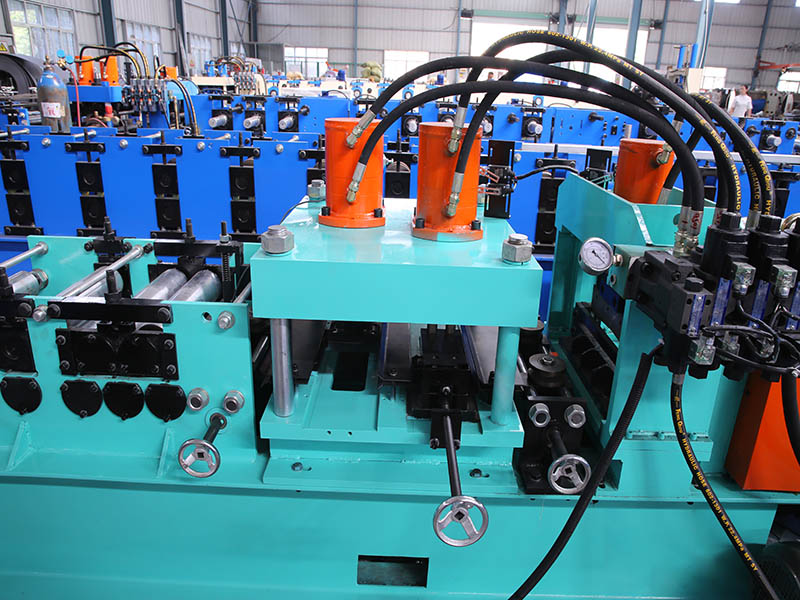

3) Hydraulic Pre-Cutting&Punching Device


Pre-punching and pre-cutting, use the same hydraulic system
Hydraulic motor:5.5KW, Hydraulic pressure range:14Mpa
Punching and Cutting tool material:mold steel Cr12MoV(=D2 steel, with one million times punching/cutting life), Heat treatment to HRC58-62 degree
2-cylinders hole punching system for punching both on web and


V angle bar roll forming machine



V angle bar roll forming machine

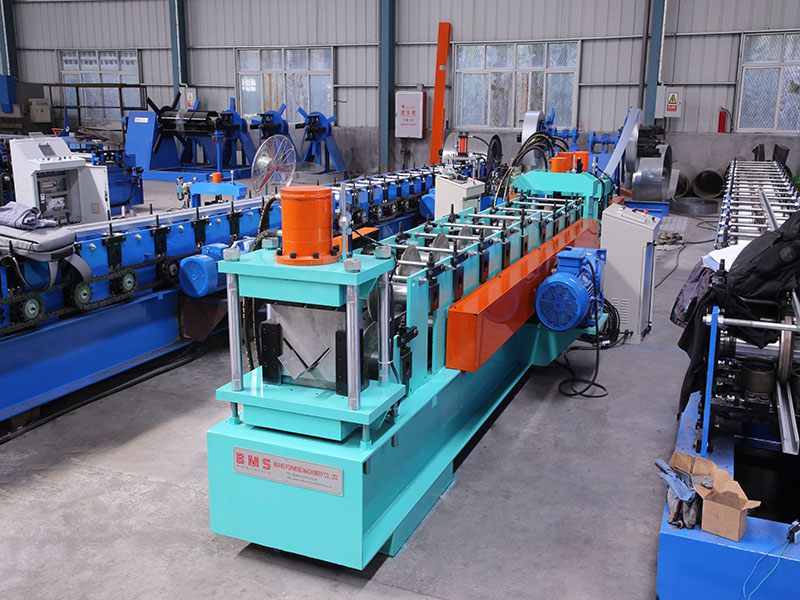

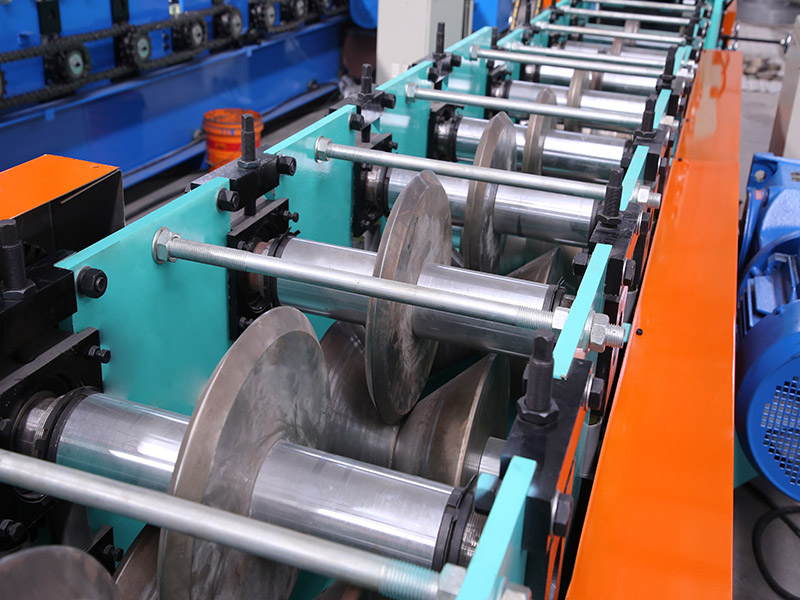

4) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф75/90,precision machined
Gear/Sprocket driving,about 9-step to form

Main Motor(Polaroid brand)=5.5KW, Frequency speed control

V angle bar roll forming machine

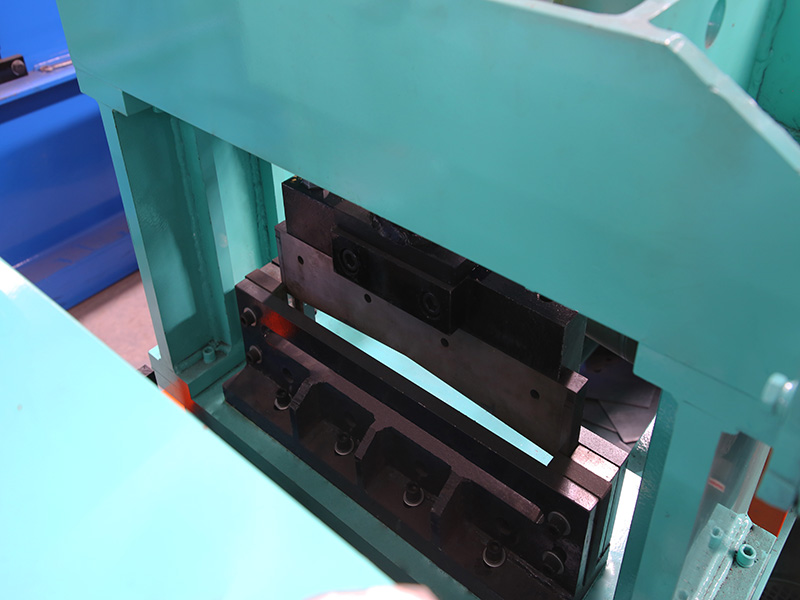

5) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:4KW,Cutting pressure: 0-14Mpa

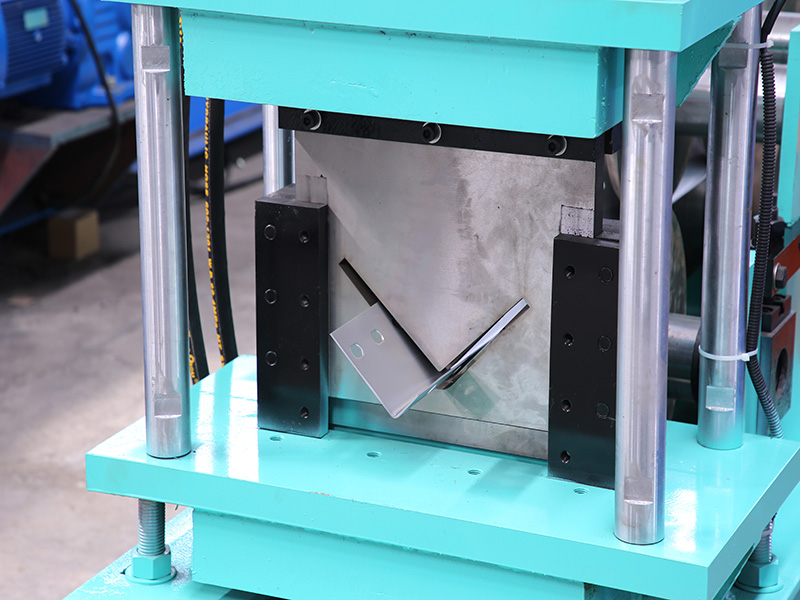

Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree


V angle bar roll forming machine



6)PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


V angle bar roll forming machine



7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Exit Rack

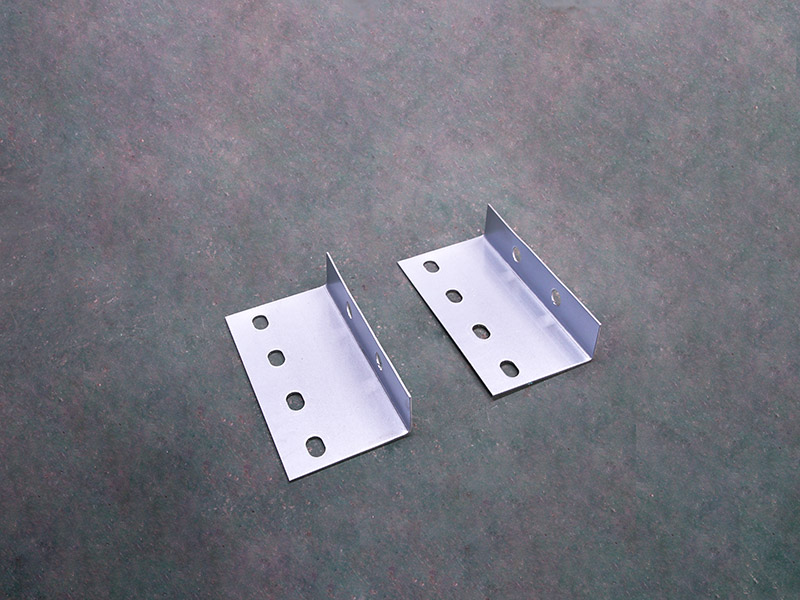

8)Product Show

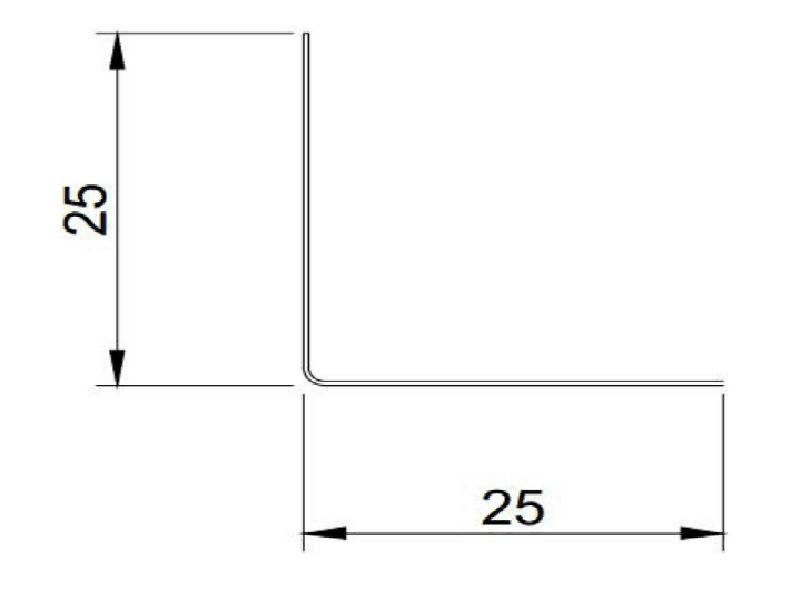

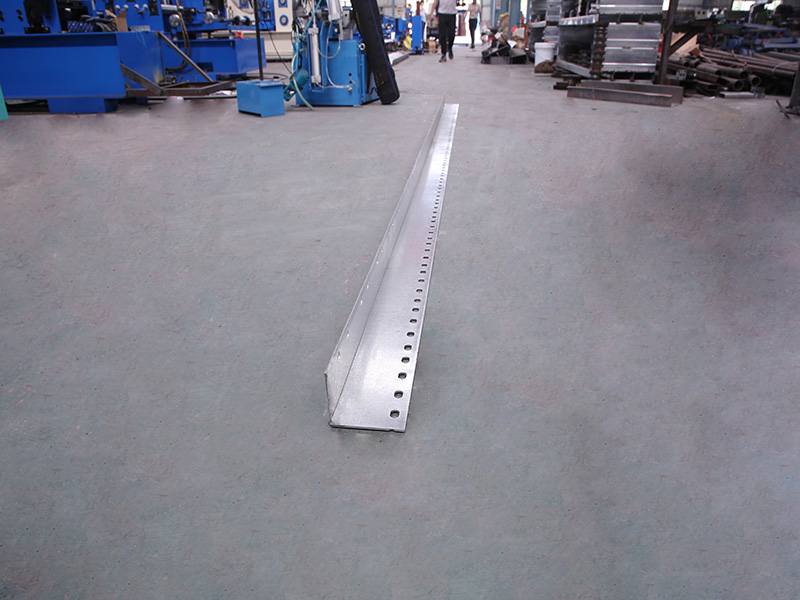

V angle bar roll forming machine



V angle bar roll forming machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.


Packing Style



After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 45 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
