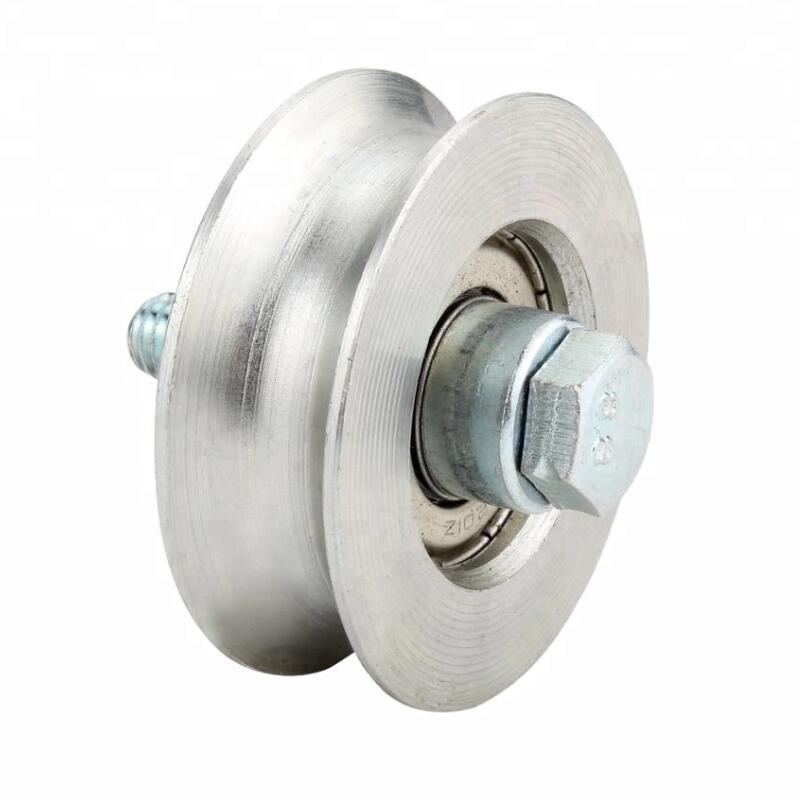

V Groove Fence Sliding Gate Wheel With Bolt Specification
1.With Material: steel Q235 or stainless steel and we can finish surface treatment with yellow zinc plating or silver zin plating .
2.We can produce with wheel diameter with 40mm ,38mm etc and customized size also welcome
4.We can produce with inside with single or double bearings
5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

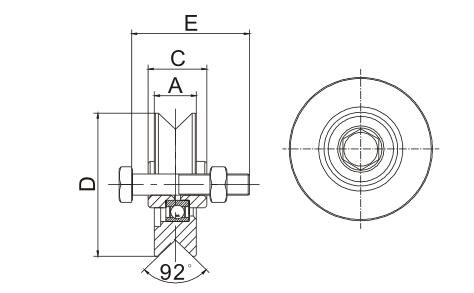

Below Here Is V Groove Gate Wheel Size For Your Reference :
|
NO.
|
D mm
|
A
|
C
|
E
|
WEIGHT(g)
|
|
HL1V40
|
38
|
11
|
24
|
M8*40
|
85
|
|
HL1V50
|
50
|
15
|
26
|
M8*40
|
163
|
|
HL1V60
|
58
|
17
|
24
|
M10*55
|
272
|
|
HL1V70
|
68
|
20
|
28
|
M10*55
|
443
|
|
HL1V80
|
78
|
20
|
28
|
M10*55
|
616
|
|
HL1V90
|
88
|
20
|
30
|
M12*60
|
791
|
|
HL1V100
|
98
|
22
|
30
|
M12*60
|
1078
|
|
HL1V120
|
118
|
25
|
34
|
M14*70
|
1815
|
|
HL1V140
|
138
|
25
|
44
|
M16*75
|
2662
|
|
HL1V160
|
158
|
30
|
45
|
M16*75
|
4080
|
Other Type of Sliding Gate Bearing wheels :

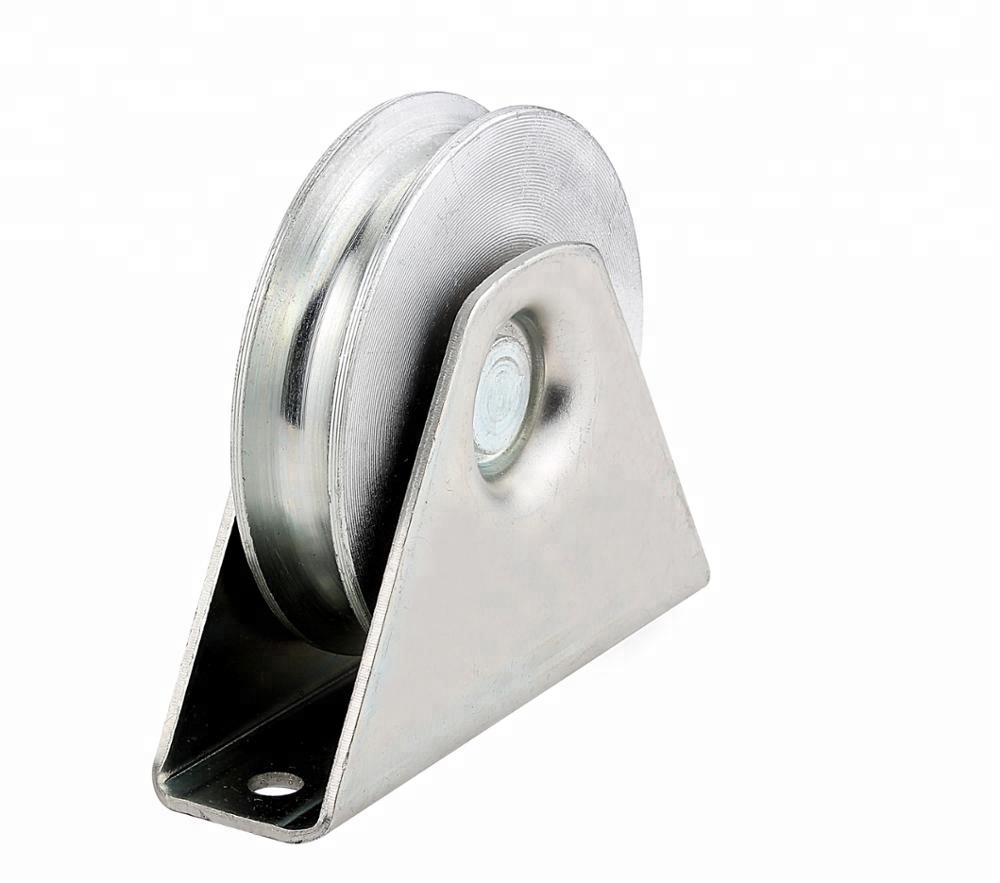

1.sliding gate wheel with exterior bracket
|
Code no
|
HT style
|
|
Bearings NO
|
Single or double
|
|
Size
|
30mm-100mm for single bearings 80-120 for double bearings
|
|
Groove
|
Y , U/O,V
|

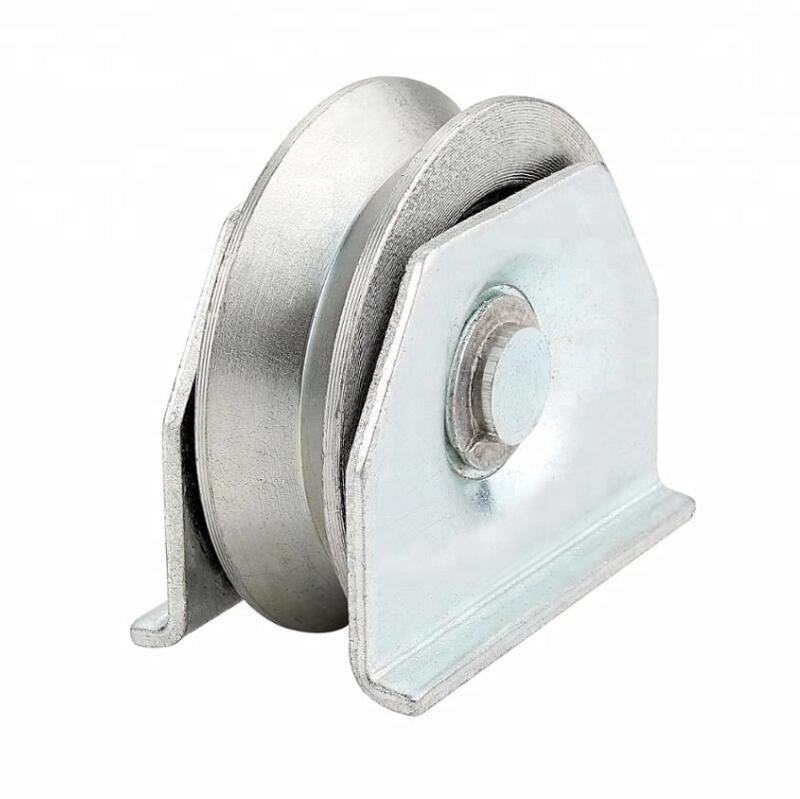

2.Sliding gate wheel with double plates
|
Code no
|
HS style
|
|
Bearings NO
|
Single or double
|
|
Size
|
60mm-120mm for single bearings 80-120 for double bearings
|
|
Groove
|
Y , U/O,V
|

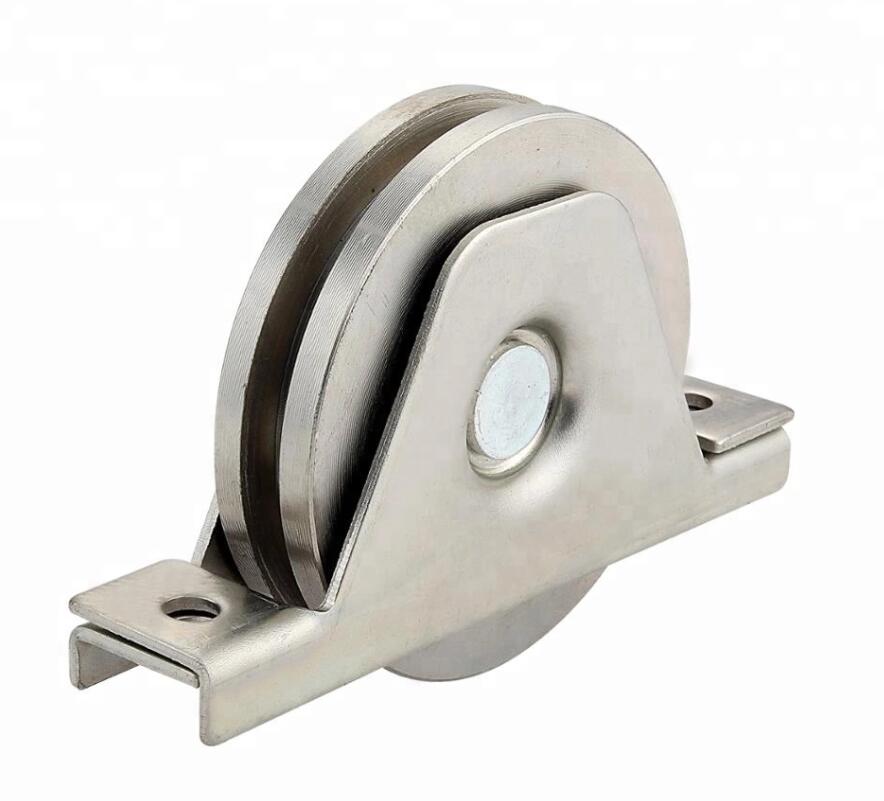

3.Sliding gate wheel with interior bracket
|
Code no
|
HD style
|
|
Bearings NO
|
Single or double
|
|
Size
|
50mm-140mm for single bearings 80-200 for double bearings
|
|
Groove
|
Y , U/O,V ,H
|

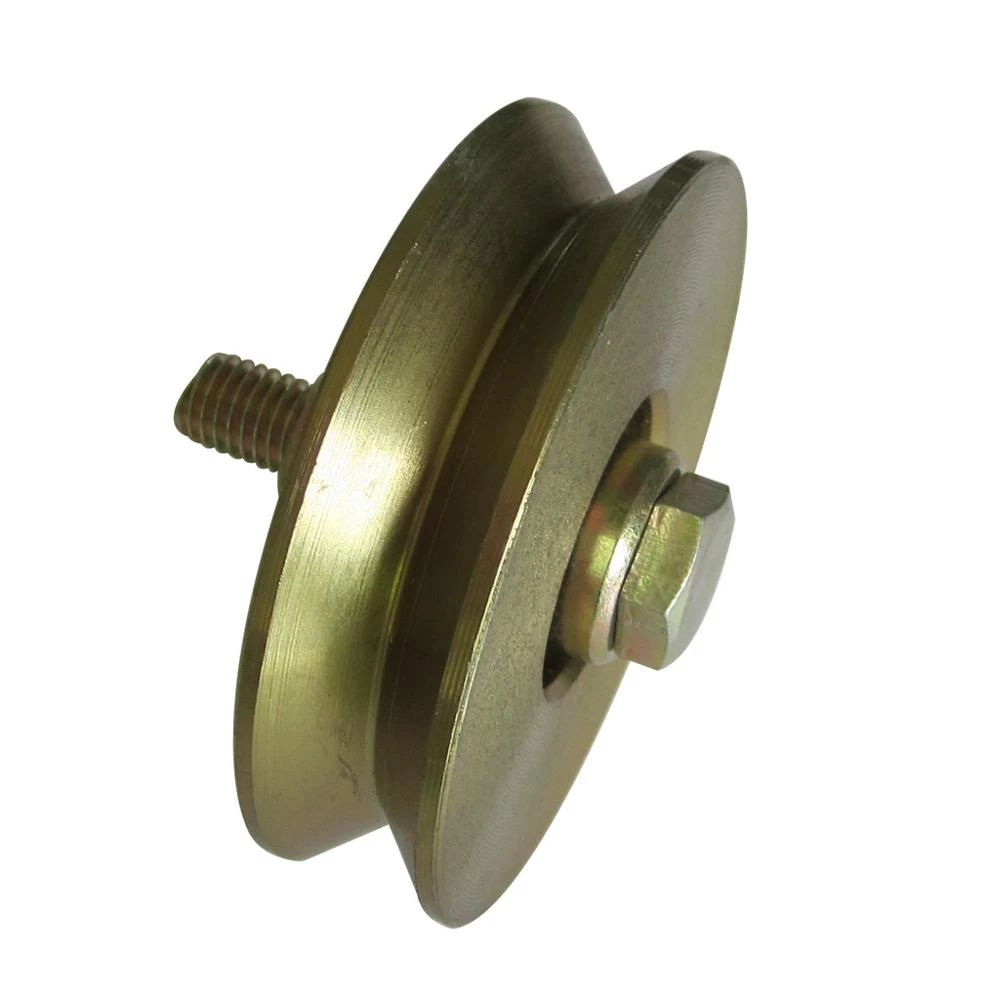

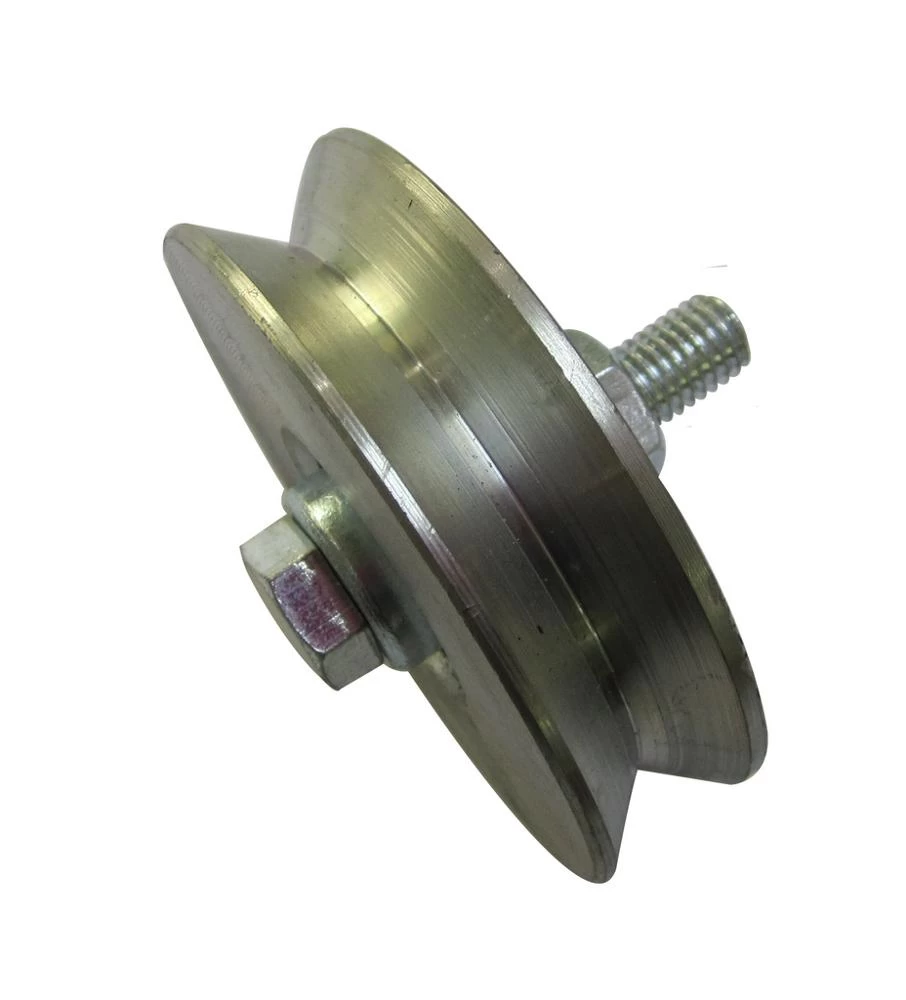

4.Sliding gate wheel with bolt
|
Code no
|
HL style
|
|
Bearings NO
|
Single or double
|
|
Size
|
40mm-160mm for single bearings 80mm-200mm for double bearings
|
|
Groove
|
Y , U/O,V ,H
|
Sliding Gate Roller Wheels Are Widely Used In :
Gate doors
Factory doors
Entrance doors
Warehouse sliding doors
Sliding Gate V Track Packing:
Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.
