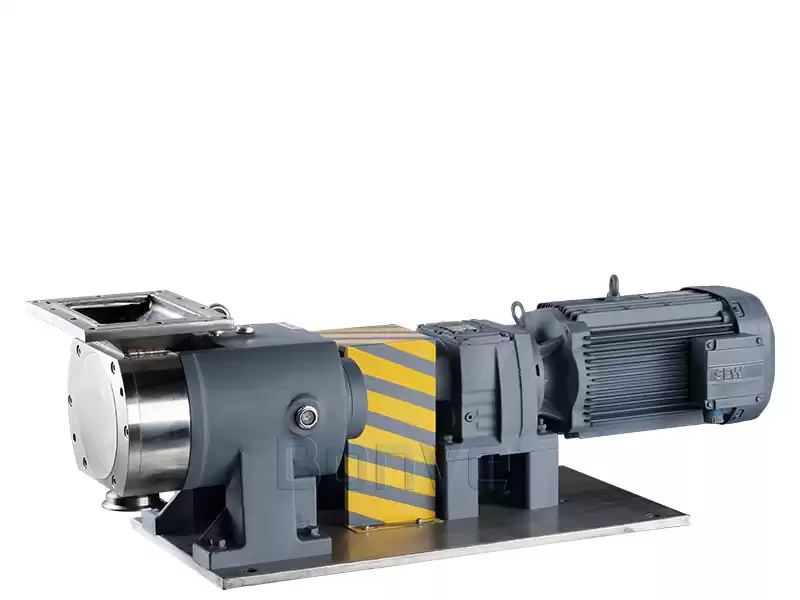

PUMP INTRODUCTION
Bonve V-inlet
rotary lobe pumps are
equipped with enlarged rectangular inlet, is offered to enhance the pump's
ability to handle very viscous products and solve the difficulity of feeding.
The large dimensional opening minimizes buildup of product at the inlet which
promotes flow into the pump. Performance is maintained even when pumping very
viscous materials because inlet restrictions are greatly reduced, thereby
maintaining high volumetric effciencies. Bonve V-inlet rotary lobe pumps are
suitable for conveying products such as mooncake fillings, bean paste fillings,
meat slurry, date paste, etc.
PUMP MAIN FEATURES
-
The all main
parts are made by CNC, which have high precision;
-
Simple
structure, easy to clean and maintaince;
-
Long service
life, reducing use cost;
-
Energy saving,
low noise;
-
Various of drive
method can meet customers’ requirement;
-
The
transportable medium viscosity is upto 1.5 million cp, and the slurry with a
solid content upto 70%;
-
It can transport
three-phase mixture materials such as vapor, liquld and solid.

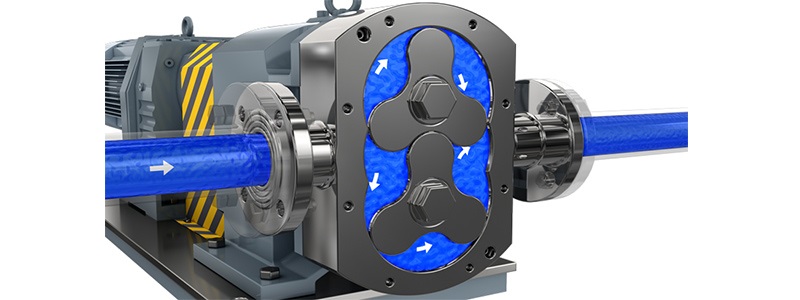

WORKING PRINCIPLE
Bonve V-inlet rotary lobe pumps adopt two lobe rotors, which rotate synchronously driven by a pair
of synchronous gear in the gearbox. The rotors are driven by the main shaft and
sub-shaft to rotate in a synchronous reverse direction, which changes the pump
capacity, builds up high vacuum and discharge pressure, thus an efficient
pumping is formed.

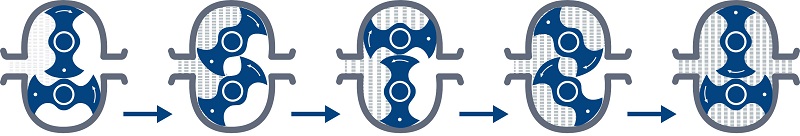

Bi-wing rotors diagram

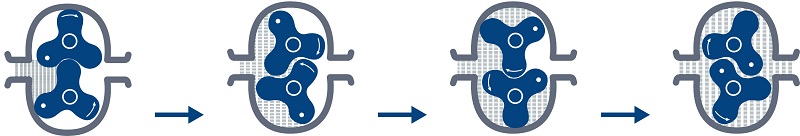

Tri-wing rotors diagram

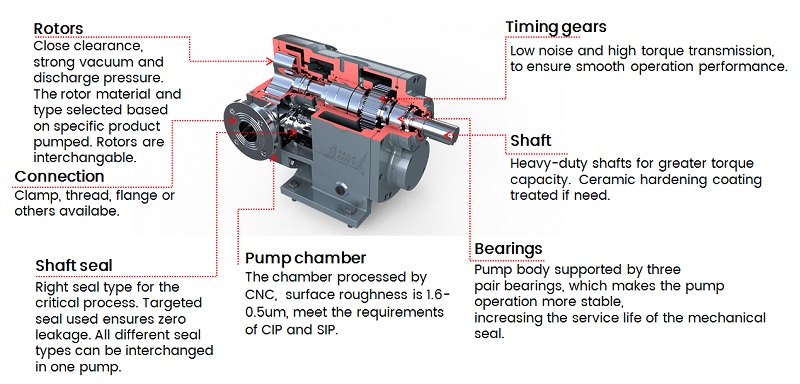

PUMP STRUCTURE
TECHNICAL PARAMETERS
|
Model
|
Displace
-ment
|
RPM
|
Flow
|
Dis. Pre.
|
Power
|
Vacuum
|
Port size
|
Max
viscosity
|
|
(L/r)
|
(r/min)
|
(m³/h)
|
(Mpa)
|
(kW)
|
(Mpa)
|
(mm)
|
(cp)
|
|
25BV12-05
|
0.06
|
10-1000
|
0-0.5
|
0-1.2
|
0.37-1.1
|
-0.080
|
25
|
1,500,000
|
40BV12-2
|
0.15
|
10-1000
|
0-2
|
0-1.2
|
0.75-2.2
|
-0.080
|
40
|
1,500,000
|
50BV12-5
|
0.32
|
10-800
|
0-5
|
0-1.2
|
1.5-4
|
-0.085
|
50
|
1,500,000
|
65BV12-10
|
0.65
|
10-600
|
0-10
|
0-1.2
|
2.2-7.5
|
-0.085
|
65
|
1,500,000
|
80BV12-20
|
1.74
|
10-500
|
0-20
|
0-1.2
|
4-15
|
-0.095
|
80
|
1,500,000
|
90BV12-30
|
2.60
|
10-500
|
0-30
|
0-1.2
|
5.5-22
|
-0.095
|
100
|
1,500,000
|
100BV12-40
|
3.65
|
10-500
|
0-40
|
0-1.2
|
7.5-30
|
-0.095
|
100
|
1,500,000
|
125BV12-50
|
4.60
|
10-500
|
0-50
|
0-1.2
|
7.5-37
|
-0.095
|
125
|
1,500,000
|
140BV12-70
|
6.10
|
10-500
|
0-70
|
0-1.2
|
11-45
|
-0.095
|
150
|
1,500,000
|
150BV12-80
|
7.63
|
10-500
|
0-80
|
0-1.2
|
11-55
|
-0.095
|
150
|
1,500,000
|
200BV12-120
|
11.56
|
10-400
|
0-120
|
0-1.2
|
15-75
|
-0.095
|
200
|
1,500,000
|
250BV12-150
|
14.22
|
10-400
|
0-150
|
0-1.2
|
18.5-90
|
-0.095
|
250
|
1,500,000
|
300BV12-200
|
20.80
|
10-300
|
0-200
|
0-1.2
|
22-110
|
-0.095
|
300
|
1,500,000
|
350BV12-300
|
32.60
|
10-250
|
0-300
|
0-1.2
|
45-160
|
-0.095
|
350
|
1,500,000
|
400BV12-400
|
50.40
|
10-250
|
0-400
|
0-1.2
|
55-200
|
-0.095
|
400
|
1,500,000
|
APPLICATIONS
-
Beverage
Industry: Beer,carbonated soft drinks, coffee liquor, fruit juice concentrates,
milk drinks, sugar solutions, wine, yeast slurries;
-
Confectionery
Industry: Biscuit cream, caramel, chocolate, cocoa butter, cocoa mass,
condensed milk, fat, fondant, glucose, high-boiled sugar syrup, jellies;
-
Dairy Industry:
Butter, cheese, cream, egg, ice cream, milk, quarg, whey, yoghurt;
-
Pharmaceutical
Industry: Blood, cell cultures, enzymes, ointments, protein solutions, syrups;
-
Prepared Foods
Industry: Additives, baby food, edible oils, fruit puree, meat chunks, jam,
petfood, sauces, soups, toppings;
-
Soap&Detergents
Industry: Dishwash liquid,
dodecylbenzene sulphonic acid, fabric conditioner, fatty acid, lye, neat
soap, sodium lauryl ether sulphate, surfactants
-
Sugar Industry: Glucose, high / low green syrup, liquid sugar, magma, massecuite,
molasses, sugar syrup, thick juice, treacle.
OUR STRENGTHS
Expert in manufacturing of rotary lobe pumps, it is worth to get your
truth.

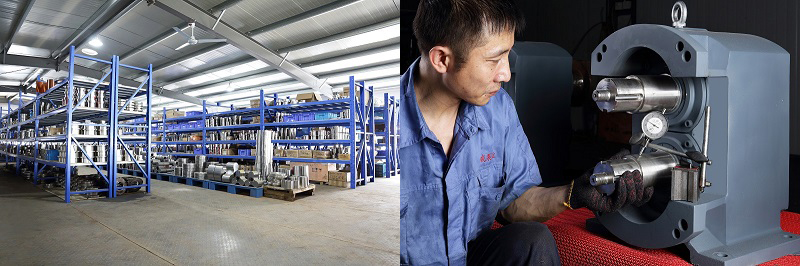

Abundant parts in stock guarantees the delivery
time.

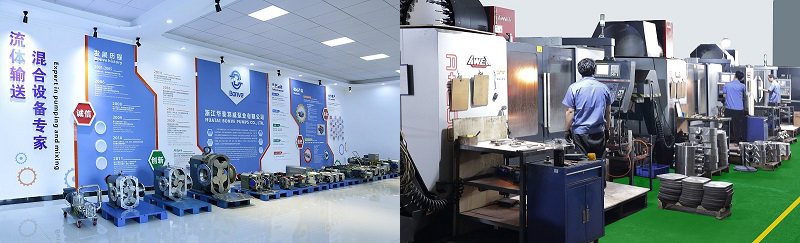

High precision processing machines to make
pumps, to make sure the supplied pumps are top-performance.
Strict inspection to guarantee the supplied are
high quality.

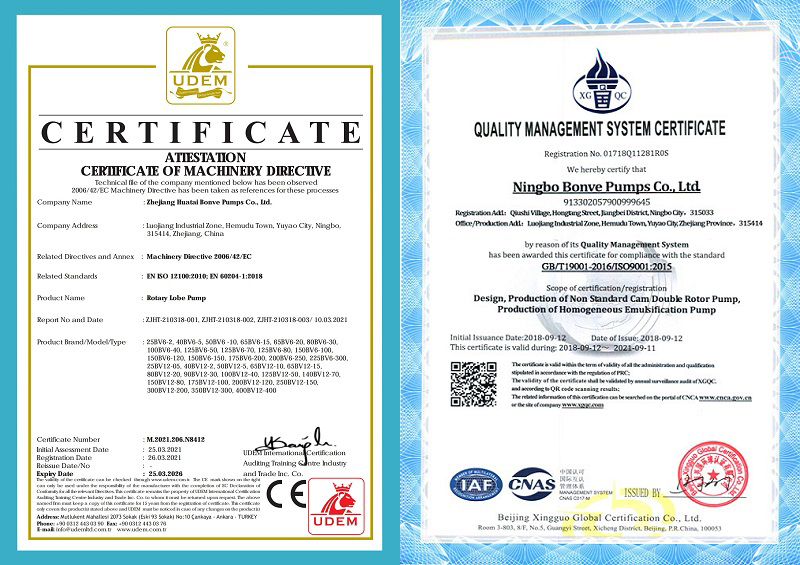

Certificate by
authority organization:
ISO9001:2015
approved
CE certified
