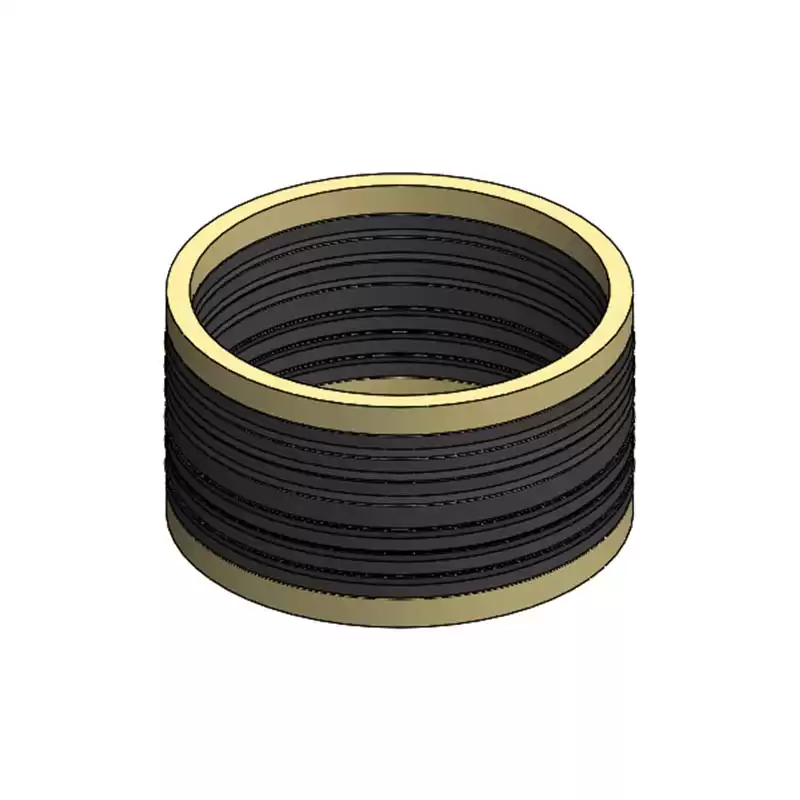

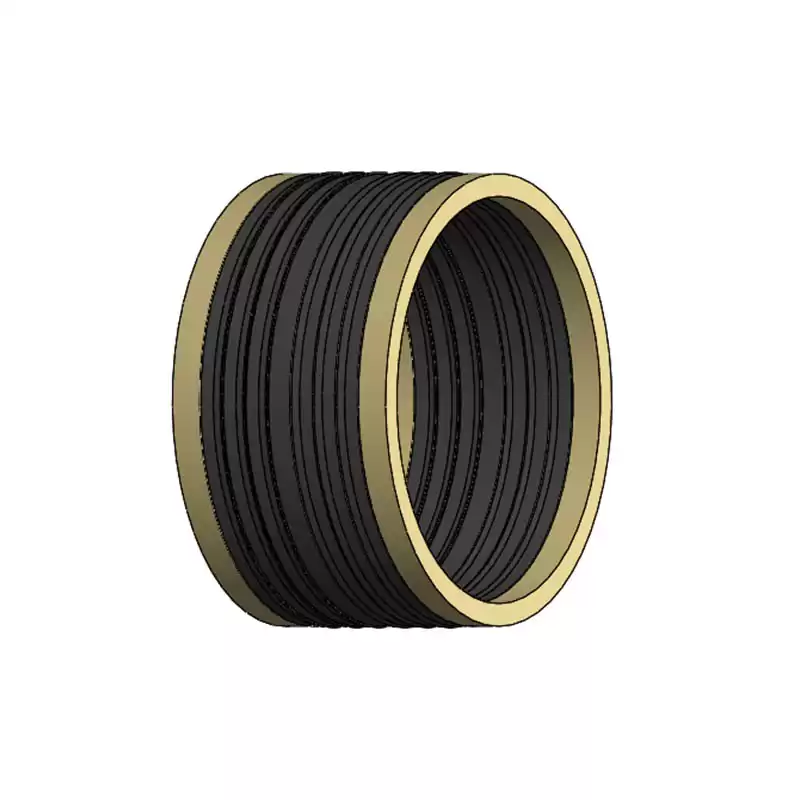

V-Stack Seal Assembly for oil & gas
V-Stack seal assembly are used in various Oilfield Downhole equipment such as various Valves etc. V-Packings are extremely suitable for usage in medium to heavy duty applications. Vee Packings accept low and high pressure while operating in the most extreme conditions and also if there exists any misalignment between the sealing gaps.

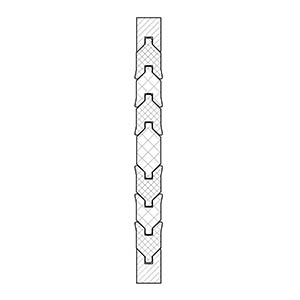

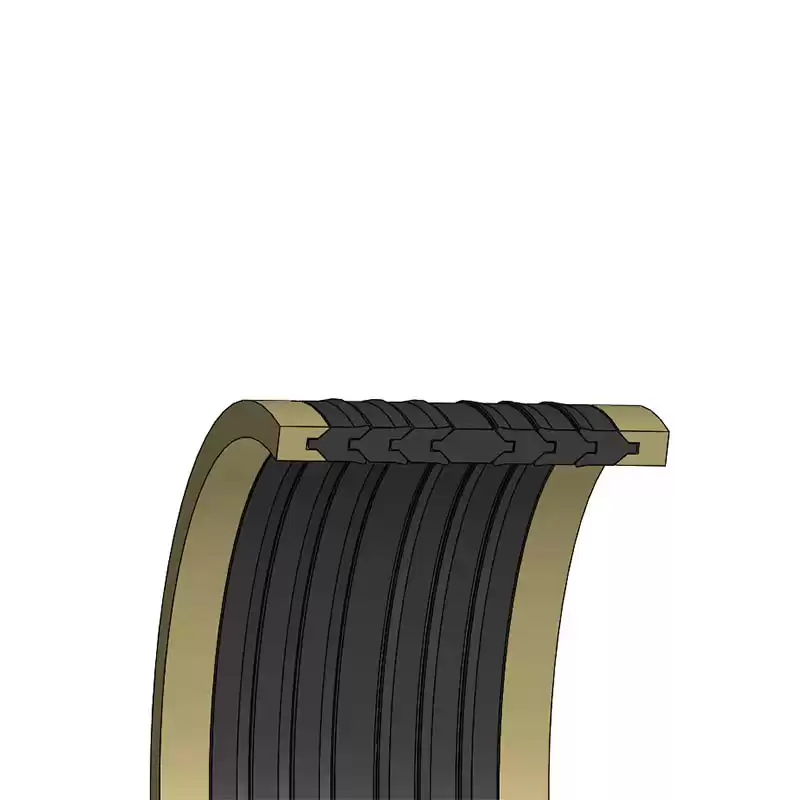

V-packing sets are composed of a top and bottom component with a varying number of center vees. Vee packing can be optimized by altering materials to accommodate different chemicals, temperatures and pressures.
We specialize in new-to-world designs to specifically meet the unique challenges of you critical applications.
The VZQ's material could be PEEK and modified PTFE.
|
Advantages:
1. Very robust seal
2. Multiple sealing lips for positive seal
3. Easy replacement in the field with split rings
4. Extensive range of sizes
5. Can be used with poor counter surfaces
6. Operating temperatures of -49°F to +500°F / -45°C to +260°C depending on the elastomer
7. Compatible with virtually all media
|
Working Conditions
|
Working Pressure
|
Temperature
|
|
-≤30000PSI
|
-45 °C to +260 °C /-49 °F to +500 °F
Dependent on material
|
Size:
56.64X65.47X43.8mm
69.85X80.1X43.82mm
82.55X92.14X45.75mm
107.95X95.25X45.21mm
123.77X133.35X73.4mm
