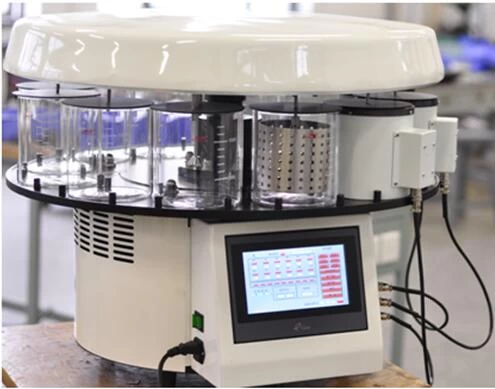

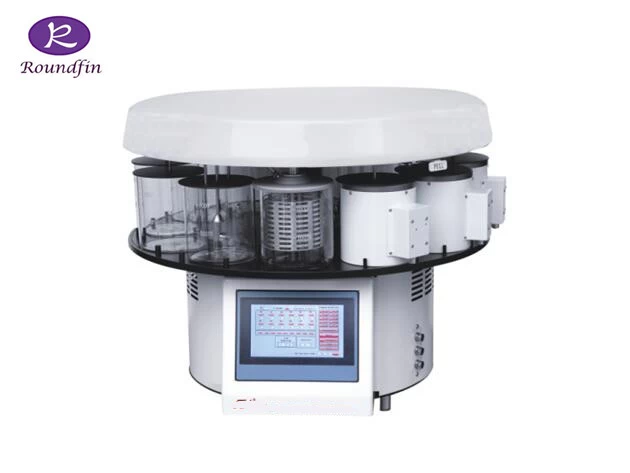

Vacuum Carousel shape Automatic Tissue Processor 1.3L and 2.3L

Vacuum Carousel shape Automatic Tissue Processor 1.3L and 2.3L

It with the capacity 1.5L;

 Description:

--This Tissue processor is intelligent model,designed for processing tissue of animal,human body.

--The 2 basket can run together,so can let the normal tissue. and the special tissue processing separarely,also can meet the large quality tissues processing.



Vacuum: Carousel shape Automatic Tissue Processor :

Capacity: 1.3L and 2.3L

Model: one basket ;  two baskets

vaccun tissue processor



Vaccum tissue processor



Feature:


-----The Vacuum model, automatic tissue processor. To be sure the tissue processor so well.

--- Adopting computer to control whole work process,operate brief work stabilization.

---Having exchange jar and change place control draw perch,operate agility brief.

--- If lose electric give an alarm,protecting tissue in liquid,obstache,protect function and so on.

---Adopting agitation dehydrate mode,so tissue and solvent,paraffin meet,thereby well effect.

---Screen showing information is English,easy to use.

---Time design range wide:delay time 59hr59min. Each jar working hours longest 59hr59min,Time design least distance 1 min.

--- Wax jar adopt constant temperature control system. Temperature precision high:defend pollution,defend canker.

--- Adopting 9 slices 1.2Lmedicine aquarium,at any moment observe tissue change at work.

--- According to users need to tailor standby electrical source,after power cut it can work in great,working hours can reach 4-16hours.



Main Technical Data:



1: Steps of processing tissue: 12 steps

2: Glass container: Quarntity-9,

   Capacity---1.3L

   Capacity----1.3L x2 baskets

   Capacity ----2.3L

   Capacity ----2.3L x 2 baskets

3: Wax cup: Quarntity-3, Capacitance-1L

4: Temperature range: 45-85℃

5: Process: Each cup working hours: 0-59hr59min

                  Delay process:0-59 hr 59min

6: Vertically reciprocative motion of tissue basket: 3time/min

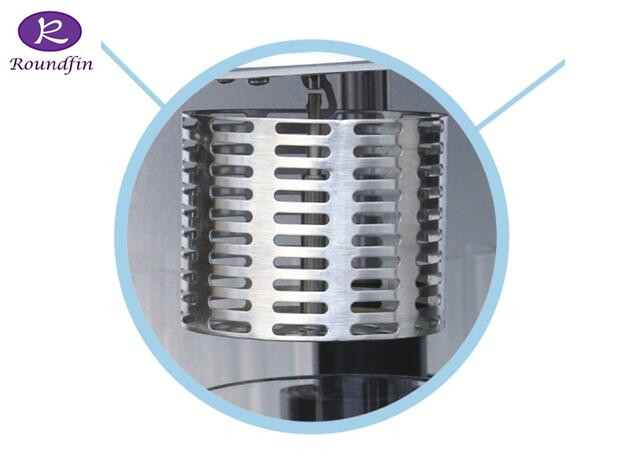

7: Tissue basket specification:

     Barrel tissue basket- Φ95x80mm

     layer nacelle-Φ95x80mm Five layers

8: Weight:60Kgs

   External dimension: (Diameter)660mmx(Highness)550mmx680(Tiptop)mm

 Rated voltage:220v,50Hz

9: Room condition : Temperature range :+5℃~40℃,

                 humidity:﹤85%(20±5℃)
