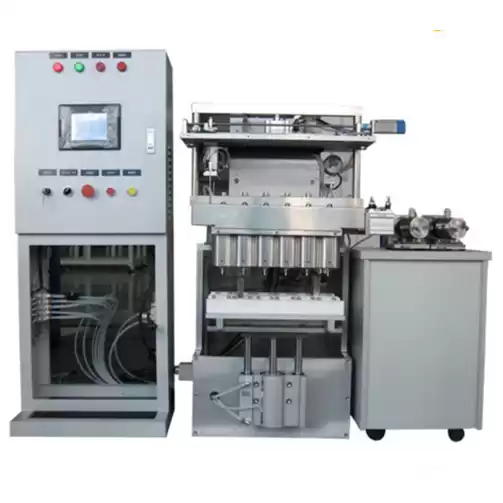

Vacuum Filling System for Battery and Super Capacitor Electrolyte Filler Process
TMAX-ZY300 Vacuum filling system applies to the battery, super capacitor electrolyte filler process, this vacuum filling system adopts Vacuum-Filling-Pressure process, Guarantee electrolyte absorption with high consistency, reliability, completeness.
|
Model
|
Vacuum Filling System TMAX-ZY300
|
|
Working Voltage
|
110 - 240V AC, single phase 50/60HZ
|
|
Power
|
400 W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Advantages
|
1 Transfer type, high work efficiency
2 Independent control component, can realized electrolyte filling under
various conditions
3 Corrosion resistant, special high wear-resistant ceramic pump head, long service life
4 Gateway using chemical corrosion resistant hose connection
5 Can operate in the glove box or drying room
|
|
Suitable capacitor
|
60system super capacitor, With customized clamps
|
|
Electrolyte filling accuracy
|
±1%
|
|
Vacuum degree
|
-0.1MPa
|
|
Air Pressure Requirement
|
0.4 - 0.6 MPa (Air Compressor is not included)
|
|
N2
|
0.2 - 0.4 MPa
|
|
Product Dimensions
|
800mm(L)*600mm(W)*750mm(H)
|
