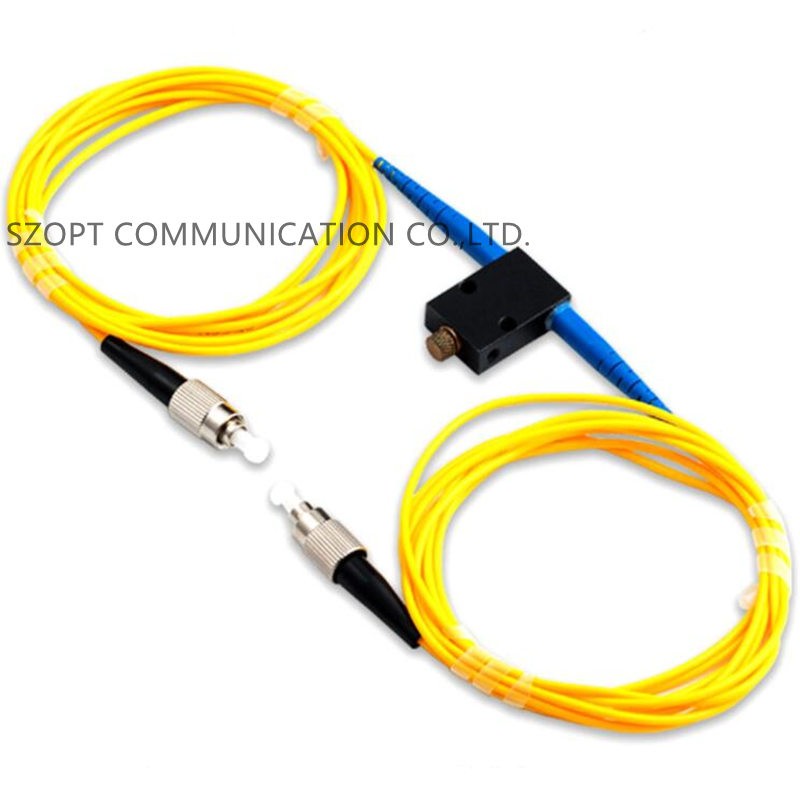

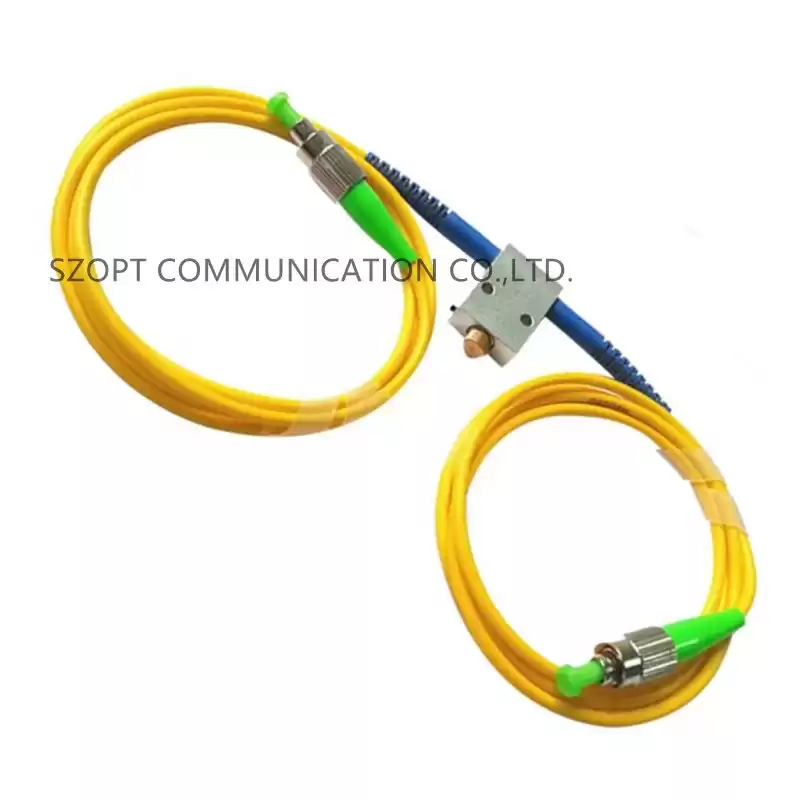

Variable In-line Fiber Optical Attenuator VOA FC SM UPC APC 0-60dB


Variable in-line optical attenuators,also know as adjustable in-line optical attenuator or short as VOA, are used to permit dynamic control of optical power levels in a fiber. It can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter. Furthermore, they can the used in optical amplifier systems to balance the gain across the different operating wavelengths.




Variable In-line Fiber Optical Attenuator VOA FC SM UPC APC 0-60dB


SZOPT offers a complete line of variable in-line optical attenuators.These variable optical attenuators allow the user to manually vary the attenuation of the signal in the fiber as it is transmitted through the device. These variable attenuators can be used to precisely balance the signal strength in a fiber optic circuit or to balance the optical signal when evaluating the dynamic range of the measurement system.Please reach us for details.

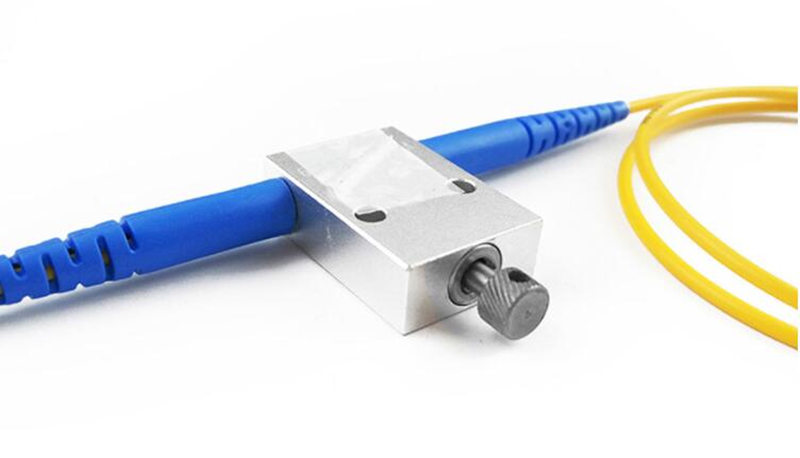

inline variable attenuator

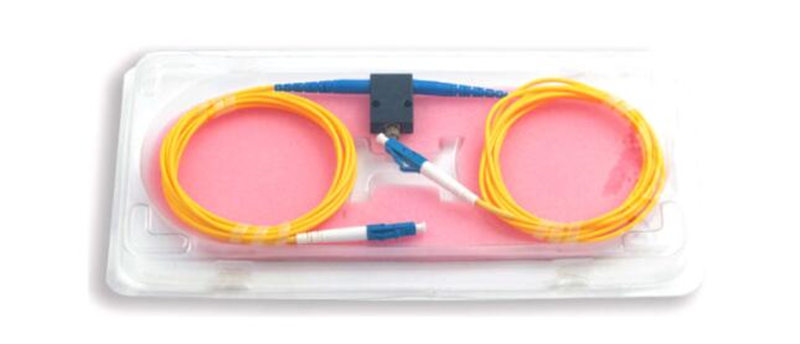

PACKAGE OF INLINE VARIABLE OPTICAL ATTENUATOR


Application:

-Fiber optical distributing frame
-Fiber optical network system
-High speed fiber optical transmission system
-CATV system
-Long distance DWDM system


Feature:

-High return loss
-Simple structure
-Max operation power(1W)
-Low wavelength relativity
-Low polarization related loss


Package:

Each in a PE bag,finally put in a carton box.


Specification:



Parameter

Specification

Type (nm)

1310

1550

1310/1550

850/1300

Wavelength (nm)

1310 ±50

1550 ±50

1260- 1650

850/1310 ±40

Attenuation Range (dB)

0.8-60

0.8 ~ 60

0.8〜60

0.8 ~ 60

Original Loss (dB)

≤0.8

≤0.8

≤0.8

≤0.8

Return Loss (dB)

≥50

≥30

Fiber Type

SMF-28e

50/125 or 62.5/125MM

PDL (dB)

≤0.15

Operating Temperature (°C)

0~+70

Storage Temperature (°C)

-40 ~ +85




Package:

Each piece in a small PE bag,then put into a bigger carton box.
