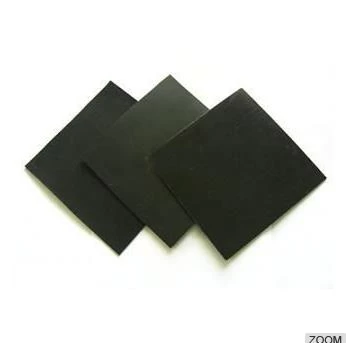

Variety Thickness Available Geomembrane Plastic Sheeting

Geomembrane Plastic Sheeting has variety thickness from 0.25mm - 5.00mm, Width: 5.0mm-8mm. HDPE Geomembrane manufactured from Leiuan has many features such as anti-aging, anti-UV, non-toxic, waterproof,moisture-proof etc. If you have interests in plastic sheeting, please feel free to contact us for more details.


  • SizeThickness: 0.25MM-2.00mm, Width: 5.0mm-8.0mm
  • Press Strength565KN
  • ColorBlack
  • MaterialHDPE

Variety Thickness Available Geomembrane Plastic Sheeting Specification:

 Thickness(mm)

 Width(m)

 Length Area   Weight/Roll Weight/M2
 0.25  8.0 100   800  115  0.24
 0.35  6.0  70  420  141  0.336
 0.50  5.0 - 6.0  50  250/300  120/144  0.48
 0.75  5.0 - 7.0  100  500/700  360/504  0.72
 1.00  5.0 - 7.0  100  500/700  480/672  0.96
 1.50  5.0 - 7.0  100  500/700  720/1008  1.44
 2.00  5.0 - 7.0  100  500/700  960/1344  1.92

Plastic Sheeting Test Standard:

No.

Item

                                          Test Value

                        GL

                            GH

GL-1

GL-2

GH-1

GH-2

1

Tensile Strength(Mpa)

14

17

25

2

Elongation at Break (%)

400

450

550

3

Strength at Tear(Right-angle-Tear)(N/mm)

50

80

110

4

Carbon Black Content13%

2

5

Resistance to Environmental Stress Cracking

---

---

---

1500

6

Oxidative Inducement Time at 200

---

---

---

20

7

Water Vapor Permeability

1.0*10-13

8

-70 Low Temperature Impact Brittle Property

Pass

9

Dimensional Stability(%)

±3

Test Picture:

Black Plastic Sheeting

Geomembrane Plastic Sheeting Application:

1. Water treatment system, for example rivers, plugging, reinforcement of the canal seepage, lakes and reservoirs of the anti-dam, slope protection, the vertical wall of the heart, etc.

2. Environmental protection sanitation, including solid waste landfills, power plants chi-conditioning, sewage treatment plants, industrial, hospital solid waste, etc.

3. Landscape, like river, reservoir, man-made lake, golf courses reservoir, slope protection, golf courses reservoirs of the substrate, green lawn of the waterproof moisture, etc.

4. Municipal engineering, such as planted roof, the roof garden of anti-seepage, subway on the ground floor of the building, sewage pipes lining, etc.

5. Miningdissolved, precipitation, washing and pool heap leaching, the yard, the tailing, the ash-field, seepage substrates, etc.

6. Petrochemical, such as chemical plants, oil refineries, sedimentation tanks of the lining, gas storage tanks of the anti-chemical reaction tanks, etc.



Geomembrane Plastic Sheeting Production Line:
