Brief introduction:

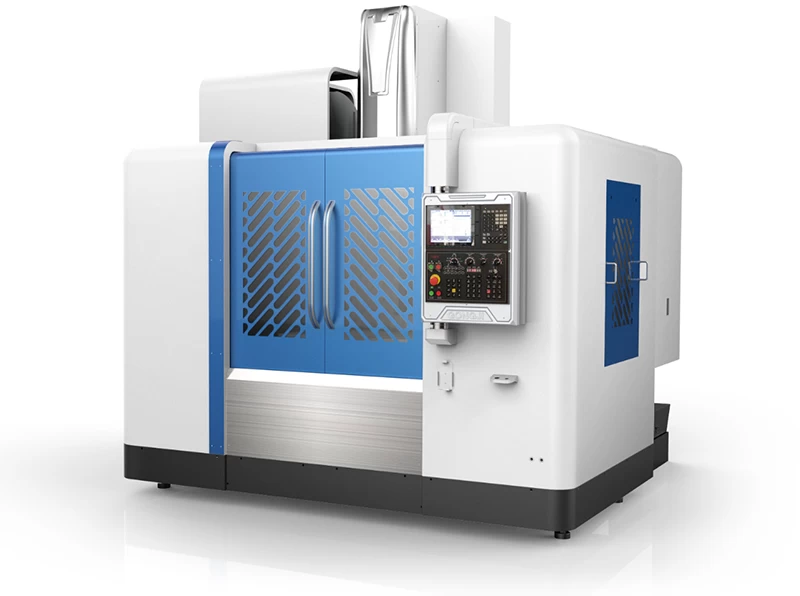

The XH series machining center can realize the X, Y, Z three-axis control and the rotation and tilt of the CNC rotary table, and can perform the operations such as end milling, drilling, expanding, boring and tapping. It is especially suitable for processing complex two-dimensional and three-dimensional concave and convex models and complex cavities and surfaces.
Detailed specification:
|
Specification
|
Unit
|
Model
|
|
XH714
|
XH715
|
XH716
|
XH717
|
|
Size of work table
|
mm
|
800×420
|
1050×500
|
1300×600
|
1400×710
|
|
Travel of worktable (X)
|
mm
|
650
|
800
|
1000
|
1300
|
|
Travel of slide (Y)
|
mm
|
400
|
500
|
600
|
700
|
|
Travel of spindle box (Z)
|
mm
|
480
|
500
|
600
|
650
|
|
Distance from spindle nose to worktable
|
mm
|
80-560
|
150-650
|
170-770
|
150-800
|
|
Distance from spindle center line to column
|
mm
|
480
|
550
|
600
|
785
|
|
Taper of spindle bore
|
|
BT40
|
BT50
|
|
Spindle speed
|
rpm/min
|
50-6000
|
|
Cutting speed
|
mm/min
|
6000
|
|
Rapid travel
|
mm/min
|
14000
|
|
Main Motor power
|
kw
|
5.5
|
7.5
|
11
|
15
|
|
Motor power of X,Y,Z axis
|
kw
|
According to CNC control system
|
|
Tool magazine capacity
|
piece
|
16P Drum
|
20P Disk
|
24P Disk
|
|
Positioning accuracy of X, Y, Z
|
mm
|
＋/－0.01
|
|
Repeatability
|
mm
|
＋/－0.005
|
|
Max. load of worktable
|
KG
|
600
|
600
|
1000
|
1000
|
|
CNC system
|
|
SIEMENS 808D / As required
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
