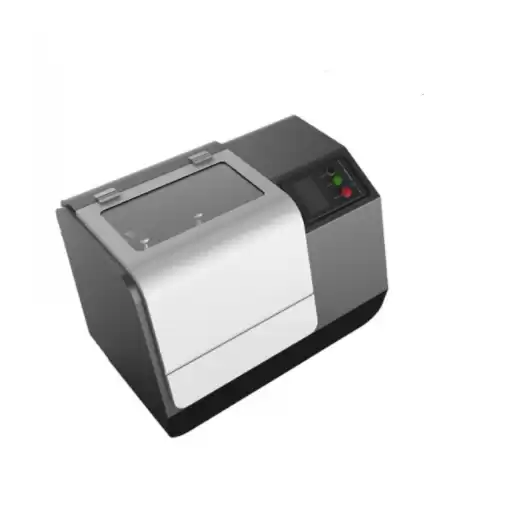

Vertical Planetary Ball Mill Machine With Automatic LED Lighting


  • The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the grinding jar, containing the material to be ground and grinding balls, rotates around its own axis on a main disk whilst rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding jar. The grinding balls then cross the jar at high speed and further grind the sample material by impact against the opposite jar wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.

    Vertical Planetary Ball Mill


    SPECIFICATIONS

    Optimal for material type:

    medium-hard, soft, brittle, tough, moist

    Item No.:

    TMAX-FCS-01

    Max. feed size:

    10mm

    Final fineness:

    <100nm

    Min. sample quantity:

    10ml

    Max. sample quantity:

    450ml

    Rotational speed (disk):

    50-400r/min

    Rotational speed (jars):

    100-800r/min

    Transmission ratio:

    1:-2

    Transmission standard:

    CE

    Grinding modes:

    16 modes programmable

    Grinding tools:

    grinding jars and grinding balls

    Bi-direction grinding:

    yes

    Continuously grinding

    00:01:00 - 99:59:59

    Paused interval:

    00:01:00 - 99:59:59

    Emergency stop:

    yes

    Power off memory:

    yes

    Overload protection

    Yes

    Milling chamber lighting:

    automatic LED lighting, 110V/220V, 18W

    Number of milling samples:

    4 simultaneously

    Materials of the grinding jars:

    SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

    Number of working stations:

    4

    Ball mill type:

    vertical

    Compatible grinding jars:

    100ml / 250ml

    Materials of milling balls:

    SS, agate, zirconia, alumina, nylon, PTFE  It Can Be Customized

    Grinding ball diameter:

    3/5/10/15/20mm

    Compatibal ball weight

    100-500g

    Grinding process:

    dry /wet grinding

    Vacuum grinding:

    yes

    Low temperature grinding:

    yes

    Grinding in inert gas:

    yes

    Temperature detection:

    yes ( special accessories)

    Pressure detection:

    yes ( special accessories)

    Electrical details:

    100-120V/200-240V AC ,50-60Hz, 750W

    Plug types:

    GB/EU/US/UK standard   It Can Be Customized

    Net weight:

    80kg

    Dimensions (W x D x H):

    750*500*500mm

    Noise level:

    60dB

    IP rank:

    IP60

    Product standard:

    CE

    Patent:

    design patent/ noise improve patent

    Accessories:

    LED lighting, user manual, warranty card


    Material Data for Grinding Jars/Balls

    Material

    Main component

    Density (g/cm3)

    Abrasion resistance

    Use for material to be ground

    Agate

    SiO2

    2.65

    Good

    Soft to medium-hard samples

    Sintered corundum

    Al2O3

    3.8

    Fairly good

    Medium-hard, fibrous samples

    Silicon nitride

    Si3N4

    3.25

    Excellent

    Abrasive samples, iron-free milling

    Zirconium oxide

    ZrO2

    5.7

    Very good

    Fibrous, abrasive samples
