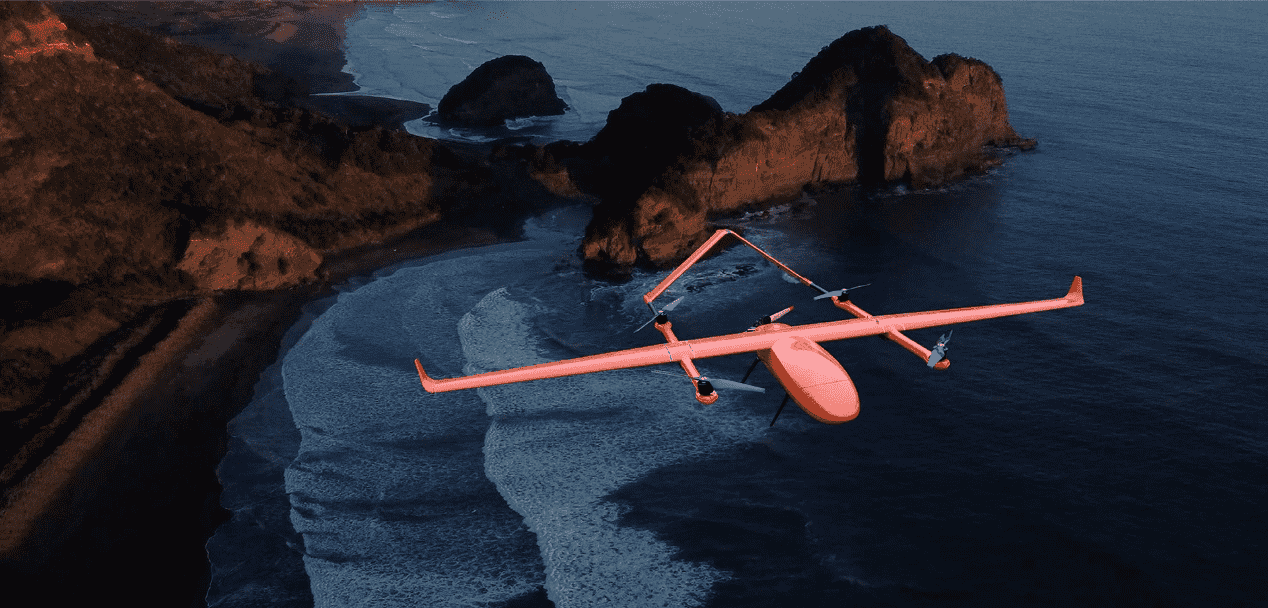

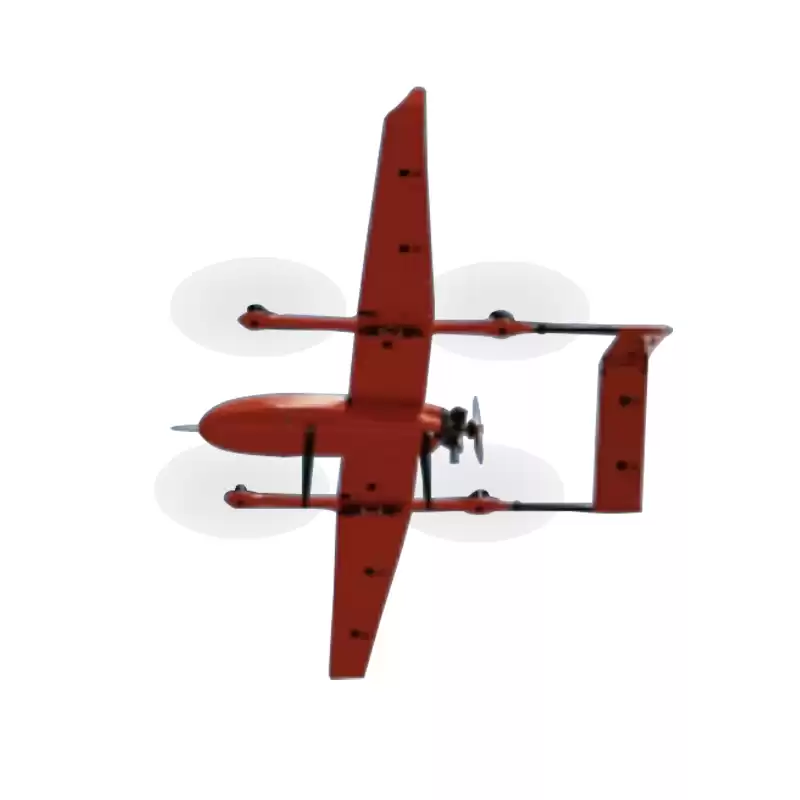

Vertical take-off and landing Fixed wing drone can perform special tasks such as take-off and landing at different locations and take-off and landing on mobile platforms, and have strong practical application capabilities.
High-precision positioning function, high-precision mapping function

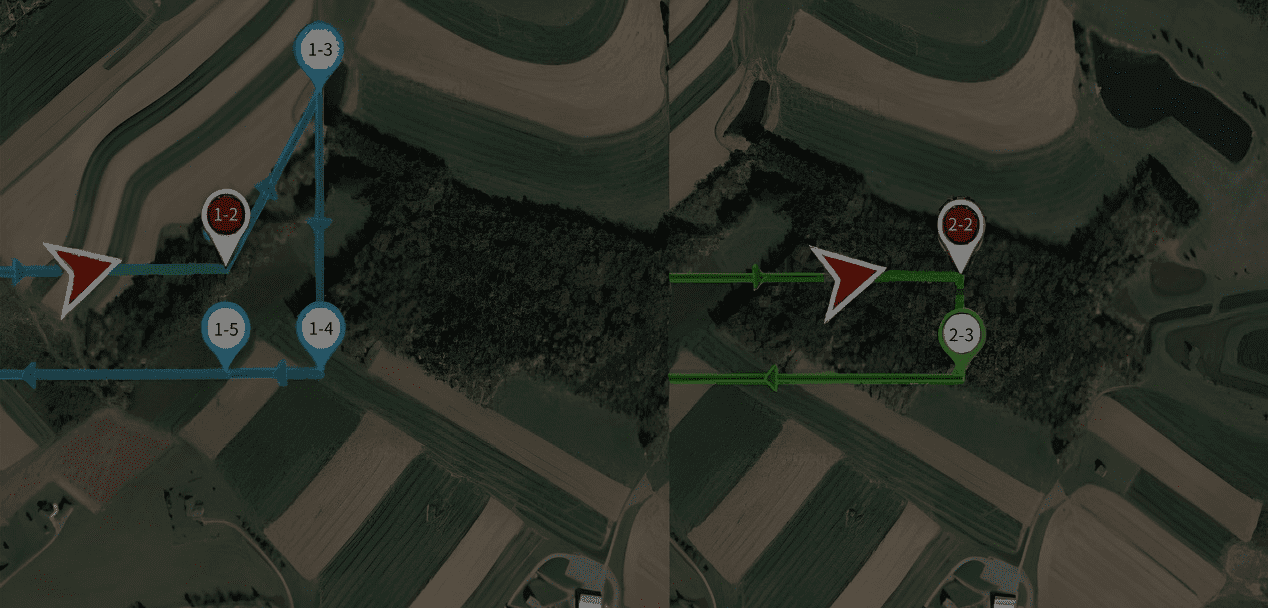

Terrain-flying
Supports terrain-following flight function to adapt to operation areas with large terrain fluctuations

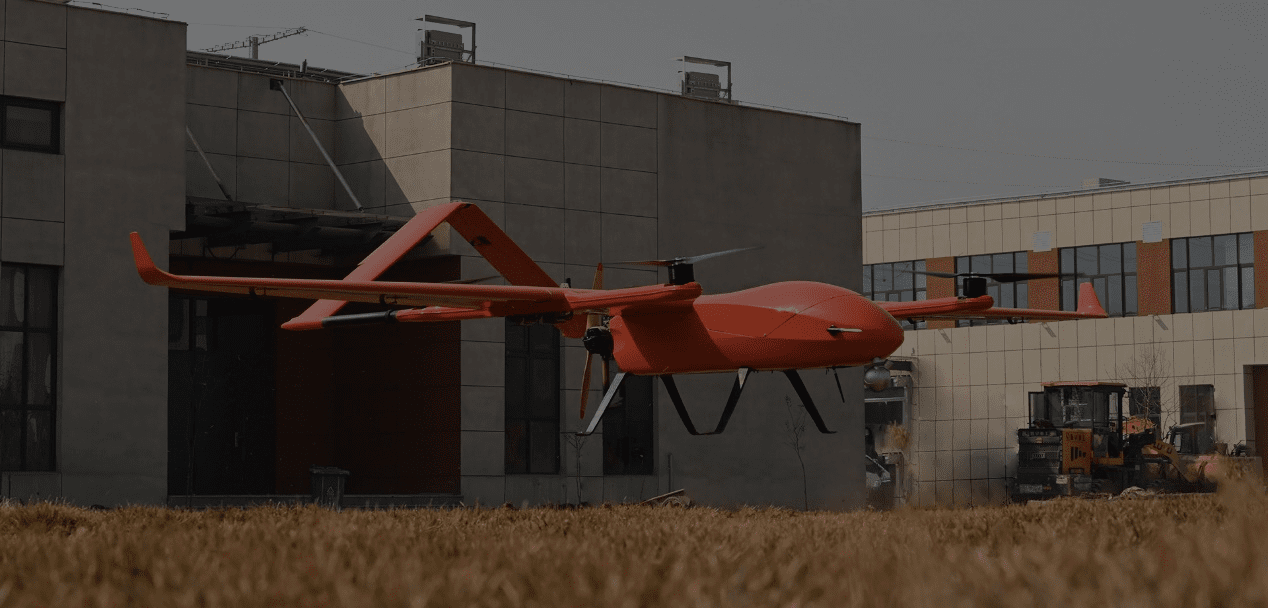

Mobile platform follow/recovery function
Support high-precision mobile platform take-off, landing and following functions
Safety protection function, strong anti-interference ability
In-depth refinement of the protection mechanism for the inspection field
It has emergency landing, data link loss protection, flameout protection, crash protection, satellite loss protection, flight time protection, etc.
Different protection mechanisms will be triggered at different flight stages to adapt to various complex operating environments
Ensure that the ground station has absolute control over the UAV flight in a complex wireless environment
Strong environmental adaptability
Not affected by meteorological and geographical conditions, making up for the defect that satellite remote sensing cannot obtain images due to cloud cover
Not afraid of ice or water blockage, with built-in drainage system to ensure the drone can perform tasks normally in complex environments
Load capacity
Three-light pod, satellite communication equipment, public network communication relay system, PDT narrowband communication relay system, broadband ad hoc network communication relay system, rapid modeling aerial survey payload, personnel search and rescue mission payload, etc.
Performance Indicators
Maximum take-off weight: 150kg
Maximum load: 50kg (without oil)
Battery life: ≥10h
Cruising speed: 110~140km/h
Practical ceiling: 5500m
Maximum take-off and landing altitude: 4500m (25kg load)
Radio visual control radius: up to 200km
, multiple links available, satellite data link can be installed
Working environment: Support -40℃ working environment
Engine power (gasoline): 92# gasoline, power 18kw
Engine power (heavy fuel): aviation kerosene/diesel, power 16kw
