Vgate ICar3 Wifi OBD2 Auto Car Scanner

Original Vgate iCar3 Wifi and Elm327 Wifi Support All OBD2 Protocols Cars,ICar 3 Code Reader can work for Android/ IOS/PC LR10




  • Material TypePlastic
  • Language SupportedEnglish
  • Connection MethodWIFI and OBD2 cable
  • VersionIcar 3 WIFI
  • Warranty1 year
  • TypeVgate ICar3 Wifi OBD2 car Scanner
  • Lead timewithin 3 days after payement
  • Minimum order QTY1 piece

Original Vgate iCar3 Wifi  and Elm327 Wifi Support All OBD2 Protocols Cars.

ICar 3 Code Reader is designed for Android/ IOS/PC LR10

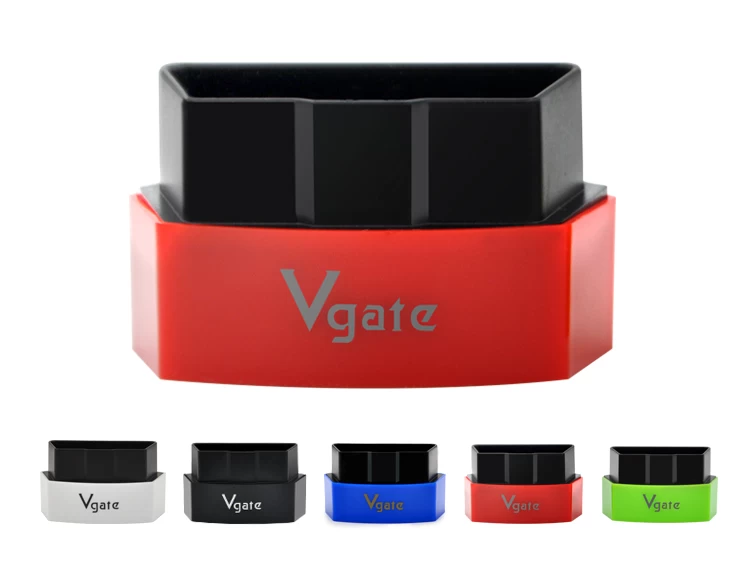

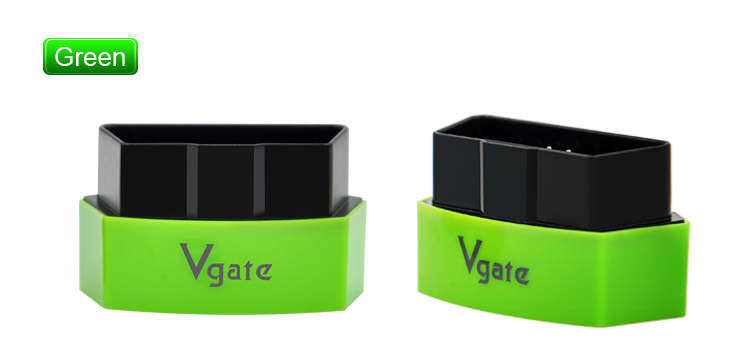

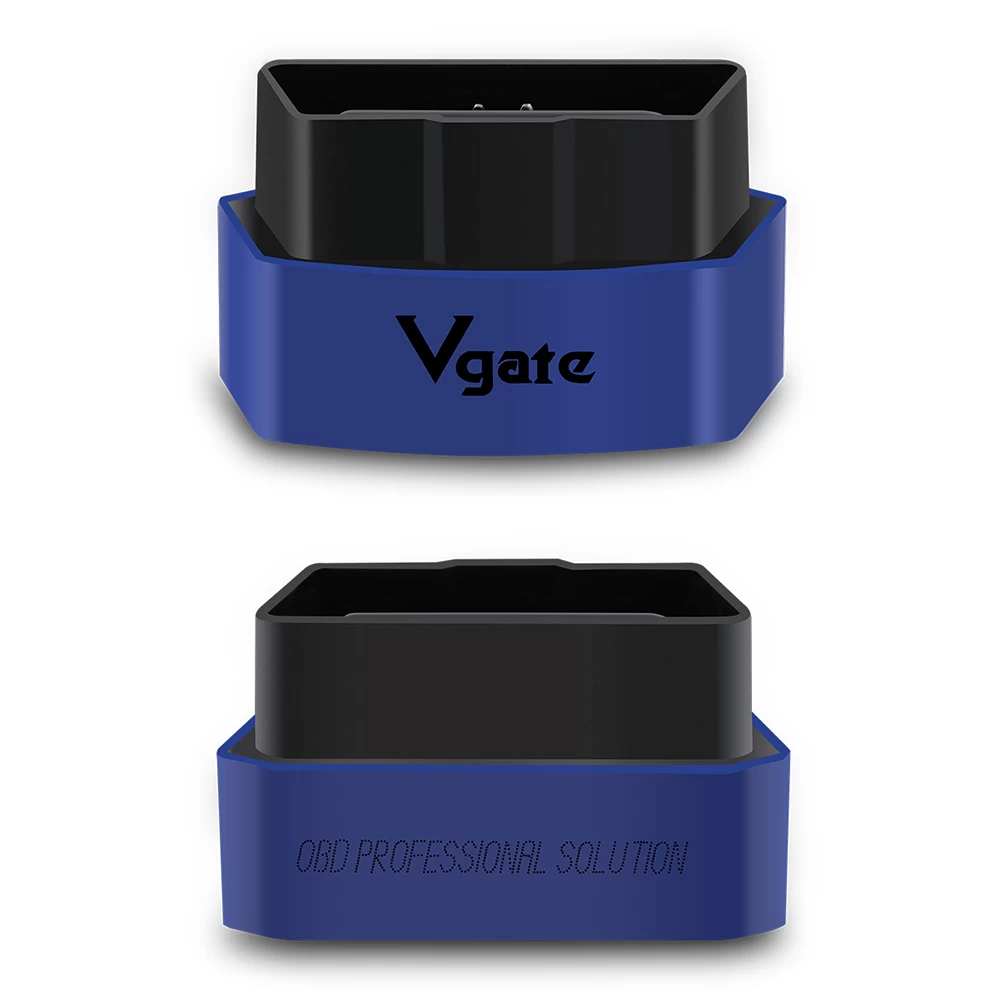

There are 5 colors for you to choose.They are White,black,blue,red and green

Vgate ICar3 Wifi OBD2 Auto Car Scanner

Icar3 bluetooth Features:
1,Supply voltage(VDD):12V 16 PIN diesel /gasoline car
2, Support Tablet : Android phone/PC
3,Support application : Torque/ OBD Car Doctor
4,OBD Functions: Supports OBD2 protocols

Icar3 WIFI Features:
1,Supply voltage(VDD):12V 16 PIN diesel /gasoline car
2, Support Tablet: IOS/PC/Android phone
3,Support application : Torque/OBD Car Doctor/Car Scanner/DashCommand
4,OBD Functions: Supports OBD2 protocols

Icar3 Function:
1,Read, erase and display code descriptions problems - both standard and
spetskodov manufacturers.
2,Measure the fuel consumption.
3,Display real-time operating performance of the car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
pressure, throttle position, the values of oxygen sensors, air intake
temperature, and more.
4,Turn off the MIL (signal Check Engine).
5,Download data to external media in a variety of formats for later printing.
6,Record various parameters, display graphics in real time, and more.
7,Default settings(user adjustable


Icar3 bluetooth/wifi Support Cars:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)

Q: Does elm327 support my car?
A: Support ALL OBD2 cars. Pleasae self-check with below rules.
For American Cars: Works on obd2 car from 1996 to now
For European cars: Works on obd2 car from 2003 to now
For Japanese Cars: Works on obd2 car from 2005 to now
For other Asian Cars: Works on obd2 car from 2009 to now

Warm Tips:
It does not support Russian local Cars , like VAZ.2112.2119.2117.2170.2121.2123.UAZ
For LADA, doesn't support.
For Renault-Dacia Logan, can't guarantee.
For Sangyong only suitable for the cars from 2015 to now.
