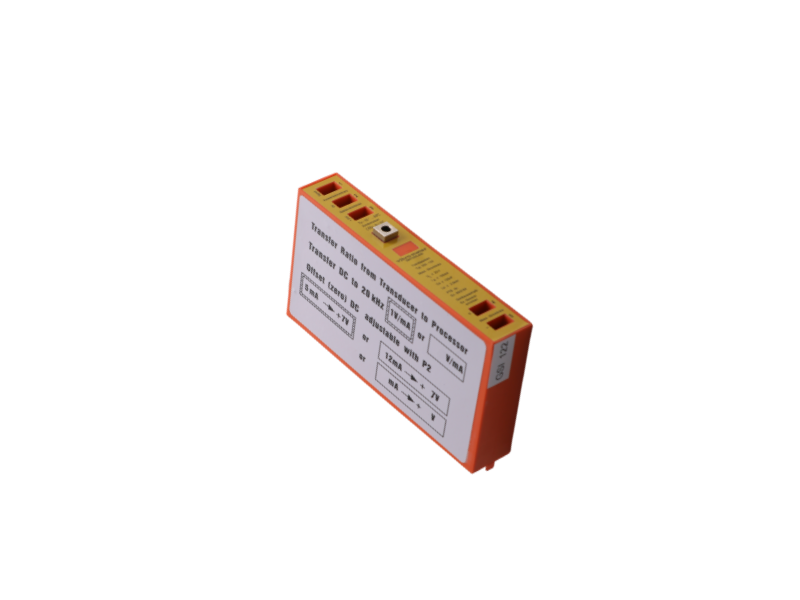

Model: VIBRO METER GSI122
Role: Field "galvanic isolator + 2-wire transmitter" supply unit
Supplier: PLC Autocontroller
Email: ab@mooreplc.com | Sales Contact: May
Tech at a Glance
ü Powers piezo accelerometers with 18 V constant voltage, isolates 4-20 mA loop
ü Isolation 1 kV RMS, blocks ground loops entering DCS I/O
ü Bandwidth DC-10 kHz (-3 dB @ 20 kHz), keeps high-freq gear-mesh data
ü Linearity ±0.5 %, temp drift <200 ppm/°C for outdoor long-cable runs
ü Current draw 20 mA idle / 60 mA loaded, short-circuit limited to 60 mA
Snapshot Applications
|
Industry
|
Distance
|
Result
|
|
Oil refinery
|
700 m cable
|
Zero attenuation, saves 2 patrols/year
|
|
Mine
|
400 m festoon
|
90 V ground difference, noise <1 mV after isolation
|
|
Hydropower
|
300 m tray
|
One GSI122 drives 2 sensors, halves wiring
|
Mounting Feel

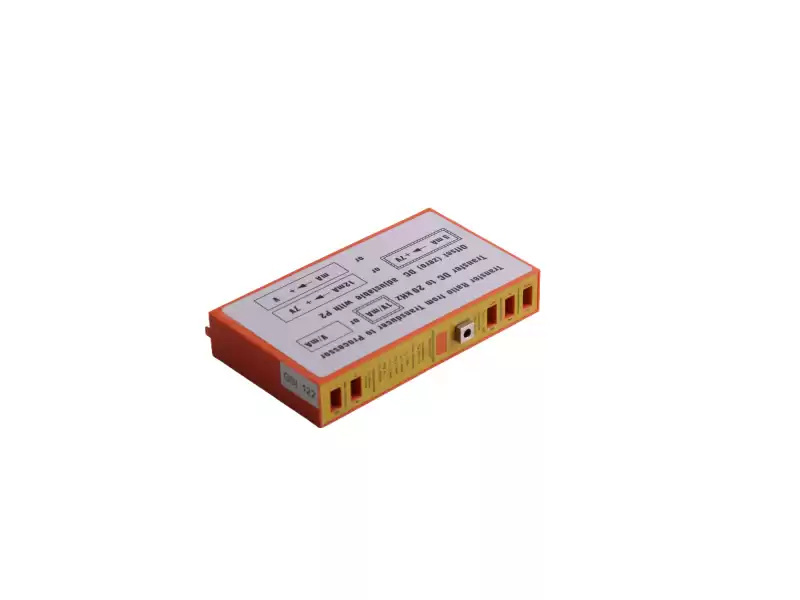

ü Size 130 × 74.5 × 23 mm, clip-on DIN rail or M4 baseplate accessories included
ü 5 × Faston 6.3 tabs, no soldering, push-on & done

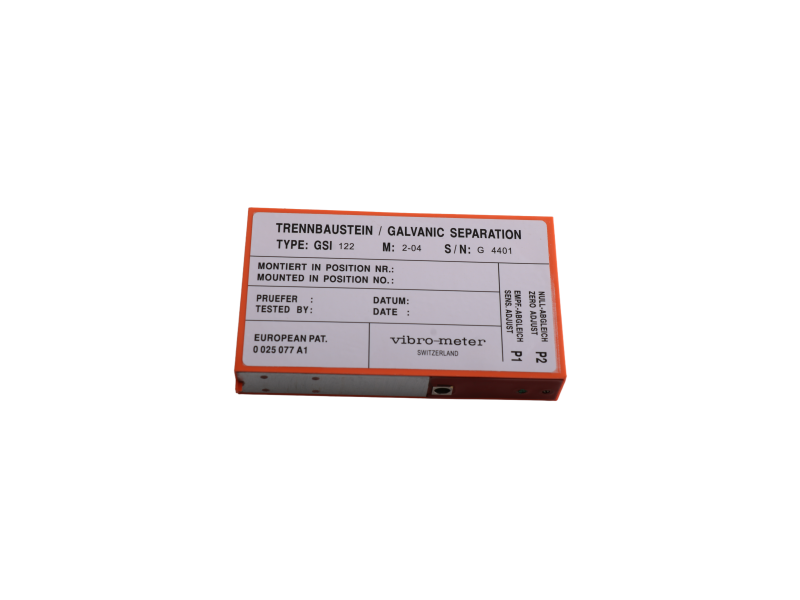

ü Trimmers: P1 for gain (1 V/mA), P2 for DC bias (+2 V to 22 V), set-and-forget
