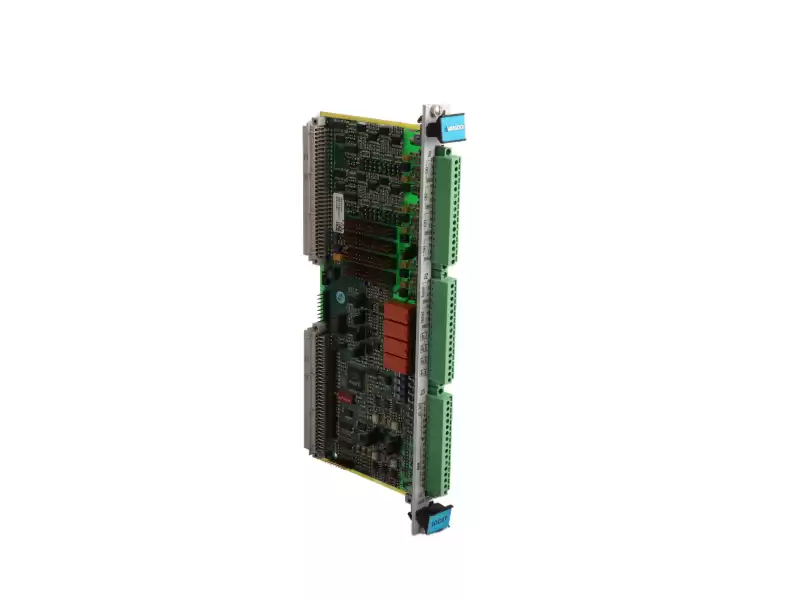

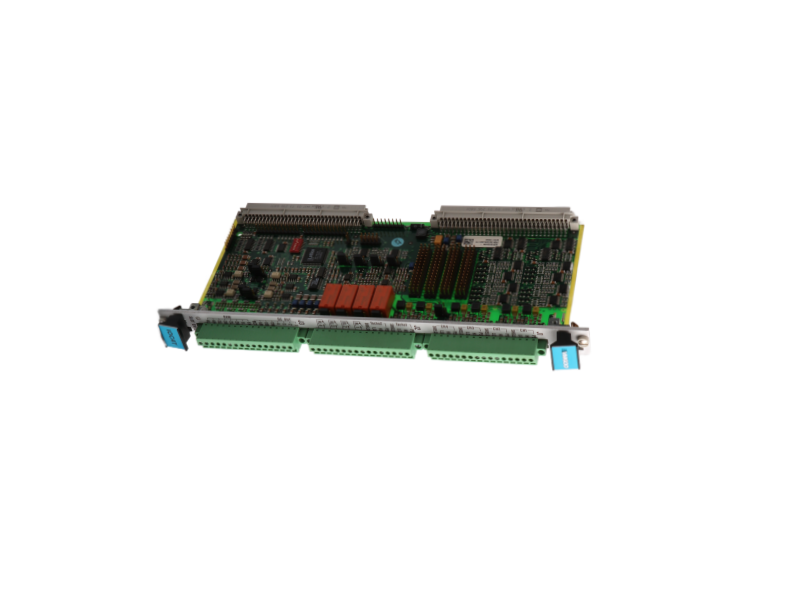

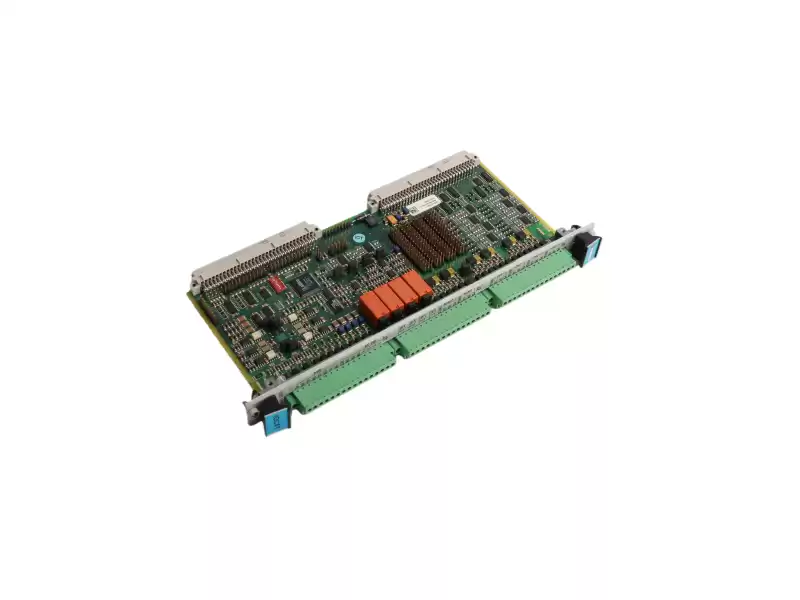

VIBRO-METER VM600 IOC4T 200-560-000-111 analog communication module

Snapshot in 30 words
Four-channel analog I/O that speaks 4-20 mA, 0-10 V, ±10 V and raw ADC counts.
Built-in scaling, linearisation, cable-fault flag.
Ships tomorrow from Xiamen.

Micro-datasheet

· Channels: 4, galvanically isolated, 16-bit Σ-Δ

· Update: 1 kHz per channel, 2 ms filter selectable

· Ranges: 0-20 mA, 4-20 mA, 0-10 V, ±10 V (jumper-free, software)

· Accuracy: ±0.05 % FSR @ 25 °C

· Burden: <250 Ω (current), >2 kΩ (voltage)

· Power: 5 V/0.6 A from VM600 back-plane

· Temp: -40 … +70 °C operating

· Cert: CE, UKCA, ATEX II 3 G Ex ec IIC T4 Gc

Quick-fit checklist
✓ Slot any VM600 I/O position
✓ Auto-scales to sensor type on first scan
✓ Cable break → channel LED flashes red + bit in status word
✓ RS-422 side-port streams raw counts for third-party DAQ

One-line install
Slide in → lock lever → auto-detect → ready (no jumpers, no cal sheet).

Order path
Quote: ab@mooreplc.com | Line item: IOC4T 200-560-000-111 | Qty: ___
