1.Product Identity

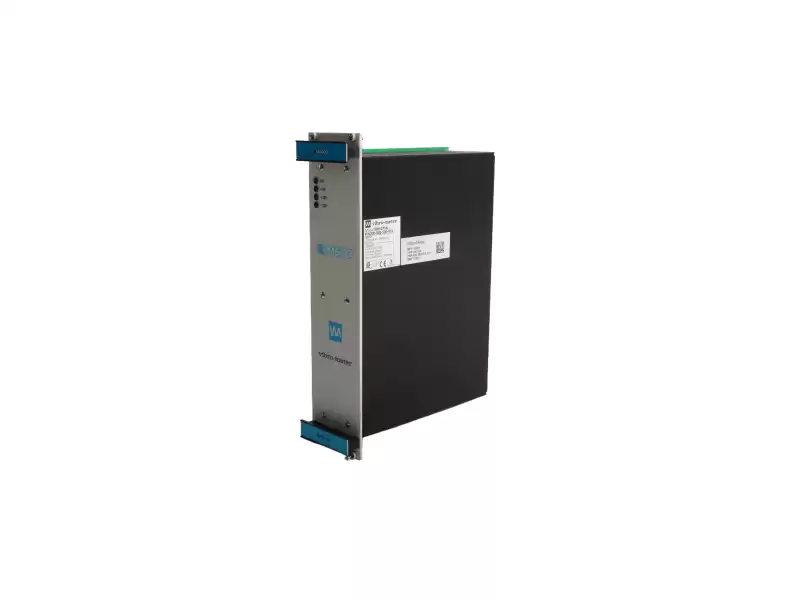

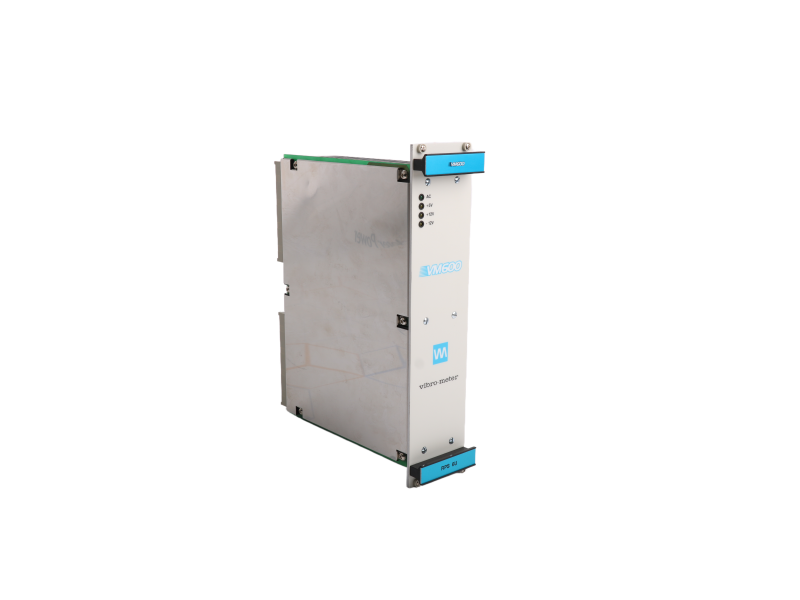

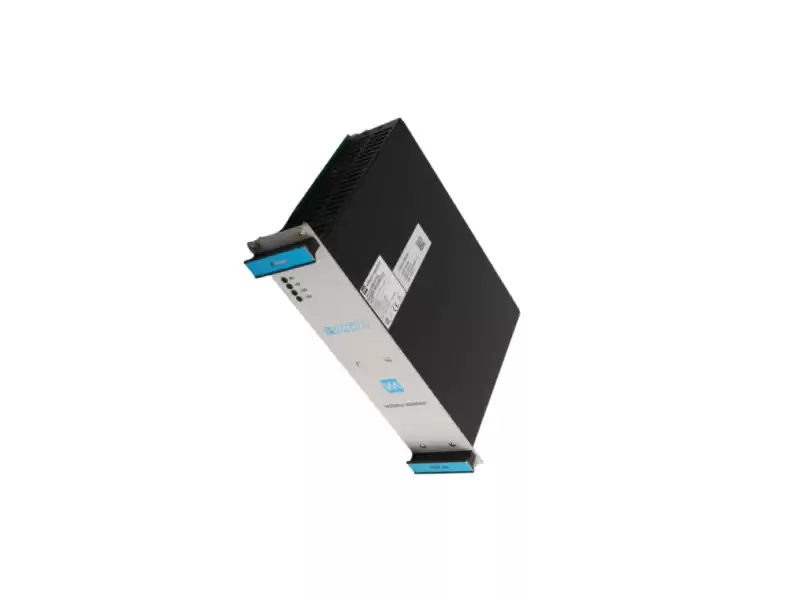

RPS6U (Rack Power Supply, 6 U) is the front-plug-in DC power module for VM600 mechanical-protection racks.
Part No. 200-582-500-013 supersedes earlier SIM-275A variants and is fully backward-compatible.
2. Core Specifications
Input: 18 – 36 VDC (24 V nominal), max 6 A
Output: regulated 24 VDC, 6 A (150 W continuous)
Back-plane buses: +24 V, +5 V, ±12 V derived on rack PCB
Redundancy: true hot-swap parallel; load-share error <3 %; zero switch-over time
Protection: OVP, OCP, SCP, OTP with auto-recovery
Cooling: natural convection – no fan, lifetime MTBF >200 kh @ 40 °C
Indication: 3-colour LED bar (Input OK / Output OK / Fault)
Isolation: 2 kV RMS input-to-output, 1 kV output-to-ground
|
Environmental
|
Value
|
Test Standard
|
|
Operating
|
-20 … +70 °C
|
IEC 60068-2-1/-2
|
|
Storage
|
-40 … +85 °C
|
IEC 60068-2-1/-2
|
|
Salt mist
|
96 h
|
IEC 60068-2-11
|
|
Vibration
|
5 g, 10-2000 Hz, 30 min/axis
|
IEC 60068-2-64
|
|
EMC
|
CE, UKCA, ATEX II 3 G Ex ec IIC T4 Gc
|
IEC 61000-6-2/4
|
3.Packaging and Delivery
PLC Autocontroller ensures careful packaging and global logistics:
ü Anti-static, anti-vibration, and moisture-proof packaging
ü Original manufacturer box with technical documentation
ü Worldwide shipping via DHL / FedEx / UPS / TNT
ü Large stock availability for immediate dispatch
ü 100% brand new and original, with a one-year warranty
4.Conclusion
The VIBRO METER VM600 RPS6U SIM-275A 200-582-500-013 power supply module delivers high performance, stability, and modular design, making it the core energy solution of VM600 systems.
Combined with PLC Autocontroller’s global inventory, competitive pricing, and technical support, customers can reliably acquire high-quality automation spare parts to ensure safe and efficient equipment operation.
