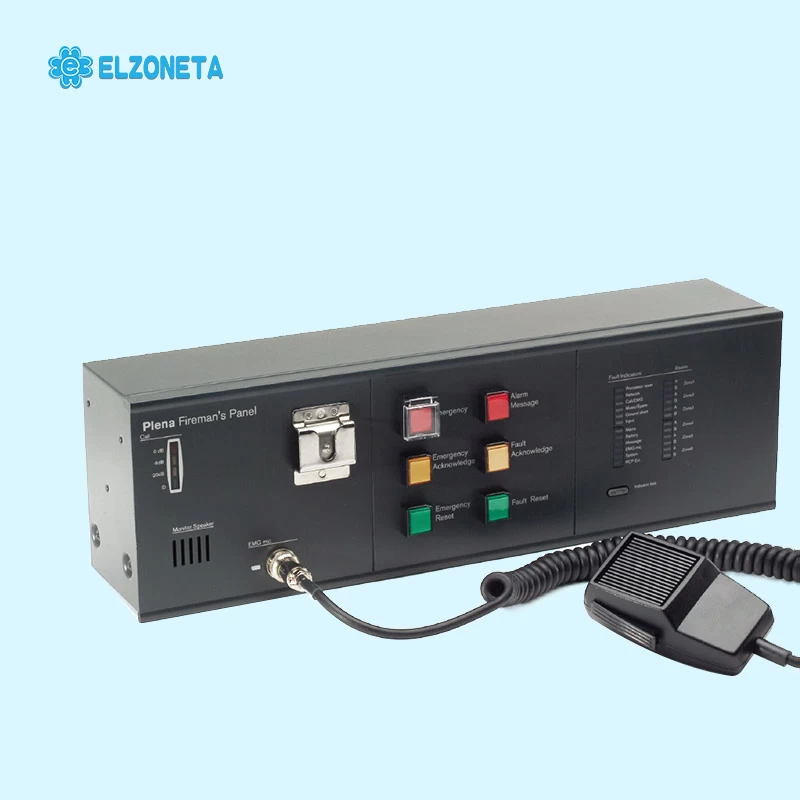

EC-PVS-FP01 Fireman Panel

Features

1. Remote control of the Plena Voice Alarm System

2. EN 54 16 certified

3. Emergency (EMG) microphone

4. EMG state and fault indicators

5. Call monitoring loudspeaker

Specifications

Power supply

Voltage : 24 VDC, +20% / -10%

Current typical : 100 mA

Current max (indicator test) : 250 mA

Priority relay contacts : 30 V, 1 A

Emergency relay contacts : 30 V, 1 A

Dimensions : 134 x 430 x 90 mm (19" wide, 3U high)

Weight : Approx. 3 kg

Mounting : 19” rack or wall

Color : Charcoal

Operating temperature : -10 ºC to +55 ºC (14 ºF to +131 ºF)

Storage and transport temperature : -40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity : <95%
