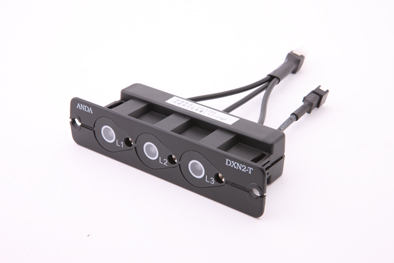

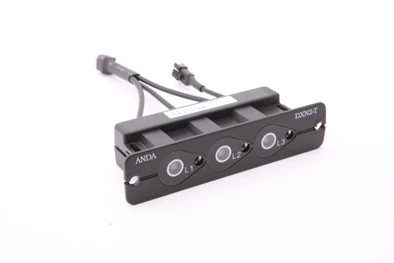

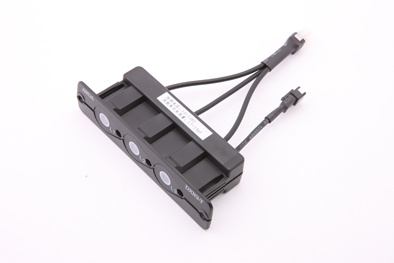

MV Voltage Indication System DXN2-T

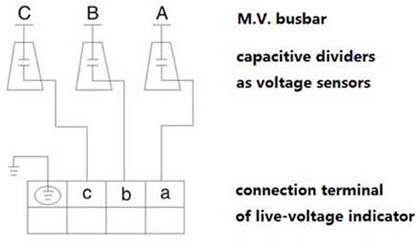

DXN2-T MV voltage indication systems indicate the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.
Features of MV Voltage Indication System DXN2-T
* 3 phase live voltage
indication system
* Overvoltage
protection
* With the extra terminal for
interlocking signals output. Can work with the lock indicating units (such as
DXN2-Q) to realize lock indication
* Wide-range: 3kV-
40.5kV
* Working frequency:
50/60Hz
* Threshold values for
voltage presence indication: U>0.40 x Unmin
* Threshold values for
voltage absence indication: U<0.15 x Unmax
* Threshold values for
over-voltage protection: <0.30 x Unmin
* Divider capacitance 18pF or be specified
by buyer
* Temperature range
-25°C to +40°C
* Insulation strength:
AC 2kV, 1min
* Product dimensions
(L×W×D) 130x30x168mm
Technical
Parameter of MV Voltage Indication System DXN2-T
|
Executive Standard
|
DL/T538-2006
|
|
Working Frequency
|
50Hz/60Hz
|
|
Nominal Voltage
|
3-3.6kV
|
|
6-7.2kV
|
|
10-12kV
|
|
20-24kV
|
|
35-40.5kV
|
|
Divider Capacitance
|
18pF,or customized by buyers
|
|
Threshold Values for Voltage Presence Indication
|
U>0.40 x Unmin
|
|
Threshold Values for Voltage Absence indication
|
U<0.15 x Unmax
|
|
Threshold Values for Over-voltage Protection
|
U<0.30 x Unmin
|
|
Working Temperature
|
-25℃-+40℃
|
|
Working Humidity
|
＜95%
|
|
Insulation Strength
|
2kV,1min
|
|
Overall Dimension (LxWxD)
|
130x30x168 mm
|
