VOLVO VOE14640025 14640025

VOE14640025 bearings are used in the final drive Bearing system of VOLVO heavy machinery equipment:



VOE14640025 BEARING Volvo parts


EC380E, EC480D, EC480E, EC480EHR





 VOLVO final drive motor bearing VOE14640025 14640025


P/N VOE14640025 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Cylindrical Roller Bearings





Product Features:

1. High load capacity

2. Smooth rotation

3. Low noise

4. Longer service life



Our advantage:
100% quality assurance
Quick response within 24 hours;
Small orders allowed;
Reasonable inventory and timely delivery;
Good after-sales service.
We are a professional manufacturer specialized in excavators bearings with 15+ years experience.



Production Process






Product Photos

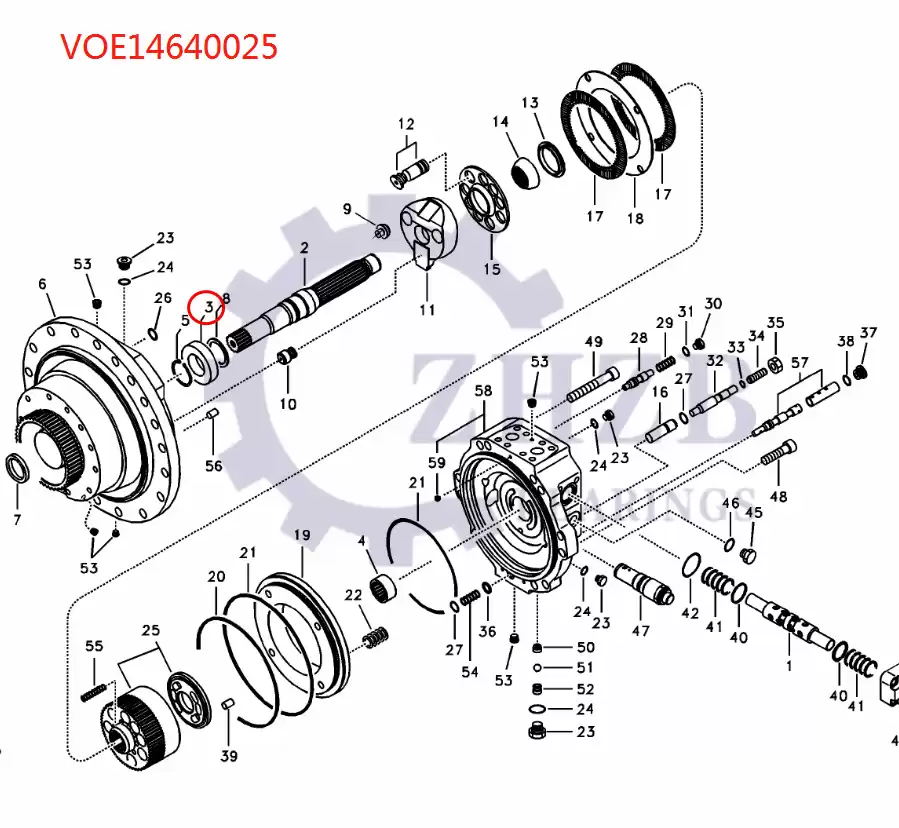

VOE14640025

Pos.

Part No

Qty

Parts name

Comments



  VOE14604840

  [1]

  Travel motor



1.

  VOE14604828

  [1]

  Casing



2.

  VOE14604841

  [1]

  O-ring



3.

  VOE960260

  [1]

  O-ring



4.

  VOE983507

  [1]

  O-ring



5.

  VOE983501

  [1]

  O-ring



6.

  VOE14552644

  [1]

  Cylinder



7.

  VOE14551797

  [9]

  Piston



8.

  VOE14551525

  [1]

  Pin



9.

  VOE990585

  [2]

  O-ring



10.

  SA7242-10540

  [2]

  Cover



11.

  SA7242-10750

  [2]

  Screw



12.

  VOE983497

  [3]

  O-ring



13.

  SA9415-31021

  [7]

  Plug



14.

  VOE993320

  [7]

  O-ring



15.

  VOE14506972

  [1]

  Plate



16.

  VOE984848

  [2]

  Hex. socket screw



17.

  VOE14560637

  [10]

  Plug



18.

  VOE968131

  [8]

  Hex. socket screw



19.

  SA9415-31041

  [2]

  Plug



20.

  VOE993322

  [2]

  O-ring



21.

  VOE984229

  [4]

  Hex. socket screw



22.

  SA7242-10710

  [2]

  Clamping plate



23.

  SA7242-10720

  [2]

  Guard



24.

  VOE14880998

  [2]

  Ball



25.

  VOE14880006

  [1]

  Name plate



26.

  SA1010-11360

  [2]

  Screw



27.

  SA7242-10520

  [2]

  Washer



28.

  SA7242-10530

  [2]

  Spring



29.

  SA7242-11560

  [1]

  Spring



30.

  VOE14507000

  [1]

  Spacer



31.

  SA7242-11290

  [1]

  Plug



32.

  VOE983509

  [1]

  O-ring



33.

  VOE14509997

  [1]

  Spool



34.

  VOE14506994

  [1]

  Spring



35.

  VOE14506995

  [1]

  Plug



36.

  VOE983505

  [1]

  O-ring



37.

  VOE14579610

  [1]

  Control plunger



38.

  VOE14604829

  [1]

  Shaft



39.

  VOE14640025

  [1]

  Roller bearing



40.

  VOE14506955

  [1]

  Bearing



41.

  VOE914472

  [1]

  Snap ring



42.

  VOE14604826

  [1]

  Casing



43.

  SA7242-10590

  [1]

  Seal



44.

  SA9541-02090

  [1]

  Retaining ring



45.

  VOE14506958

  [2]

  Pivot



46.

  VOE14604837

  [1]

  Piston



47.

  VOE14551526

  [1]

  Pin



48.

  VOE14604834

  [3]

  Plate



49.

  VOE14604835

  [2]

  Plate



50.

  VOE14604833

  [1]

  Piston



51.

  VOE960262

  [1]

  O-ring



52.

  VOE990849

  [2]

  O-ring



53.

  VOE14568004

  [10]

  Spring



54.

  VOE14604831

  [1]

  Plate



55.

  VOE14552644

  [1]

  Cylinder



56.

  VOE14506967

  [9]

  Spring



57.

  VOE14506968

  [1]

  Spacer



58.

  VOE14506970

  [1]

  Guide



59.

  VOE14568912

  [2]

  Relief valve



60.

  SA8240-03680

  [2]

  Snap ring



61.

  VOE990582

  [2]

  O-ring



62.

  VOE14880837

  [2]

  Back-up ring



63.

  VOE14548120

  [2]

  Spring



64.

  SA7273-30540

  [4]

  Ring



65.

  VOE983542

  [2]

  O-ring



66.

  VOE983501

  [2]

  O-ring



67.

  VOE14625244

  [2]

  Ring



68.

  VOE983527

  [2]

  O-ring



69.

  VOE14506950

  [1]

  Spool



70.

  VOE14880996

  [2]

  Ball



100.

  VOE14596398

  [1]

  Seal

VOLVO BearingFinal drive motor bearingsVOLVO Bearing



Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!


Product production process: rough forgings-annealing-turning processing-heat treatment-grinding processing-super fine grinding-finished product assembly.
